Двухдверный кулер для напитков
US $150.00-$180.00
Охладитель с воздушным охлаждением 12 л.с. промышленный холодильник для брожения пива пивоваренного
- Категории: >>>
- Поставщик: Shandong,Meto,Beer,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

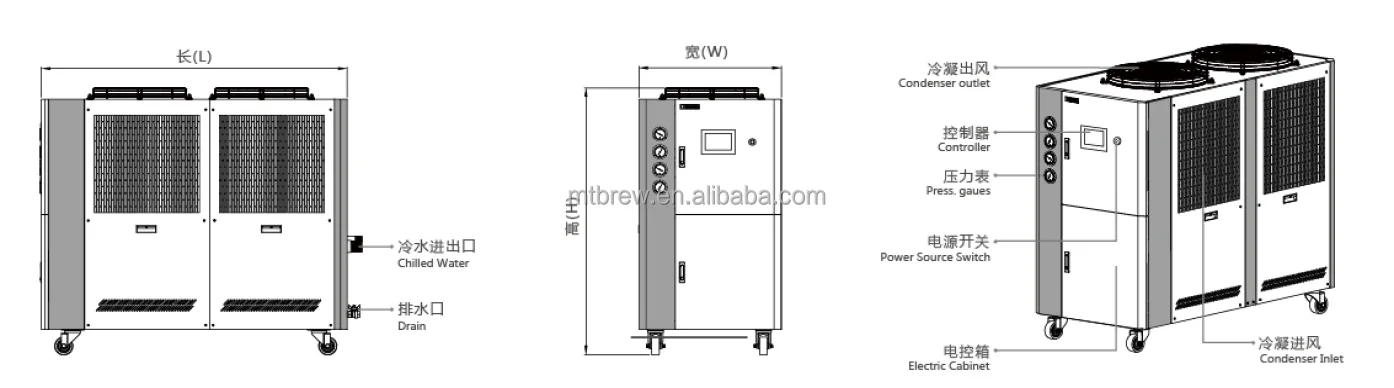

Air cooling refrigerator drawing
Air cooling refrigerator drawing
Air cooling refigerator

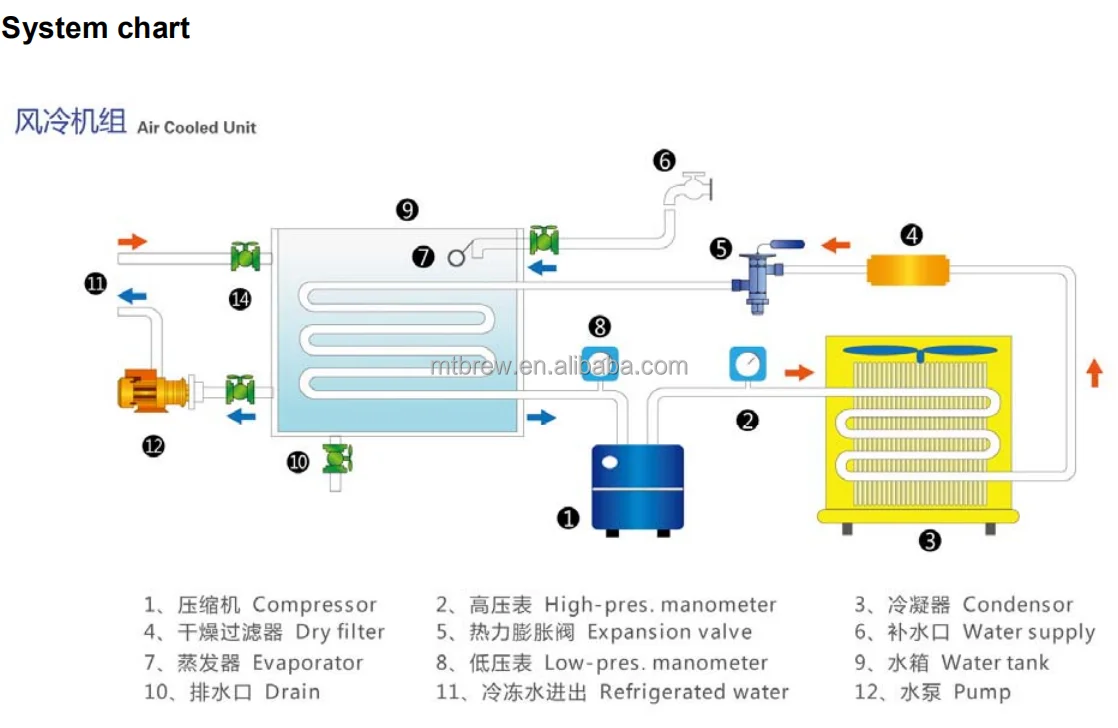

Air cooling unit working procedure
Air cooling refigerator
Air cooling unit working procedure
Air cooling refigerator
Air cooling unit working procedure

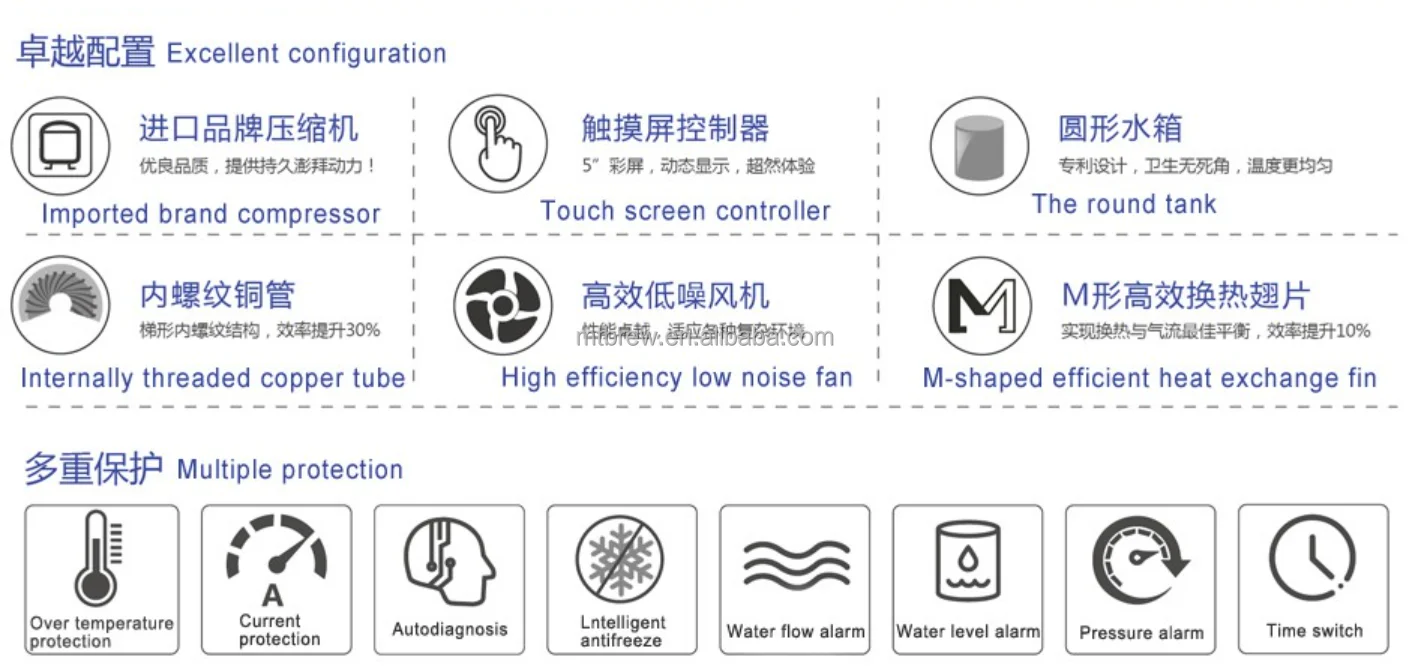

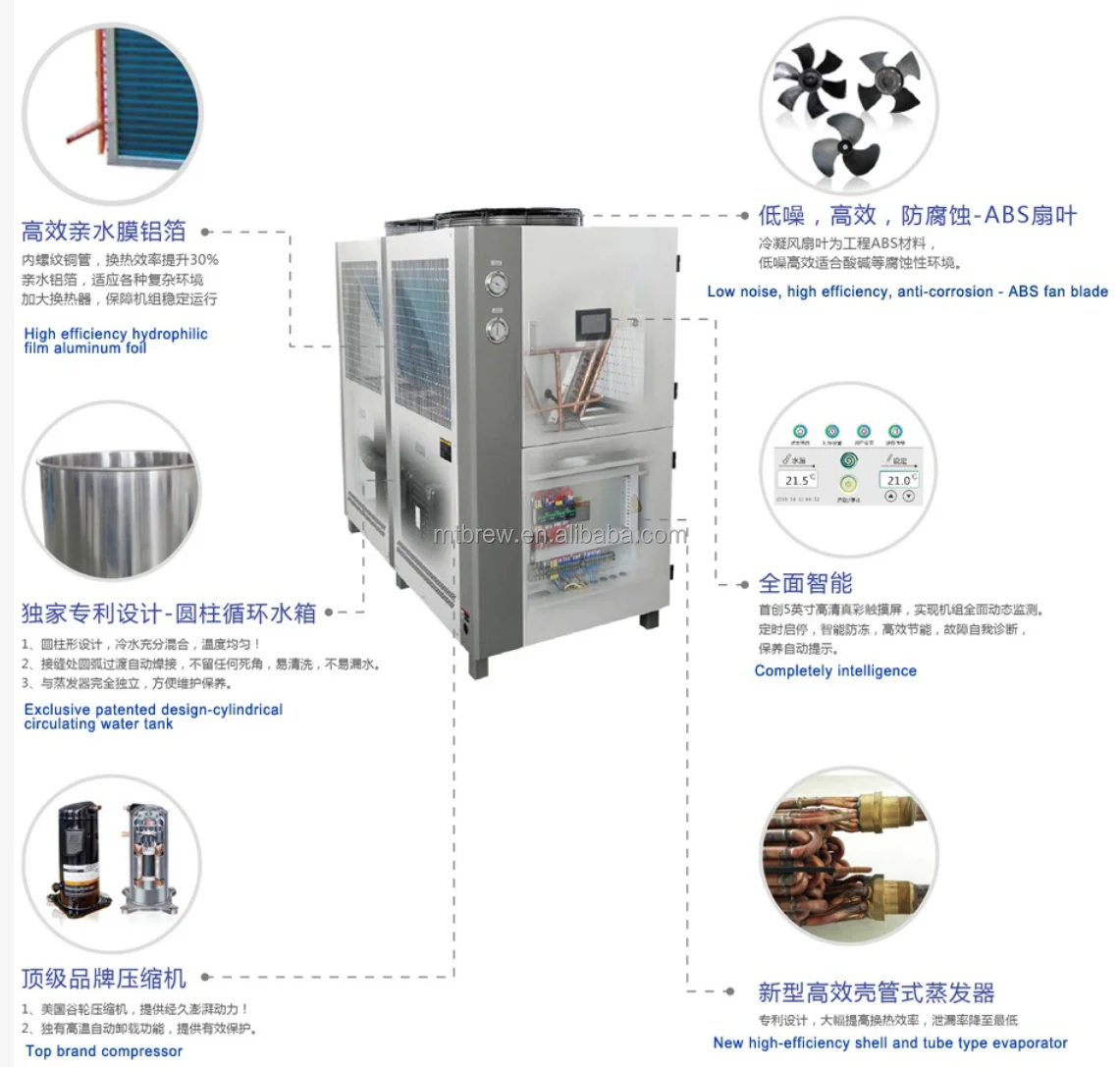

Air cooling unit excellent configuration
Air cooling unit 0.6HP, 1HP, 2HP, 3HP, 5HP, 6HP, 7HP, 8HP, 10HP
12HP, 15HP, 20HP, 25HP, 30HP, 40HP, 50HP, 60HP
1. Have been a professional refrigeration solution provider and chiller manufacturer for 17 years. It is one of the most
experienced chillers manufacturer in China . After years of operation, our products have been distributed in various industries
all over the world. We can provide the most reliable and cost-effective solution according to the needs of customers, and provide
high-quality chillers.
Advantages Of Air Cooled Water Chiller
1. Have been a professional refrigeration solution provider and chiller manufacturer for 17 years. It is one of the most
experienced chillers manufacturer in China . After years of operation, our products have been distributed in various industries
all over the world. We can provide the most reliable and cost-effective solution according to the needs of customers, and provide
high-quality chillers.
2.Our partners are all world famous brands. COPELAND, DANFOSS, EMERSON, SCHNEIDER all provide their best
accessories for our chillers, because we always pursue product quality and user experience.
accessories for our chillers, because we always pursue product quality and user experience.

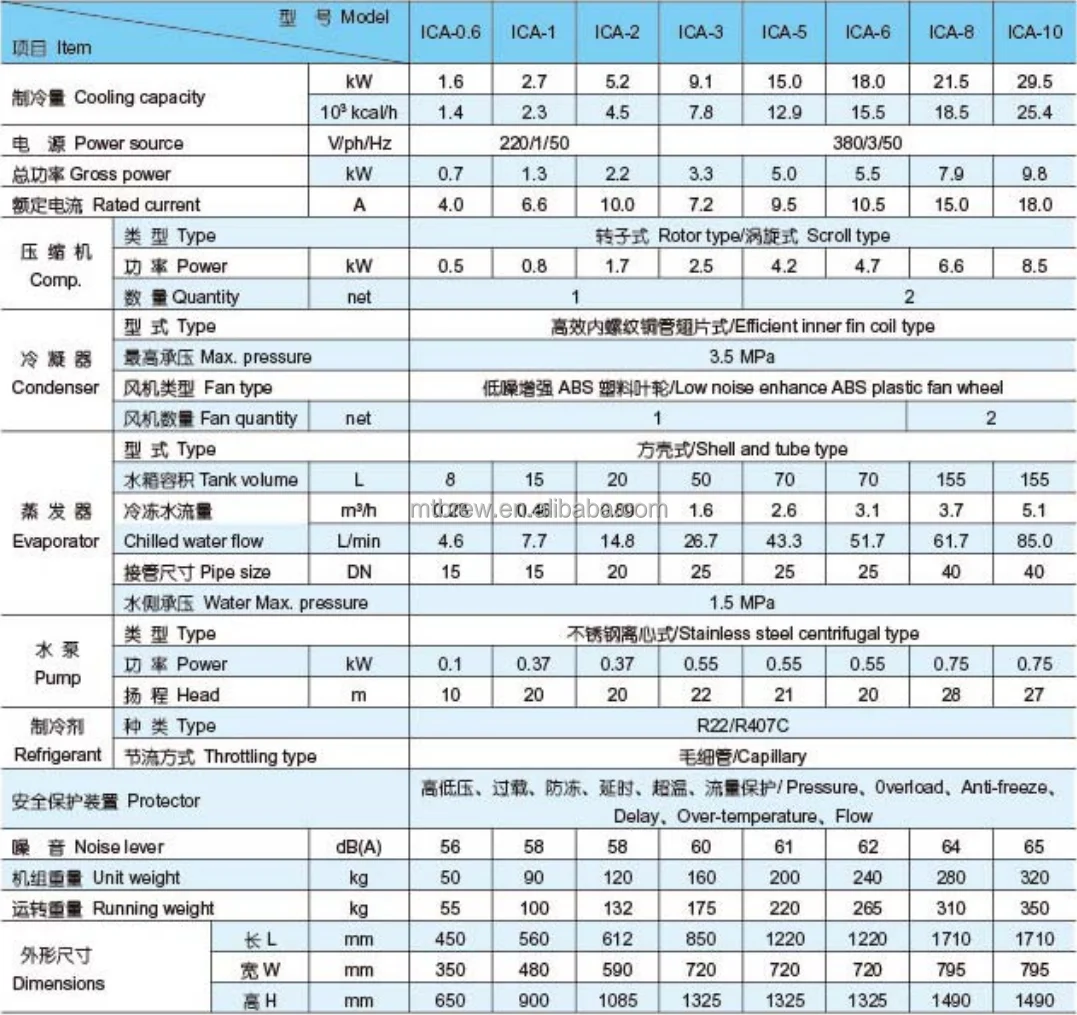

Air cooling unit specification
Air cooling unit 0.6HP, 1HP, 2HP, 3HP, 5HP, 6HP, 7HP, 8HP, 10HP

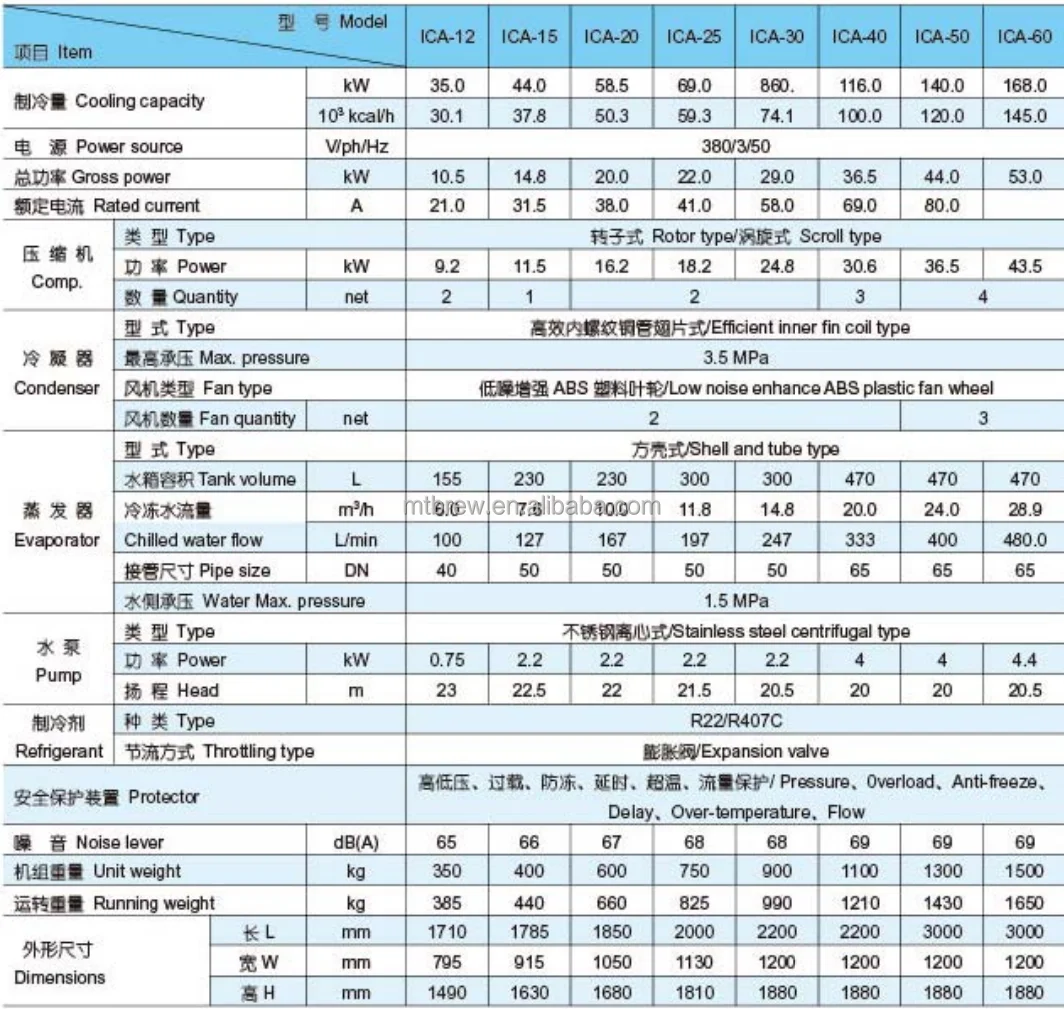

Air cooling unit specification
Air cooling unit 12HP, 15HP, 20HP, 25HP, 30HP, 40HP, 50HP, 60HP

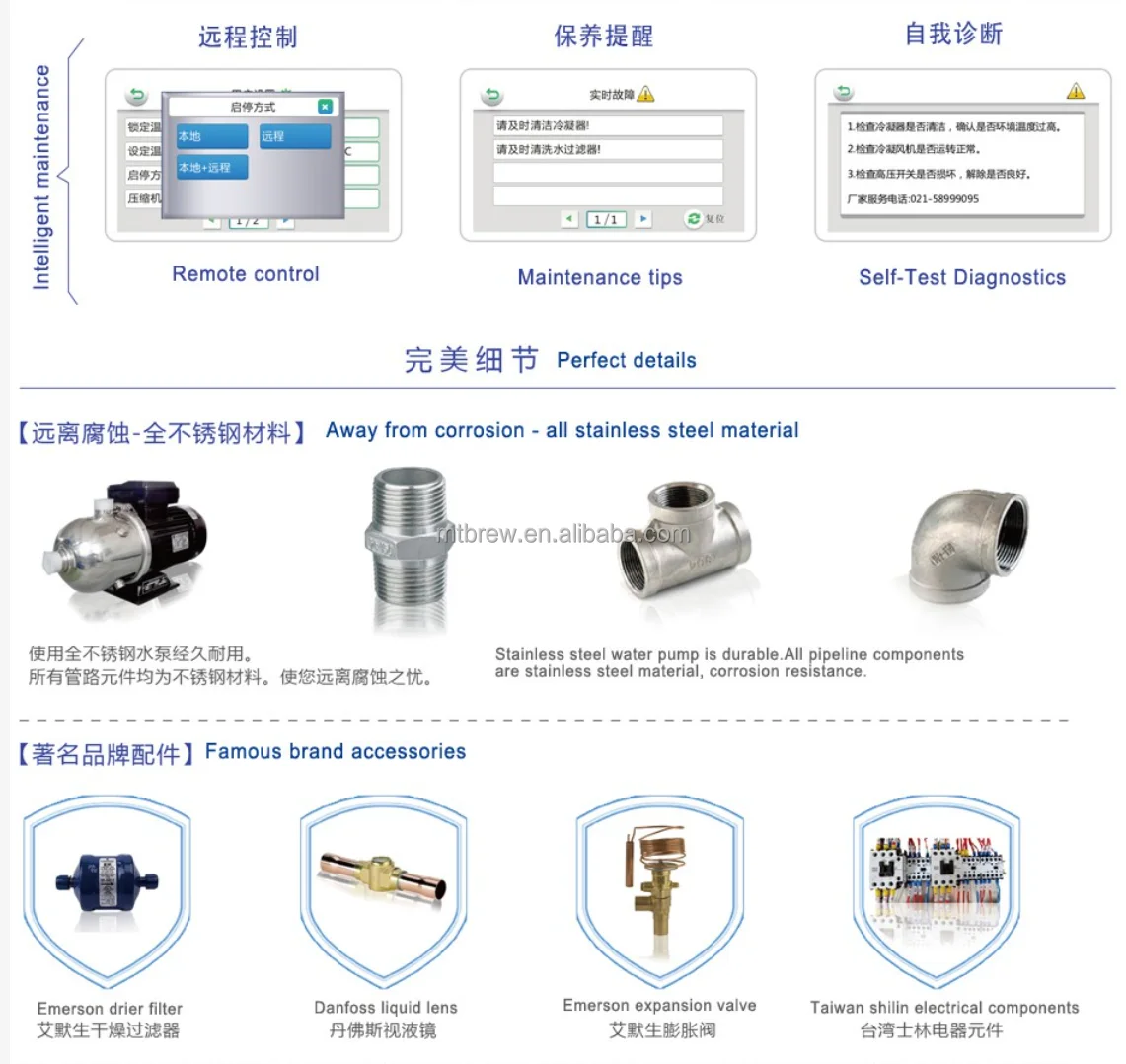

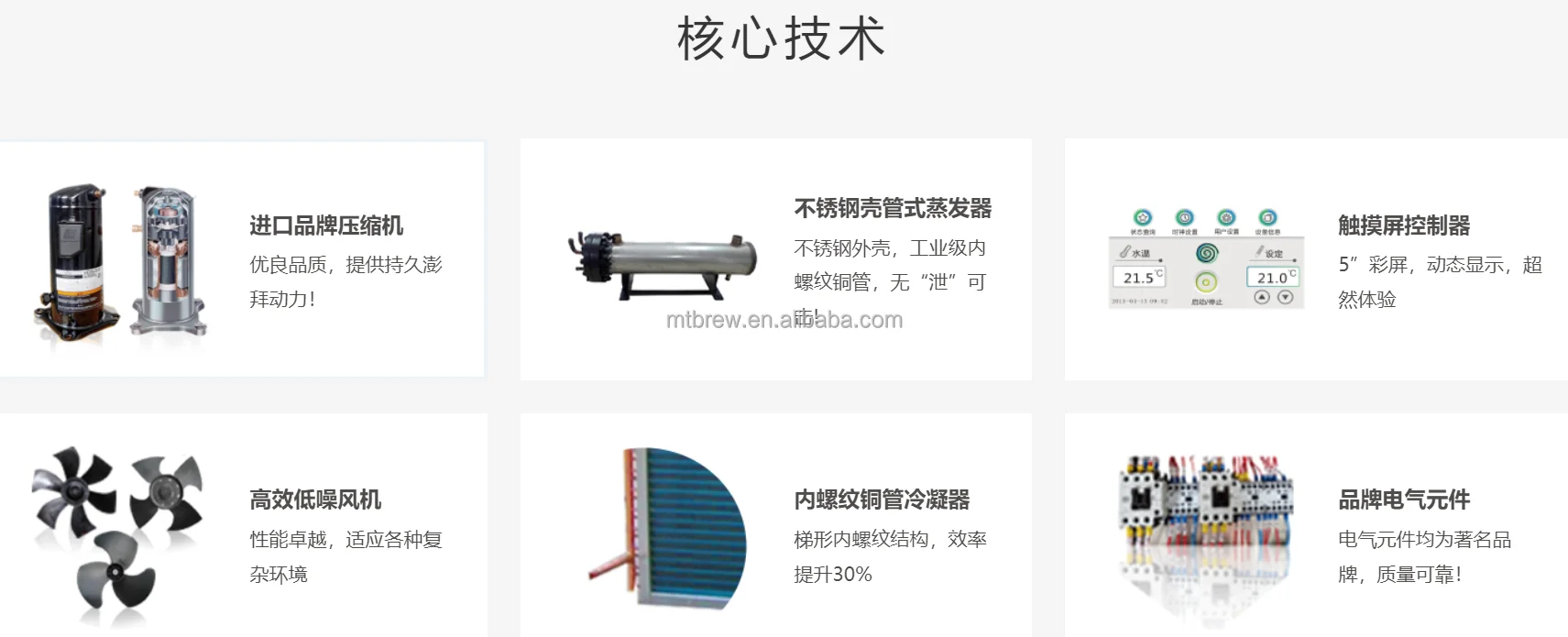

Air cooling unit core technology
1. Corrosion resistant pump for glycol water recycle
2. Efficient and low noise fans top amounted
3. High and low pressure gauge for fryon monitoring
4. High pressure and low pressure alarm
5. Protector : Pressure alarm ,over temp alarm , over load alarm, intelligent anti-freezing protection , water flow alarm,
6. Timer setup for start/stop
fitting assembled well
7. Noise Level: 65dB(A)
8. Corrosion resistant plastic painting cover allow outdoor placement
9. All copper welding by Harris USA welding rod
10.tested by pressured N2 gas avoid any leakage risk
11. The whole machine is Shock absorption design avoiding risk of quake crack during running
2. Efficient and low noise fans top amounted
3. High and low pressure gauge for fryon monitoring
4. High pressure and low pressure alarm
5. Protector : Pressure alarm ,over temp alarm , over load alarm, intelligent anti-freezing protection , water flow alarm,
6. Timer setup for start/stop
fitting assembled well
7. Noise Level: 65dB(A)
8. Corrosion resistant plastic painting cover allow outdoor placement
9. All copper welding by Harris USA welding rod
10.tested by pressured N2 gas avoid any leakage risk
11. The whole machine is Shock absorption design avoiding risk of quake crack during running
Brewery Cooling System used to brew beer locally. It is one important step for beer making.
The cooling system includes Chilled Water Tank, Refrigerating Machine and Other Line Valves Equipment. Beer refrigerating system
mainly used for the cooling of wort and fermentation. The chiller that we adopt comes from the famous china brand which could keep
the stable quality and enjoy more better-refrigerating effect. The optimum allocation of the refrigerating system can greatly
reduce the wastage of energy, ensure the stable operation of beer brewed.
The cooling system includes Chilled Water Tank, Refrigerating Machine and Other Line Valves Equipment. Beer refrigerating system
mainly used for the cooling of wort and fermentation. The chiller that we adopt comes from the famous china brand which could keep
the stable quality and enjoy more better-refrigerating effect. The optimum allocation of the refrigerating system can greatly
reduce the wastage of energy, ensure the stable operation of beer brewed.
SPECIFICATIONS FOR BREWING EQUIPMENT --- Fermentation System
Cooling System Or Refrigerating System
1. Chiller
2. Glycol Tank
3. Ice Water Pump
4. Insulation Pipe
5. Cold Media Pipes
ETC.
2. Glycol Tank
3. Ice Water Pump
4. Insulation Pipe
5. Cold Media Pipes
ETC.
1. Glycol tank capacity: based on the requirement
300-6000L
2.Insulation: polyurethane, TH=80mm
3.Interior thickness:3mm, exterior thickness:2mm
4. Equipped with liquid level meter
5.Top-mounted manhole
6.Inner tank mechanical polishing and out
plate surface protection ribbon polished
on welds
7.100%TIG welding with pure argon gas
8. Material: SUS304, brushed outer shell
300-6000L
2.Insulation: polyurethane, TH=80mm
3.Interior thickness:3mm, exterior thickness:2mm
4. Equipped with liquid level meter
5.Top-mounted manhole
6.Inner tank mechanical polishing and out
plate surface protection ribbon polished
on welds
7.100%TIG welding with pure argon gas
8. Material: SUS304, brushed outer shell
1. Function: Glycol water chilling
2. Brand : KanSa
3. Type: Air cooled glycol water chiller
4. Model: ICA-12
5. Ambient Temp 35℃; Water outlet Temp -5℃
6. Cooling Capacity: 35000W/30100Kcal/h
7. Power source: 3-Phase/380V/50Hz (Customized Voltage for special request)
8. Gross power: 10.5KW
9. Rated Current: 21A
10. Refrigerant: Freon R407C (Other type Freon for special request can customized )
11. Programmed 5'' LCD control panel with water proof cover
12. Automatic temperature controller
13. Scroll Compressor ( Copeland, Danfoss, Sanyo etc )
14. Expansion valve( Danfoss )
15. V-shape top mounted condensor with corrosion resistant inner fin copper tube
16. Evaporator: SUS304 shell and corrosion resistant inner copper tube low risk of leakage
17. Corrosion resistant pump for glycol water recycle
18. Efficient and low noise fans top amounted
19. High and low pressure gauge for fryon monitoring
20. High pressure and low pressure alarm
21. Protector : Pressure alarm ,over temp alarm , over load alarm, intelligent anti-freezing protection , water flow alarm ,
22. Timer setup for start/stop
23. Complete pipes and fitting assembled well
24. Noise Level: 65dB(A)
25. Corrosion resistant plastic painting cover allow outdoor placement
26. All copper welding by Harris USA welding rod
27. All chiller has been tested by pressured N2 gas avoid any leakage risk
28. The whole machine is Shock absorption design avoiding risk of quake crack during running
29. Unit Weight: 350kg; Running Weight: 385kg
30. Size: 1710x795x1490mm
2. Brand : KanSa
3. Type: Air cooled glycol water chiller
4. Model: ICA-12
5. Ambient Temp 35℃; Water outlet Temp -5℃
6. Cooling Capacity: 35000W/30100Kcal/h
7. Power source: 3-Phase/380V/50Hz (Customized Voltage for special request)
8. Gross power: 10.5KW
9. Rated Current: 21A
10. Refrigerant: Freon R407C (Other type Freon for special request can customized )
11. Programmed 5'' LCD control panel with water proof cover
12. Automatic temperature controller
13. Scroll Compressor ( Copeland, Danfoss, Sanyo etc )
14. Expansion valve( Danfoss )
15. V-shape top mounted condensor with corrosion resistant inner fin copper tube
16. Evaporator: SUS304 shell and corrosion resistant inner copper tube low risk of leakage
17. Corrosion resistant pump for glycol water recycle
18. Efficient and low noise fans top amounted
19. High and low pressure gauge for fryon monitoring
20. High pressure and low pressure alarm
21. Protector : Pressure alarm ,over temp alarm , over load alarm, intelligent anti-freezing protection , water flow alarm ,
22. Timer setup for start/stop
23. Complete pipes and fitting assembled well
24. Noise Level: 65dB(A)
25. Corrosion resistant plastic painting cover allow outdoor placement
26. All copper welding by Harris USA welding rod
27. All chiller has been tested by pressured N2 gas avoid any leakage risk
28. The whole machine is Shock absorption design avoiding risk of quake crack during running
29. Unit Weight: 350kg; Running Weight: 385kg
30. Size: 1710x795x1490mm
Packing & Delivery
Pre-Sales Service
1. Inquiry and consulting the support
2. View our Factory and get free training
Guarantee and After-sale service:
1. The main product for 1 years warranty and auxiliary parts for 12 months.
2. Technical support by phone, email or WhatsApp/Skype/Wechat around the clock.
3. Engineer available to service machinery overseas to install and training how to use the machine.
1. Inquiry and consulting the support
2. View our Factory and get free training
Guarantee and After-sale service:
1. The main product for 1 years warranty and auxiliary parts for 12 months.
2. Technical support by phone, email or WhatsApp/Skype/Wechat around the clock.
3. Engineer available to service machinery overseas to install and training how to use the machine.
Company Profile
SHANDONG METO BEER EQUIPMENT CO., LTD. is a professional manufacturer of craft beer equipment. Our company has integrated design, research, development, production, sales, installation, commissioning, and after-sales service, is committed to become the world first-class craft beer equipment supplier.
Our company is located in the beautiful spring city- Jinan, with convenient transportation and superior environment in the western new district. Our company has modern production workshop and first-class production equipment, and always been adhering to the business idea of "innovative and enterprising" and insist on the tenet of "premium services" since it's established. By continuous optimizing our enterprise management and production mode, absorbing international advanced craft equipment technology, and communicating with many first-class brewmasters, the craft beer equipment which designed and produced by METO, not only can applicable to different needs of customers, also be popular with domestic and foreign customers by its good quality and competitive price. So far, METO craft beer equipment has become the biggest selling craft beer equipment brand in China.
Meto craft beer equipment includes home/Pub microbrewery and craft beer factory equipment .MT200L-MT1000L designed for hotels, bars and other dining and entertainment venues.MT1000L- MT5000L is suitable for small and medium-sized craft breweries,MT50L-MT100L home craft beer equipment is designed for homebrew enthusiasts.
Depending on qualified products and considerate service.Meto has good reputation in craft beer brewing,also forms a stable customer group.
Craft beer is popular in the world, in this area, METO is not only a professional craft equipment supplier, but also a craft beer culture promoter, we understand the dream of brewmasters and craft beer lovers, we have the ability to let you stand higher, go further.
METO will preserve to become the trustworthy partner with craft beer practitioners.
Our company is located in the beautiful spring city- Jinan, with convenient transportation and superior environment in the western new district. Our company has modern production workshop and first-class production equipment, and always been adhering to the business idea of "innovative and enterprising" and insist on the tenet of "premium services" since it's established. By continuous optimizing our enterprise management and production mode, absorbing international advanced craft equipment technology, and communicating with many first-class brewmasters, the craft beer equipment which designed and produced by METO, not only can applicable to different needs of customers, also be popular with domestic and foreign customers by its good quality and competitive price. So far, METO craft beer equipment has become the biggest selling craft beer equipment brand in China.
Meto craft beer equipment includes home/Pub microbrewery and craft beer factory equipment .MT200L-MT1000L designed for hotels, bars and other dining and entertainment venues.MT1000L- MT5000L is suitable for small and medium-sized craft breweries,MT50L-MT100L home craft beer equipment is designed for homebrew enthusiasts.
Depending on qualified products and considerate service.Meto has good reputation in craft beer brewing,also forms a stable customer group.
Craft beer is popular in the world, in this area, METO is not only a professional craft equipment supplier, but also a craft beer culture promoter, we understand the dream of brewmasters and craft beer lovers, we have the ability to let you stand higher, go further.
METO will preserve to become the trustworthy partner with craft beer practitioners.
FAQ
1. who are we?
We are based in Shandong, China, start from 2013,sell to Domestic Market(20.00%),Eastern Asia(10.00%),South America(10.00%),North America(10.00%),Western Europe(10.00%),Northern Europe(8.00%),Southern Europe(6.00%),Southern Europe(6.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Central America(2.00%),Southeast Asia(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Beer Equipment,Fermenters,Stainless Steel Tanks,Distillation Equipment
4. why should you buy from us not from other suppliers?
Meto beer equipment ,as one of the best beer equipment brands in china,with15 years design&manufacture experience, adopting international advanced technology, including variety of beer equipment,simple operation and excellent performance.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,CAD,HKD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2013,sell to Domestic Market(20.00%),Eastern Asia(10.00%),South America(10.00%),North America(10.00%),Western Europe(10.00%),Northern Europe(8.00%),Southern Europe(6.00%),Southern Europe(6.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Central America(2.00%),Southeast Asia(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Beer Equipment,Fermenters,Stainless Steel Tanks,Distillation Equipment
4. why should you buy from us not from other suppliers?
Meto beer equipment ,as one of the best beer equipment brands in china,with15 years design&manufacture experience, adopting international advanced technology, including variety of beer equipment,simple operation and excellent performance.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,CAD,HKD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
