Резак для бумаги, диаметр 44 мм
US $61.00-$64.00
Малая ручная машина для обработки рулонов туалетной бумаги производственная линия начала бизнеса с сертификатом
- Категории: Paper Production Machinery >>>
- Поставщик: Fujian,Xinyun,Machinery,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
XY-TQ-A-C Small Scale Manual Toilet Tissue Paper Roll Processing Machine Production Line for Start Business with CE Certificate
Description of the equipment :

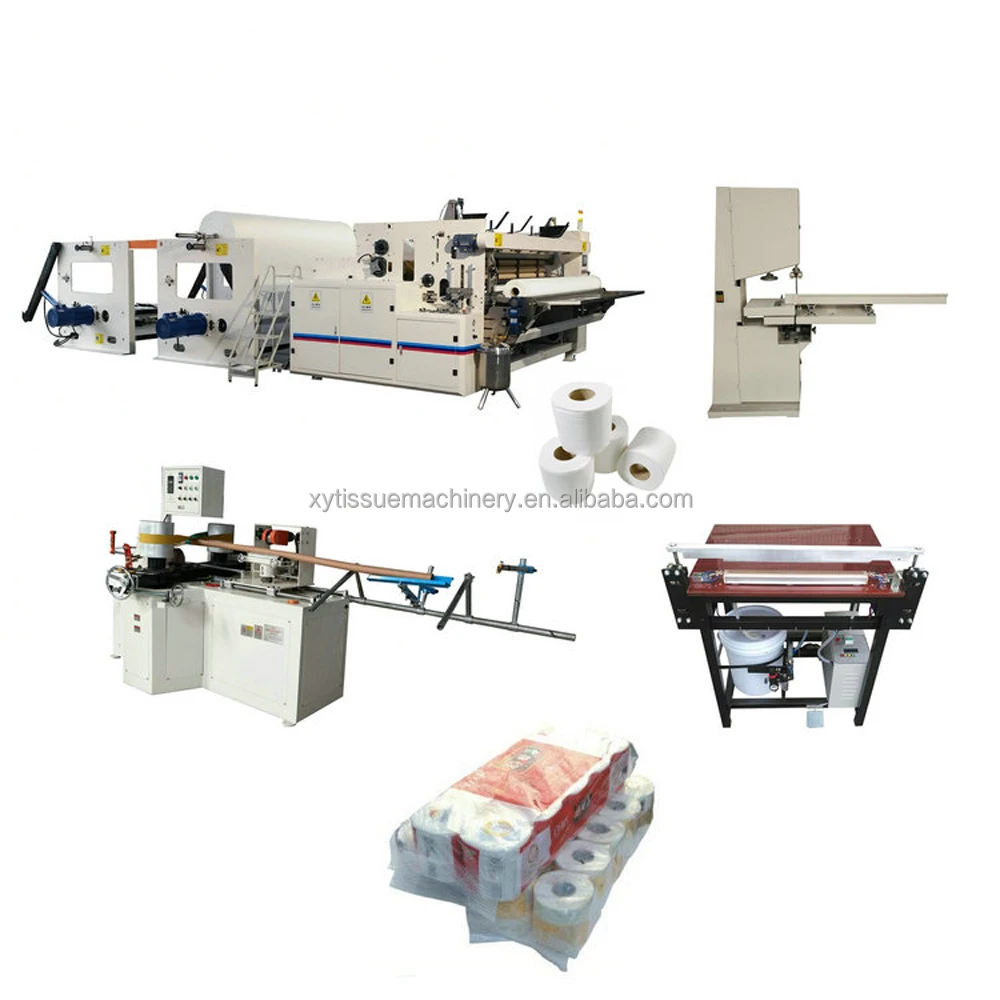

XY-TQ-A-C , Semi automatic small toilet paper machine production line which composed of:
A. 1 set of XY-TQ-B Full-automatic high-speed rewinding and perforated toilet paper machine,
B. 1 set of XY-AI-300 Manual small toilet paper band saw cutting machine,
C. 1 set of XY-AI-398B Manual Plastic Bag Sealing and Packing Machine
D. 1 set of XY-SD-A Automatic paper core making machine.
Production Process: Unwinding---Embossing---Tail gluing---Edge Trimming---Rewinding---Cutting---Packing
B. 1 set of XY-AI-300 Manual small toilet paper band saw cutting machine,
C. 1 set of XY-AI-398B Manual Plastic Bag Sealing and Packing Machine
D. 1 set of XY-SD-A Automatic paper core making machine.
Production Process: Unwinding---Embossing---Tail gluing---Edge Trimming---Rewinding---Cutting---Packing
3D virtual reality showroom:

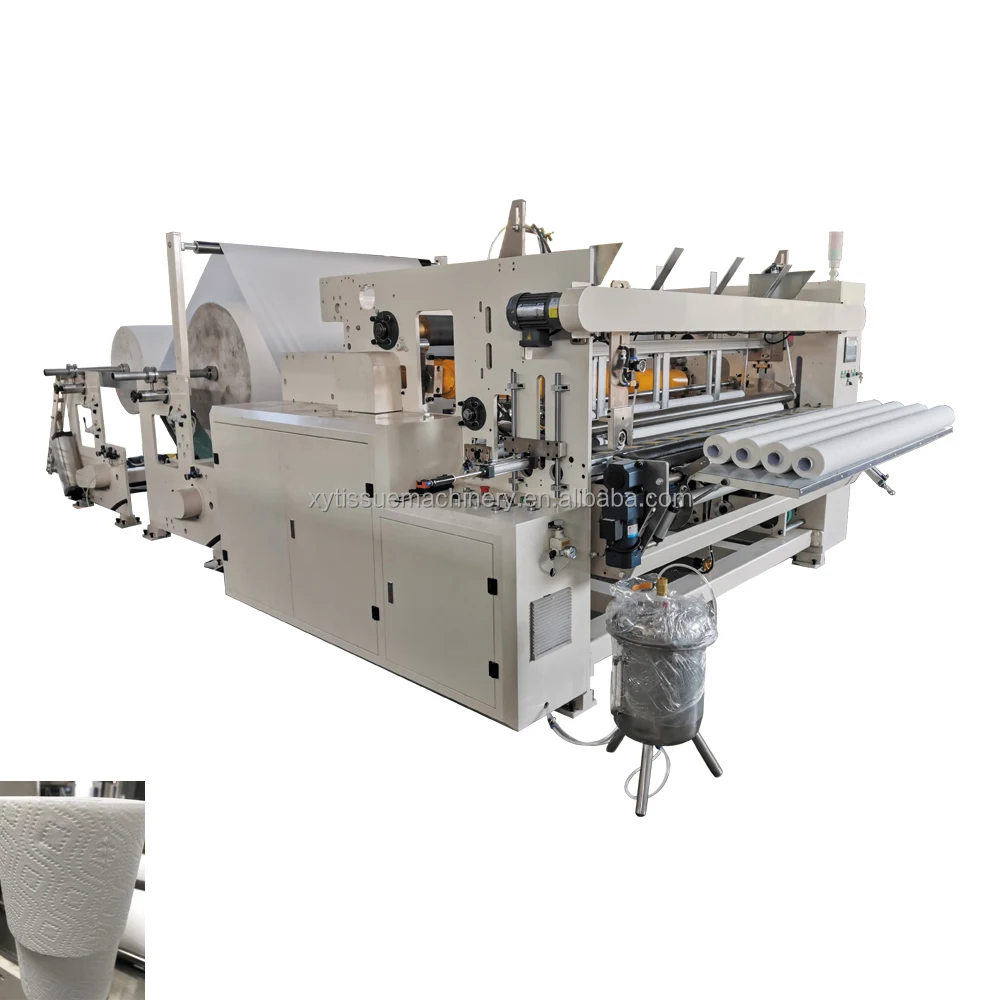

XY-TQ-B Full-automatic high-speed rewinding and perforated toilet paper machine,
Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing. Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products.The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
Machine Model | XY-TQ-B |
Jumbo Roll Max Width | 2800mm (Other size can be specified) |
Jumbo Roll Diameter | Φ1200mm(Other size can be specified) |
Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) |
Perforation Distance | 4 anvil Blades（115mm）(Other size can be specified) |
Finished Product Diameter | Φ90~φ280mm |
Finished Product Core Diameter | φ38~φ76mm |
Production Speed | 200~230m/min |
Program Controller | PLC( INVT ) |
Unwind Stands | 2 Stands（Need to be specified） |
Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user） |
Main Power | 14KW 380V 50HZ |
Dimension | 7000*4000*1900(L*W*H) |
Weight | About 7T |
Edge-Line Embossing | Steel to steel (Pneumatic Control) |
Full Embossment | Steel to rubber. |

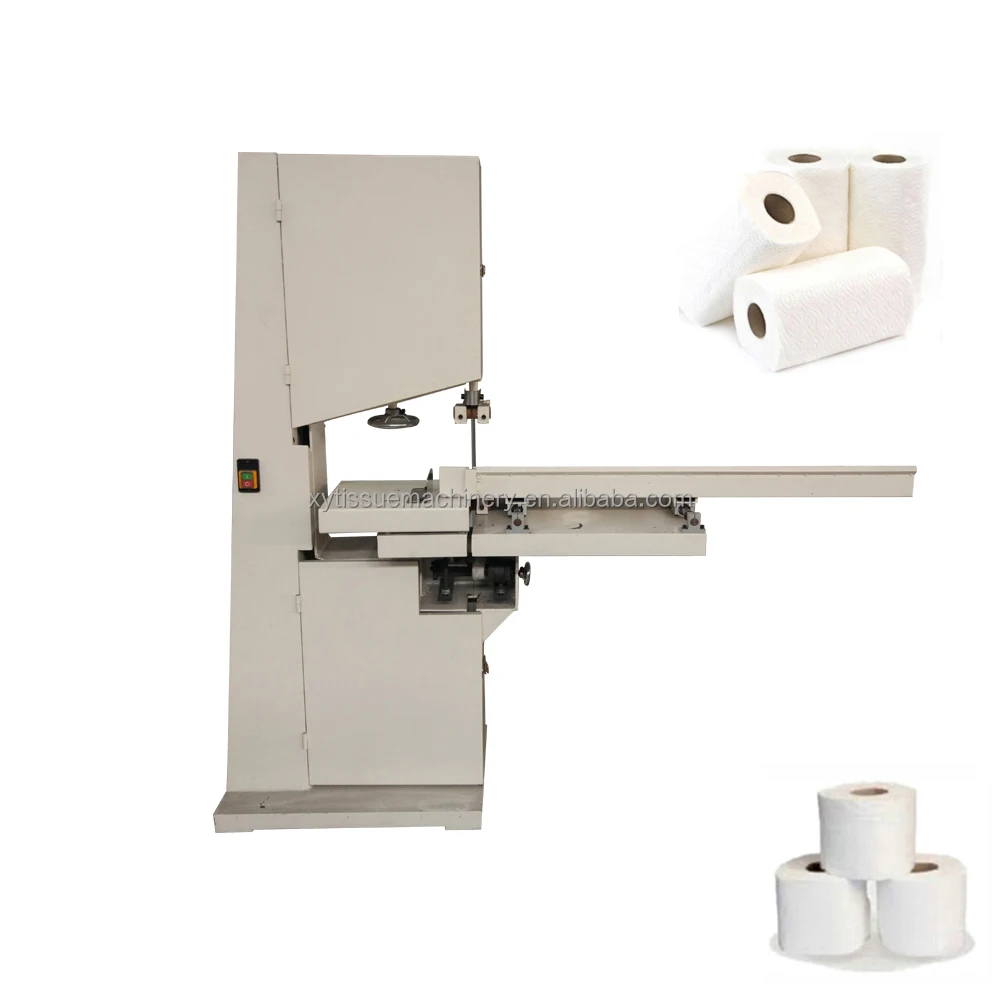

XY-AI-300 Manual small toilet paper band saw cutting machine
This machine is the equipment for cutting tissue paper.The main function is to toilet paper,kitchen towel paper,maxi roll and hand towel
paper into various kinds of standard small rolls.
paper into various kinds of standard small rolls.
The machine is compose with stander,saw blade drive, adjustment, tension , saw blade grind, operation table and hand table. It is enjoy compact structure, stable running and convenient operation .
Machine Model | XY-AI-300 |
Cutting speed | 30-60 cuts/minute |
Toilet log length | 1200-2000 mm(it can be made according to customer request) |
Finished toilet roll length | ≦300mm |
Finished toilet roll diameter | 80-250mm |
Cutting tolerance | ±1.5mm |
Power supply | 2.2kw 380V 50Hz |
Overall size | 1600x600x1800mm |
Machine weight | 300KG |

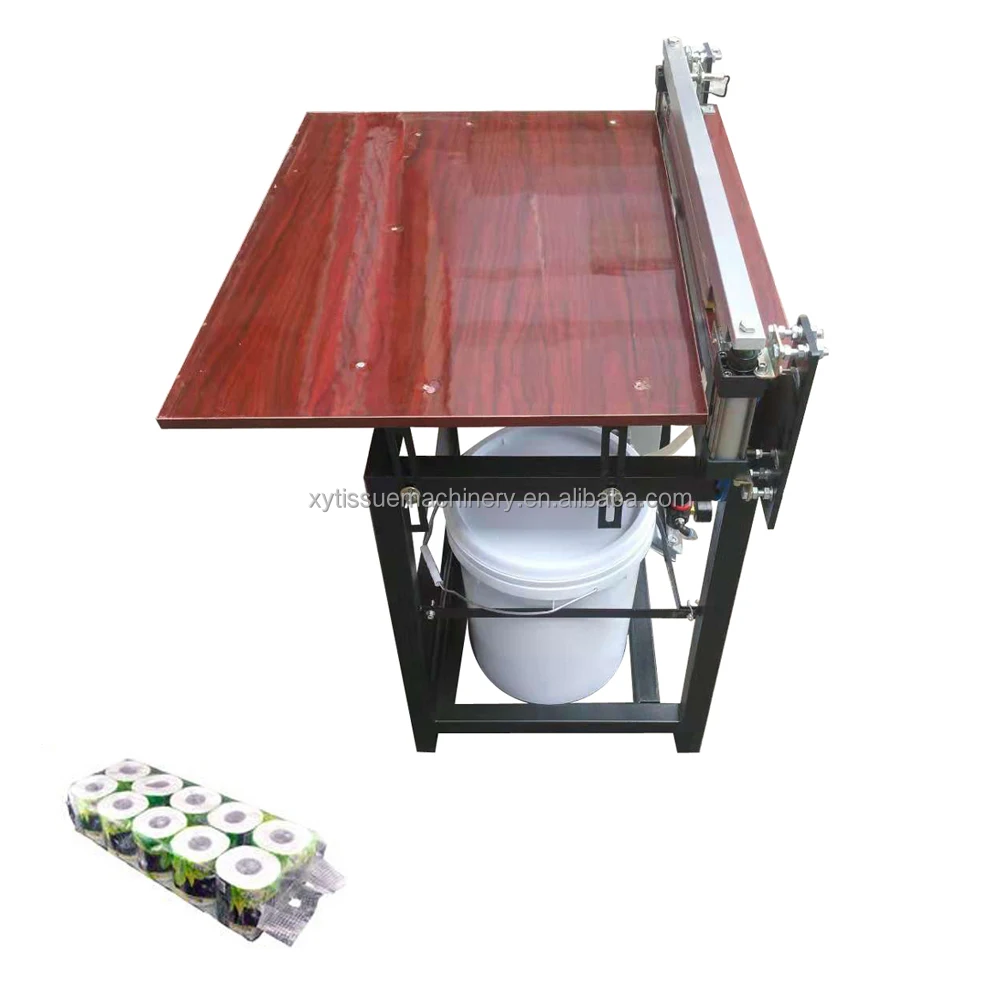

XY-AI-398B Manual Plastic Bag Sealing and Packing Machine
performance, external packing for Facial Tissue, Toilet Paper Roll, Kitchen Towel, Napkins Paper etc. simple and easy seal and cut
in one time.
Machine Model | XY-AI-398B |
Speed | 10～20bags/minute |
Width of flat seal thread | 6mm |
Diameter of round thread | 0.5mm |
Materials | Nickel Chrome Thread |
Power | 1.5KW (220V 50HZ) |
Air Compressor | 0.3-0.5mpa(provided by customer) |
Sealing Width | 49cm |
Dimension(L*W*H) | 900*620*960mm |
Height | 80KG |

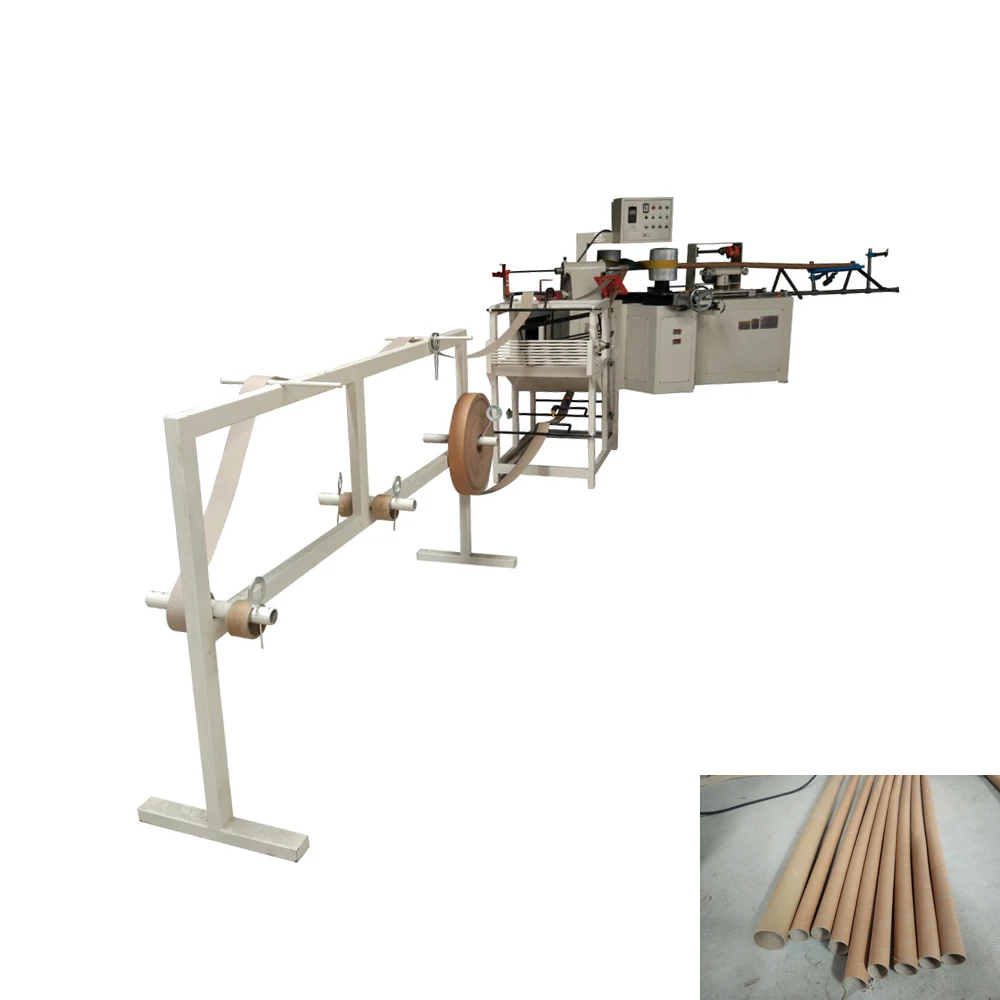

XY-SD-A Automatic paper core making machine.
Model | XY-SD-B | ||
Speed | 15 ~ 20m / minutes | ||
Kraft paper width | 50~70mm | ||
Paper Tube diameter | 25mm~100mm (can be customized) | ||
Paper tube layers | 2 ~ 30 layers | ||
Paper grams amount | 150-400 gsm | ||
Reel Length | adjustable (maximum: 3.0 m) | ||
Defect rate | ≤2% | ||
Power | 4.5-7.5 KW 380V 50HZ | ||
Equipment Size(L*W*H) | main machine: 2950*1700*1800mm Glue buckets device: 1250*850*1200mm | ||
Weight | 1600kg | ||
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
