OEM ODM Services 1~32 Layers Customized Multilayer RF PCB Design
Over 13 years’experiences on PCB Board
1.Fast and one-stop service
2.Accept PCB design and OEM/ODM service
Multilayer PCB is a Printed Circuit Board with more than 2 layers. A Double-Sided PCB has two conductive layers on top and bottom of the PCB substrate.
A Multilayer PCB must have a minimum of 3 conductive layers of conductive material or copper layer. All the layers are interconnected with copper plated holes.
The layers can be 4, 6, 8…upto 32 layers.

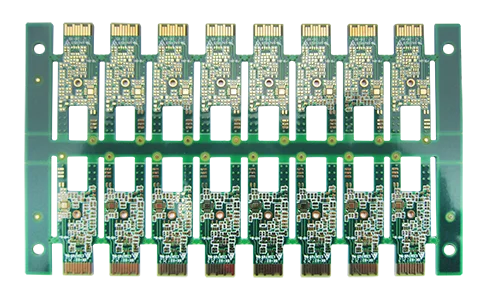

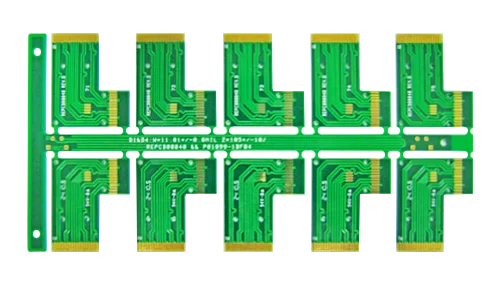

Eight Layers Optical Fiber PCB Four Layers Optical Fiber PCB
Benefits of Multilayer PCB
1.Reduced PCB Size / small size (Saves space)
2. Lightweight
3. High quality and density
4. Better durability and flexibility
5.Powerful with Single Connection Point
Related Products
Product Description
| JINHUA PCB Standard Capability | |||
| Item | Process | Manufacturing Capability | Remark |
| 1 | Surface Finishing | HASL, HASL LF, ENIG, gold fingers plating, OSP, Immersion Ag, Immersion Sn, Carbon Ink, peelable mask, plug vias with resin | |
| 2 | Board Thickness | 0.1 MM ~ 8.0 MM | |
| 3 | Layers | 1 ~ 30 L | |
| 4 | Material | Brand: KB, ITEQ, Shengyi, Huazheng,NanYa, CEM, Arlon,Rogers, Teflon, Polymide, panasonic, Aluminum Base, Halogen Free,Peters Soldermask,Kapton high temperature tape, Taiyo Ink | |
| TG: low to high, TG135 to TG180; CTI: 175 to 600 | |||
| 5 | Board Size | Max board size:650 x 1200 MM; Min board size: 3*3 MM | |
| 6 | Inner Layer | (1) ring of line: single sided 4mil | Aspect ratio:10: 1 |
| (2) min trace w/s for 1 OZ:3 mil/2.6mil | Max finished copper thickness:18/18 oz | ||
| (3) hole to line or pad spacing: min 6mil | |||
| 7 | Lamination | (1) Max size can be laminated: 790 x 890 mm | |
| (2) Layer to Layer Registration tolerance:± 3 mil | |||
| 8 | Drilling | (1) min finished hole size: laser 0.1mm mechanical 0.15mm | |
| (2) PTH hole size tolerance: ± 3 mil,NPTH hole size tolerance: ± 2 mil | hole position registration tolerance: ± 2 mil | ||
| (3) min slot size:0.55 mm | |||
| 9 | Outer Layer | (1) 1oz: 3/3 mil, 2oz:5/5 mil | Max finished copper thickness:18/18 oz |
| (2) Hole to line PAD 6 mil | |||
| (3) line to outline > 10 mil | |||
| 10 | Plating | (1) hole wall copper thickness 1-10 mil | |
| (2) 10:1 | |||
| 11 | Etch | Etch tolerance: ±10% | |
| 12 | Soldermask | (1) min soldermaks bridge 4mil | min PAD 20 mil |
| (2) pad to outer layer line: 3mil, min ring 2 mil | |||
| (3) soldermask thickness 0.4~1.0 mil | |||
| (4) soldermask color:green, blue, yello, red, black, white, transparent and so on | |||
| 13 | ENIG+Gold Finger | (1) gold thickness of ENIG:1~ 6 u",Nickle thickness of ENIG:100 ~ 200 u" | |
| (2) gold thickness of gold finger; 1 ~ 60u" | |||
| 14 | Silkscreen | (1) min line width:5 mil;line height:36 mil | max line height: 40 mil |
| (2) Silkscreen Color:white, black, yellow, red...etc. | Serial number, Barcode, QR code | ||
| 15 | Profiling | (1) Tolerance of outline: ± 0.1mm | |
| (2) V-CUT Angle: 30 degree & 45 degree | min V-Cut width 75 MM | ||
| (3) Depth:Board thickness≥1.2 mm Remain thicknss: 1/3; Board thickness≤1.2 mm, remain thickness 20 mil (0.5 mm) | min distance V-Cut to copper 0.4 MM | ||
| (4) Bevelling angle/depth: 20°/1.8 mm;30° /1.0 mm;45°/0.5 mm;tolerance:± 5°/± 0.2 mm | |||
| 16 | Test | (1) max test points/one time:50000 | |
| (2) max board size/one time: 1200x650 mm | |||
| 17 | Peelable Thickness | 0.2mil~ 2mil | |
| 17 | Bow and Twist | 1L≤1.0% 2L≤0.75% Multi layers≤0.75% | |
| 18 | Monthly Capcity | 120,000 M2 | |

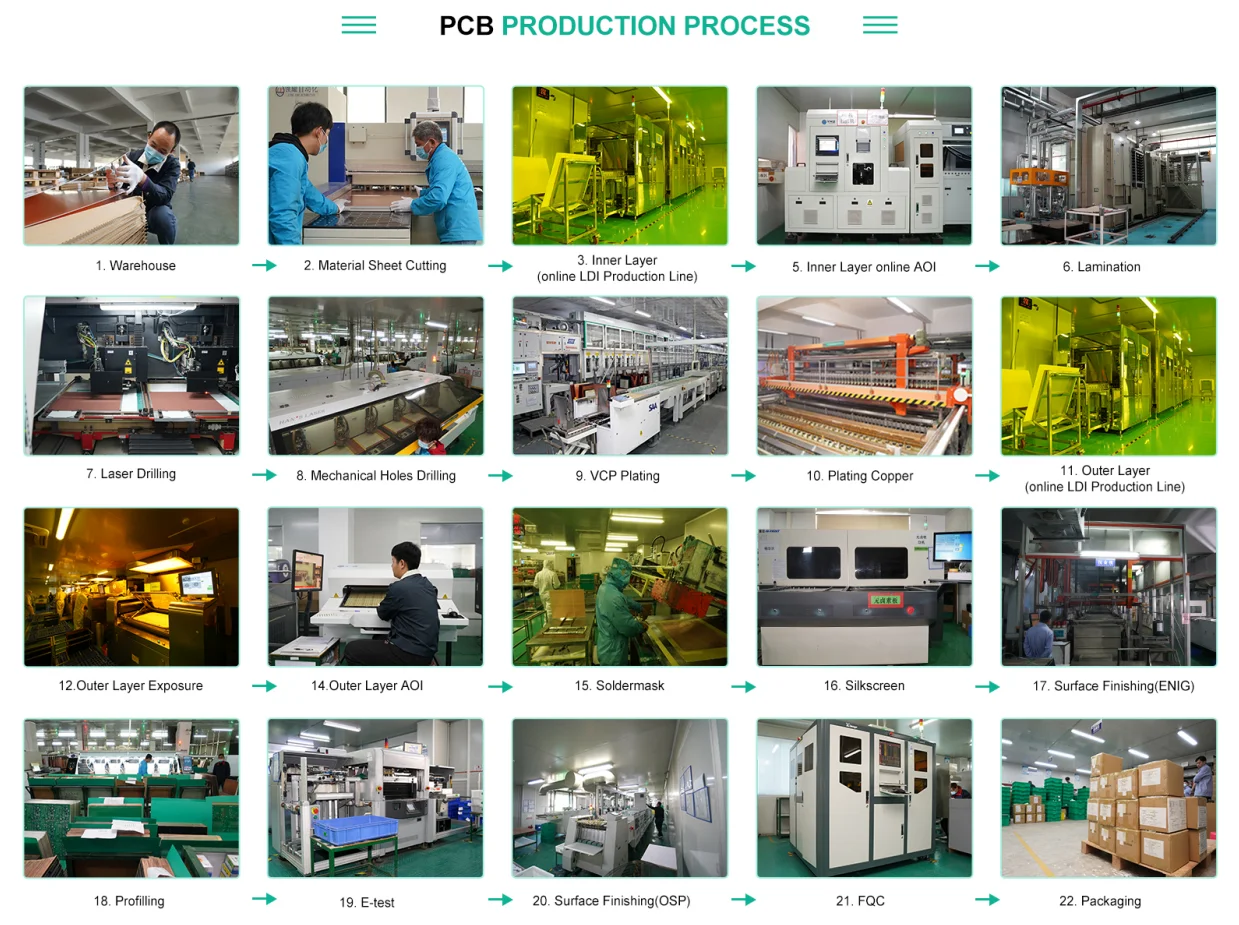

Production Process
Jinhua factory can meet differnt PCB material requirments

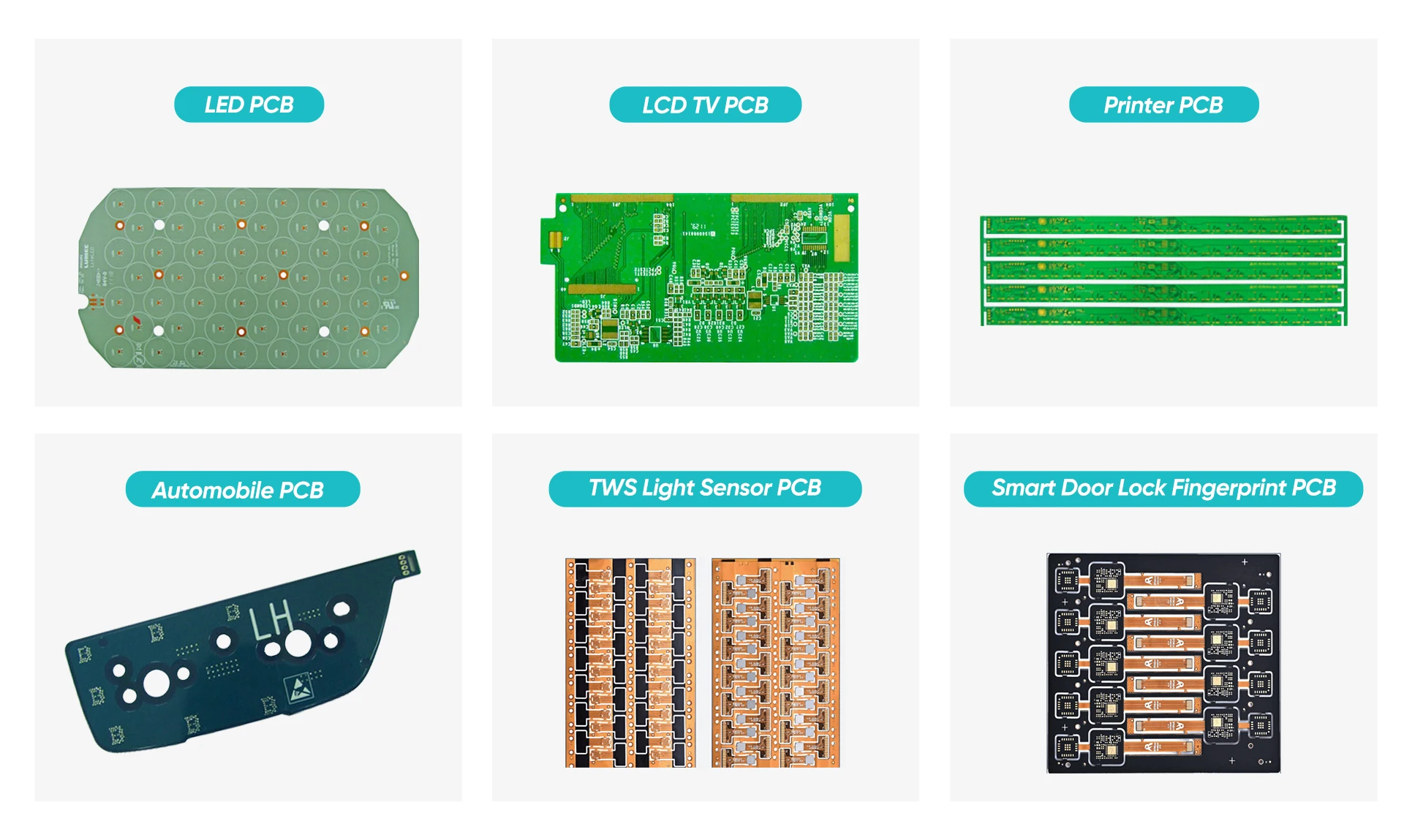

Application
Jinghua Technology’PCB Boards are mainly used in the field of smart electronics, AI consumer electronics, medical and healthcare, home appliance, automobile, and so on.
Company Information
Welcome to visit out factory and contact us for new projects!
Exhibition
Packaging
Bubble package, EPE package, ESD Bag,Vacuum bag
Delivery
FAQ
Q1. What does Jinhua Tecenology can do?
We can support you PCB Design, PCB board manufacturing, Components or Parts Source, Surface Mount (SMT), Thru-Hole (THT),hybrid of both, Functional Test, Wire Soldering etc one stop PCB&PCBA service
Q2. What is needed for quotation?
Gerber file and Technic requirements (material, surface finish treatment, copper thickness, board thickness, and so on.)
Q3. What file formats do you accept for production?
Gerber Files+BOM File+Centroid File(other names maybe:aka Insertion, Pick-N-Place, or XY Data)
Q4. Are my files safe?
Your files are held in complete safety and security. We protect the intellectual property for our customers are never shared with any third parties.
Q5. MOQ?
There is no MOQ in Jinhua Tecenology. We can offer prototype, expedite prototype, small&medium amount, big amount pcb & pcba service
Q6. How does your factory make the Quality Control? Three main parts to control products' quality as bellow,
1. IQC-incoming inspection for materials
2. IPQC-process inspection
3. FQC-finished products inspection It has standards and reports for each part of inspection, also it is strict for selecting material suppliers.
Q7. What payment methods do you accept?
T/T, West Union,Money gram and L/C are accepted, for samples PayPal. FOB, CIF, DDU and Ex-work are accepted.
