Промышленная конвейерная ленточная микроволновая печь/конвекционная

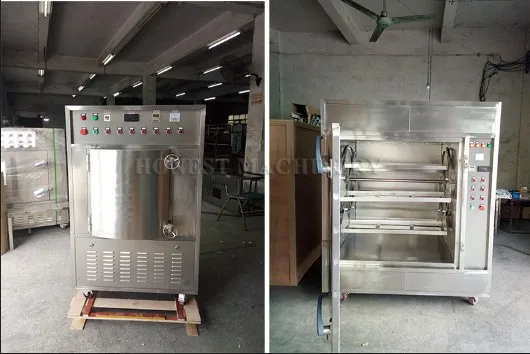

Convection Microwave Oven

1, The machine adopts high-quality food-grade all-stainless steel wire drawing board to make the inner              polyhedron heating cavity, and the heating cavity bottom plate is strengthened to ensure that it can bear          the weight. The microwave output port is sealed with polytetrafluoroethylene board and special materials. The carefully designed phase complementary opening feed port ensures the normal operation of the magnetron. The output matching performance is superior, so that the heated material is more uniform and thorough, and the magnetron is extended. The service life of core components such as transformers and transformers.
2. The frame and outer guard plate are all made of stainless steel.
3. The design and manufacturing process of the whole machine strives to be beautiful, practical and                  reasonable. The cabinet of the equipment is equipped with a large opening anti-microwave leakage choke      door with automatic power-off chain protection function. It is also easy to clean and observe. The heating      cabinet can be directly washed with water. The microwave generator and power supply part are equipped     with heat rejection and cooling devices.
4. There is a natural air inlet in the lower part of the heating chamber, and a moisture exhaust fan is installed      on the top.
5. The microwave energy feed port faces the middle and upper part of the material.

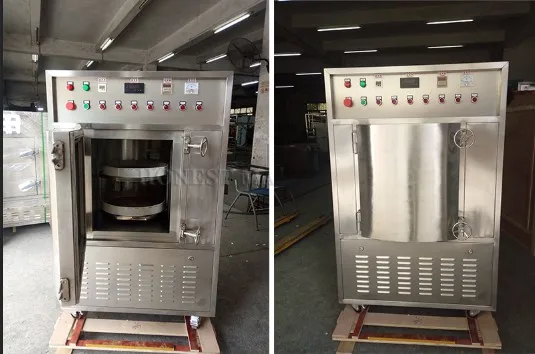

Convection Microwave Oven

Model size: HT-6X (cabinet type)
Total power of equipment: 7KW
Working voltage: three-phase 380V±10%
Working frequency: 2450MHZ±50HZ
Appearance size: about 1200×1000×1400mm (length, width, height)
Inner tank size: about 750×750×650mm (length, width, height)
Turntable speed: 8 revolutions/min
Yield: 6 kg/hour (fresh yellow mealworm)
Diameter of the turntable: φ600mm (the turntable has 2 layers in total)
(Horizontal rotation mode, layer spacing 250mm; delivery of 2 food-grade plastic trays,)
Microwave leakage: meet the national 10436-89 microwave radiation safety standard (≤5mw/m2 and meet the national GB5226 electrical safety standard
Working temperature: -5~40℃
Environmental humidity: relative humidity ≤80%

If you need other capacity, please for free contact us, thank you
