Автоматическая машина для производства подушек вакуумной наполнения производственная линия текстильной продукции всех
- Категории: Other Home Textile Product Machines >>>
- Поставщик: Foshan,Sojet,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Automatic pillow making machine for vacuum filling pillows home textile product machinery production line for all fiber types
The automatic pillow production lines include capacities ranging from 200 to 680 pillows per hour, with a single operator and a high-quality final product. These innovative pillow filling production lines can be completely automatic, semi-automatic or manual, depending one the customers' actual requirement.
Technical Parameters

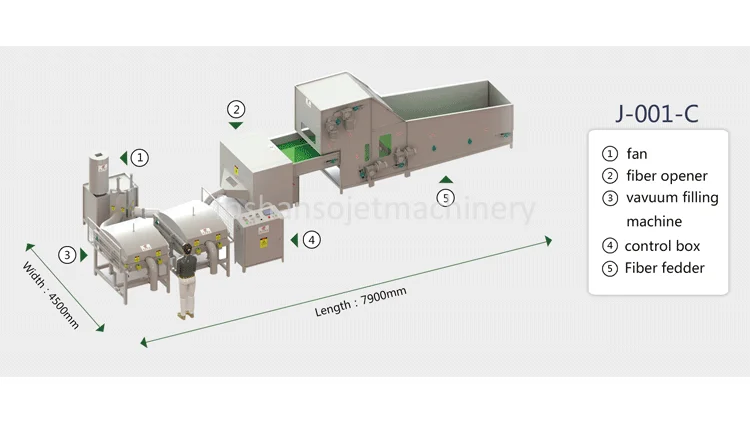

Model | J-001-C Automatic pillow making machine for vacuum filling pillows home textile product machinery production line for all fiber types | |
Operation Type | Automatic Feeding, Opening, Filling | |
Capacity | 300-350 pillows/hour | |
Power | 16.75 kW | |
Applicable Material | 0.7-15D, Microfibre or Polyester Fiber, Cotton, Hollow Fiber, etc. | |
Fiber Opening Rate | 98% | |
Voltage | 380V, 50Hz, THREE-PHASE | |
Item Weight | 2500 kg | |
Overall Dimensions | 8000x3550x2500mm | |
Please WhatsApp +8618927258216 or Email to sojetmachine@gmail.com to discuss further ! | ||

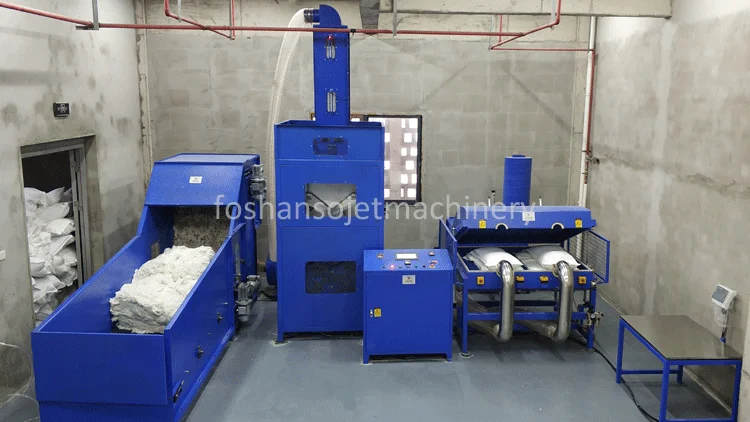

Detailed Images

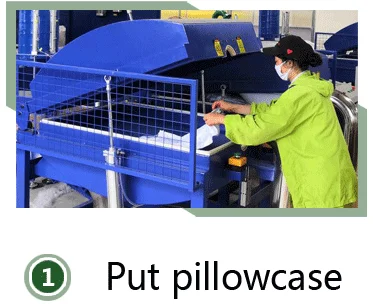

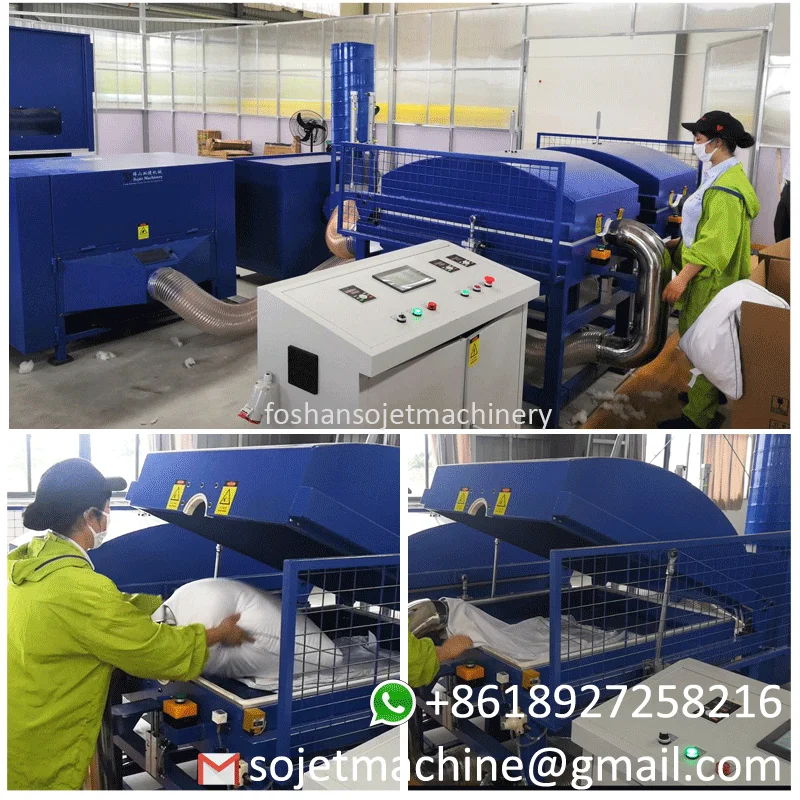

One Operator

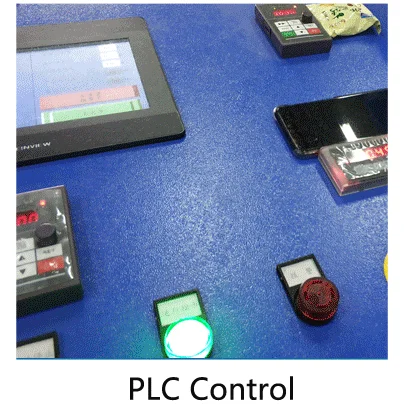

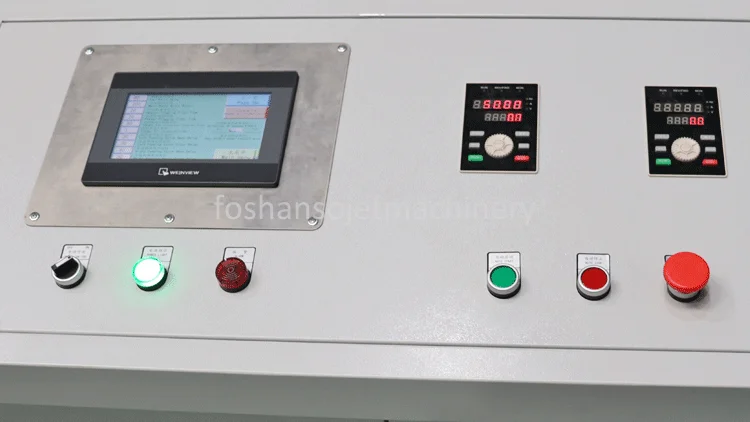

The production line is controlled by PLC programmed system , which automatically loads, weighs and fills. Simple operation and high efficiency. Only one person needed to operate the whole production line.

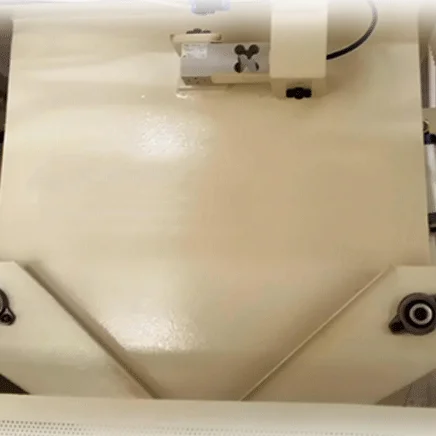

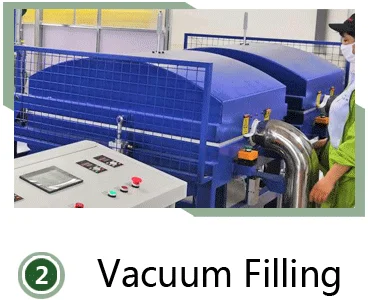

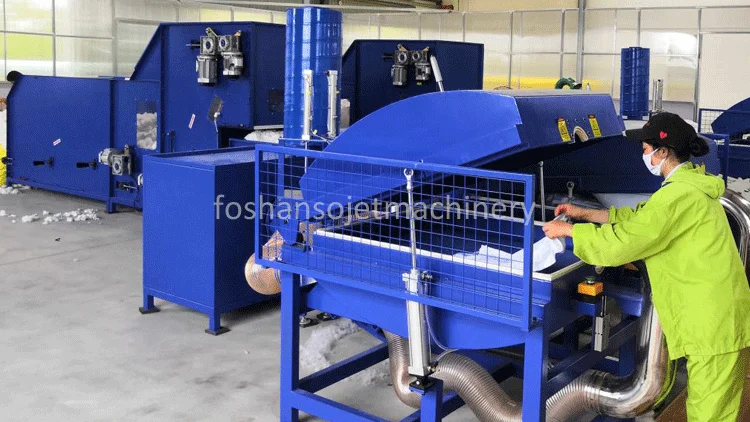

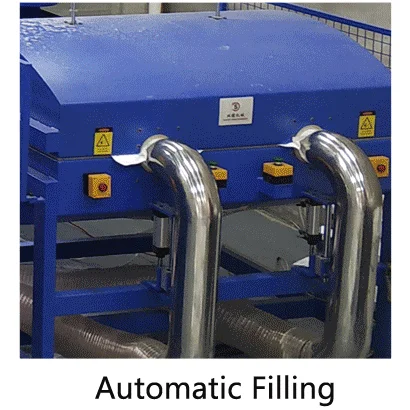

Vacuum Filling
Fiber will fill every corner of the pillow, so the pillow is more even, full and flat. Suitable for pillowcases of various
fabrics. There is no fiber flying in the filling process, clean and environmental protection.
fabrics. There is no fiber flying in the filling process, clean and environmental protection.

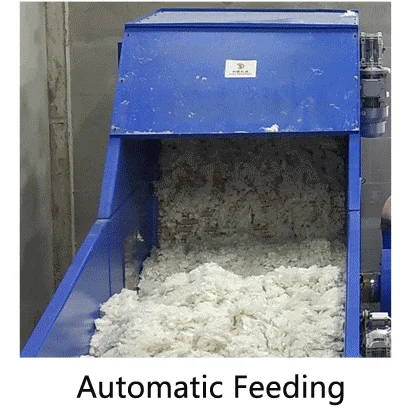

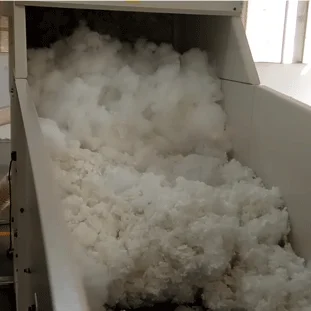

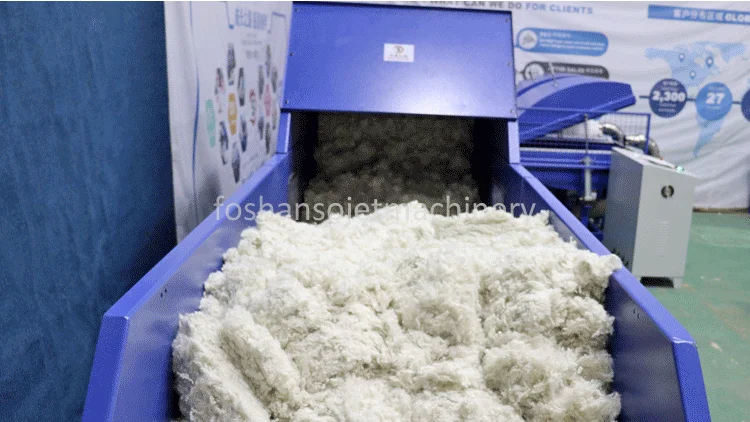

Automatic Bale Fiber Feeder
The feeder/hopper can store 250-300kg fiber, and transport the fiber evenly to the material box without manual feeding, saving labor cost.

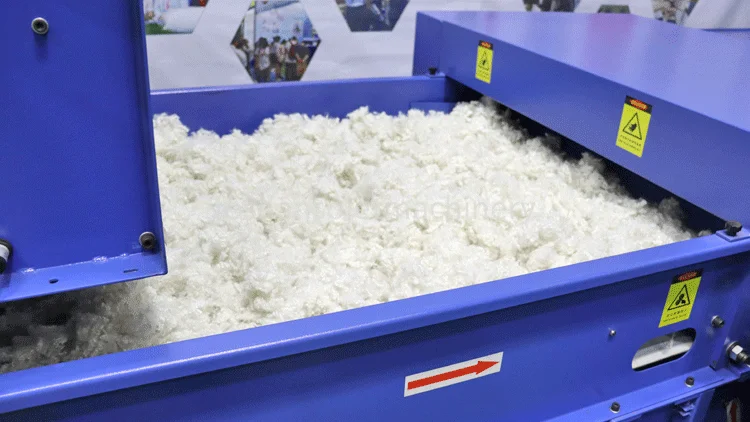

Carding/Opening Machine
The carding machine with bale fiber feeder is suitable for carding various kinds of short fibers and microfibers from 0.7-15D. Fiber feeder will convey fibers to the next carding machine, which can save lots of labor cost, as well as improve working efficiency.
Variable Speed Drives on Motor
Built-in with variable speed drives on motors, it is portable to control the working process based on actual needs.

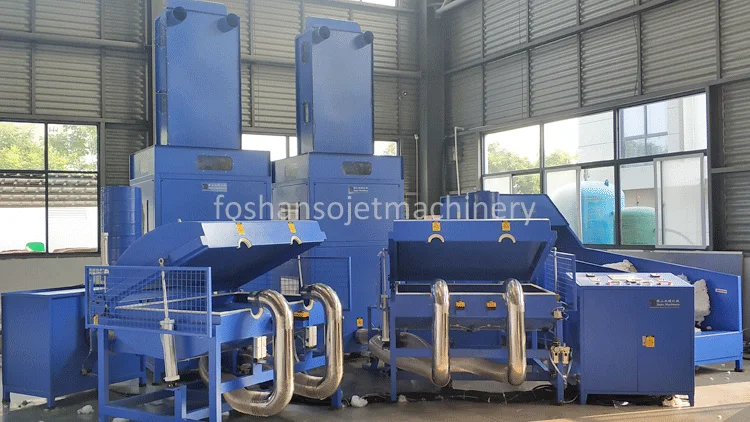

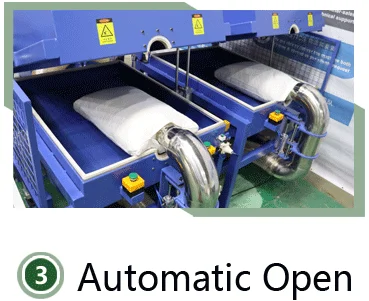

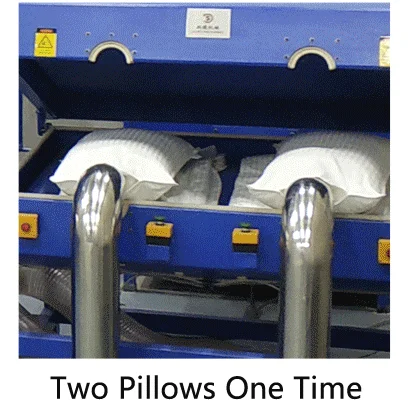

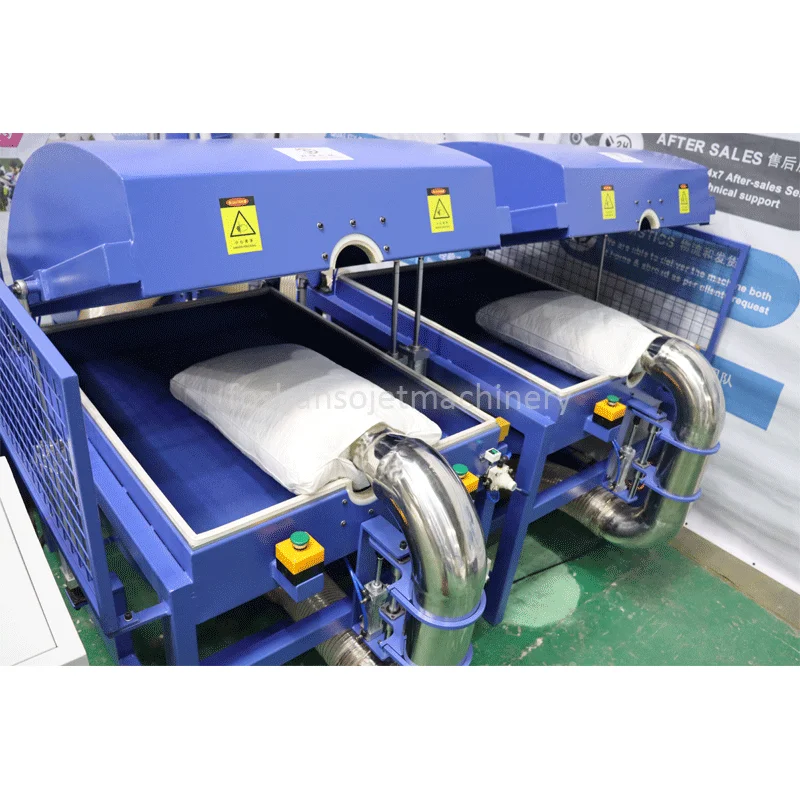

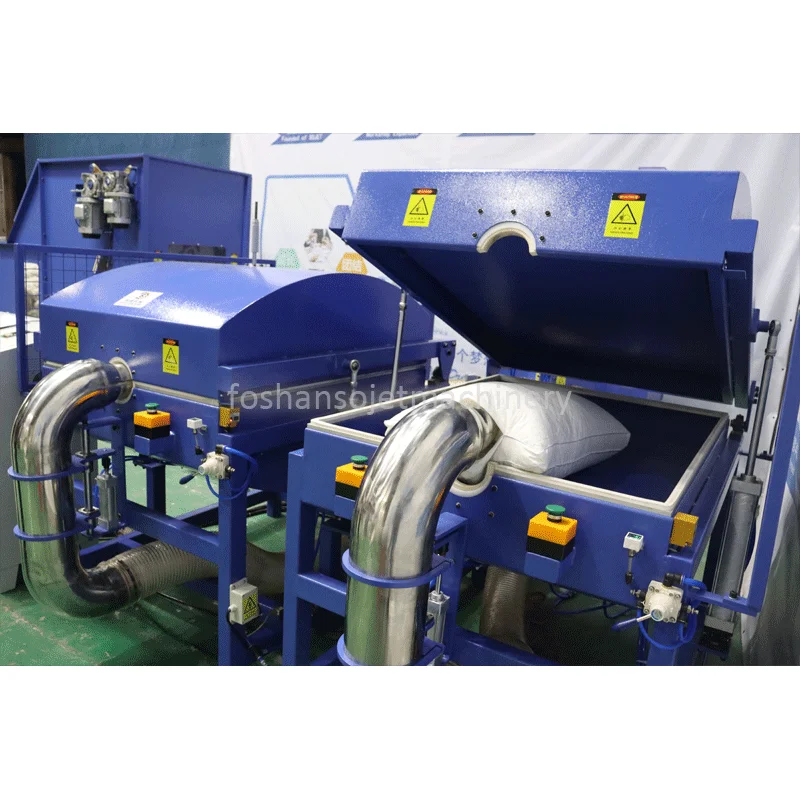

Fill Two Pillows At A Time
Double filling tube vacuum filling machine can fill two pillows at a time, improve production efficiency and reduce labor cost.
Variety of Applications
The J-001-C automatic filling production line can be widely used in garment, bedding, pillow, cushion, and other upholstery furniture industry.
Related Products

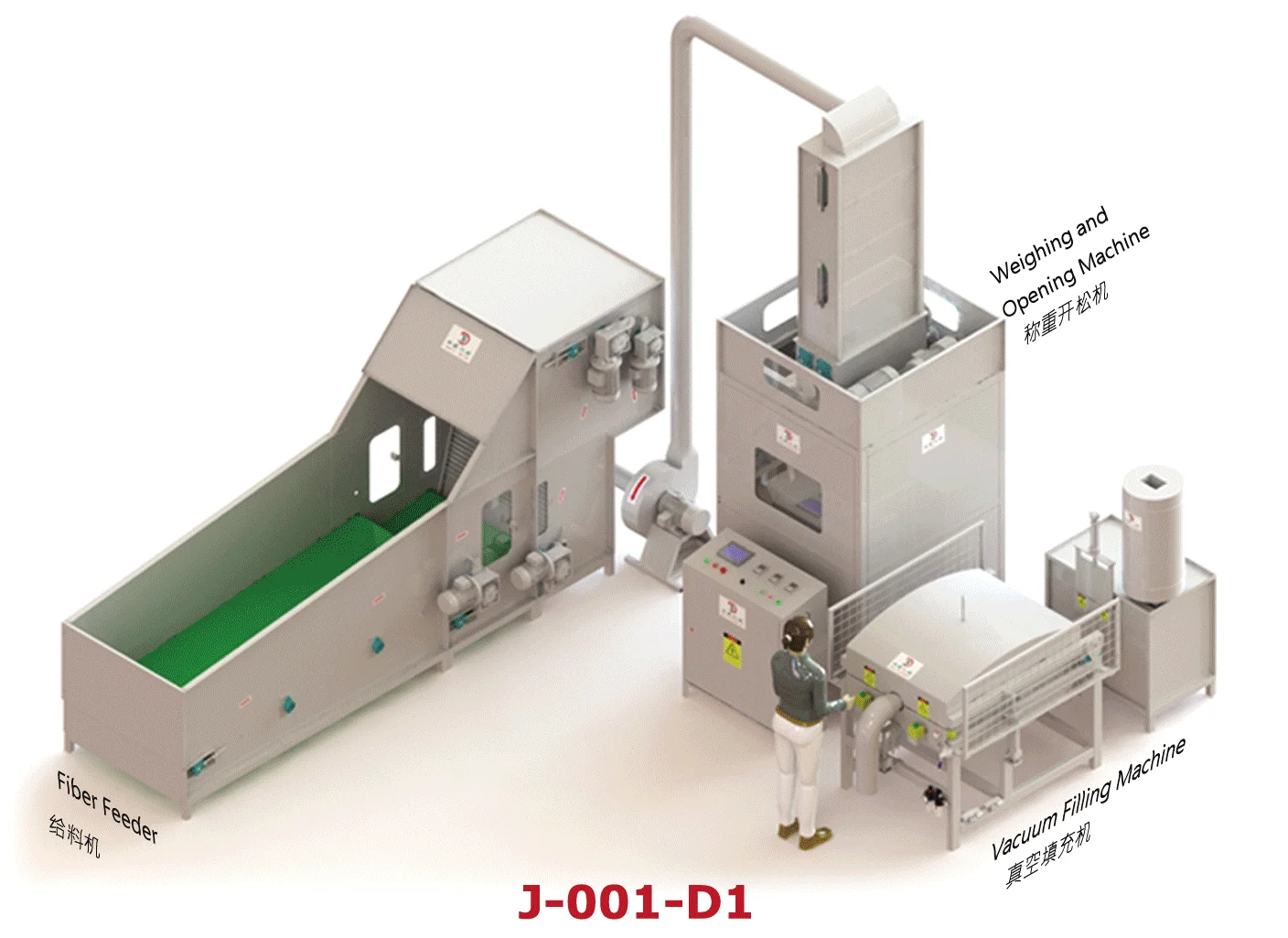

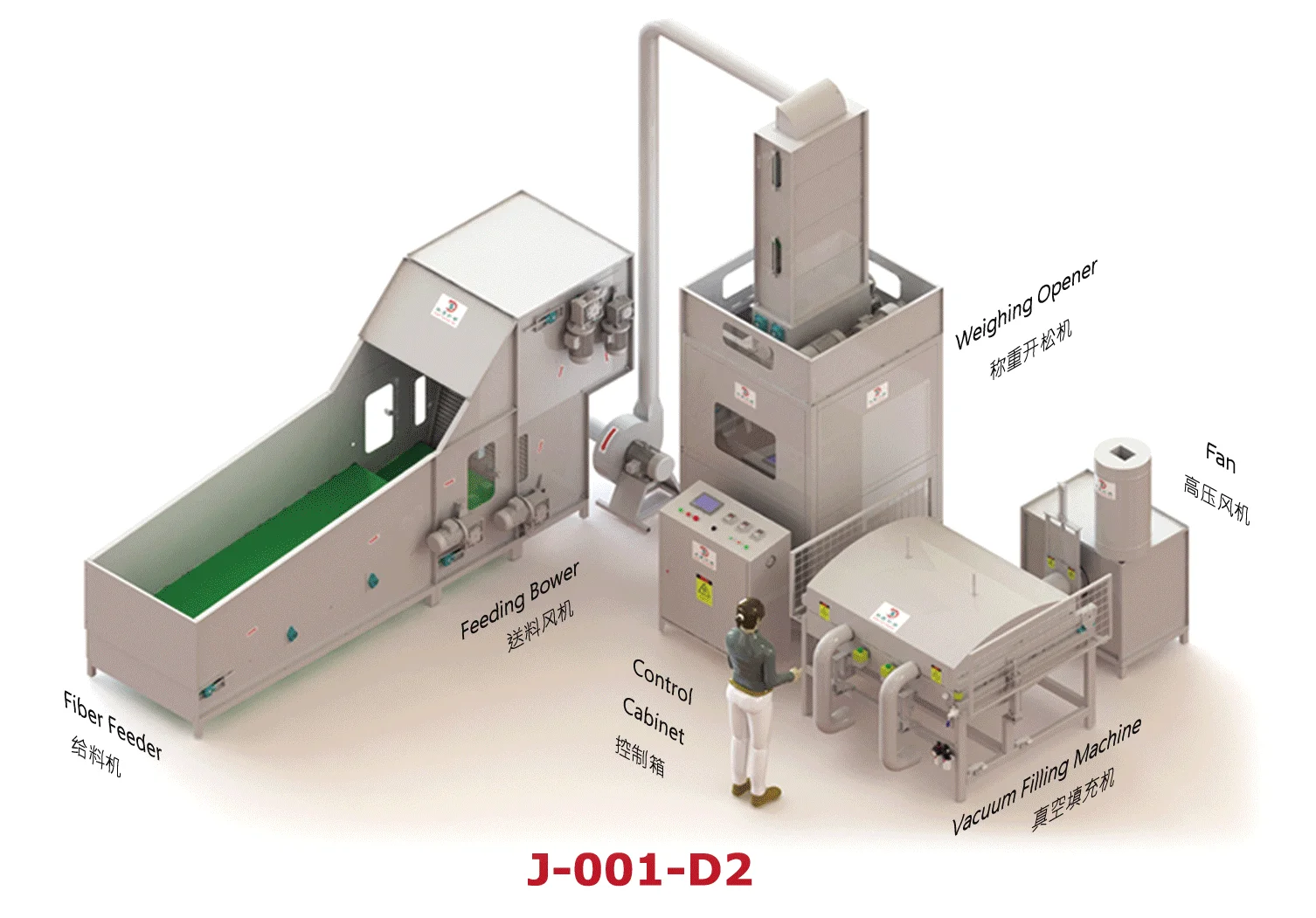

-- Automatic Pillow Production Line J-001-D Series --
Model | J-001-D1 | J-001-D2 |
Filling Tube | One Tube | Two Tubes |
Capacity | 200 pillows/h | 240 pillows/h |
Power | 19.5kW | 19.5kW |
Operator | 1 Operator | 1 Operator |
Pillow Weight | 300-1500g | 300-1500g |
Overall Dimension | 5500x5300x4250mm | 5500x5500x4250mm |

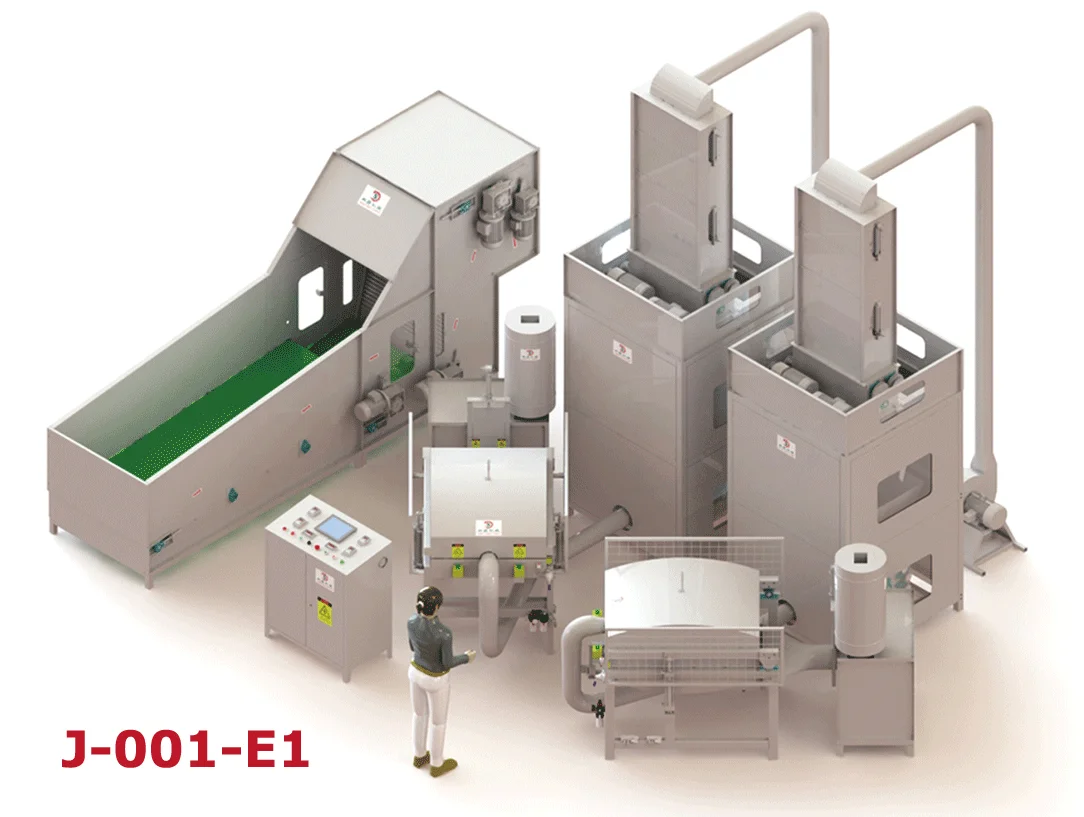

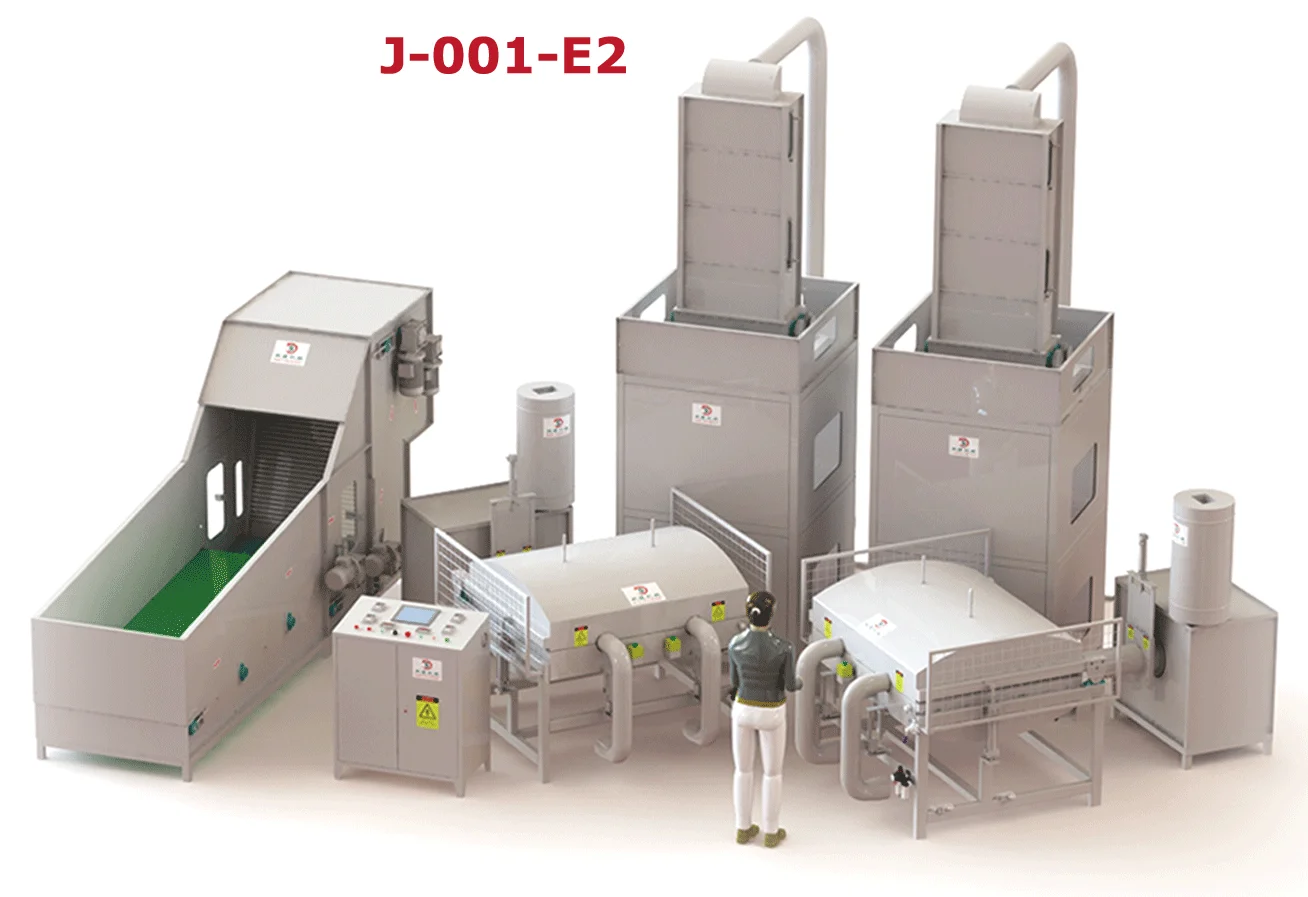

-- Automatic Pillow Production Line J-001-E Series --
Model | J-001-E1 | J-001-E2 |
Filling Tube | Two Tubes | Four Tubes |
Capacity | 400 pillows/h | 450-480 pillows/h |
Weight Error | < +- 15g | < +- 15g |
Operator Needed | 1 person | 1 person |
Pillow Weight | 300-1500g | 300-1500g |
Overall Dimension | 7600x5500x4250mm | 8000x5500x4250mm |
Transaction History

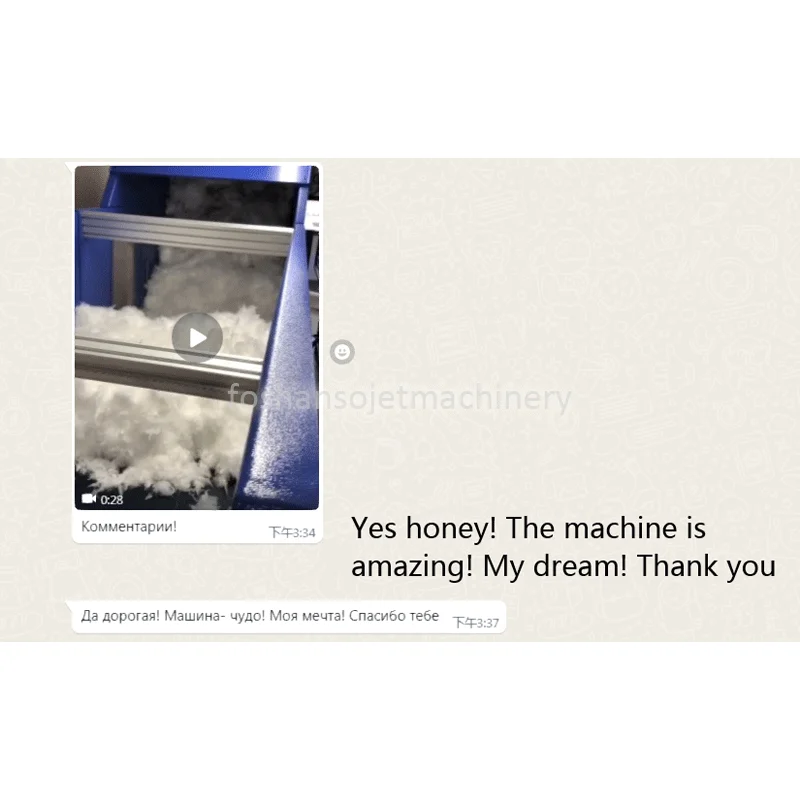

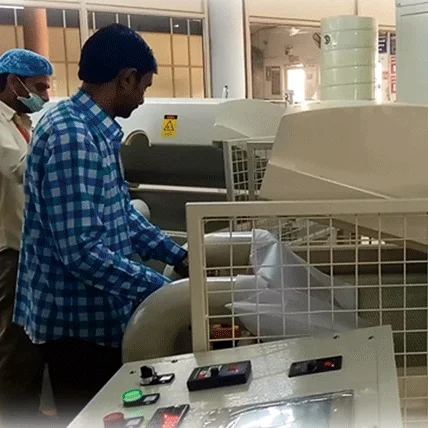

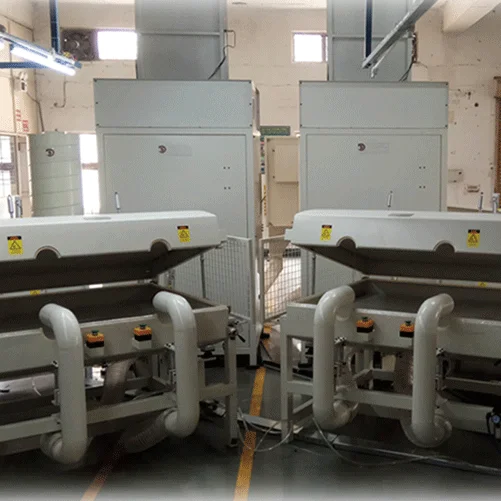

-- See what our customer's comments after they installed and operating the Automatic pillow making machine for vacuum filling pillows home textile product machinery production line for all fiber types --
We are the professional supplier of the Trade Assurance amount guaranteed by Alibaba. Your payment will be 100% protected.
Packaging & Delivery
Packing details for Automatic pillow making machine for vacuum filling pillows home textile product machinery production line for all fiber types
1. Packing with protected plastic film to avoid being scratched on the sea.
2. Standard export non-fumigation wooden crate.
3. Strength with screws & strips to protect machines during transportation.
Delivery Time: 7-15 days (semi-finished in stock) / 35-45 days (customized machinery)
Company Profile
About Us
Sojet company was established in 2012. In the past 10 years, we have been committed to pillow machinery and fiber machinery for both research and development. After years of hard work and faithful cooperation, Sojet has won a high reputation among customers all around the world. Our company provides special industry equipments and solutions for home textile, furniture and sofa enterprises.
- Automatic Pillow Production Line- Pillow Filling Machine
- Fiber Opening Machine
- Ball Fiber Machine
- Packing Machines for Pillow & Cushion
- Foam Crusher
Fully automatic and semi-automatic machines. We can design special production line for customers.
FAQs
1. Are you Factory or Trading Company ?
We are an experienced and professional Manufacturer. Sojet has 10 years of experience in producing machinery for pillow production lines. With advanced technologies and innovation for production, we are capable of supplying 1, 000 sets of pillow making machines anually. After years of hard work and faithful cooperation, Sojet has won a high reputation among customers all around the world.
2. How to get in touch with you ?
You can reach us by WhatsApp/WeChat +8618927258216; Or Email at sojetmachine@gmail.com.
3. How many countries have SOJET been exported ?
We sold CE certified machines to Russia, Spain, Italy, France, Argentina, USA, Brazil, Saudi Arabia, Guyana, Korea, India, Malaysia, Kenya, and many other countries all around the world.
4. What payment terms is accepted ?
T/T, 30% down-payment, and the balance 70% before delivery or upon notice of B/L.
5. How many days to get my machinery ?
If we have semi-finished machines in stock, it's 7-15 days for assembly; If customized solutions, it's about 35-45 days. Before order confirmed, we will discuss with every details of the solutions and then proceed the mass production.
Have a look around ! And let us know if you have any questions.
