Foton 8000 Liters Suction Vacuum Sewer VAC 6 Wheel Trucks For Sales

A sewage suction truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of sewage suction trucks with capacities ranging from 2cbm to 18cbm.

The sewage suction tank truck is also called sewage truck,vacuum pump sewage truck,
sewer vacuum truck, sewer tanker truck,vacuum sewage suction truck, sewage suction tanker truck, etc. It mainly used for for suction,transportation and discharge of sewage
from septic tank and sludge from drains.Widely used by municipal environment and
sanitation department and residential management.

As a professional sewage truck manufacturer in China, the sewage tanker truck capacity is from 3000 liter to 16000 liters.

The septic tanker truck is with self-suction and self-unloding function. The tank can be lifted by
 hydraulic cylinder to 45° and the rear door of the tank can also be open by hydraulic.So the sewage can be discharged from the tank completely. This is also convenient for you to maintenance and clean the tank.

Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage
water into vacuum pump when the tank is full.

Super power of vacuum pump, seamless die casted sheel cover, designing for container  with high ability of pressure-resistance,double hydraulic jack system, more strength then cesspit emptier.


The suction depth of our vacuum tanker is more than 7 meter and sewage truck capacity is from 10000L to 16000 liters sewage truck is with double famous Weilong pump.It is high
efficiency and manpower saved.

Foton 8000 Liters Suction Vacuum Sewer VAC 6 Wheel Trucks For Sales

Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,
 water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.

sewage suction truck advantages

1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
 hydraulically. With full opening design, discharge can be very quick&complete.

2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.

3.Super power of vacuum pump, seamless die casted sheel cover, designing for container  with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit
emptier.



Engine
Model	Phaser180Ti-30
Rated power / horsepower	134kw/180kw
Displacement	5,990L
Transmission
Model	8JS
Brand	FAST
Gears	8gears+1reverse
Dimension
Overall size (LxWxH)	7,850x2,450x3,250mm
Wheelbase	4500mm
Tire size / tire numbers	9.00-20/6+1spare tires
Chassis
Model	BJ5163
Brand	FOTON
Total mass / curb mass	15,800/7,005kg
Driving type	4x2
Max. speed	90km/h
Main Vacuum Tank Assembly Parts
Vacuum tank cubage	8,000L
Vacuum tank material	Carbon steel
Valid suction distance	<8m
Vacuum pump model	68/7000
Vacuum pump brand	China Weilong double pumps
Vacuum pump flow	5.3m3/min

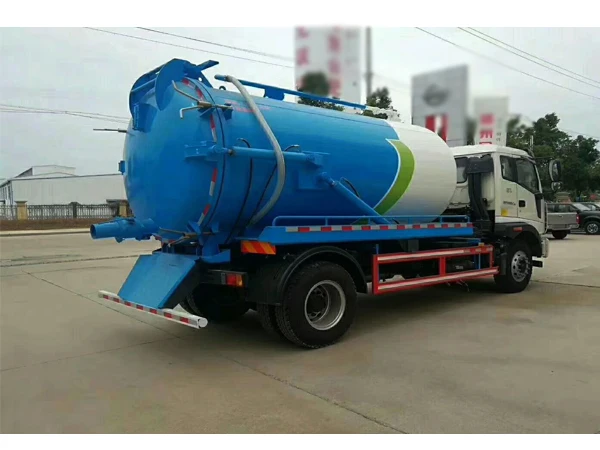

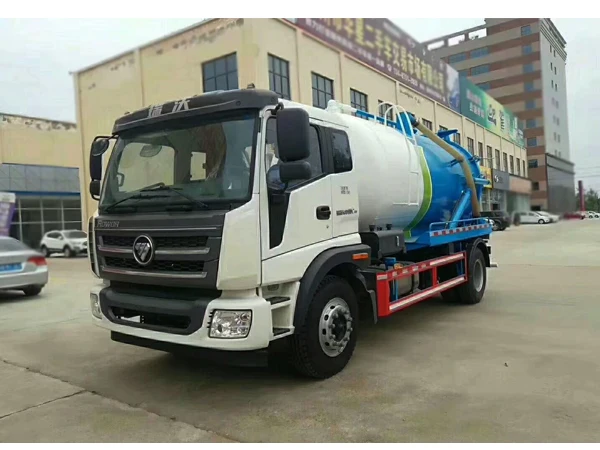

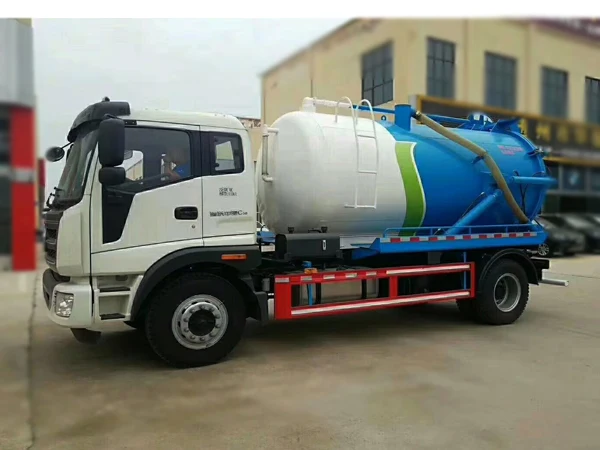

Foton 8000 Liters Suction Vacuum Sewer VAC 6 Wheel Trucks For Sales picture:
