Product manual:

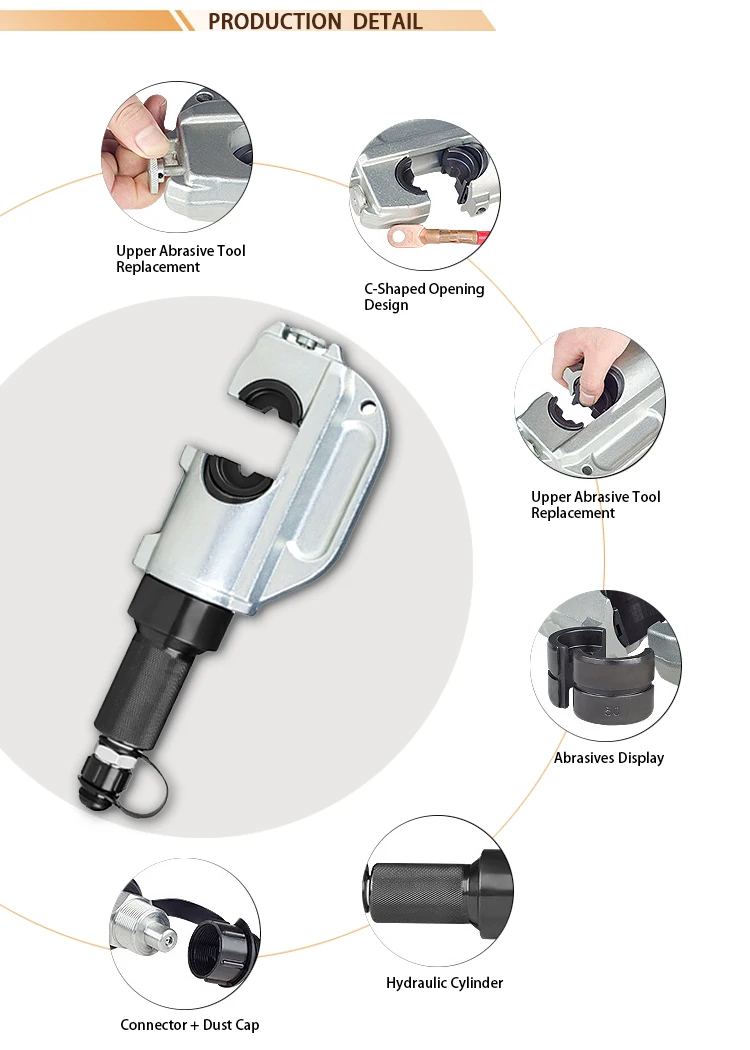

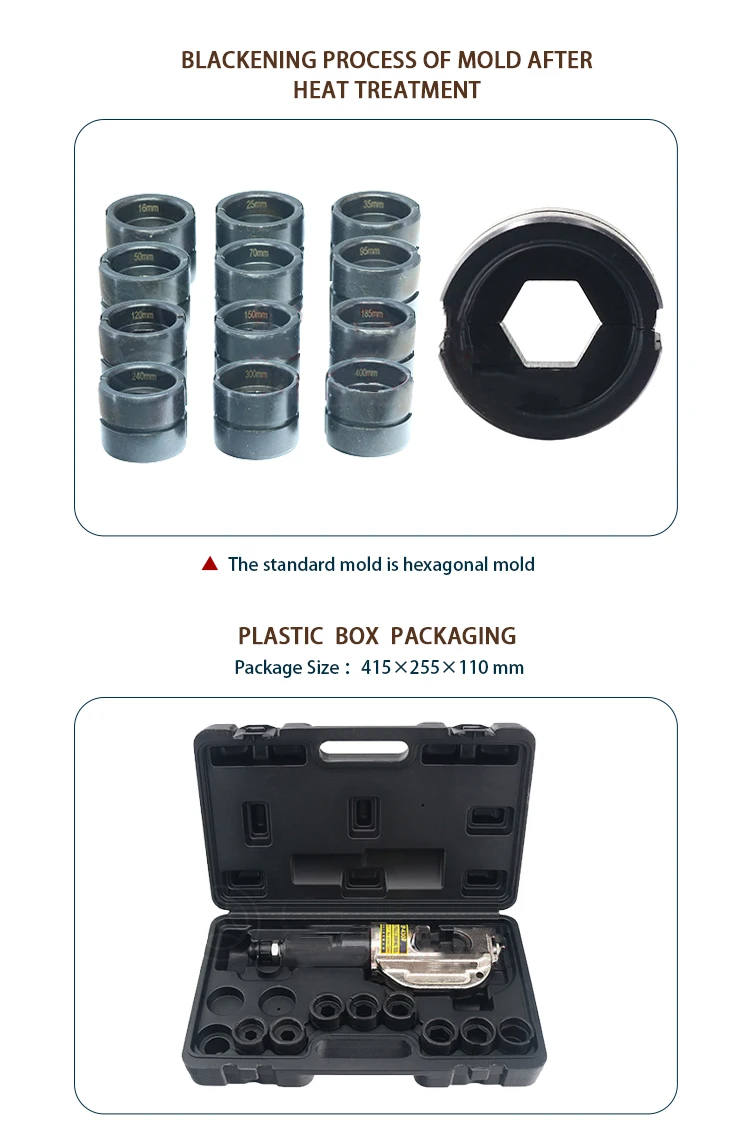

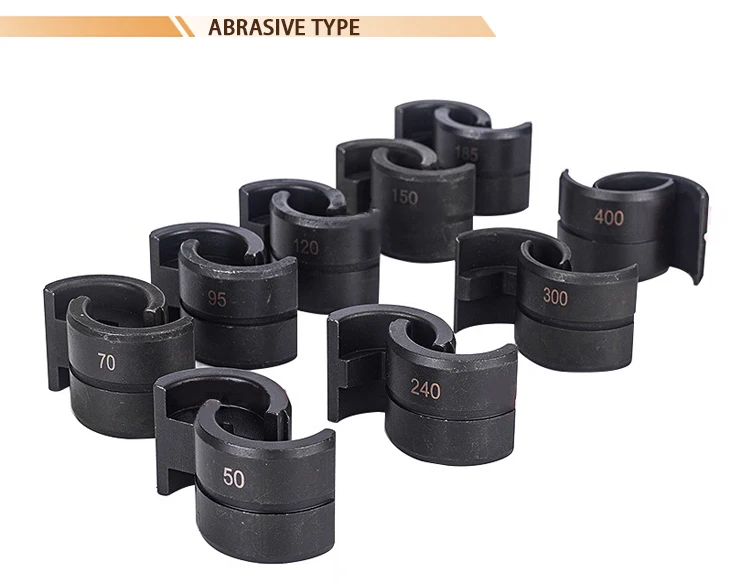

1. Hydraulic clamp with hexagonal die, crimp tightly conductive good, easy to fall off and heat.
2. Glass fiber operation insulation rod, can withstand voltage 20KV, for 5 minutes.

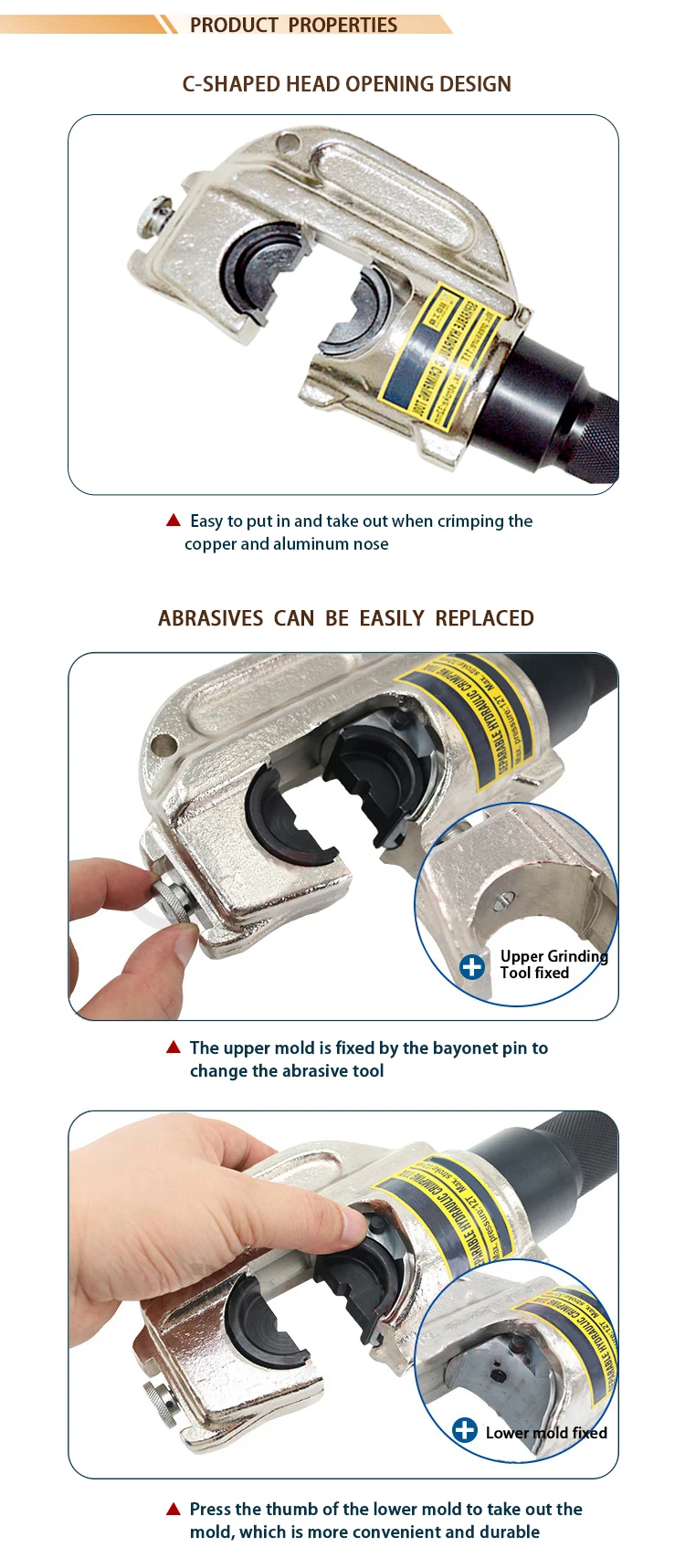

    The crimp head can be rotated 180 degrees.
3. Can be equipped with electric pump manual pump

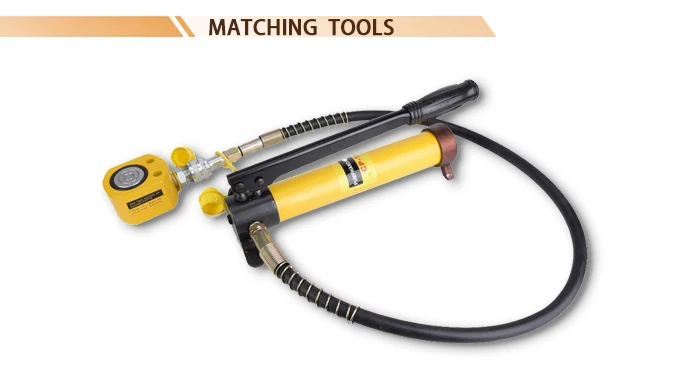

Manual hydraulic pump
Model	High pressure	Low pressure	High pressure oil volume	Low pressure oil volume	Oil storage	SIZE
KD-700	700KG/cm²	20KG/cm²	2.3CC	13CC	900CC	510×140×150mm

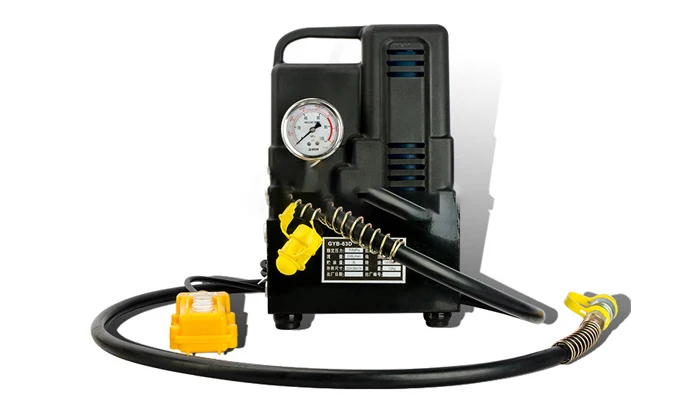

Small electric hydraulic pump
Model	Motor Power	Voltage	preset pressure	Oil output	Oil storage	SIZE
KD-710	600W	220V	79pMa	0.6L/Min	3L	210×150×340mm

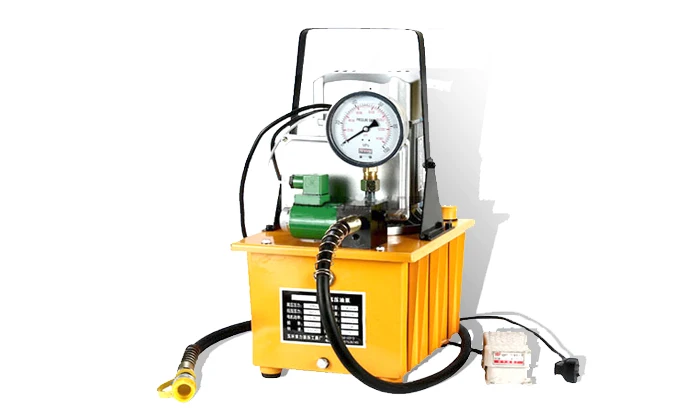

electric hydraulic pump
Model	Motor Power	Voltage	Low pressure oil volume	High pressure oil	Oil storage	Size
KD-760	0.75KW	220V/380V	5L/Min	1L/Min	7L	240×320×410mm

Q 1: Is the whole working procedure finished by your workshop?
Re: Yes, the whole working procedure finished by our workshop.

Q 2: How about your stock?
Re: We always are not in stock, we produce as customers’ requirement.

Q 3: What is your delivery time ?
Re: It depends on your order. Normally3- 7days for samples, 30-45days for standard, 30-60 days for customized.

Q 4: How do you guarantee your quality ?
Re: Firstly, we do quality test during every process. We produce most components by ourselves, it is started from cutting raw material ,machining roughly in the first step. casting ,forging ,punching ,heat treatment ,finish machining ,painting ,assembling and finally packing ,we will spot check for each steps. Secondly, we will collect all comments on our products from customers in time. And try our best to improving quality all the time.

Q 5: What's your warranty time?
Re: The warranty time is 2 years.



Sample trial order is welcomed.
You can visit our factory at any time.
