Product Description


Features
Frequency range from 9kHz to 7.5GHz
-160dBm Display Average Noise Level (Min.)
< -100 dBc/Hz @10 kHz Offset Phase Noise (Typ.)
Total Amplitude Accuracy < 0.8 dB
Preamplifier and EMI filter are standardly configured




Specification


SA9115
SA9130
SA9232
SA9275
Frequency
Range
9kHz to 1.5GHz
9kHz to 3.0GHz
9kHz to 3.2GHz
9kHz to 7.5GHz
Resolution
1Hz
Aging Rate
<5×10-6/year
<1×10-6/year
Frequency Span
Frequency Span Range
0Hz, 100Hz to 1.5GHz
0Hz, 100Hz to 3GHz
0Hz, 100Hz to 3.2GHz
0Hz, 100Hz to 7.5GHz
Uncertainty
±span/(sweep points-1)
SSB Phase Noise (fc=1.0GHz)
-80dBc/Hz @10 kHz offset
-96dBc/Hz @10 kHz offset
Bandwidth
Resolution Bandwidth (-3dB)
10Hz ~ 1MHz, step 1-3-10,
RBW Uncertainty
10%, nominal (RBW>1kHz)
20%, nominal(RBW≥10Hz, sweep time≥5s)
Video Bandwidth (-3dB)
1Hz to 1MHz, step 1-3-10
Amplitude
Range
DANL to +30dBm
DANL to +20dBm
Maximum Input Level
DC Voltage: 50V
CW RF Power: +30dBm (1.0W)
CW RF Power: +20dBm (0.1W)
Max.Damage Level: +40dBm (10W)
Max.Damage Level: +30dBm (1W)
Displayed Average Noise Level (DANL)
DANL (Preamplifier Off)
typ. -125 dBm
typ. -135 dBm
DANL (Preamplifier On)
typ. -135 dBm
typ. -152dBm
Reference Level Range
-100 dBm to +30 dBm, step 1 dB
Sweep
Sweep Time Range
10 ms to 3000 s (100Hz≤Span≤3GHz)
1ms to 7500 s (100Hz≤Span≤7.5GHz)
20 μs to 3000 s (Span=0 Hz)
20 μs to 7500 s (Span=0 Hz)
Sweep Time Uncertainty
5%, nominal (100Hz≤Span≤7.5GHz)
0.5%, nominal (Span=0 Hz)
Sweep Mode
Continuous, Single
Trigger
Trigger Source
Free, Video, External
External Trigger Level
5 V TTL level
Advanced Measurement
Channel Power, Adjacent Channel Power, N-dB bandwidth, Occupied Bandwidth
EMI
200Hz, 9kHz, 120kHz
Input/Output
RF Input Impedance
50 Ω
Standard frequency
Frequency: 10MHz
Amplitude: 0dBm~10dBm (input) -3dBm to +3dBm (output)
-3dBm to +3dBm (output)
Tracking Generator (-TG Model)
TG Frequency range
9kHz to 1.5GHz
9kHz to 3GHz
100kHz to 3.2GHz
100kHz to 7.5GHz
TG Output level range
-20dBm to 0dBm
-40dBm to 0dBm
TG Output level resolution
1 dB
Interface
Type
USB Host & Device, LAN, VGA, RS-232 (only SA9100 series available)
General Characteristic
Power Supply
Input Voltage: AC100V to 240V
Frequency: 50/60Hz (1±10%)
Power Consumption: 35W
Dimension & Weight
364*155*328 mm, Approx. 6.0 kg
364*155*328 mm, Approx. 6.5kg

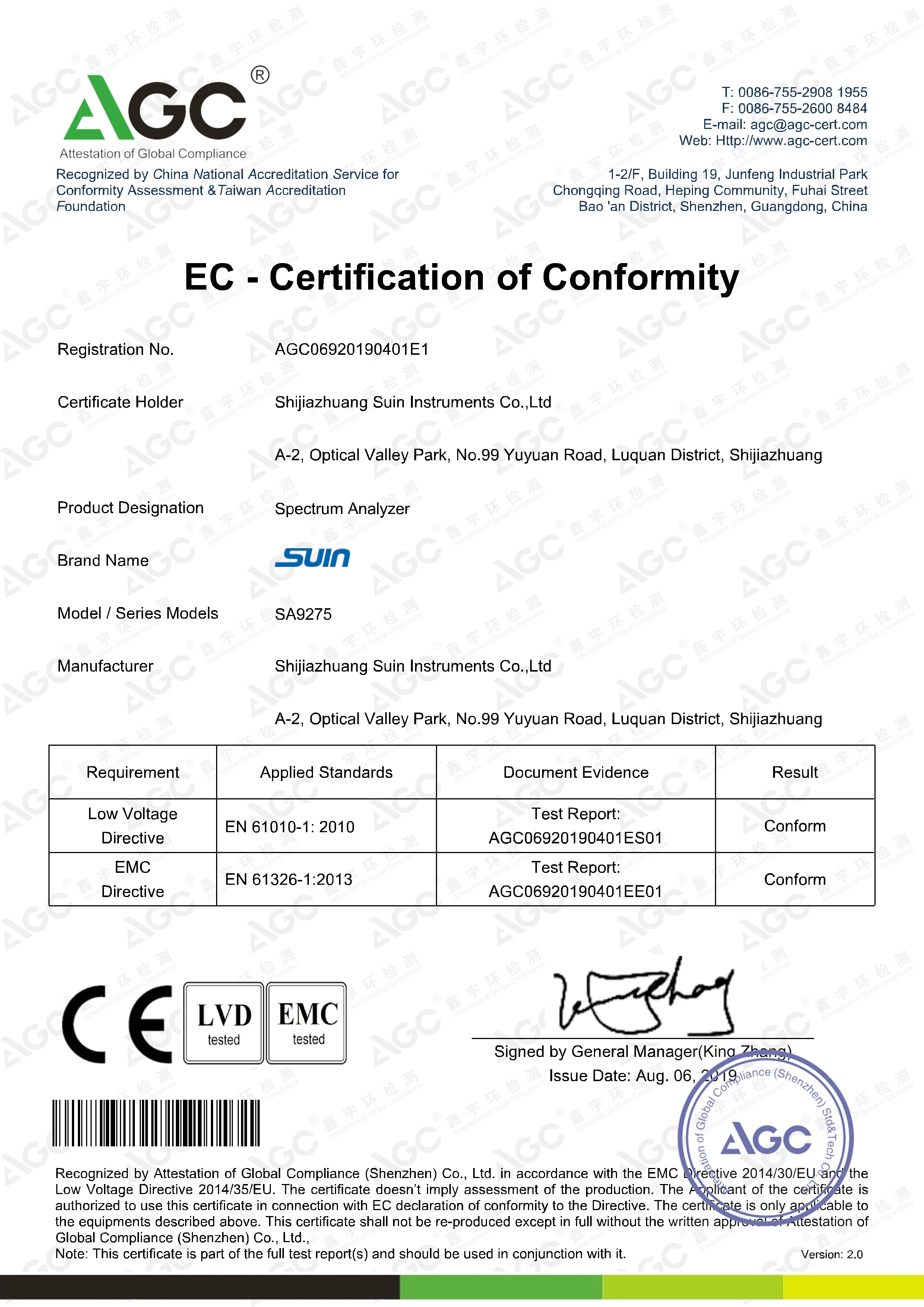

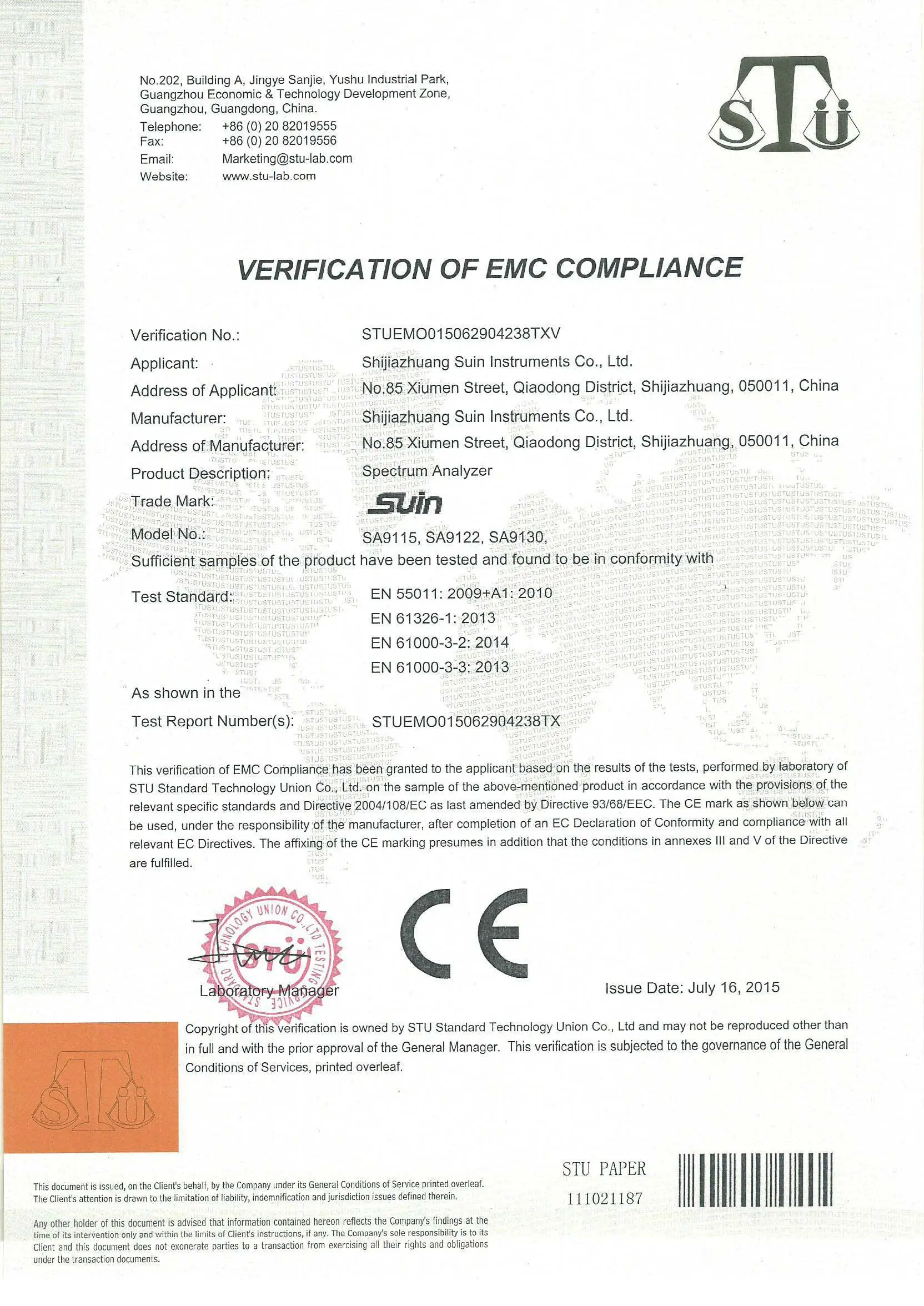

Certifications




Packing & Delivery

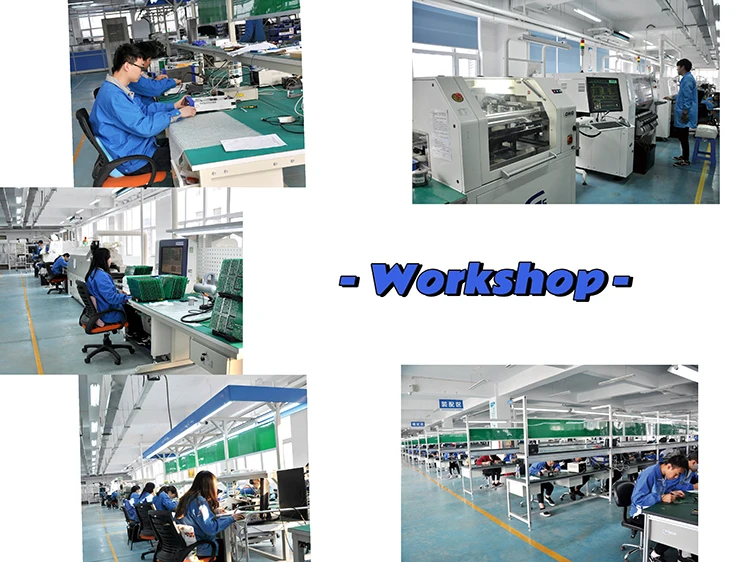

Company Profile


SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry.
Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.
Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.




Exhibition




Recommend Products




FAQ


Q: Does the Suin 7.5GHz spectrum analyzer come with a tracking generator?
A: Yes, select model SA9275-TG when place order, which comes with tracking generator and preamplifier.

Q: Can the SA9275 demodulate input signals?
A: Yes, it can demodulate AM and FM signals. There is ‘Demodulation Tips_SA9100_9200’ from online manual download.

Q: Can I use the Suin SA9275 Spectrum Analyzer to perform EMI radiated emissions test?
A: Yes, all Suin spectrum analyzers can do that test with help of optional Near Filed Probe Set SY5030, of which details and operating instruction, please refer to ‘How to track EMI emissions Source ’ from online manual download.

Q: What’s the minimum resolution bandwidth (RBW) of SA9275?
A: It’s 10Hz
