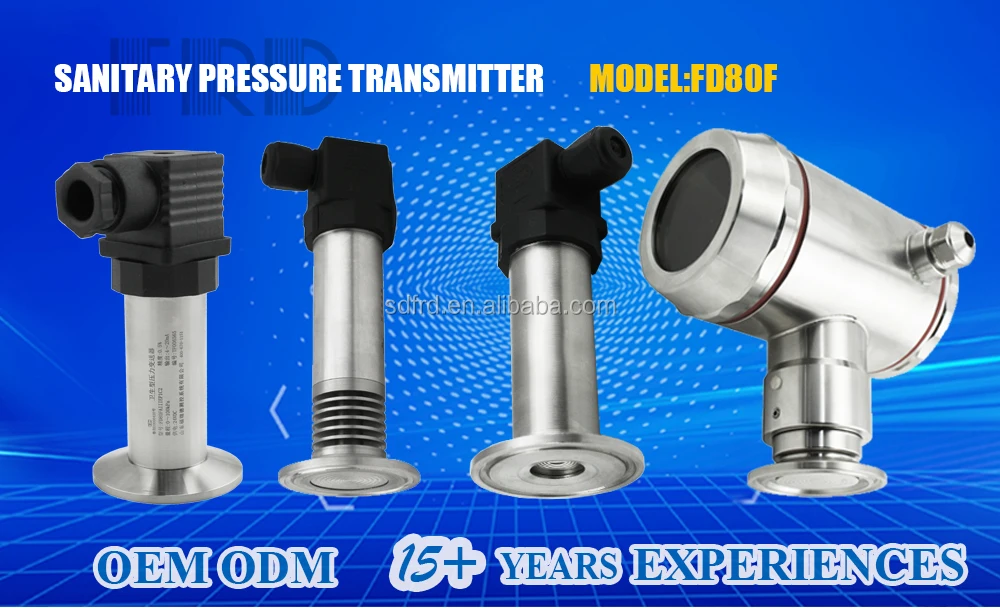

Anti-blocking Flush diaphragm Pressure Transmitter sensor silicon flat film threaded sensor sanitary pressure transducer

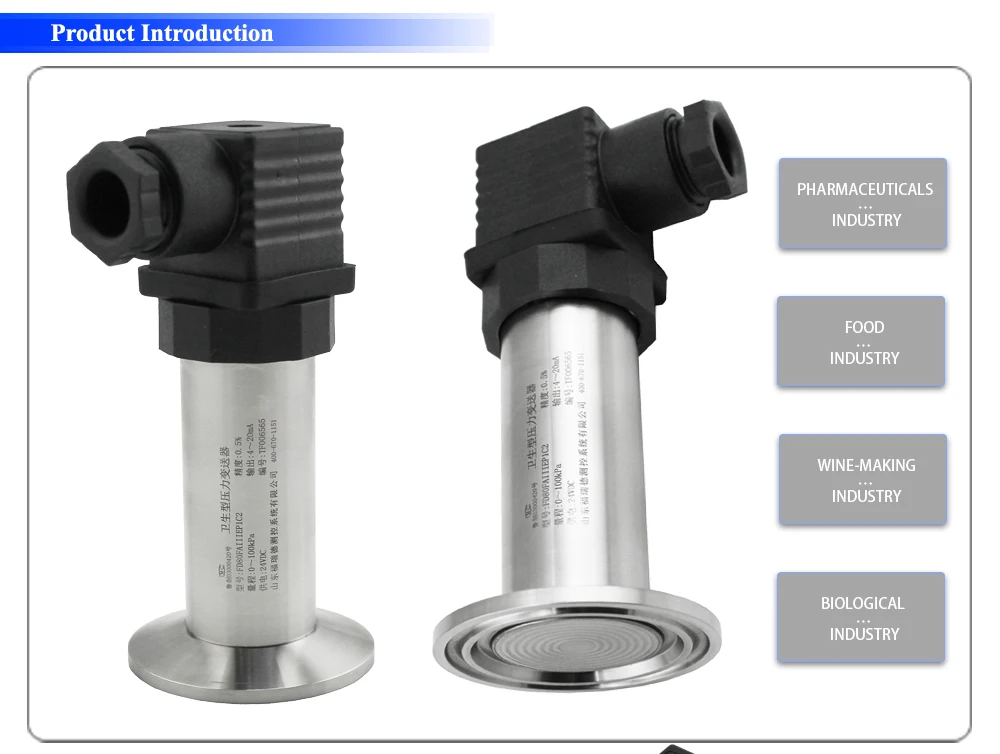

FD80F series intelligent sanitary pressure transmitter is a dedicated flat -free film transmitter for food.beverages, medicine, and biological engineering, which has high precision, high stability, high -temperature pressure-resistant pressure measurement products. The digital technology adopted by this product is the latest application results in the field of sensor manufacturing. Combined with the international advanced pressure -resistant pressure transmitter design and manufacturing technology, precision digital temperature compensation and non -linear correction are performed. LCD4 -bit display,standard signal output, the on -site and control room observations. The reliable explosion-proof structure design and standardized signal output, with high accuracy and wide range coverage range, complies with 3-A hygienic standards.
Product Feature
1. Wide measurement range, surface pressure, absolute pressure, negative pressure can be tested
2 Sensor adopts digital compensation and non -sexual correction
3. IP65 protection design, suitable for harsh environment such as field, open -air and other harsh environment
4. Tag marking by optical fiber, exquisite appearance
5. GB3836 standard , Obtained explosion-proof certificate
6.Digital circuit design, you can press the on -site key to clear zero
7. High temperature resistance, up to 180 ℃

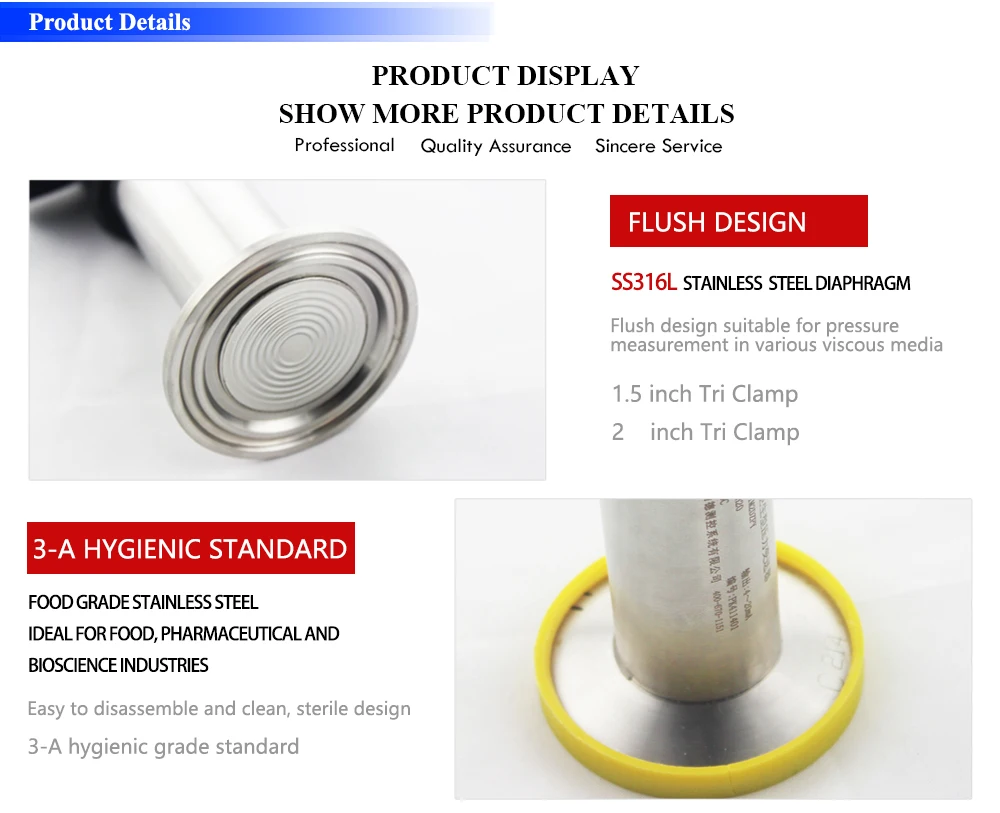

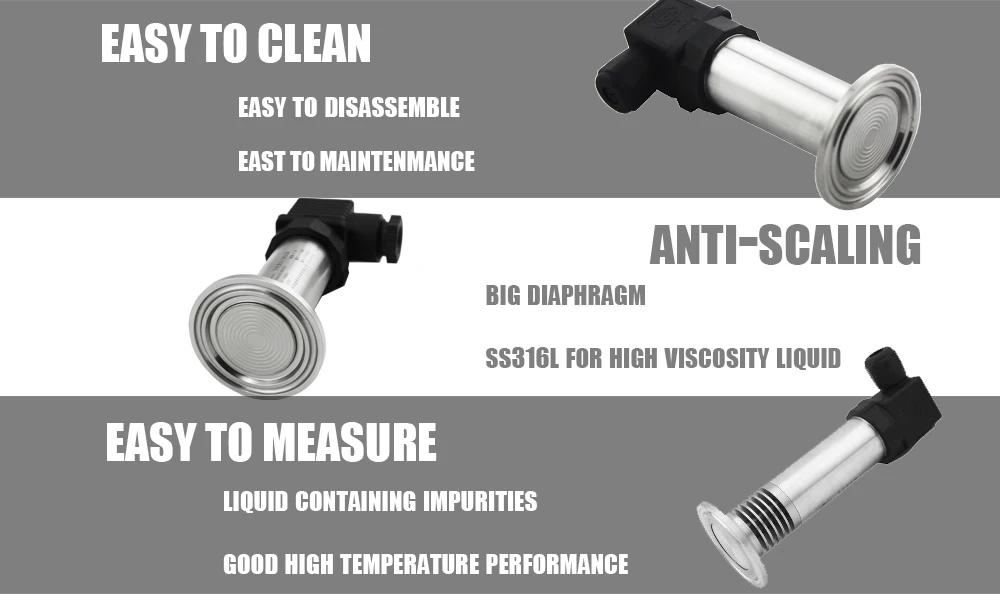

8. Flash-free film structure, complies with 3-A health standards
Model | FD80F Sanitary Pressure Transmitter |
Pressure Range | 0-5kpa~20kPa, 0-20~70kPa 0-70~350kPa 0-200~700kPa 0-0.7Mpa~3.5MPa 0-2.0MPa~7MPa |
Pressure Type | Gauge;Absolute;Negative pressure |
Pressure Sensor | Diffused Silicon Pressure Sensor |
Output Signal | 4mA～20mADC 1V-5VDC RS485 |
Accuracy | 0.1%F.S 0.25%F.S 0.5%F.S |
Working Temperature | -20℃～70℃；-20℃～150℃；-20℃～180℃ |
Overload pressure | 150% F.S |
Burst Pressure | 200% F.S |
Protection Grade | IP65、IP68 |
Electrical Connection | Hirschmann, Aviation connectors, gland cable, |
