Воздуходувка большого объема с двигателем IE3 импульсный силос воздушным двухслойный насос для жидкости в
- Категории: Blowers >>>
- Поставщик: Shandong,Mingtian,Machinery,Group,Joint,Stock,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

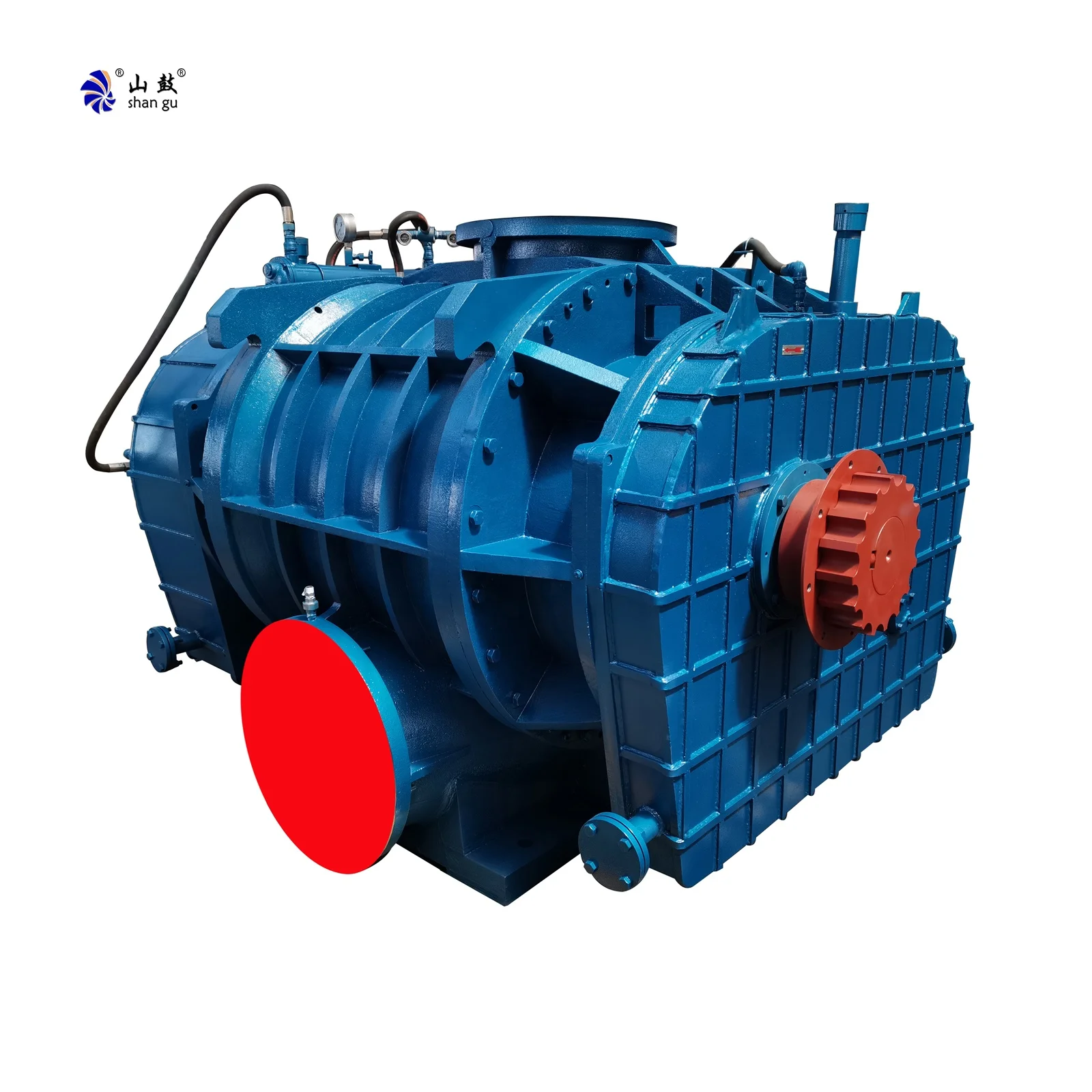

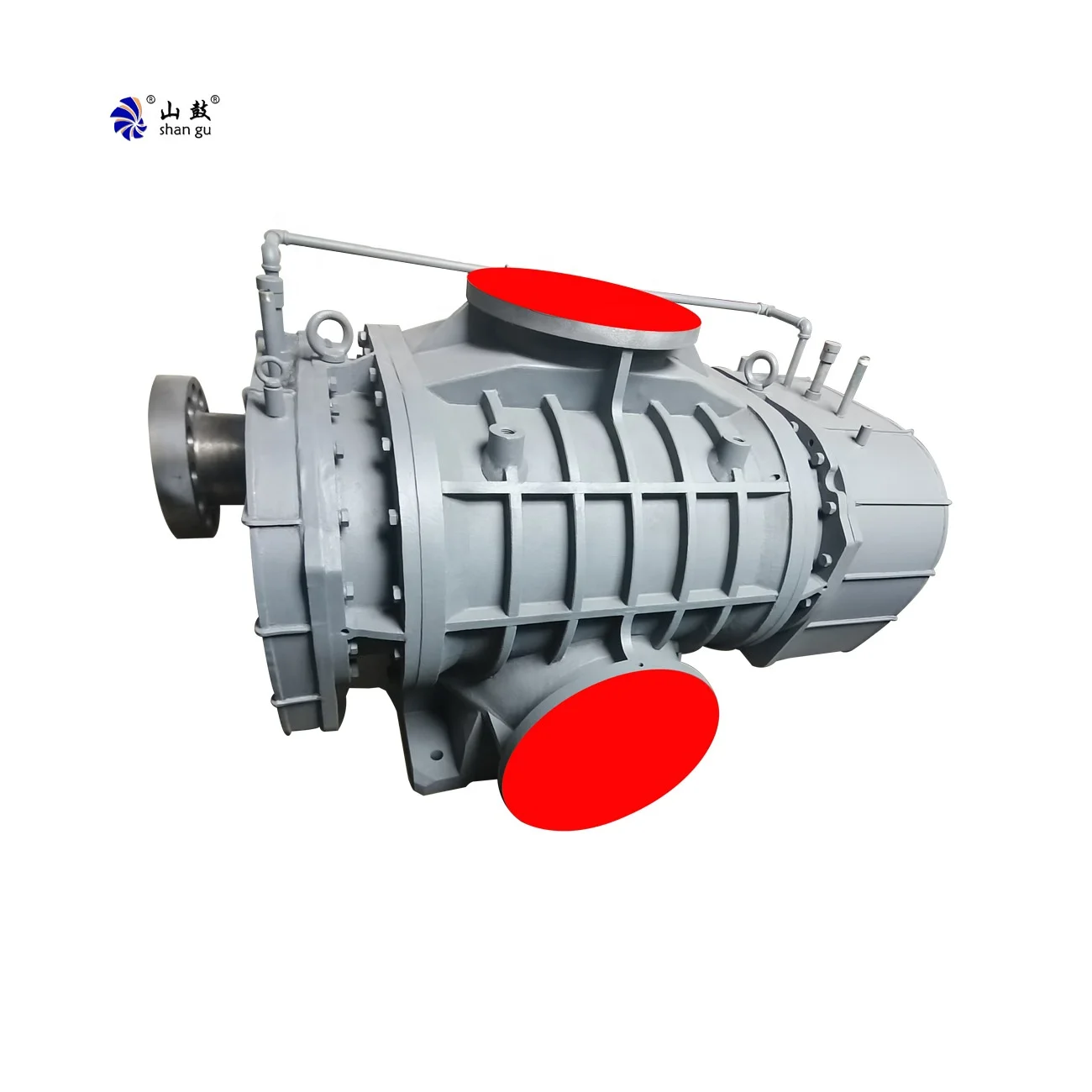

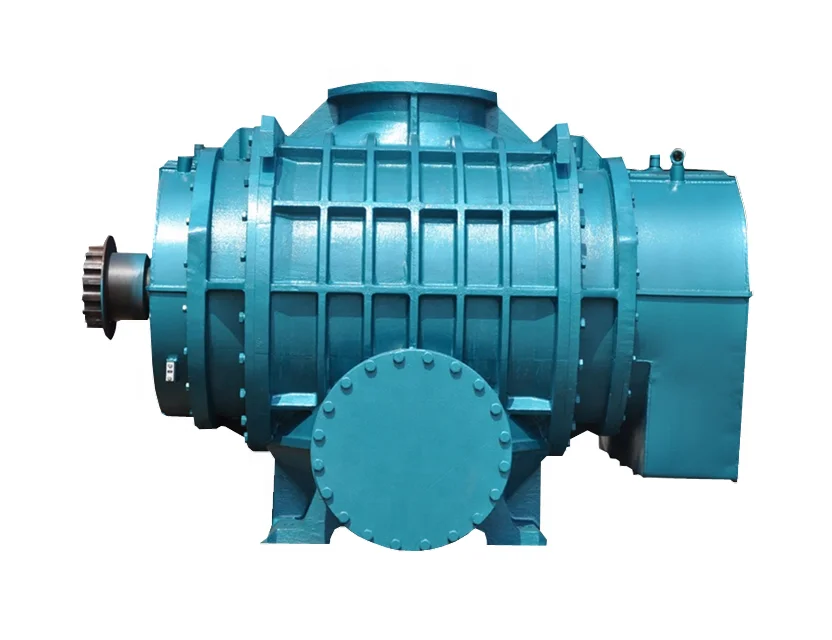

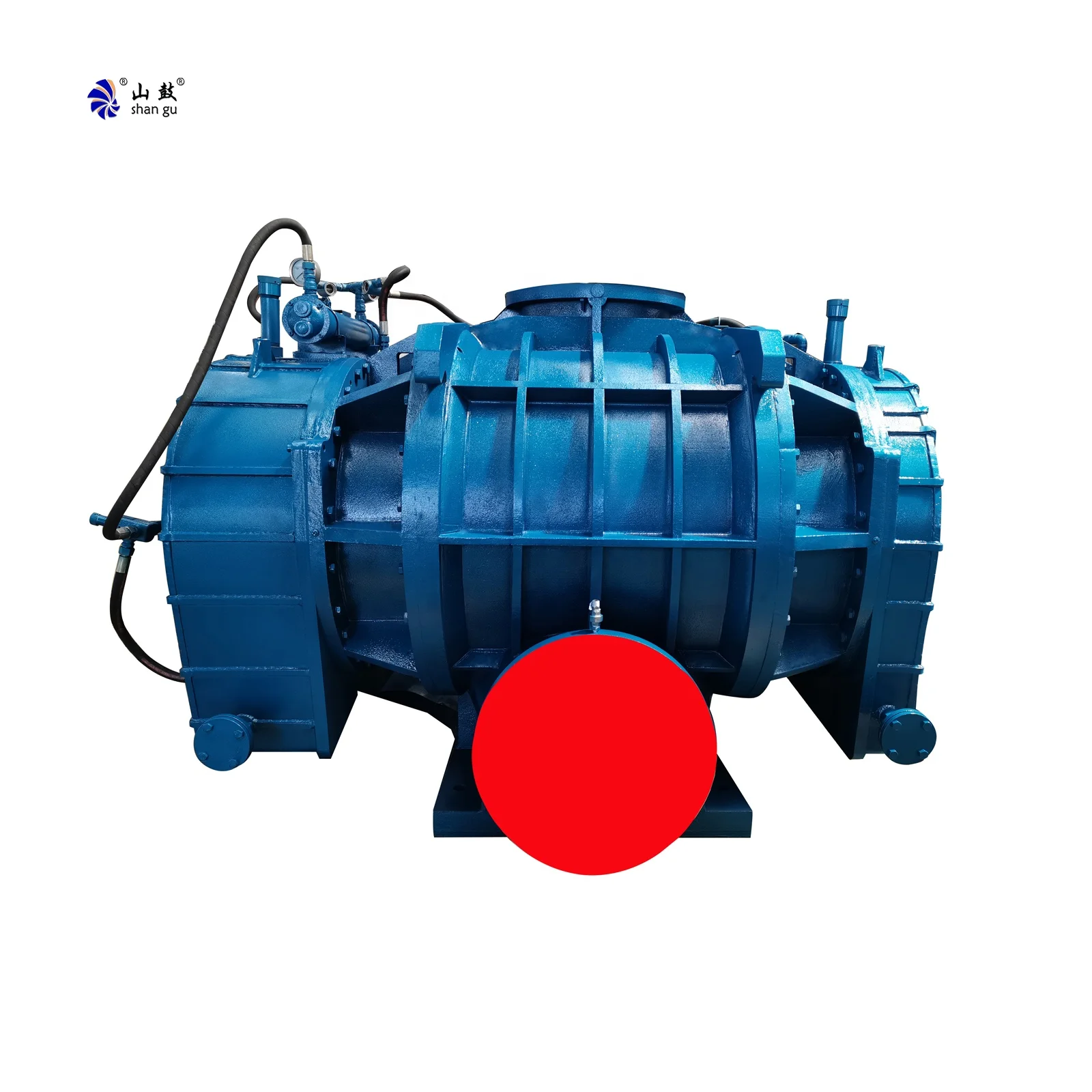

China Origin Big Capacity Roots Blower Driven by IE3 Motor Fly Ash Silo Transfer Twin Lobe Blower Root in Cement Plant
Specification of MTRZ7 Series Roots Blower
1.All models of MTRZ7 series
MTRZ7-500 MTRZ7-600 MTRZ7-700 MTRZ7-800 MTRZ7-900
2.Size of Discharge Bore
500(19.7″)、600(23.6″)、700(27.6″)、800(31.5″)、900(35.4″)
Or in customer’s indication range
3.Differential pressure scope
1.42—12.79 PSI
4.Air capacity scope
14532—29735 CFM
5.Power of the motor
132-1000kW
1.All models of MTRZ7 series
MTRZ7-500 MTRZ7-600 MTRZ7-700 MTRZ7-800 MTRZ7-900
2.Size of Discharge Bore
500(19.7″)、600(23.6″)、700(27.6″)、800(31.5″)、900(35.4″)
Or in customer’s indication range
3.Differential pressure scope
1.42—12.79 PSI
4.Air capacity scope
14532—29735 CFM
5.Power of the motor
132-1000kW
FEATURES AT A GLANCE
PROVEN TECHNICAL DESIGN
COUNTLESS PROJECTS EXPERIENCE
EXCELLENT PERFORMANCE
LARGE CAPACITY
INDUSTRIAL APPLICATION
QUALITY RELIABLE AND STABLE
TECHNICAL WARRANTY
Right Blower
Left Blower
Front Blower
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Shaft Power | 107-957 KW | ||
2 | capacity range | 14532-29735CFM | ||
3 | Speed | 490-590rpm | ||
4 | lobe type | twin-lobe | ||
5 | timing gear | 20CrMnTi | ||
6 | Bearing | GCr15 | ||
7 | Casing | HT250 Cast Iron | ||
8 | Lobe | QT400 |
PRODUCT CONFIGURATION
Ta Tung Timing Gear
INTL TOP Brand Bearing
QT400 Magnesium Iron Lobe
Successful Project
Project in Russia
Project in Vietnam
Project in Indonesia
SIMILAR PRODUCTS
Thailand Water Exhibition 2019
During this exhibition, nearly 60 enterprises exchanged contact information with us, and signed a contract of $200,000.
Company Profile
Corporate Introduction
Shandong Mingtian Machinery Group Joint Stock Co., Ltd. was established in 2007 and is located in Zhangqiu District, Jinan City,Shandong Province. It is a national high-tech enterprise integrating scientific research, production and sales. The annual output value of the group company is as high as 150 million yuan, covering an area of more than 36,000 square meters, and a building area
of more than 19,000 square meters.
which manufactures as many as nine series of Roots blowers, a total of more than 220 models, more than 430 specifications, and the trademark "Shangu" registered as the Madrid International trademark. In 2020, it was awarded as the "Top 10 blower manufacturer of Big industry brands in China".
of more than 19,000 square meters.
which manufactures as many as nine series of Roots blowers, a total of more than 220 models, more than 430 specifications, and the trademark "Shangu" registered as the Madrid International trademark. In 2020, it was awarded as the "Top 10 blower manufacturer of Big industry brands in China".
Business Scope.
Shandong Mingtian Machinery Group Joint Stock Co.,Ltd is a Integrated enterprise group of manufacturing,Development and Design,
Sales of Roots blower, Roots Vacuum Pump, MVR Steam Compressor, MVR Evaporator, Zero Liquid Discharge Technology, Seawater
Desalination, Water Treatment Engineering,etc. Business Scope include the business from America, Southeast Asia，Middle Asia，Russia， Middle
East Region，South and Middle America,etc.
Sales of Roots blower, Roots Vacuum Pump, MVR Steam Compressor, MVR Evaporator, Zero Liquid Discharge Technology, Seawater
Desalination, Water Treatment Engineering,etc. Business Scope include the business from America, Southeast Asia，Middle Asia，Russia， Middle
East Region，South and Middle America,etc.
FAQ
Q1：How about the price?
A1：The price is negotiable. It can be changed according to your quantity or packaging.When you are making an inquiry, please let us know the quantity you prefer.
Q1：How about the after-sales service?
A1：We provide 1 year's guarantee, installation guide, and life-long free technical consulting.
Q1：How about the OEM?
A1：Welcome, you can send your own design of blower product and LOGO, we can open new mold and print or emboss any LOGO for you.
A1：Welcome, you can send your own design of blower product and LOGO, we can open new mold and print or emboss any LOGO for you.
