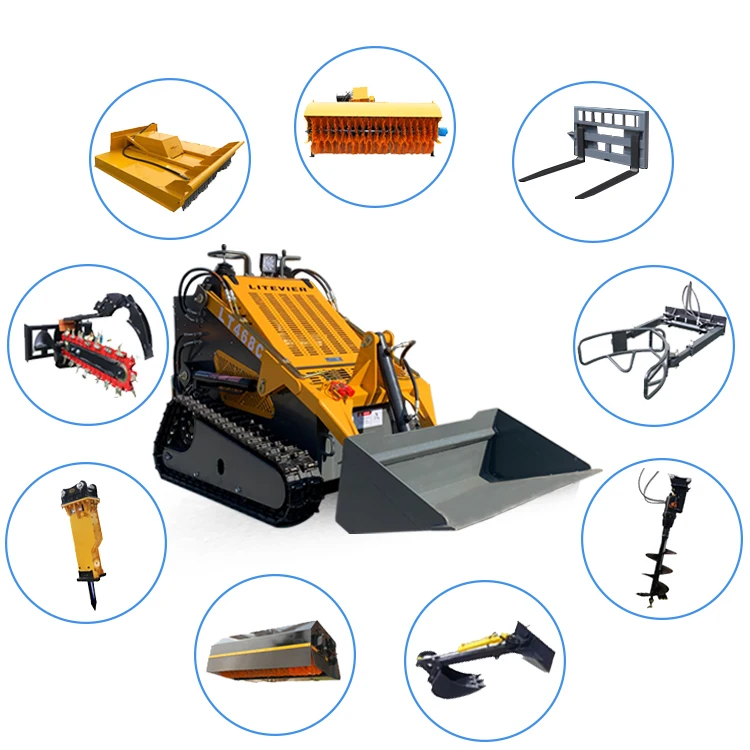

2022 первый продукт маленький фронтальный погрузчик с бортовым поворотом и креплением многофункциональный
- Категории: Loaders >>>
- Поставщик: Shandong,Songsheng,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Skid Steer Loader Parameter List | ||||||

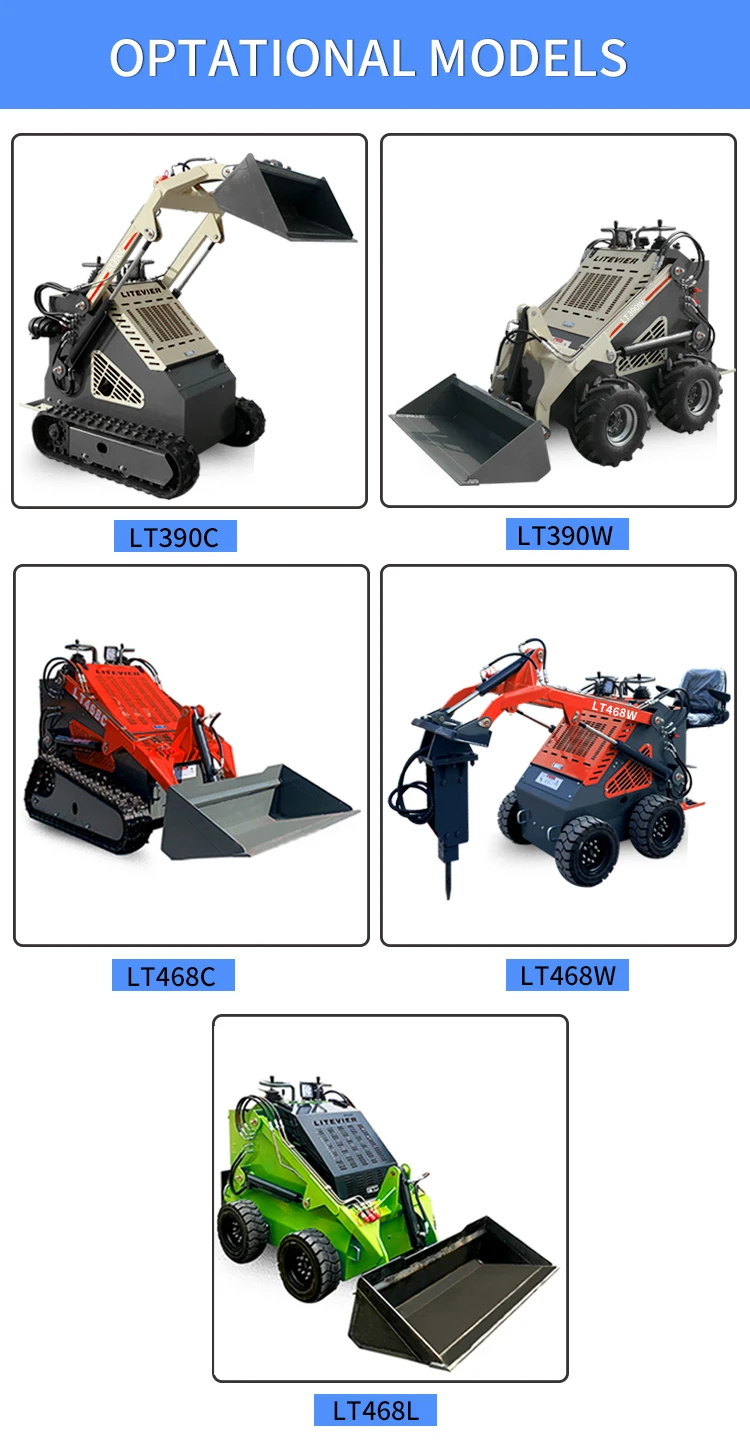

Model | LT390 | LT468 | ||||
Maximumunloading | mm | 1530 | 1550 | |||
Bucket retraction height | mm | 205 | 270 | |||
Maximum bodylength | mm | 1980 | 2315 | |||
Maximumworking length | mm | 2240 | 2565 | |||
Maximum bodyheight | mm | 1310 | 1315 | |||
Maximum unloading distance | mm | 545 | 570 | |||
Minimum transport size | mm | 1510 | 1760 | |||
chasisheight | mm | 125 | 150 | |||
Maximum climbing angle | mm | 17° | 17° | |||
Vehicle width | mm | 1120 | 1190 | |||
Turning radius | mm | 1350 | 1530 | |||
Rated load | KG | 260 | 450 | |||
Machine Weight | KG | 800 | 1000 | |||
Standard bucket capacity | m3 | 0.06-0.10 | 0.12-0.25 | |||
Working device form | Front end loader | Front end loader | ||||

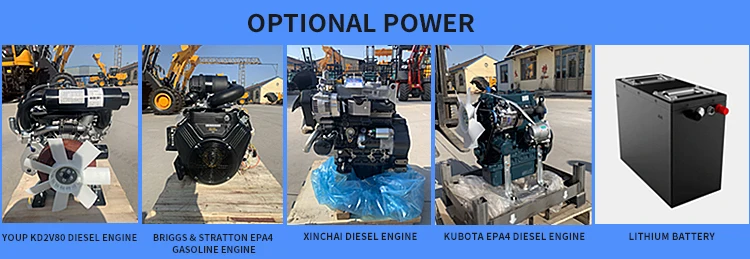

Engine model | Briggs & Stratton EPA4 gasoline engine/YOUP diesel engine | Xinchai/Kubota EPA4 Diesel Engine/Lithium Iron Phosphate Battery | ||||
Displacement | 827CC | 1.1L | ||||
Rated output power/Rotating speed | 23HP 17.2Kw/3800RPM | 19.2 KW/2200RPM | ||||
Speed | 5 KM/H | 5 KM/H | ||||
Max Climb Capability | 30° | 30° | ||||
Pump form | gear pump | gear pump | ||||
pressure | 20 mpa | 20 mpa | ||||
flow | 40 L/min | 40 L/min | ||||
Hydraulic tank capacity | 30 L | 30 L | ||||
Fuel tank capacity | 32 L | 42 L | ||||
