Сделано в Китае, звуковой микшер Echo
US $68.50-$76.80

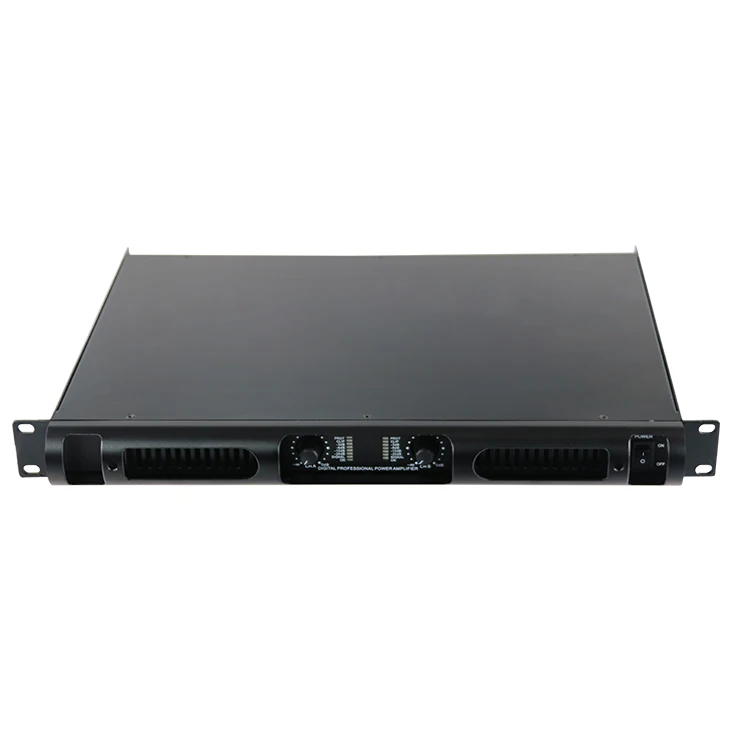

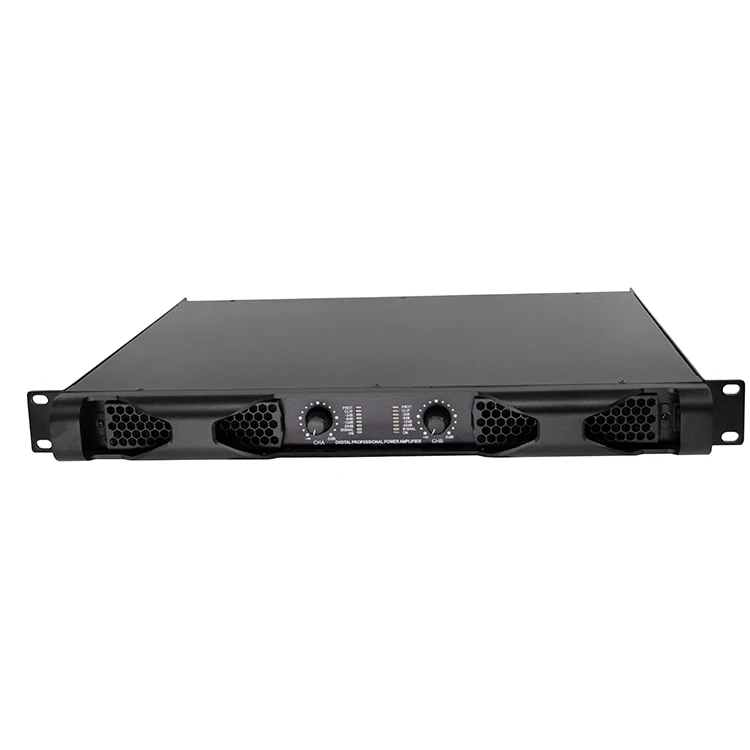

Класс D звуковой усилитель мощности 1800 Ватт 8 Ом 2 канальный цифровой 1u
- Категории: Professional Audio, Video & Lighting(old) >>>
- Поставщик: Dongguan,Lihui,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Class D Digital Audio Amplifier OEM&ODM services are available
8Ω Stereo Power: 1800W*2
4Ω Stereo Power： 3400W*2
8Ω Bridge Power： 6500W*1
4Ω Stereo Power： 3400W*2
8Ω Bridge Power： 6500W*1
Application :
1) Concerts/sports events/horse clubs/speech/meetings/weddings/various PARTYs, cocktail parties
2) Nightclub/Karaoke Dance Hall/Bar/Cafe/Leisure Club
1) Concerts/sports events/horse clubs/speech/meetings/weddings/various PARTYs, cocktail parties
2) Nightclub/Karaoke Dance Hall/Bar/Cafe/Leisure Club
Features:
1) Standard chassis 1U high, Ultrathin light weight
1) Standard chassis 1U high, Ultrathin light weight
2) High-efficiency power supply
The use of active power factor correction APFC technology, improve the use of power efficiency, purify power supply
The use of active power factor correction APFC technology, improve the use of power efficiency, purify power supply
3)High anti-interference
4) High damping coefficient

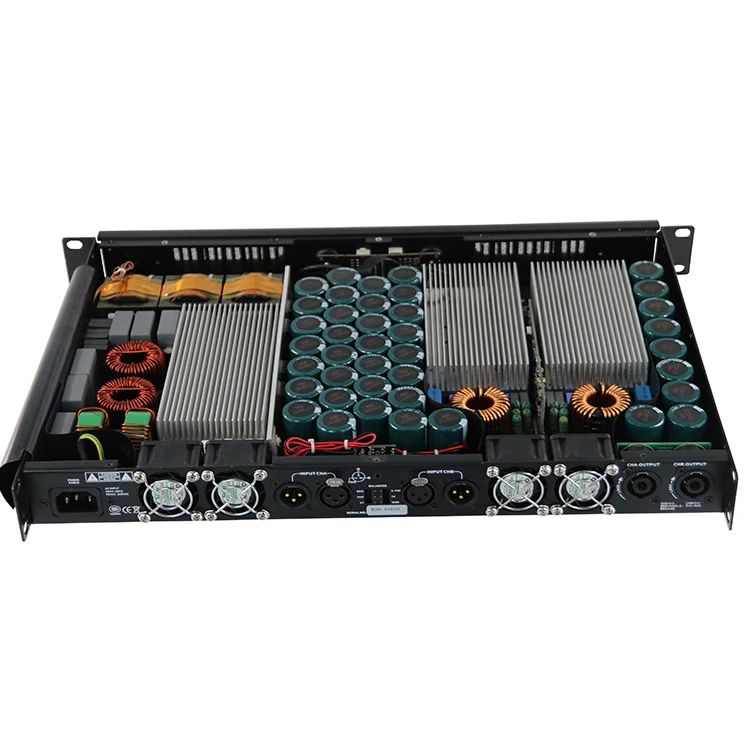

The circuit design of this product has carefully selected the components, and selected the high-power MOS tube with low output impedance; also designed the speaker back electromotive force absorption circuit, which is beneficial to control the normal movement of the speaker cone.
4) High damping coefficient
The circuit design of this product has carefully selected the components, and selected the high-power MOS tube with low output impedance; also designed the speaker back electromotive force absorption circuit, which is beneficial to control the normal movement of the speaker cone.
5) Excellent heat dissipation performance
This machine not only designs the airflow direction scientifically from the structure, but also carries on the intelligent control to the fan on the circuit; When the temperature is low, the fan rotates at a low speed. When the temperature rises, the wind speed increases gradually
This machine not only designs the airflow direction scientifically from the structure, but also carries on the intelligent control to the fan on the circuit; When the temperature is low, the fan rotates at a low speed. When the temperature rises, the wind speed increases gradually
6) Humanized appearance design
Designed with handle, easy to carry; Easy to maintain and clean; The panel is designed with windproof cotton protective cover.When the power amplifier works for a long time, dust will accumulate on the dustproof cotton. At this time, you can easily remove the screw and take out the dustproof cotton for cleaning
7 The perfect protection circuit ensures the safe operation of the power amplifier
a, soft start,
b, output DC protection: when the output has DC voltage, in order to protect the speaker, the protection circuit will start quickly and turn off the power.
c,overheating protection/short circuit protection
d,overload protection, overcurrent protection, overvoltage protection
From all aspects, for audio circuits, from circuit design to component selection, strive to be perfect. Such as the choice of capacitance, MOS tube selection, feedback circuit, compensation circuit, filter circuit and so on, have been carefully debugging,to ensure that the amplifier low distortion, wide band, low noise, playback bass powerful, full alto, treble clear.
9) Powerful load capacity,beyond the imagination of the shock
The machine has strong power, strong shock, not only can carry 4Ohm, 8Ohm, but also can carry 2 Ohm of load; Most power amplifiers can only hold up to 4Ohm.
The machine has strong power, strong shock, not only can carry 4Ohm, 8Ohm, but also can carry 2 Ohm of load; Most power amplifiers can only hold up to 4Ohm.
Specification
* Frequency Response：20HZ-20KHZ @1/8 rated power，8Ω，+/-0.5DB
* THD：<0.05% @ 1KHZ @8Ω @1/8 rated power
* Signal-to-Noise Ratio S/N: >105DB
* Input Sensitivity：0.775V/1v/2v
* Input damp：（Balanced/Unbalanced）20KΩ/10KΩ
* Slew Rate：>20V/uS
* Damping Factor：>220
* Separation degree： >65DB
* HIGH PASS FILTER）: 24DB/OCT @300HZ
* Power voltage：115V/230V can be set
* THD：<0.05% @ 1KHZ @8Ω @1/8 rated power
* Signal-to-Noise Ratio S/N: >105DB
* Input Sensitivity：0.775V/1v/2v
* Input damp：（Balanced/Unbalanced）20KΩ/10KΩ
* Slew Rate：>20V/uS
* Damping Factor：>220
* Separation degree： >65DB
* HIGH PASS FILTER）: 24DB/OCT @300HZ
* Power voltage：115V/230V can be set
Packing & Delivery

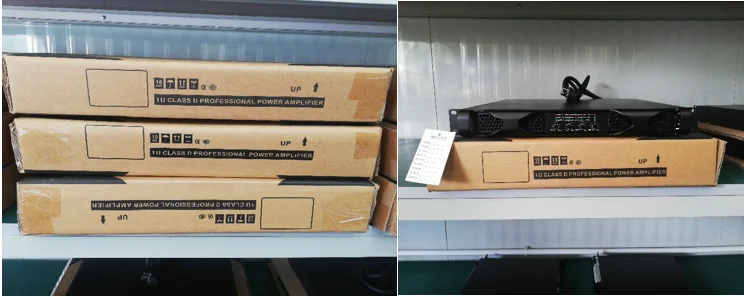

To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

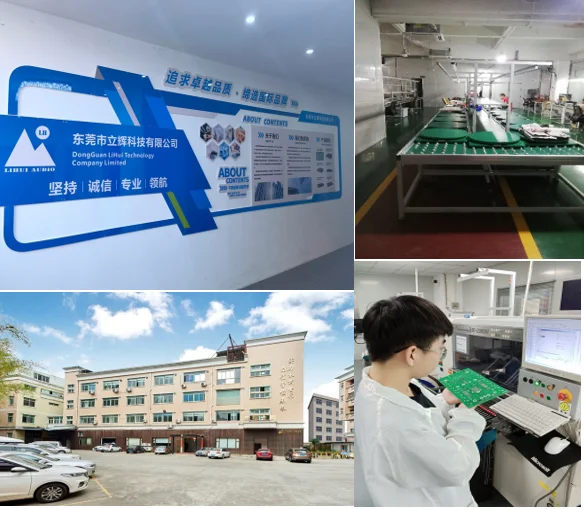

Dongguan Lihui Technology Co., LTD is located in Donguan city China. We are a professional power amplifier manufacturer with more than ten years. Main productions: professional class d power amplifier, speakers, karaoke equipment, mixing desk, digital peripherals and conference system. OEM & ODM service are available.
For more details please feel free to contact us
FAQ
1). Are you manufacturer?
Yes, we are audio products manufacturer located in Dongguan, China.
Welcome to visit our factory.
2). What’s your payment terms
50% in advance and balance before shipment
3). Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
4). What is your MOQ?
No MOQ for any sample test
Yes, we are audio products manufacturer located in Dongguan, China.
Welcome to visit our factory.
2). What’s your payment terms
50% in advance and balance before shipment
3). Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
4). What is your MOQ?
No MOQ for any sample test
