Fascinating price china nmrv025 gear reducer 90 degree worm gearbox hydraulic speed reducers

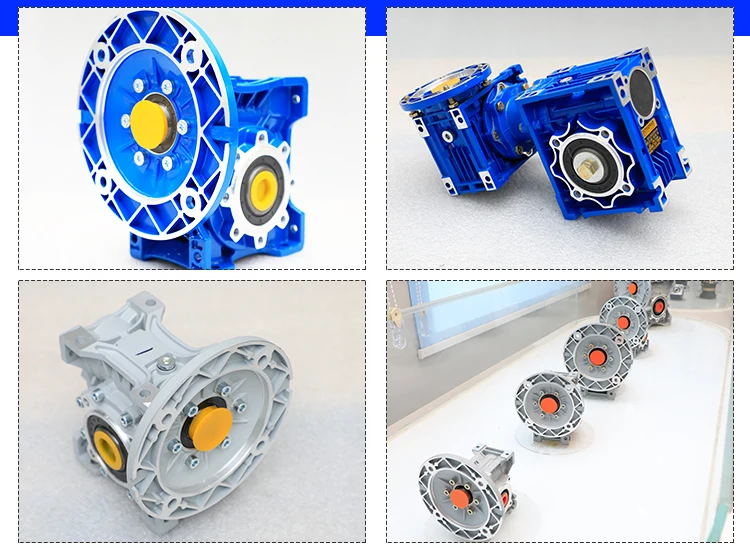

The NMRV reducer is relatively light in weight, and the shell is made of aluminum alloy. It has the advantages of light weight, superior strength, beautiful appearance, high heat dissipation performance, long service life, no noise in action, etc. It is convenient and simple to connect with the motor. Easy to install. NMRV reducer is a more practical transmission equipment, and its appearance design and body are more in line with the needs of the public than other types of reducers. Although the RV reducer made of aluminum alloy only emerged in 2007, its application field and popularity are even better than other types of reducers. It is a reducer with high practicability. , but also the integration of advanced technology at home and abroad. The NMRV reducer is extremely convenient to connect with ordinary motors, continuously variable transmissions, and flanged electromagnetic clutch brakes, and does not require couplings to connect. It is suitable for all-round installation, and the output torque is relatively large, and the work is quite stable.
Advantage:
♠ High quality aluminum alloy,appearance elegant,efficient radiator,high carrying ability
♠ Installed in multi-surfaces,hollow output shaft,various input and output type,conjoin other transmission machinery easily
♠ Small size,contriction compact,lightweight,and save place for mounting
♠ Run steadily and low noise
♠ High reliability and high efficiency
♠ High quality aluminum alloy,appearance elegant,efficient radiator,high carrying ability
♠ Installed in multi-surfaces,hollow output shaft,various input and output type,conjoin other transmission machinery easily
♠ Small size,contriction compact,lightweight,and save place for mounting
♠ Run steadily and low noise
♠ High reliability and high efficiency
Main fetures:
1.Large speed ratio range
2.Small volume,low weight ,saving space for mounting.
3.High efficiency,high mechanical strength and high quality aluminum alloy housing
4.Long life service,large output torque,low noise and little vibration
5.Low temperature rise,omnibearing installation ,easy to connect with other machinery.
6.High carry ability,elegant apperance.
7.CE standard,input power can be 0.06KW-15KW
8.Stable transmission
2.Small volume,low weight ,saving space for mounting.
3.High efficiency,high mechanical strength and high quality aluminum alloy housing
4.Long life service,large output torque,low noise and little vibration
5.Low temperature rise,omnibearing installation ,easy to connect with other machinery.
6.High carry ability,elegant apperance.
7.CE standard,input power can be 0.06KW-15KW
8.Stable transmission

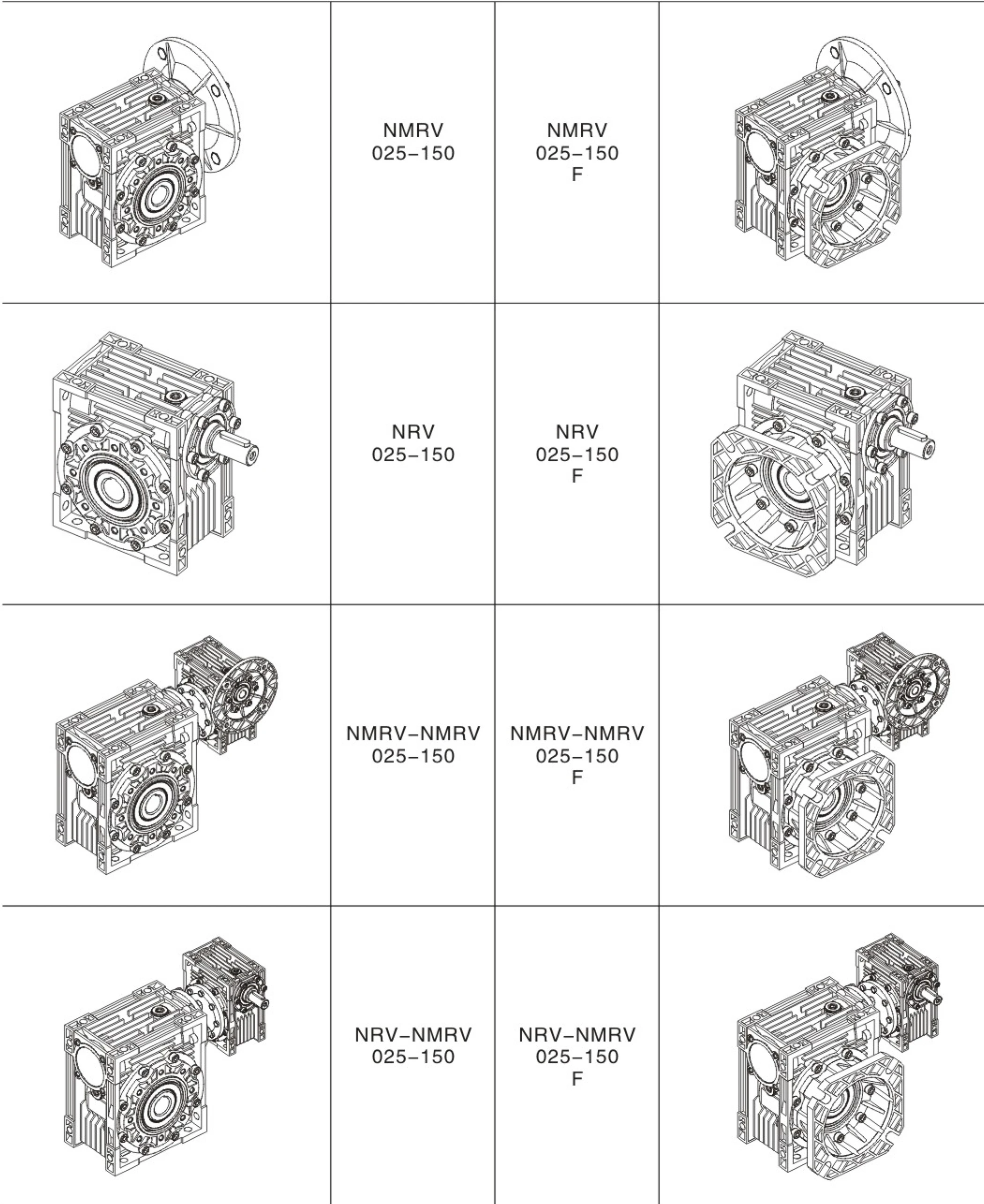

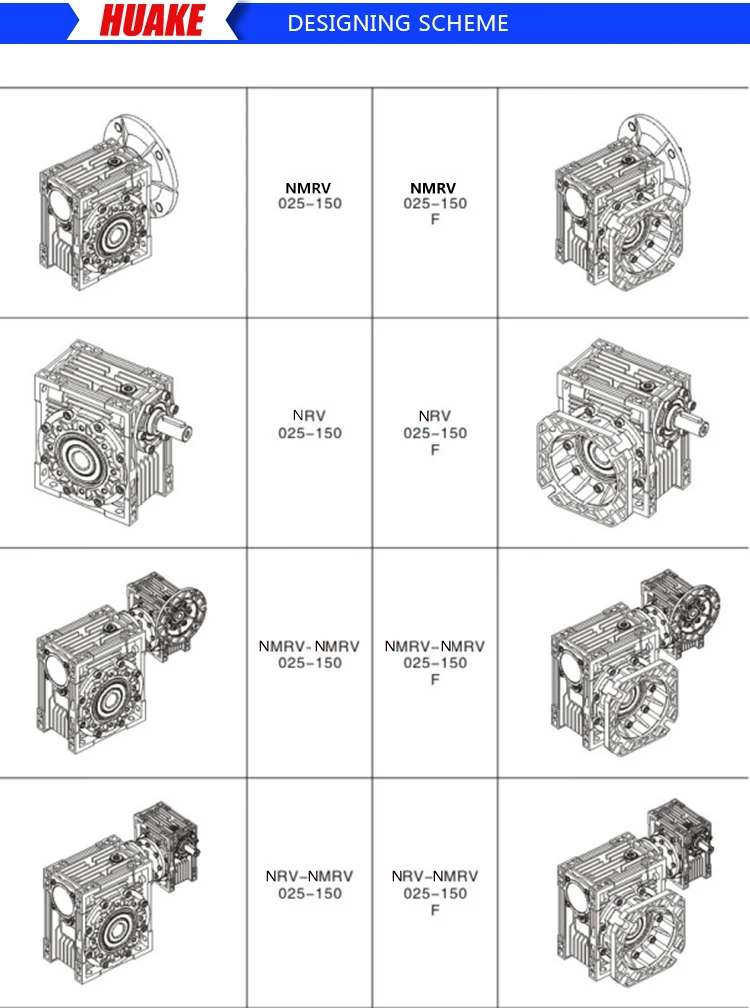

NMRV-063-30-VS--AS-80B5-0.75KW-B3 | ||||||
NMRV | Means hole-input with flange | |||||
NRV | Means shaft-input without flange | |||||
063 | Centre-to-centre spacing of worm-gear speed reducer | |||||
30 | ratio | |||||
VS | Double input shaft | F1(FA) | Flange putput shaft | |||
AS | Single output shaft | AB | Double output shaft | |||
PAM | 80B5 | Motor mounting facility | ||||
0.75KW | B3 | Mounting position | ||||
N2 | NRV025 | NRV030 | NRV040 | NRV050 | NRV063 | NRV075 | NRV090 | NRV110 | NRV130 |
400 | 390 | 530 | 1020 | 1400 | 1830 | 2160 | 2390 | 3020 | 3950 |
250 | 460 | 620 | 1200 | 1650 | 2150 | 2520 | 2800 | 3530 | 4610 |
150 | 550 | 740 | 1420 | 1960 | 2450 | 2990 | 3310 | 4180 | 5470 |
100 | 630 | 850 | 1620 | 2250 | 2910 | 3430 | 3800 | 4790 | 6260 |
60 | 740 | 1000 | 1920 | 2660 | 3450 | 4060 | 4500 | 5680 | 7420 |
40 | 850 | 1150 | 2200 | 3050 | 3950 | 4650 | 5150 | 6500 | 8500 |
25 | 990 | 1350 | 2570 | 3570 | 4620 | 5440 | 6020 | 7600 | 9940 |
10 | 1350 | 1830 | 3490 | 4840 | 6270 | 7380 | 8180 | 10320 | 13500 |

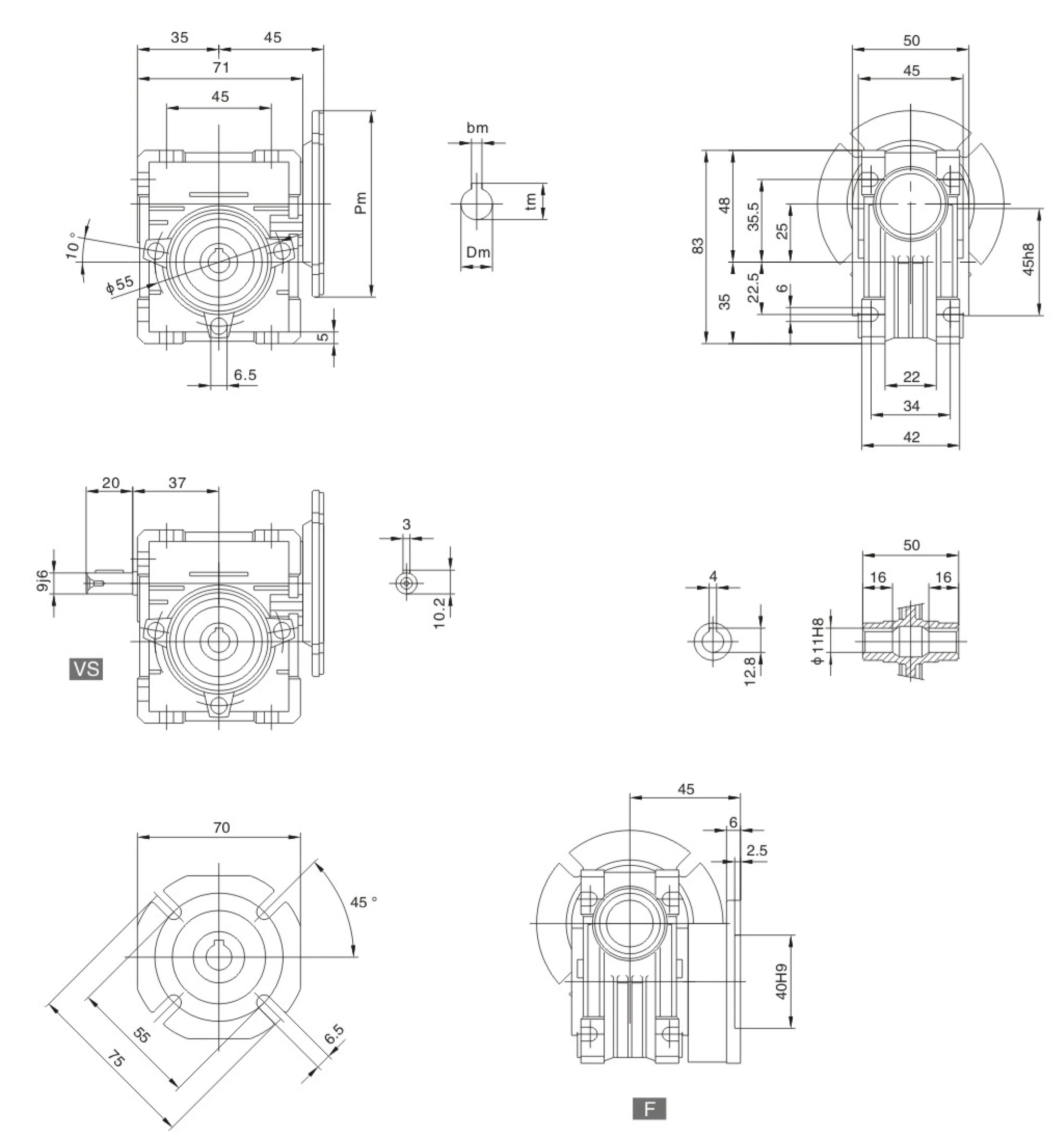

A | 50 | 65 | 84 | 101 | 120 | 131 | 162 | 191 | 203 |
B | 38 | 50 | 64 | 76 | 95 | 101 | 122 | 151 | 163 |
Use and safety guarantee
1. Please check and confirm the matching intensity between worm gear reducer and mechanical equipment before use to assure that it is in the safety range of worm gear reducer performance parameters 2. Worm gear reducer has filled with WA460 lubricating oil. Please replace the lubricating oil after the first starting of 400 hours and after then 4000 hours for lubricating oil replacing cycle
3. There should be enough lubrication in worm gear box and keep regular check with the oil level.
4. When installation. please be careful to avoid sharp instruments bruising the oil seals on output shaft to cause leakage
5. Please confirm the rotation direction before mechanical connection. If the rotation direction is not correct, it will possible injury or damage the devices
6. Please set safety covers in rotating position to avoid of injuring
7. Please pay full attention: it is very dangerous if there is off or falling when moving
