Manufacturer : West Control Solutions
Product No : P6100-2211002

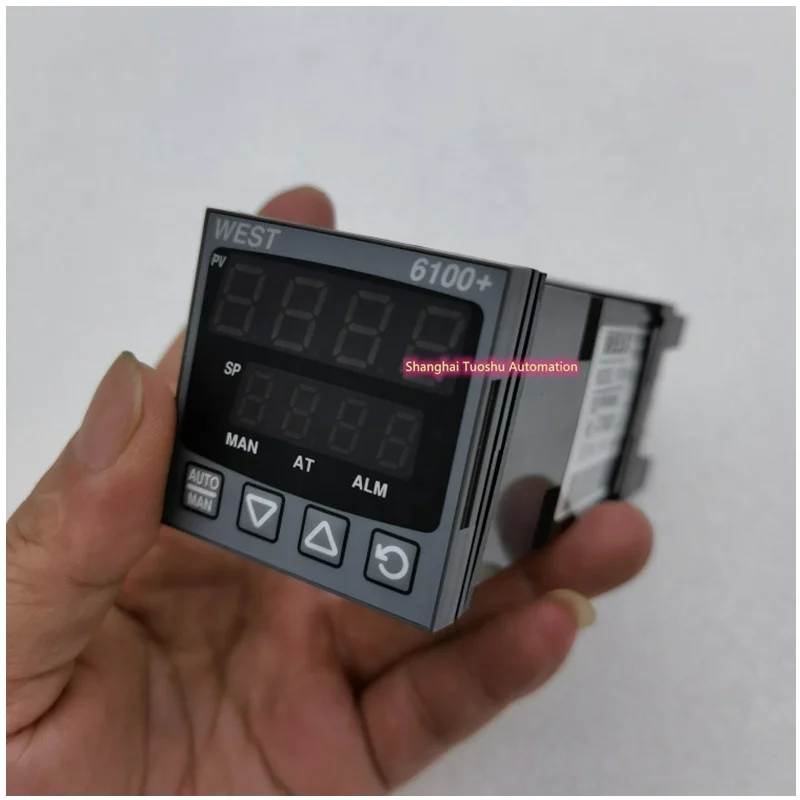

Product type : West 6100+ Digital Temperature Controller
Control Types : Full PID with Pre-tune, Self-tune, manual tuning, or On-Off control. Heat only or heat & cool
Model : P6100
Input Type - 2 : Thermocouple
Option Slot 1 - 2 : DC for SSR
Option Slot 2 - 1 : Relay
Option Slot 3 - 1 : Relay
Option Slot A - 0 : Not fitted
Power Supply - 0 : 100-240V AC
Display Colour - 2 : Red Upper, Green Lower
Auto/Manual : Selectable from front panel or via digital input, with bumpless transfer
Dimension (LxWxH) cm : 4.8 x 11.0 x 4.8 cm
Output Configuration : Up to 3 possible, for control, alarm, 24VDC transmitter power supply or retransmit of process value or setpoint
Alarm 1 & 2 Types : Process high, process low, SP deviation, band, logical OR / AND. Also 1 loop alarm for process control security. Process alarms have adjustable hysteresis.
Human Interface : 4 button operation, dual 4 digit 10mm & 8mm high (6100+, 8100+) and 13mm & 10mm high (4100+) LED displays, optional choice of colours (Red/Red, Red/Green, Green/Red or Green/Green), plus 5 LED indicators
PC Configuration : Off-line configuration from PC serial port to dedicated config socket (comms option not required). Configuration Softw
n Slot Aare for Windows 98 or higher. West Part Number: PS1-CON
Thermocouple : J, K, C, R, S, T, B, L, N & PtRh20%vsPtRh40%.
RTD : 3 Wire PT100, 50? per lead maximum (balanced)
DC Linear : 0 to 20mA, 4 to 20mA, 0 to 50mV, 10 to 50mV, 0 to 5V, 1 to 5V, 0 to 10V, 2 to 10V. Scaleable -1999 to 9999, with adjustable decimal point
Impedance : >10M? for Thermocouple and mV ranges, 47K? for V ranges and 5? for mA ranges
Accuracy : ±0.1% of input range ±1 LSD (T/C CJC better than 1°C)
Sampling : 4 per second, 14 bit resolution approximately
Sensor Break Detection : <2 seconds (except zero based DC ranges), control O/P’s turn off, high alarms activate for T/C and mV ranges, low alarms activate for RTD, mA or V ranges
Control & Alarm Relays : Contacts SPDT 2 Amp resistive at 240V AC, >500,000 operations
Control SSR Driver Outputs : Drive capability >10V DC in 500 minimum
Triac Outputs : 0.01 to 1 Amp AC, 20 to 280Vrms, 47 to 63Hz
DC Linear Outputs : 0 to 20mA, 4 to 20mA into 500? max, 0 to 10V, 2 to 10V, 0 to 5V into 500? min. Control outputs have 2% over/under drive applied. Accuracy ±0.25% at 250? (degrades linearly to 0.5% for increasing burden to specified limits)
Transmitter Power Supply : Output 24VDC (nominal) into 910? minimum to power external devices
Communications : 2 Wire RS485, 1200 to 19200 Baud, Modbus and ASCII protocol (selectable)
Digital Input : Selects between 2 setpoints or Auto/Manual control. Volt free or TTL input
Remote Setpoint Input : 0 to 20mA, 4 to 20mA, 0 to 5V, 1 to 5V, 0 to 10V or 2 to 10V. Scaleable -1999 to 9999. Local/Remote setpoint selected from front panel
Temperature & RH : 0 to 55°C (-20 to 80°C storage), 20% to 95% RH non-condensing
Power Supply : 100 to 240V 50/60Hz 7.5VA (optional 20 to 48V AC 7.5VA/22 to 65V DC 5 watts)
Front Panel Protection : IEC IP66
Standards : CE, UL & ULC recognised
