Product Description


Home Hybrid Energy Storage System
Features
• Can be connected to single-phase AC, 48V battery DC and 500V photovoltaic DC, and converted into single-phase 230V AC output
• AC input/PV input lightning protection function: Class II, In=20KA
• AC input/output protection function: overload/short circuit/leakage
• Compliant with CE LVD and EMC directives and EU ROHS directives
• Application: Household use of hybrid energy storage and power supply


Specification


Brand Name
SUOER
Model Number
Solar Home System
Application
Home
Solar Panel Type
Monocrystalline Silicon
Battery Type
Lithium Ion
Controller Type
MPPT
Mounting Type
Ground Mounting
Load Power (W)
3KW, 8KW, 5kW, 10KW
Output Voltage (V)
230VDC
Output Frequency
50Hz
Work Time (h)
24 Hours
Certificate
CE/ROHS
Product name
solar power system for home
Application
Home hybrid energy storage
Off-grid inverter
VMS series
Energy storage battery cabinet
51.2V300AH
AC and DC distribution box
Standard
Off-grid inverter Size
300*400*100mm
Energy storage battery cabinet Size
502*832*602mm
AC and DC distribution box Size
600*500*200mm
Server
4G terminal/serial port
MOQ
1 set

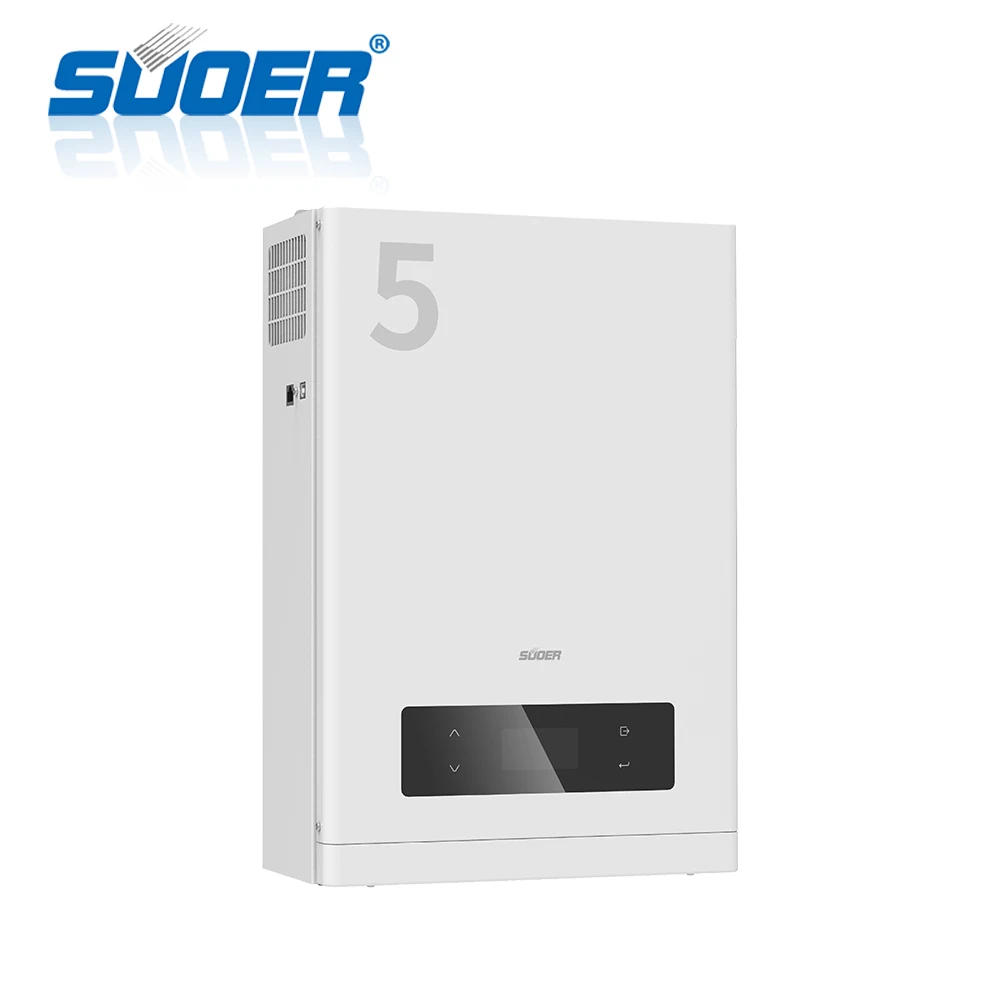

Off-Grid Inverter
AC input rated voltage: 230Vac
AC input voltage range: 90-280Vac (170-280Vac full power output)
AC input rated frequency: 50/60Hz AC input maximum current: 30Aac
AC output rated voltage: 230Vac±5% MPPT tracking voltage range: 240-450Vdc (full power input)
AC output rated frequency: 50Hz
AC output rated power: 5000W
Maximum charging current: 80A
Maximum discharge current: 104A
PV maximum input power: 4000W
PV array open circuit voltage: 500Vdc

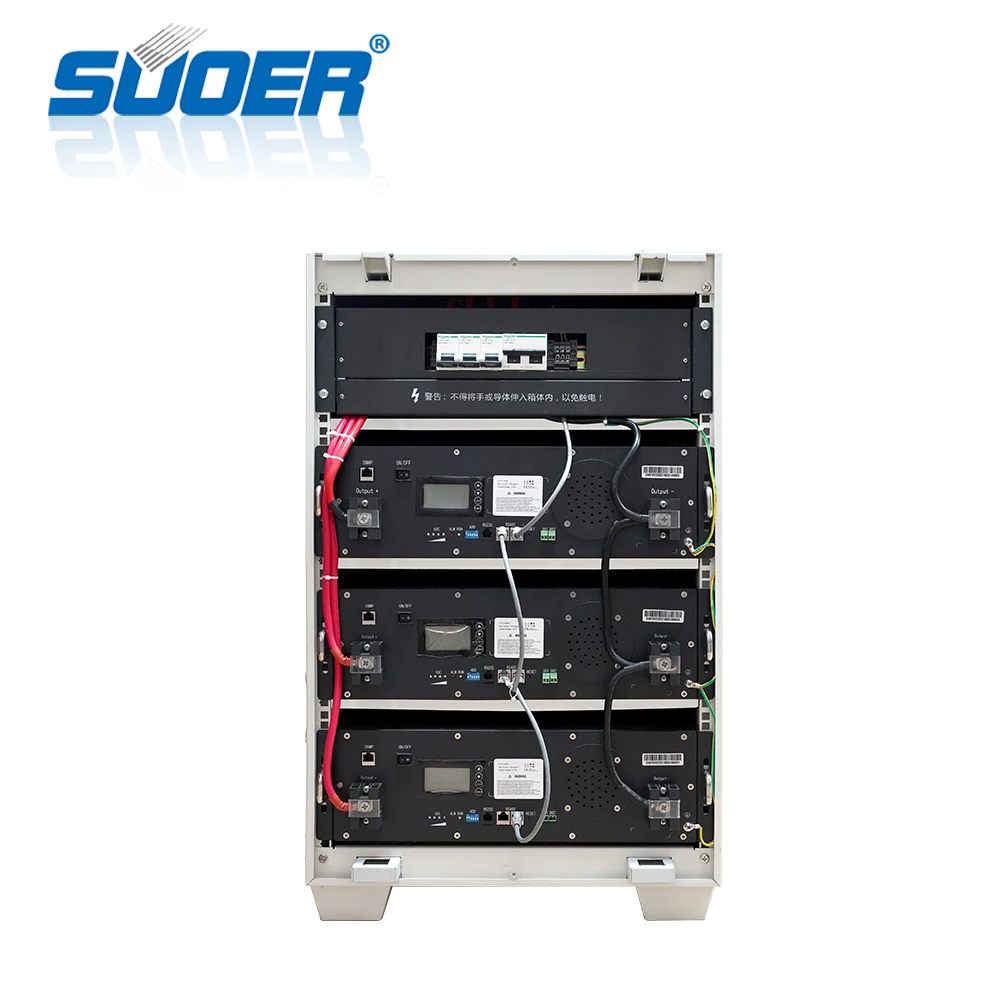

Energy Storage Battery Cabinet
Battery Type: Lithium Iron Phosphate Battery Rated battery voltage: 51.2VDC Float voltage: 56.4VDC Battery overvoltage protection
value: 58VDC Battery under-voltage protection value: 42VDC Battery capacity: 100AH×3 groups Maximum charging current: 100A Maximum
discharge current: 100A Communication interface: RS485 Capacity indication 4 lights LED: 25%-50%-75%-100% Charging working
temperature: 0℃～60℃ Discharge working temperature: -20℃～60℃ Working humidity: 10%～95%RH







AC And DC Distribution Box
AC input circuit breaker: 32A/2P×1 AC input lightning protection: 1+1, In=20KA AC output circuit breaker: 32A/2P×1 Battery access
circuit breaker: 125A/2P×1 PV input circuit breaker: 16A/2P×1 Photovoltaic input lightning protection: 2+1, In=20KA


Company Profile








Foshan Suoer Electronic Industry Co.,Ltd.,located in Dali, Nanhai, Foshan City, Guangdong Province,which is a comprehensive joint-stock corporation integrating R&D, production and sales as one of the high-tech enterprises.Our company has established an industrial park covering a land area of 20 thousand square meters, with standard workshop, advanced production equipment, a standard R&D building and world-leading facilities.

Suoer brand is our registered trademark for our products. Our products mainly include High/Low frequency hybrid solar inverter, Solar variable-frequency Drive, VFD solar pump inverter, MPPT/PWM solar charger controller, Battery charger, On grid solar inverter,etc. Our company has been specialized in the manufacture and export of home power supply for more than 10 years. Adhere to the integrity management, sustainable development,and create a win-win service purposes with our customers as our ultimate development philosophy.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2005,sell to Southeast Asia(40.00%),Mid East(30.00%),Africa(15.00%),South America(5.00%),Eastern Asia(5.00%),South Asia(5.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar Pump Inverter,Solar Power Inverter,Battery Charger,Solar Controller,Grid Tie Inverter

4. why should you buy from us not from other suppliers?
1.26 years experience in home power supply industry,
2.10 Professional Sales Teams
3.Specialization enhances quality,
4.Products has passed CAT,CE,RoHS,ISO9001:2000 Quality System Certificate.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese
