Полностью автоматический станок для забора узлов с ЧПУ сварочный аппарат


Поделиться:

Цена:66 000,00 $ - 69 000,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

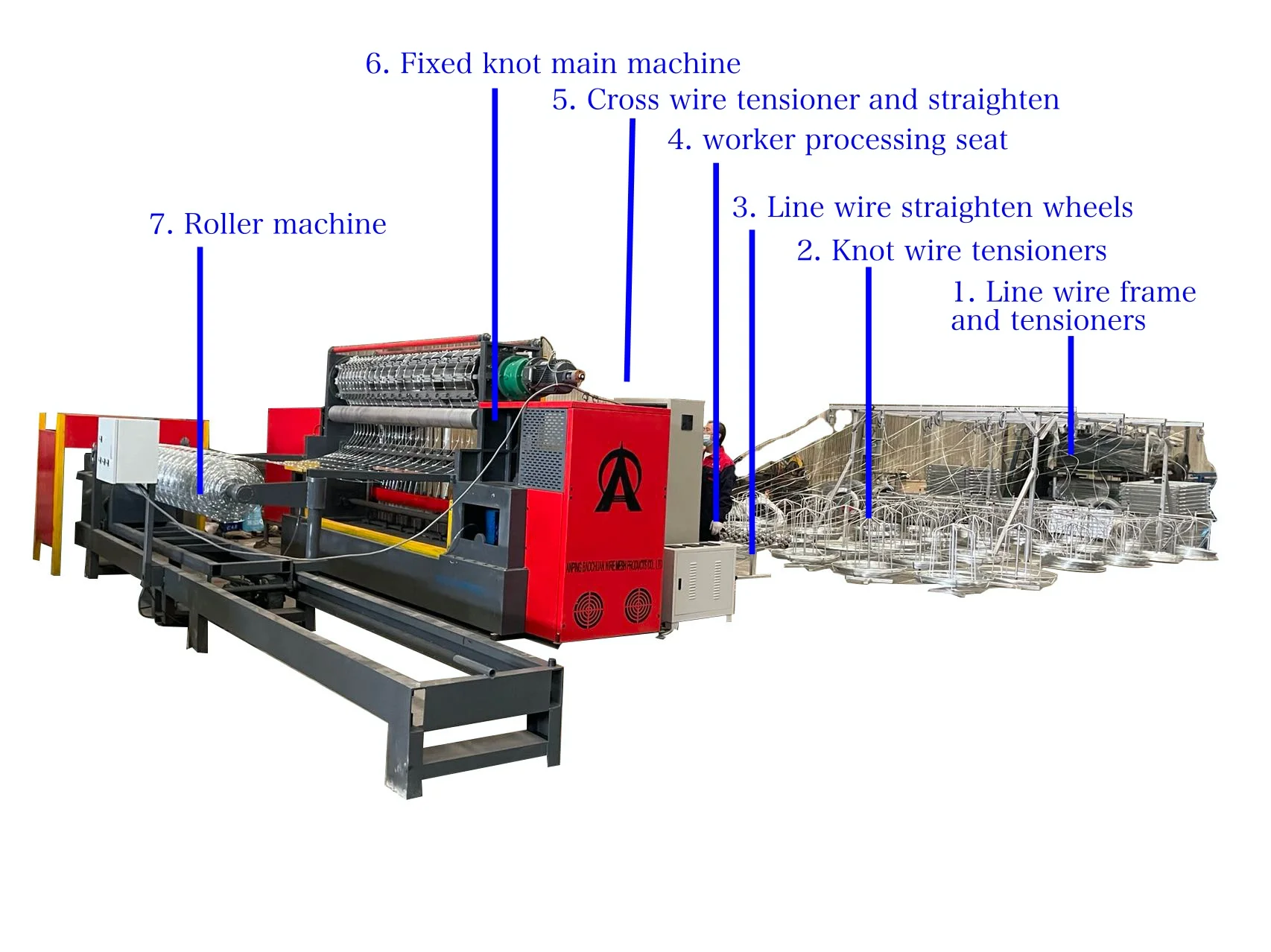

Fixed knot fence machine



The new type fixed knot fence machine is developed by our technical team and New Zealand company, Mechanical production of wire mesh products have great advantages :

1.Grassland net fence is made of high-strength galvanized steel wire, with high strength and large pulling force. It can withstand the violent impact of cattle, horses, sheep and other livestock, and is safe and reliable.

2. Steel wire, galvanized around the surface, other parts are taken anti rust and anti-corrosion measures, can adapt to harsh working environment, life up to 20 years.

3. The weft of woven net adopts wave rolling technology, which enhances the elasticity and buffering function, and can adapt to the deformation of thermal expansion and cold contraction, so that the net fence always keeps in a tight state.

4. The utility model has the advantages of simple structure, convenient maintenance, short construction period, small volume, light weight, easy transportation and installation, ventilation and light transmission, and does not affect the terrain.



.jpg




Product features and uses

 The wire mesh structure is novel, firm and precise, the screen surface is smooth, the mesh is even, the integrity is strong, the toughness is big, does not close, antiskid, compression resistance and so on.
 It is widely used in: zoo fence, construction site fence, captive poultry, slope greening, landscaping net, wildlife park, grassland, pasture and other fenced grazing places,
especially in the pasture fence project, which can play a very important role in realizing rotational grazing and protecting grassland, and can also be used for precious flowers, forest, grassland, grassland, etc Isolation and protection of planting area.

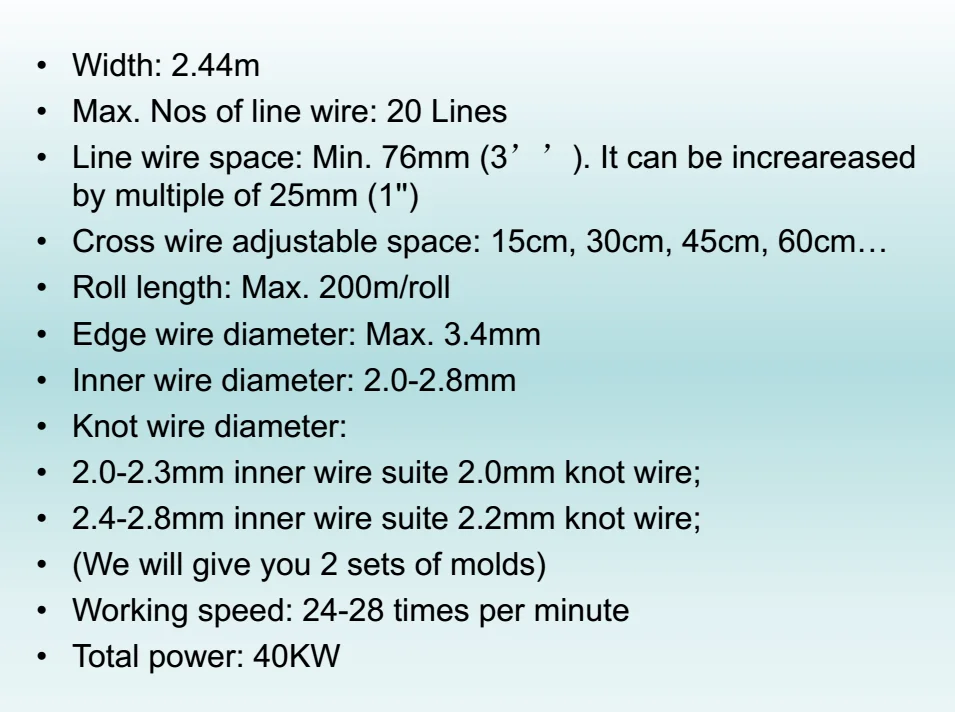

Machine Specification



























































































Model



KW-1560




KW-1800




KW-2400



Line wire spacing



120 mm (Multiple adjust)



Cross wire spacing



70-300 mm(Arbitrarily adjust)



Edge wire diameter



2.0-3.5 mm



Line wire diameter



1.6-3.2 mm



Knot wire diameter



1.6-2.5 mm



Production speed



32 Time /min



Line wire testing



Automatic stop lack of wire



Cross wire testing



Automatic stop lack of wire



Knot wire testing



Automatic stop lack of wire



Control system



PLC+touch screen



Wire material



Iron wire, Steel wire, Galvanized wire, etc



Fence height


Max 1560 mm


Max 1800 mm


Max 2400 mm


Line wire number


Max 14


Max 16


Max 21


Roll mesh length


30-100 meter


30-100 meter


30-100 meter


Dimensions


5000*2000*2600 mm


5000*2300*2600 mm


5000*2800*2600 mm


Weight


2800 kg


3200 kg


4500 kg

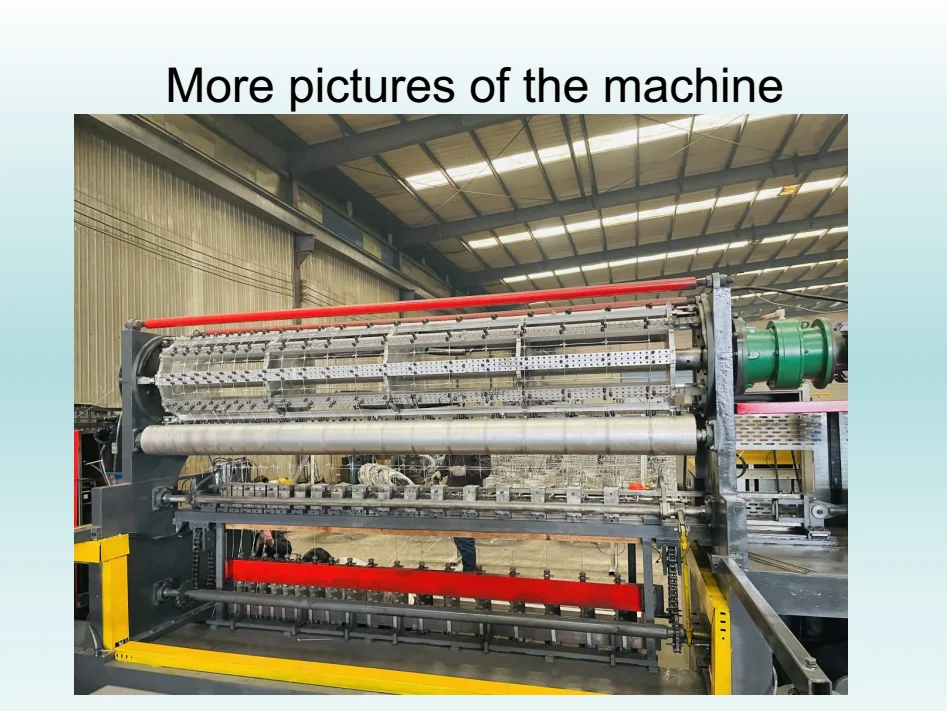

Fixed Knot machine 7


Fixed Knot machine 8





Fixed Knot machine 9


Fixed Knot machine 10











Fixed Knot machine 11








Fixed Knot machine 14


Fixed Knot machine 27


Fixed Knot machine 13


Fixed Knot machine 24


Fixed Knot machine 25


Fixed Knot machine 2


Fixed Knot machine 3


Fixed Knot machine 4








Fixed Knot machine 15








Fixed Knot machine 18


Fixed Knot machine 17


Fixed Knot machine 19
