Product Overview

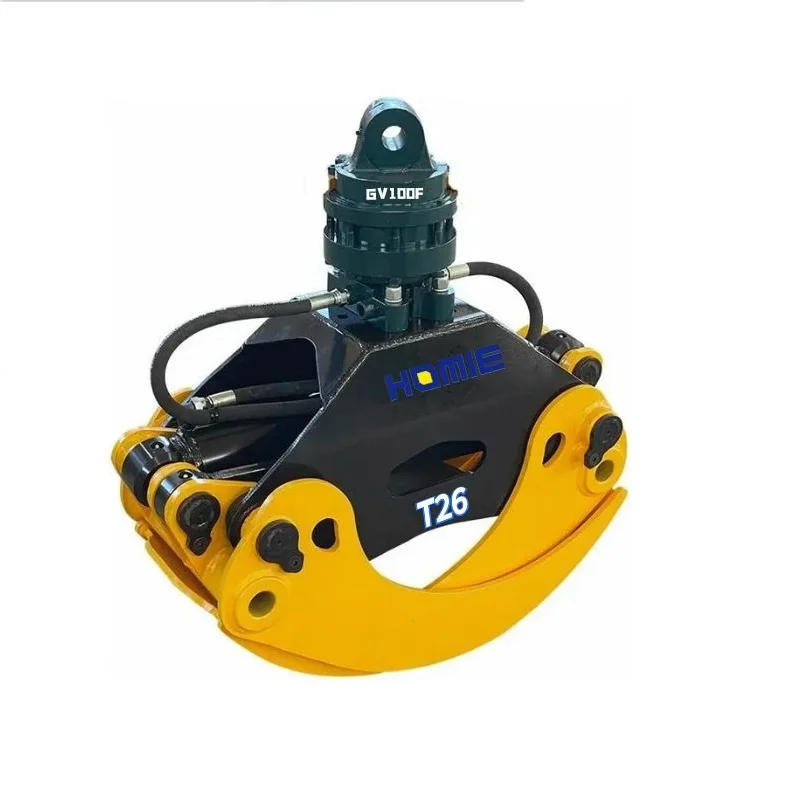

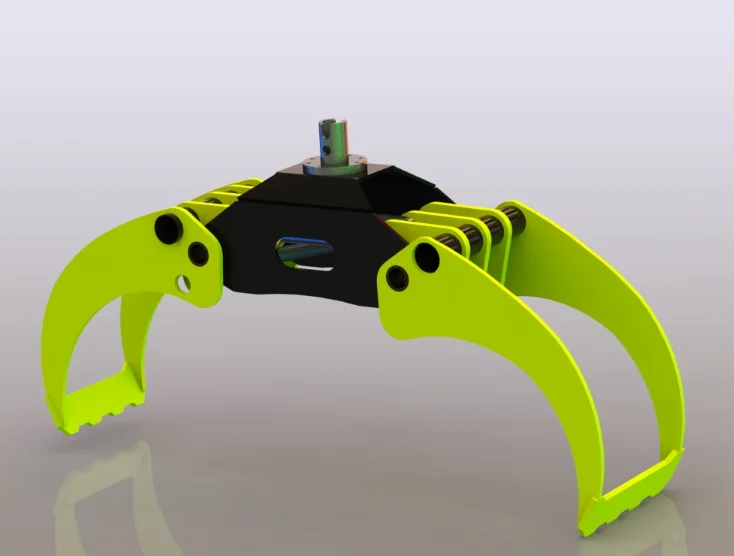

Tractor log grapple - Available with 1 Ton, 3Ton, 5 Ton, 6 Ton, 12 Ton rotator
Hydraulic Rotators for forestry machines , The rotator design is based on the radial piston hydraulic motor, thus giving the
same highly efficient power seen in the motors.
same highly efficient power seen in the motors.

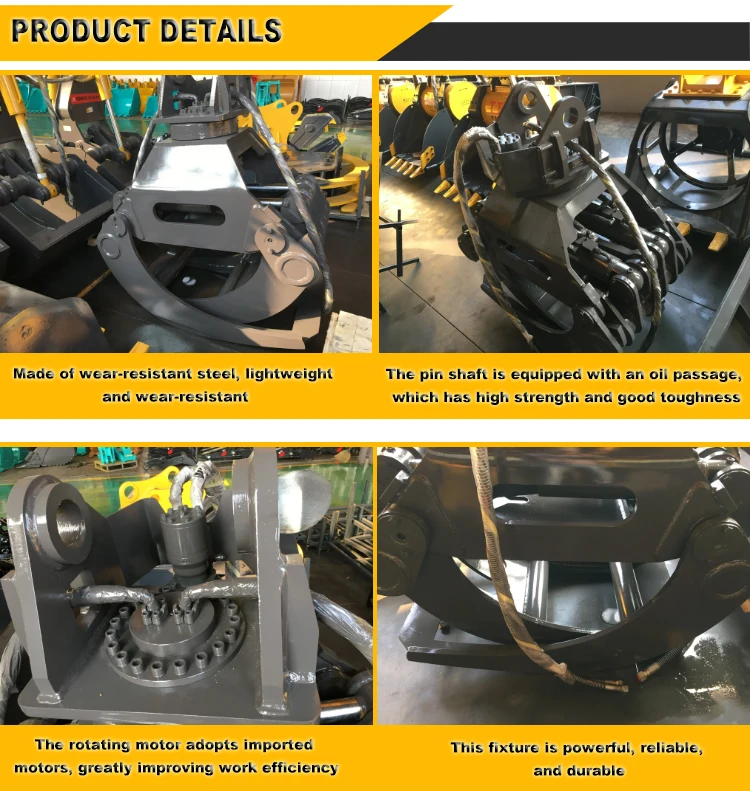

FEATURES AT A GLANCE

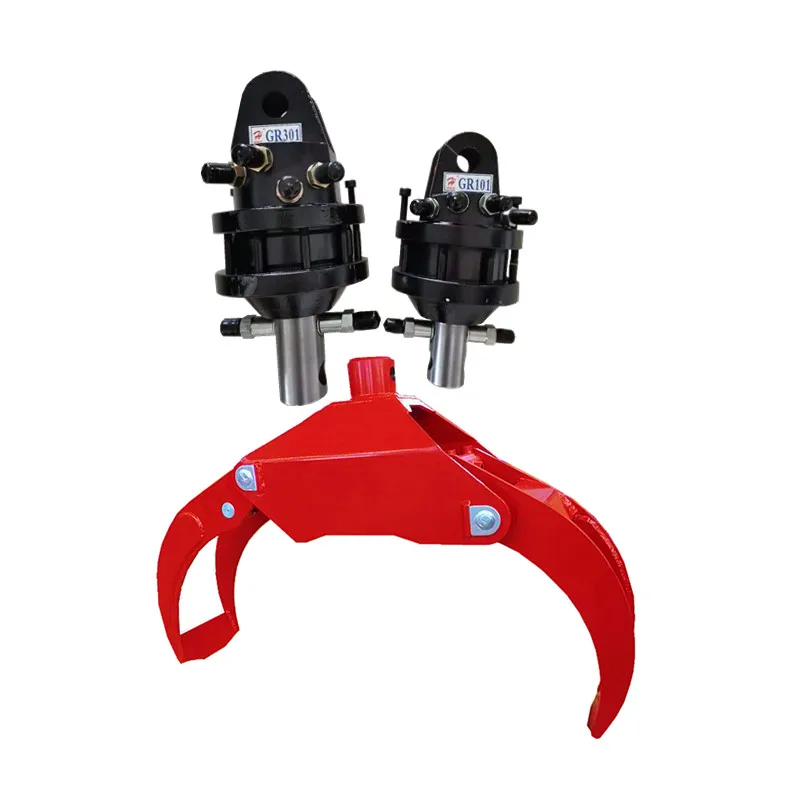

Shaft rotator
Flange rotator
Flange rotator

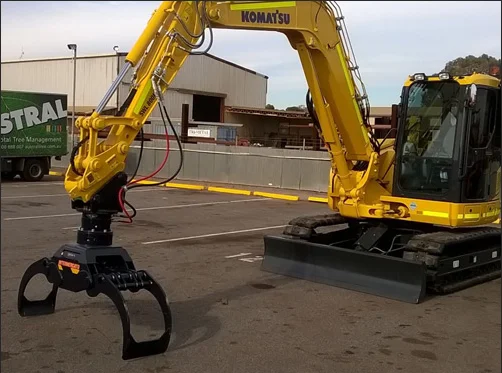

Application

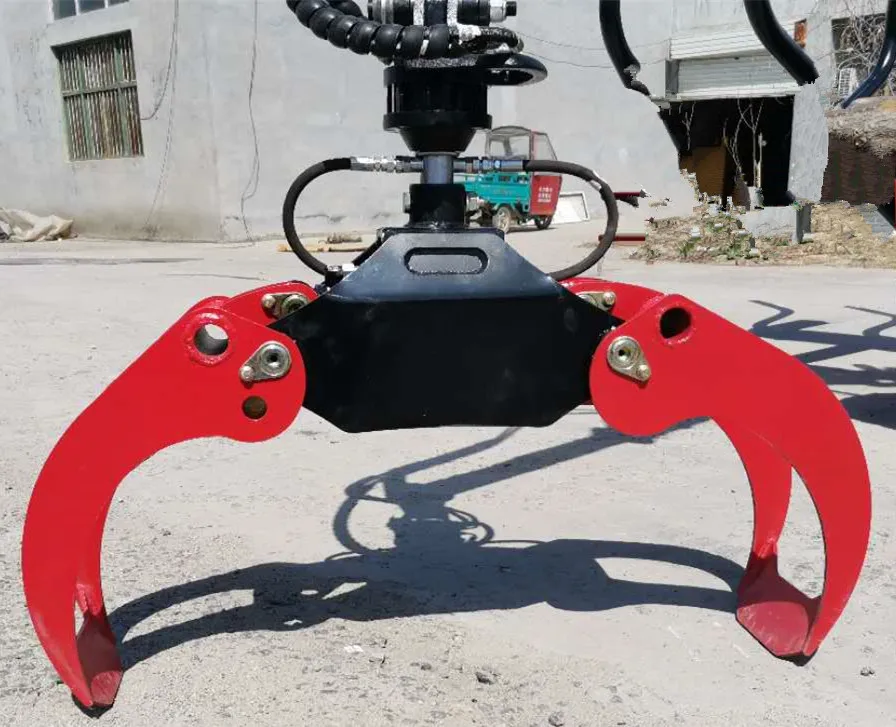

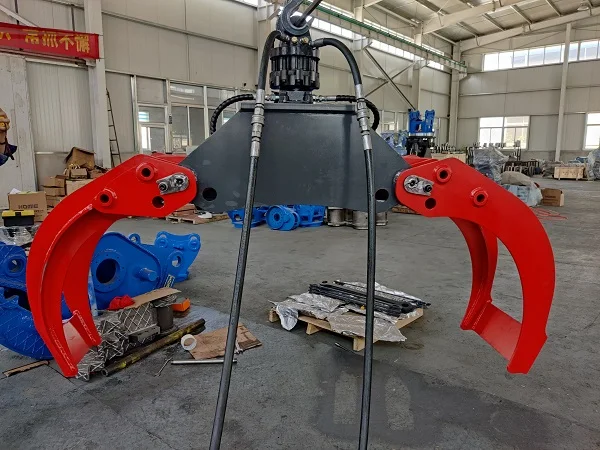

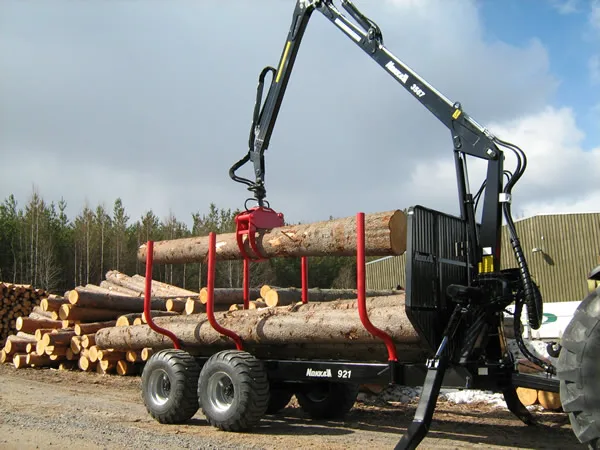

The hydraulic rotator widely used in forestry log grapples

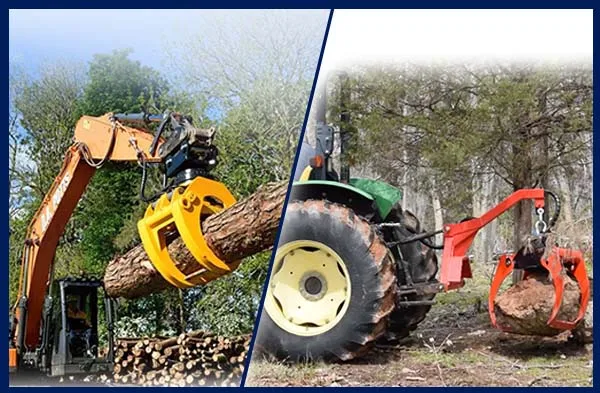

The hydraulic rotator install on a loader log grapple

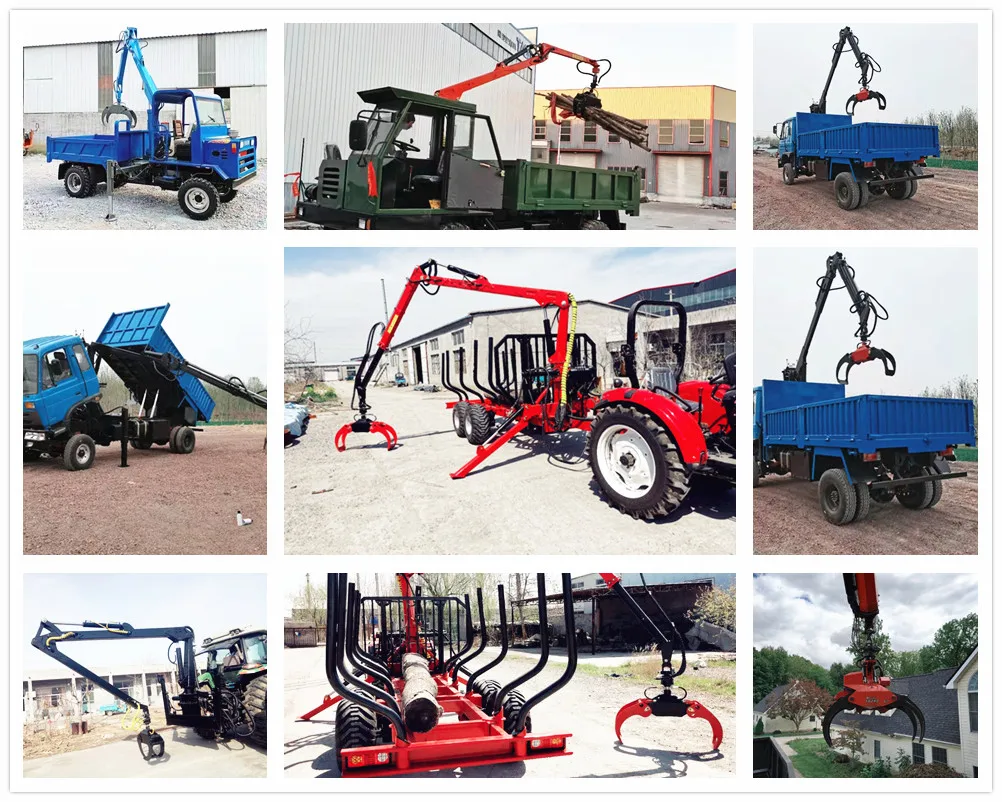

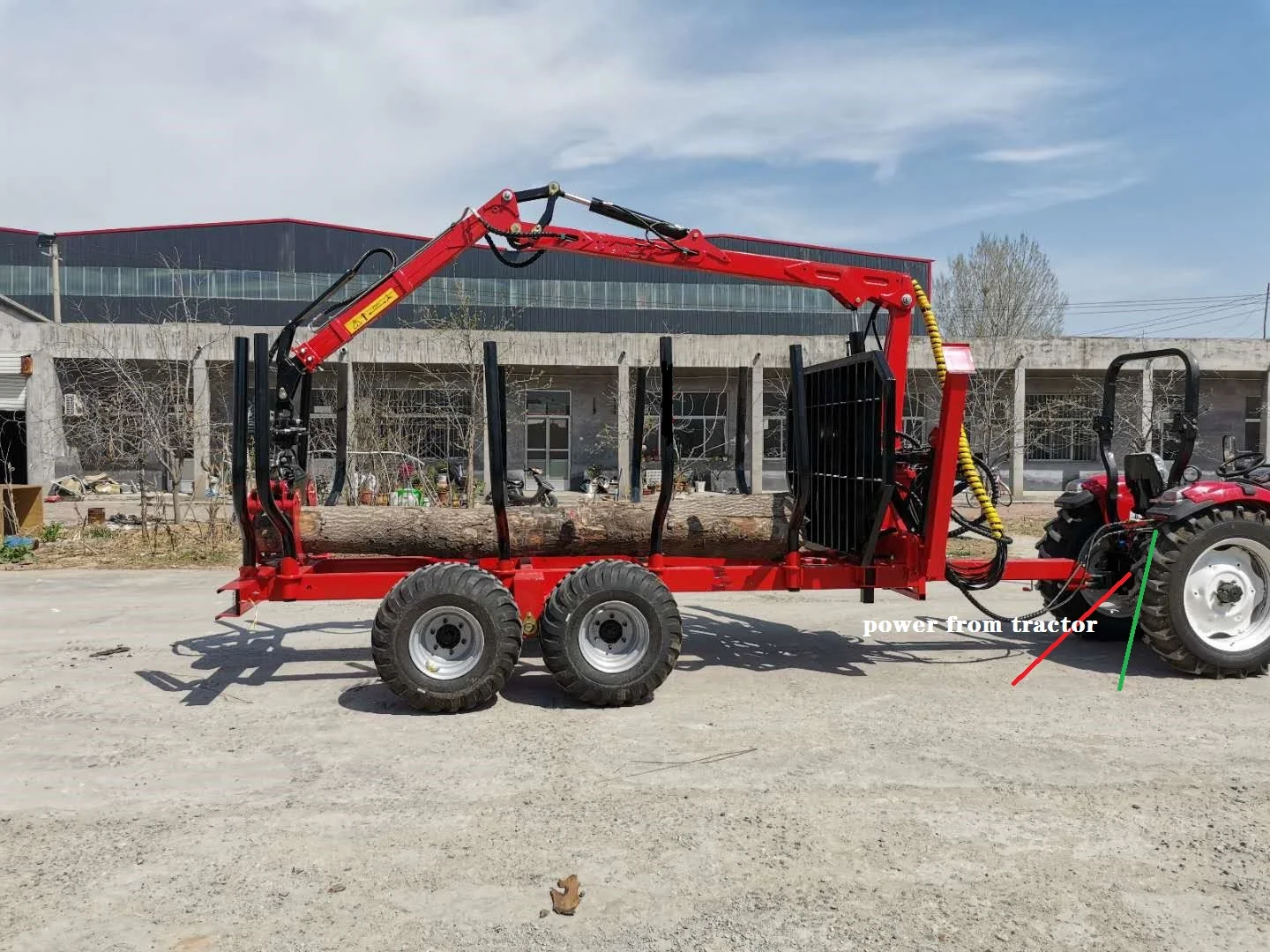

The hydraulic rotator installed on a tractor log grapple
No | Item | Data(1Ton) | 3Ton | 5Ton | 6Ton |
1 | Rotation angle | unlimited | unlimited | unlimited | unlimited |
2 | Max rotation pressure | 250 bar | 250 bar | 250 bar | 250 bar |
3 | Max working pressure(closed) | 300 bar | 300 bar | 300 bar | 300 bar |
4 | Capacity | 193cm3 | 330cm3 | 465cm3 | 670cm3 |
5 | Connections | G1/4" | G3/8" | G3/8" | G 1/2" |
6 | Max axial load(static) | 10kN | 30kN | 55kN | 60kN |
7 | Max axial load(dynamic) | 5kN | 15kN | 25kN | 30kN |
8 | Max oil flow | 10lpm | 20lpm | 20lpm | 20lpm |
9 | Weight | 10.2kg | 16kg | 28kg | 36kg |
Yantai HOMIE company highly engineered grapples have excellent arm geometry with wide tip to tip opening and minimum closing dimensions. Our cushioned cylinders extend the grapple life, while offering a high gripping force and fast cycle times maximizing loading performance.
PRODUCT SPECIFICATIONS

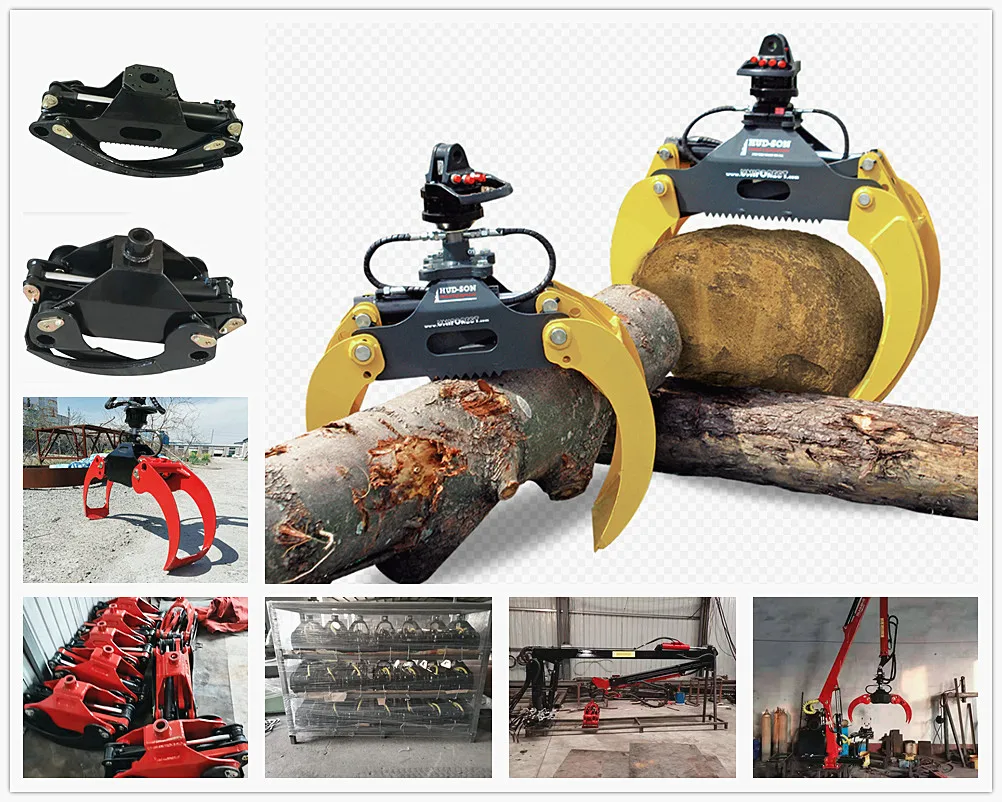

More Products
Company Profile
Producing Line
Certifications
Packing & Transportation
FAQ
1.Are u factory or only company
We are factory to produce Excavator attachments.Grapples, Pulverizer, Shear, Crusher and Screener are our main products
5.Teamwork
2.Why we can choose you?
1).Profitable-We are real producer can give you the best price
2).Professional -We focus on Excavator Attachments,we have own design team
3).Reliable- We offer round-the-lock after-sale service to support your sales
3.Payment term
We accpet T/T, LC payment term
4.Delivery
For sample order within 5 days delivery on receipt your payment
5.Teamwork
Our team leader with over 13 year trade experience.We can serve you better.
