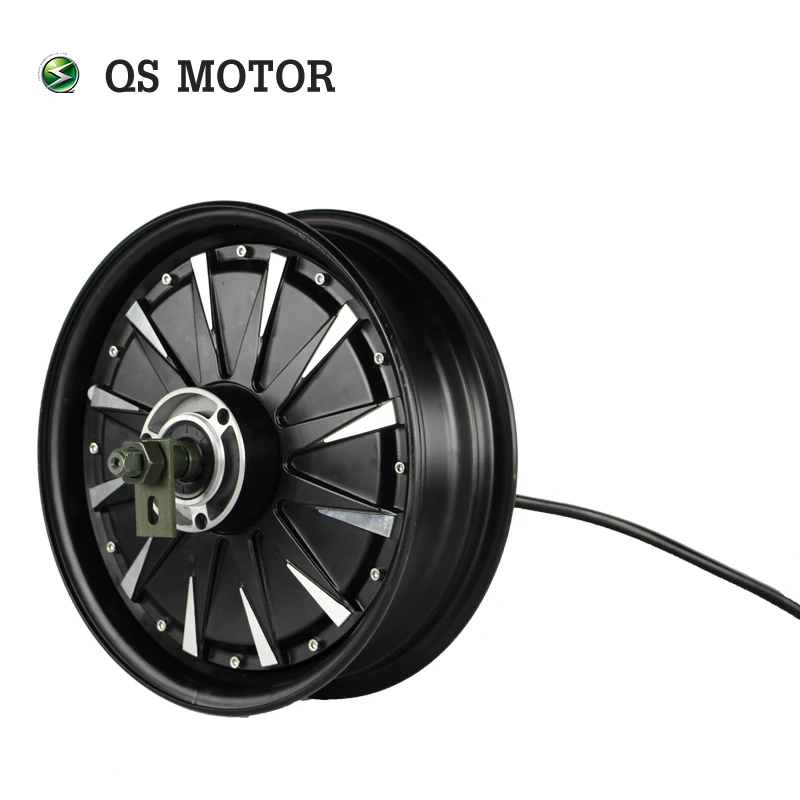

Cost-effctive QS 3000W 40H V1.12 BLDC In-Wheel Hub Motor for electric scooter





For 12inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.


There are three width options of wheel,12X2.5inch(1500w-3000w),12x3.5inch(1500w-12kw)and12x5.0inch(7000W)for choice.

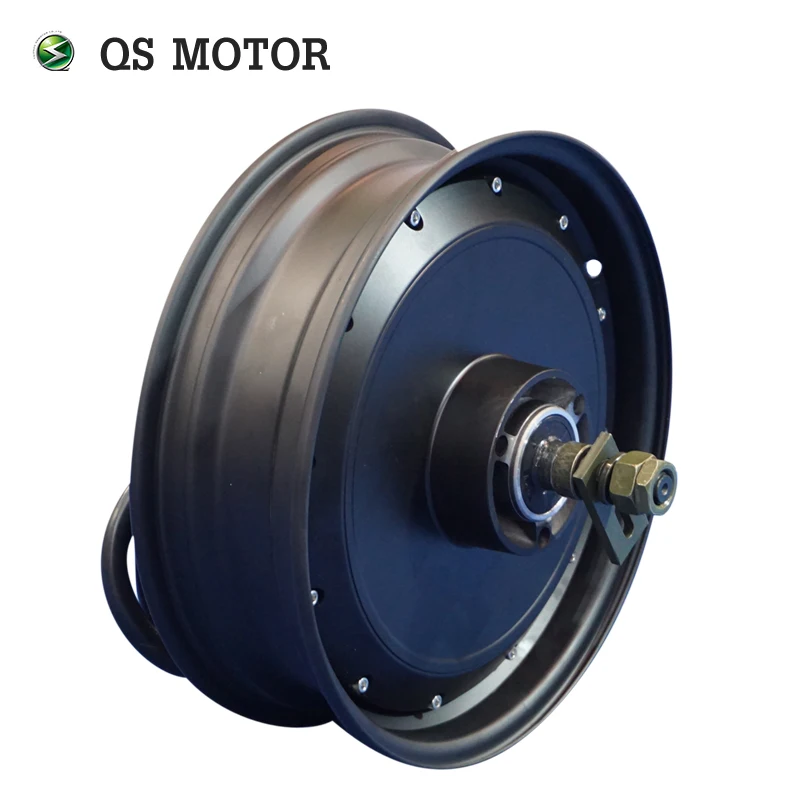

Optional all black cover:



Key Features





1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.


2). It could be installed in the rear to save more space for battery.


3). Support regenerative braking


4). High efficiency: 85~92%













PS.1). Above quotation base on 12inch 260 electric car wheel hub motor, 48V~96V.


2). Above configuration is suggested for mass production,


for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).


Since 2019, all 260 V3 has updated to V4 version, it has better performance than previous V3, with higher speed and stronger torque.





Product description





Genearlly Spec:




  • Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor




  • Brand: QS Motor, QSMOTOR




  • Motor Design: Double axle with 12inch moped rim (integrated)




  • Rim Size:12x2.5inch(Narrow Tire as default), matched tire:90/90-12 etc




  • 12x3.5inch(Wide Tire), matched tire: 130/90-12 etc




  • Magnet Height: 40mm, 24 pole pairs




  • Stator: Steel Core




  • Rated Power: 3000W




  • Speed: 30KPH-75KPH, it's customized, genearlly we will design as 72V65KPH.




  • Work voltage range: 48V-96V, will be 72V as default.




  • Max Torque approx 152.0N.m




  • KV: 11.6/13.5/14.8 (optional)




  • Thermic Probe: KTY83-122 (as default, optional)




  • Max Efficiency approx 88%




  • Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm




  • Drop-outs: 200mm




  • Dual Halls with waterproof connectos(One for spare, in case of damage)




  • 10mm² Phase Wire




  • Waterproof Grade: IP54




  • Color: Black (As default)







Dimension Drawing:

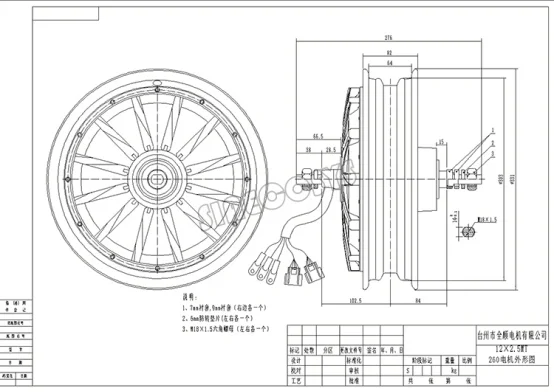

  • 12*2.50inch in-wheel hub motor

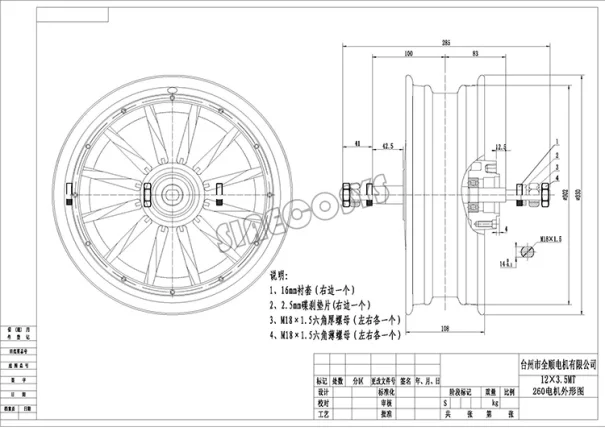

  • 12*3.5inch in-wheel hub motor:








Please noted:





Optional appearance, drawing, performance curve/test report are available.


If you need more technical information, please feel free to contact us.


We will give you reply in 12hours.

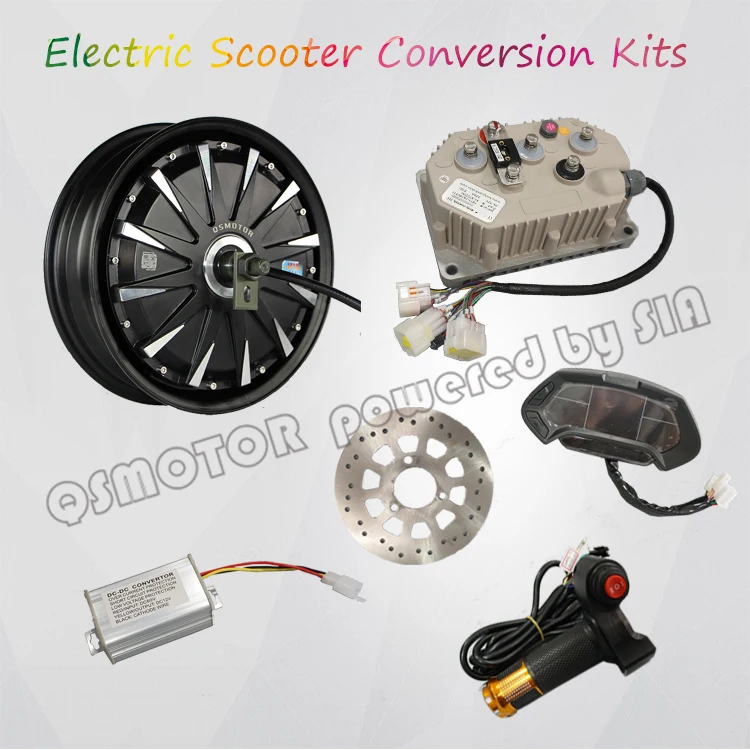

Conversion kits for 12inch in-wheel hub motor





We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.









Application for 12inch in-wheel hub motor
