Высококачественный клапан корпус из алюминиевого сплава Бабочка EPDM подкладка CF8 диск Рычажная ручка без
- Категории: >>>
- Поставщик: Baoding,Shenghong,Imp&exp,Trading,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
high-end valve Aluminum alloy body wafer butterfly valves EPDM lined CF8 disc no pin lever handle
Main features:
(1) Novel and reasonable design, unique structure, light weight and rapid opening and closing.
(2) Small operating torque, convenient operation, labor-saving and dexterous.
(3) It can be installed at any position, which is convenient for maintenance.
(4) The seals can be replaced with reliable sealing performance to achieve two-way sealing and zero leakage.
(5) The sealing material has the characteristics of aging resistance, corrosion resistance and long service life.
Product Description
Part Material:
Part Name | Main Material | |
Body | Grey Cast Iron / Ductile Iron GGG50 / CF8 / CF8M / WCB / Casting Aluminum alloy | |
Disc | DI/ CF8 / CF8M / PTFE / PA (Pin / Without Pin) | |
Seal | EPDM CR NBR PTFE SI VITON NR PA | |
Stem | 2Cr13 / Carbon Steel / Stainless Steel | |
Packing | O Ring / Flexible graphite | |
Media | Air / Water / Sewage / Steam / Gas / Oil, etc | |
Operation | Pneumatic / Electric / Turbine / Lever | |
Technical:
DN(mm) | DN50~1200mm |
(MPa) | PN1.0,1.6,2.5MPa |
Body Type | Straight Through Casting Body |
Connect Type | Wafer type |
Disc | Butterfly plate |
Sealing Packing | Flexible Graphite Teflon PTFE |
Electric Actuator | On/off type,Adjust Type(4~20mA) |
Packaging & Shipping
Our Services
Company Information
FAQ
1 Can I customize the product as required?
A: sure, we can make on request

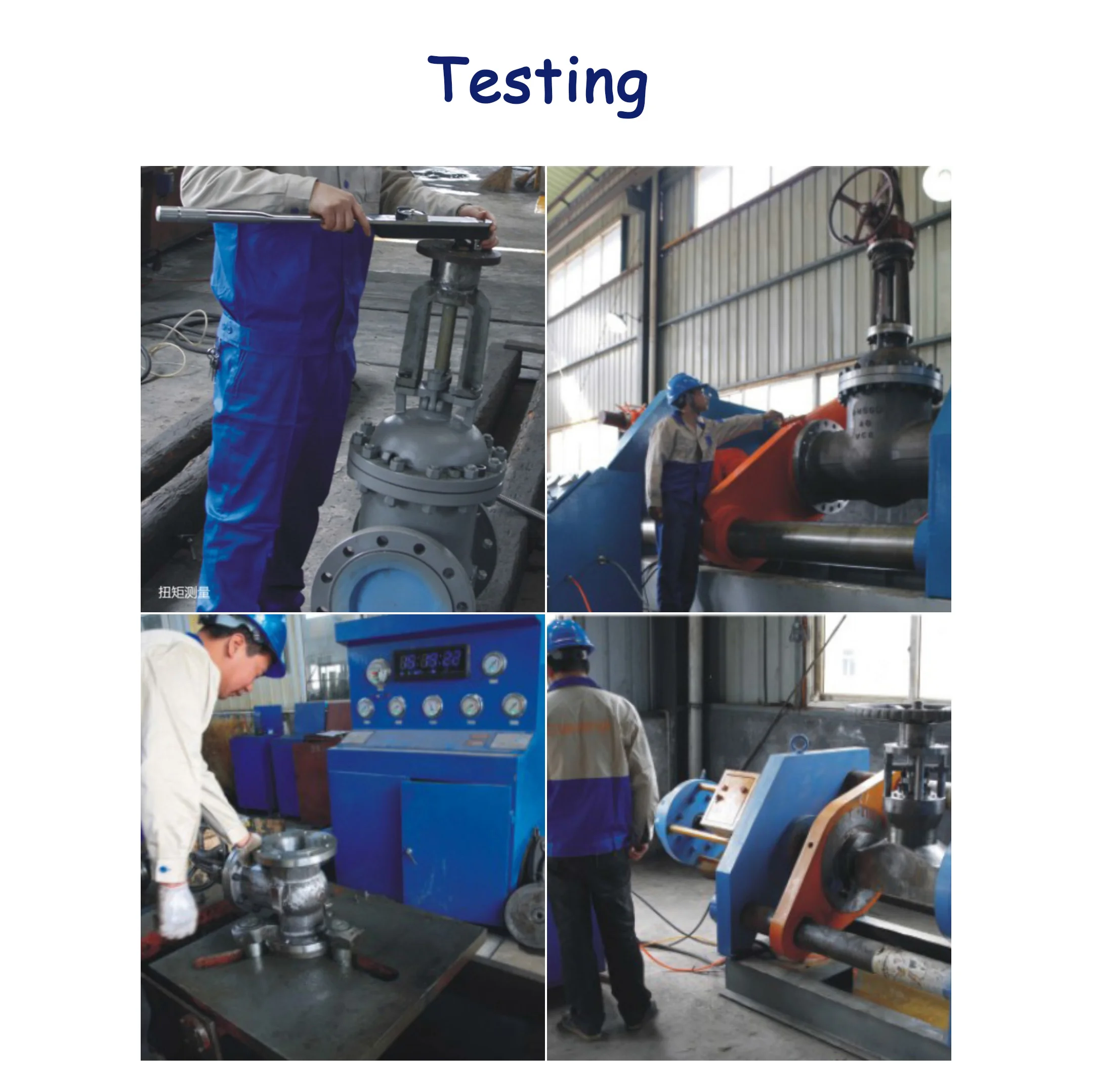

2 How can you guarantee the quality?
A: Testing every products one by one, Check the specification,material
and appearance before delivery, and approve the delivery after
qualified.
3 how long does the delivery time?
A: some have stock, some delivery time depeond on qty of semi-finished
products, usually 7-15days
4 What‘s your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery)
5 Do you accept small quantity order?
A: Of course.
Any doubt please do not hesitate to contact our customer service, she will anwser your every question, We welcome your message
Contact Person Ms. Jamie
Cell-phone / WA +8618233232797
Email: Jampipeline.glight(at)gmail.com
Website: http://bdsh.en.alibaba.com/
