Product Description


G Series Stainless Steel Single Mono Screw Pump


G type single screw pump is volumetric working principle type pump, main working parts are eccentric screw (rotor) and fixed bushings (stator). Because of the special geometric shapes, the two parts form respectively separate sealed chamber, medium uniform flow by axial, internal flow is slow, volume remains the same, the pressure is stable, and will not produce vortices and agitation.


Because the stator adopts various elastic material, this kind of pump can convery high viscosity fluid containing rigid suspended particles or fiber. The flow rate is proportional to the speed.

Features
1. Wide application; Convey both fluid and non-fluid
2. Constant fluid conveying process, with little pulsating flow
3. No stirring of medium in the pump, no extrusion or cutting
4. Capacity is directly proportional to the speed; Variable conveying; Used as metering feeding
5. Adopt elastic stator, with certain abrasion resistance

Medium
1. Medium of various viscosities (viscosity is up to 106 mm2/s)
2. Fluid of various concentrations and dry material through separation dehydration
3. Various solid particles, fibers and suspended matters

Product Series
1. Standard Series Applied to various structure forms
2. Long-lead Series Applied to low-pressure large-flow
3. Spraying Series Special for concrete spraying before coal water slurry boiler

Several Configurations
1. Material: Components and parts can be made of different metals and rubber materials
2. Drive Types: Motor reducer drive, variable speed motor drive, mechanical variable speed drive, etc.

Specifications


Model
Capacity
Pressure
Speed
Motor
Head
(NPSH)r
Inlet
Outlet
(m3/h)
(MPa)
(r/min)
(KW)
(m)
(m)
(mm)
(mm)
G20-1
0.8
0.6
960
0.75
60
4
25
25
G20-2
1.2
1.5
120
G25-1
2
0.6
960
1.5
60
40
32
G25-2
1.2
2.2
120
G30-1
5
0.6
960
2.2
60
50
40
G30-2
1.2
3
120
G35-1
8
0.6
960
3
60
65
50
G35-2
1.2
4
120
G40-1
12
0.6
960
4
60
80
65
G40-2
1.2
5.5
120
G50-1
20
0.6
720
5.5
60
4.5
100
80
G50-2
1.2
7.5
120
G60-1
30
0.6
720
11
60
5
125
100
G60-2
1.2
15
120
G70-1
40
0.6
720
11
60
150
125
G70-2
1.2
18.5
120
G85-1
65
0.6
630
15
60
150
150
G85-2
1.2
30
120
G105-1
100
0.6
500
30
60
200
200
G105-2
1.2
55
120
G135-1
150
0.6
400
45
60
250
250
G135-2
1.2
90
120

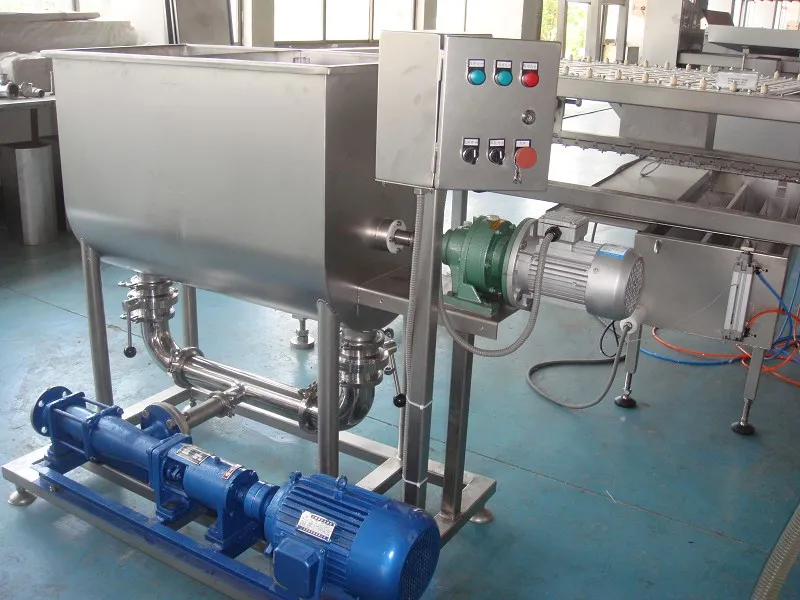

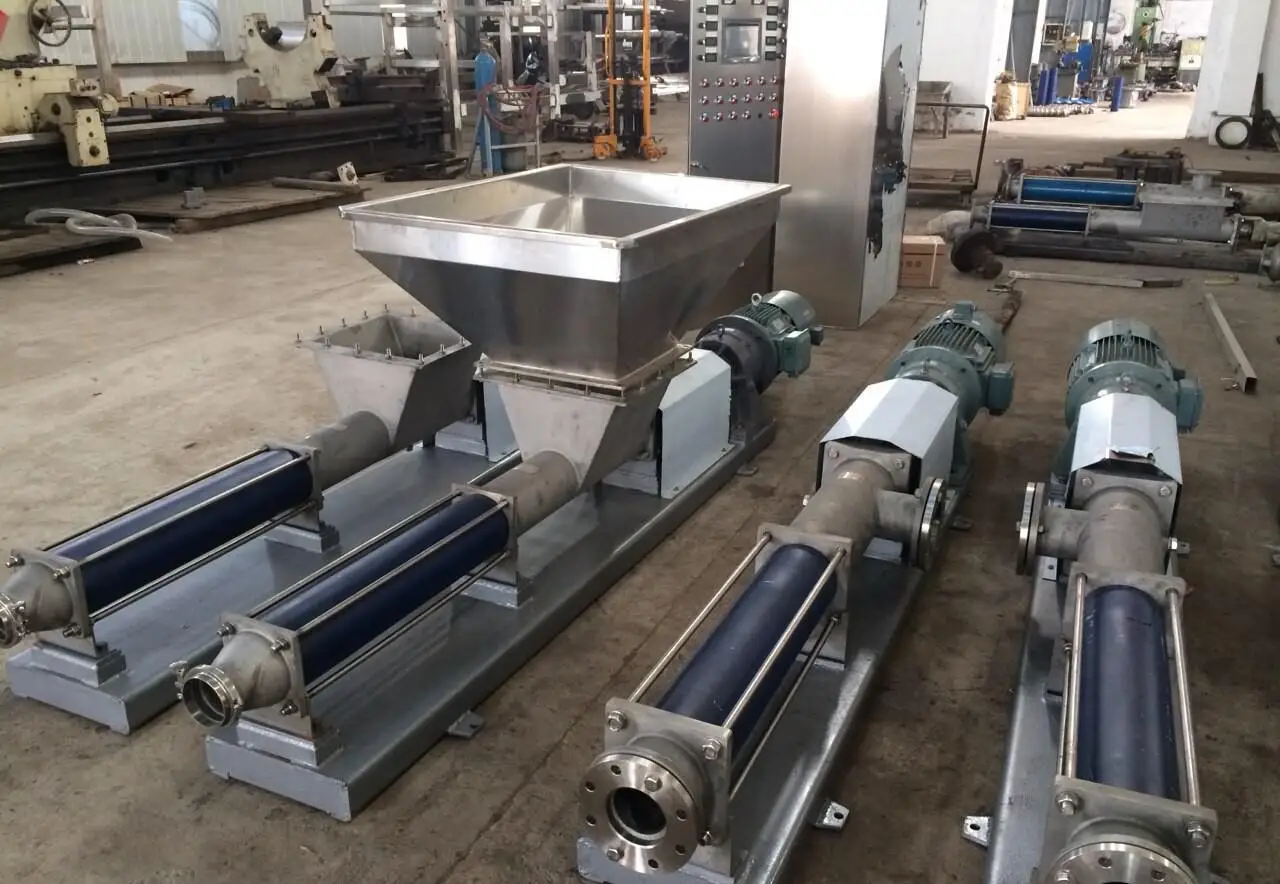

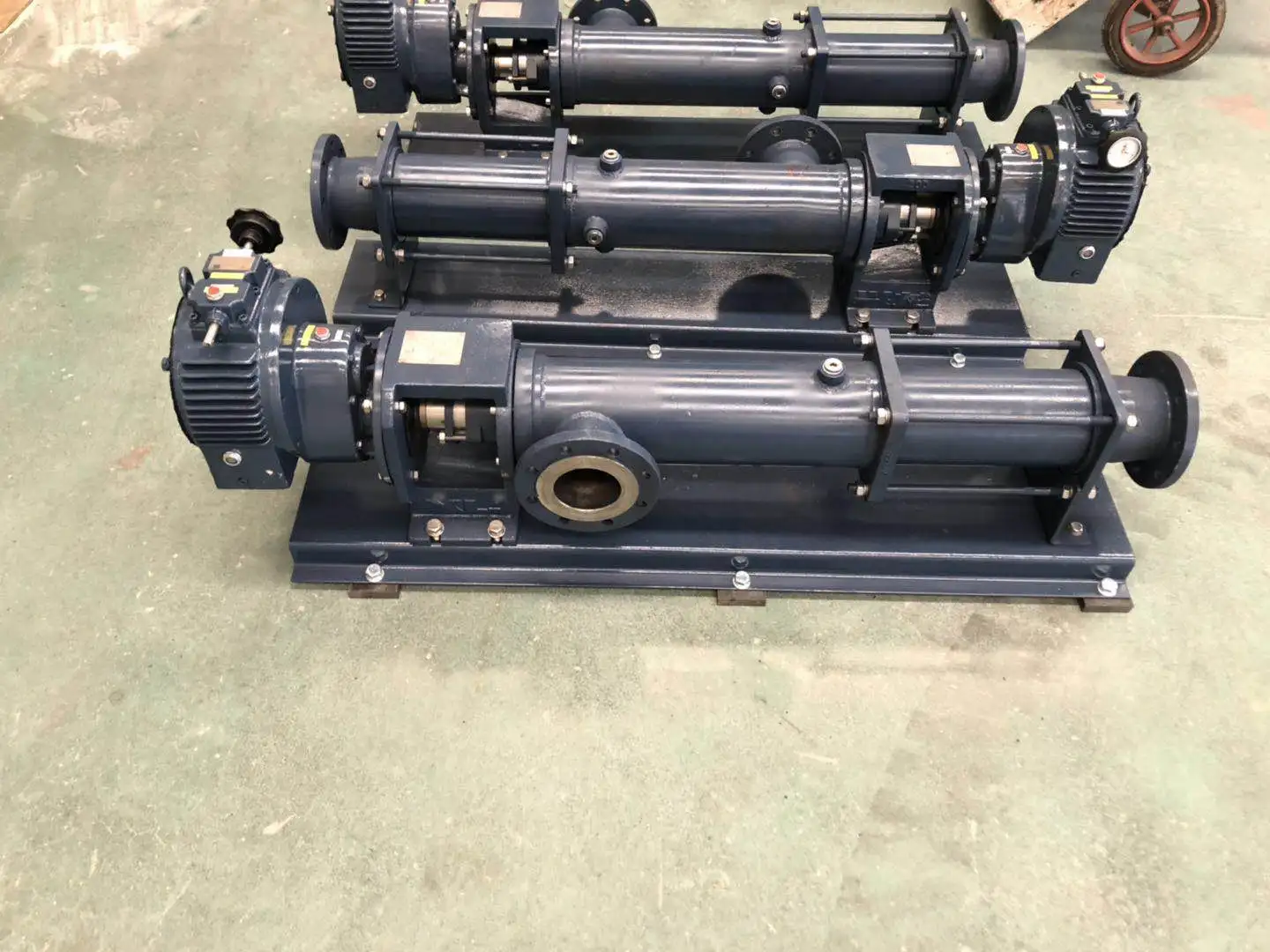

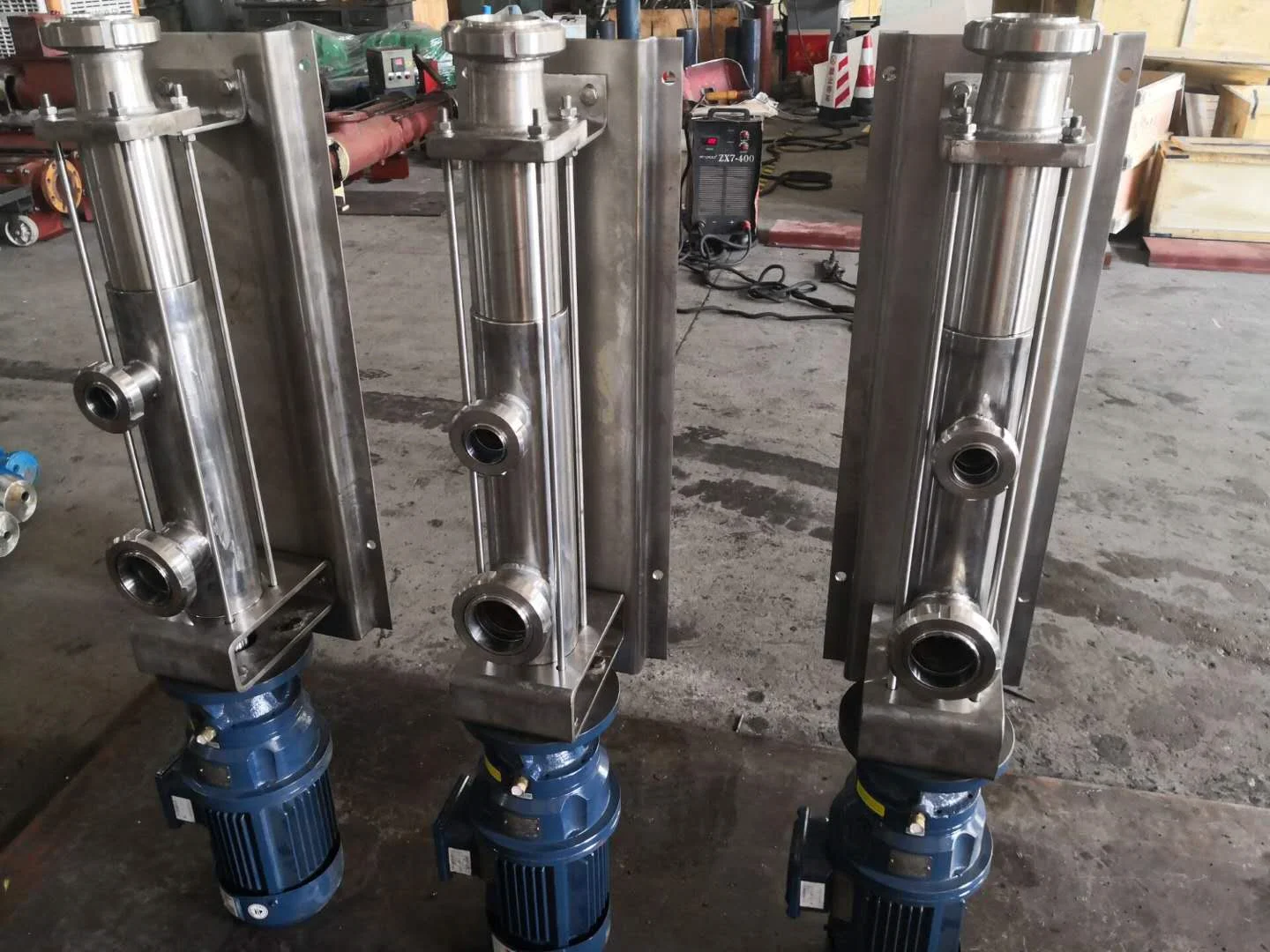

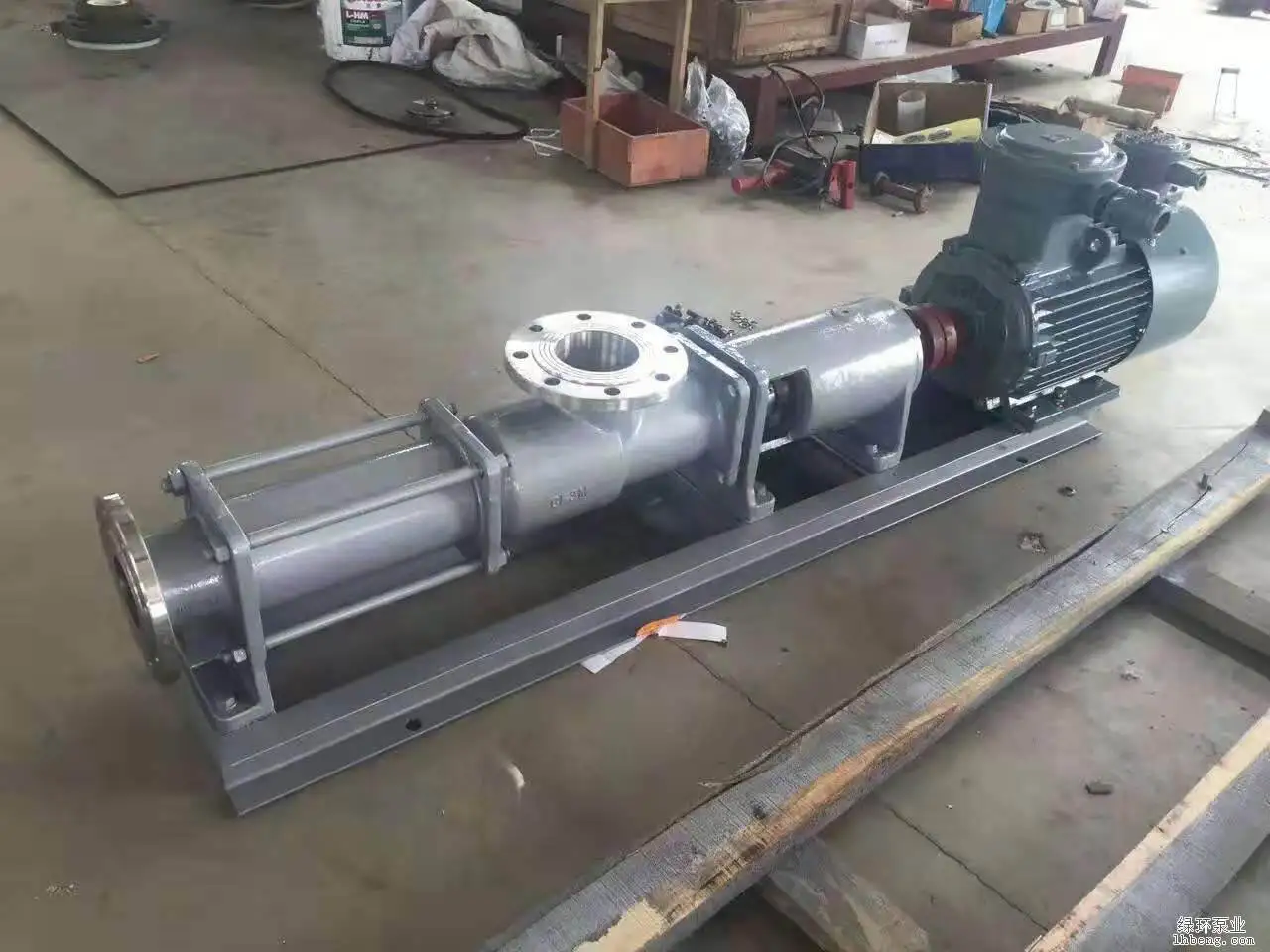

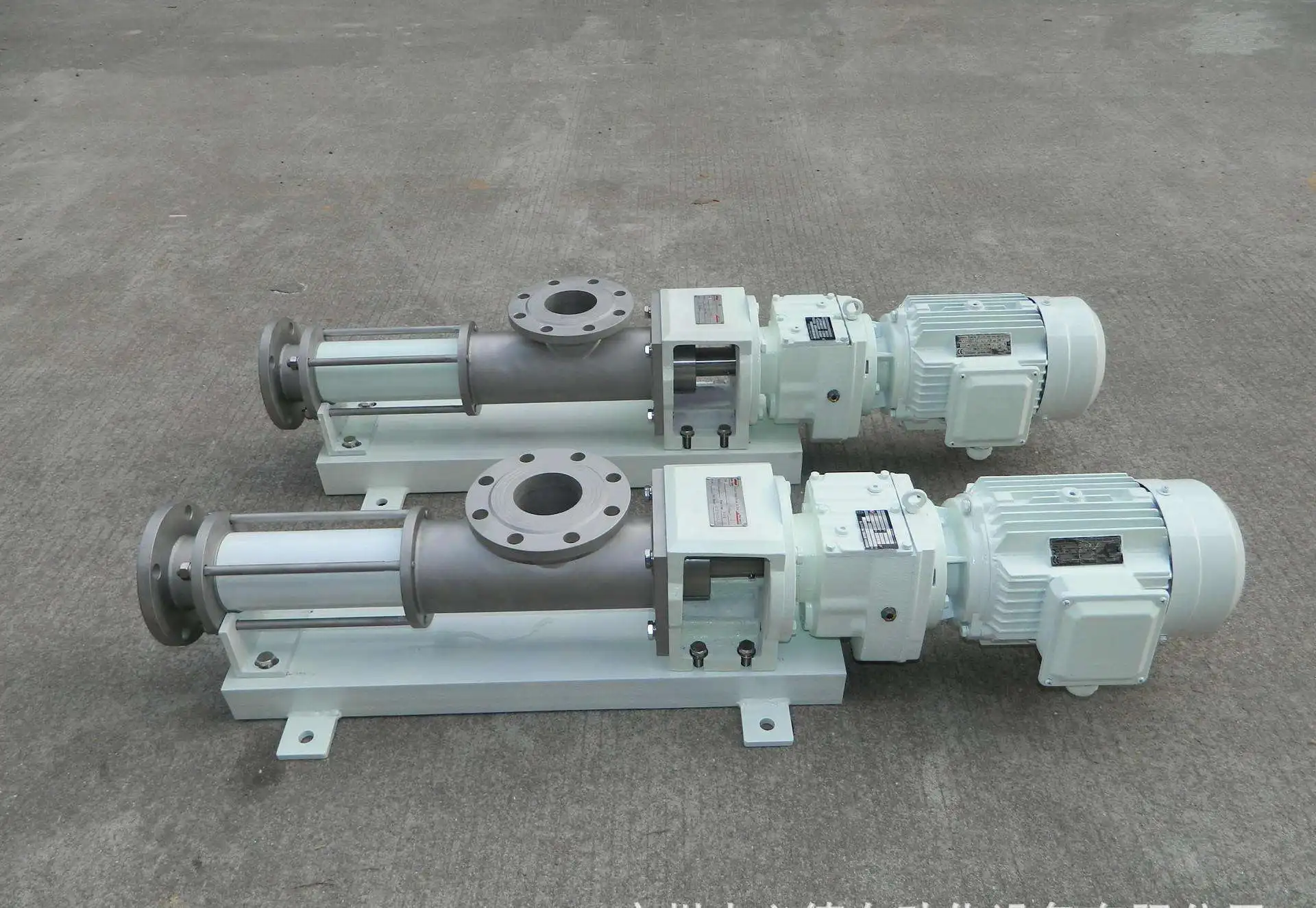

Products Show

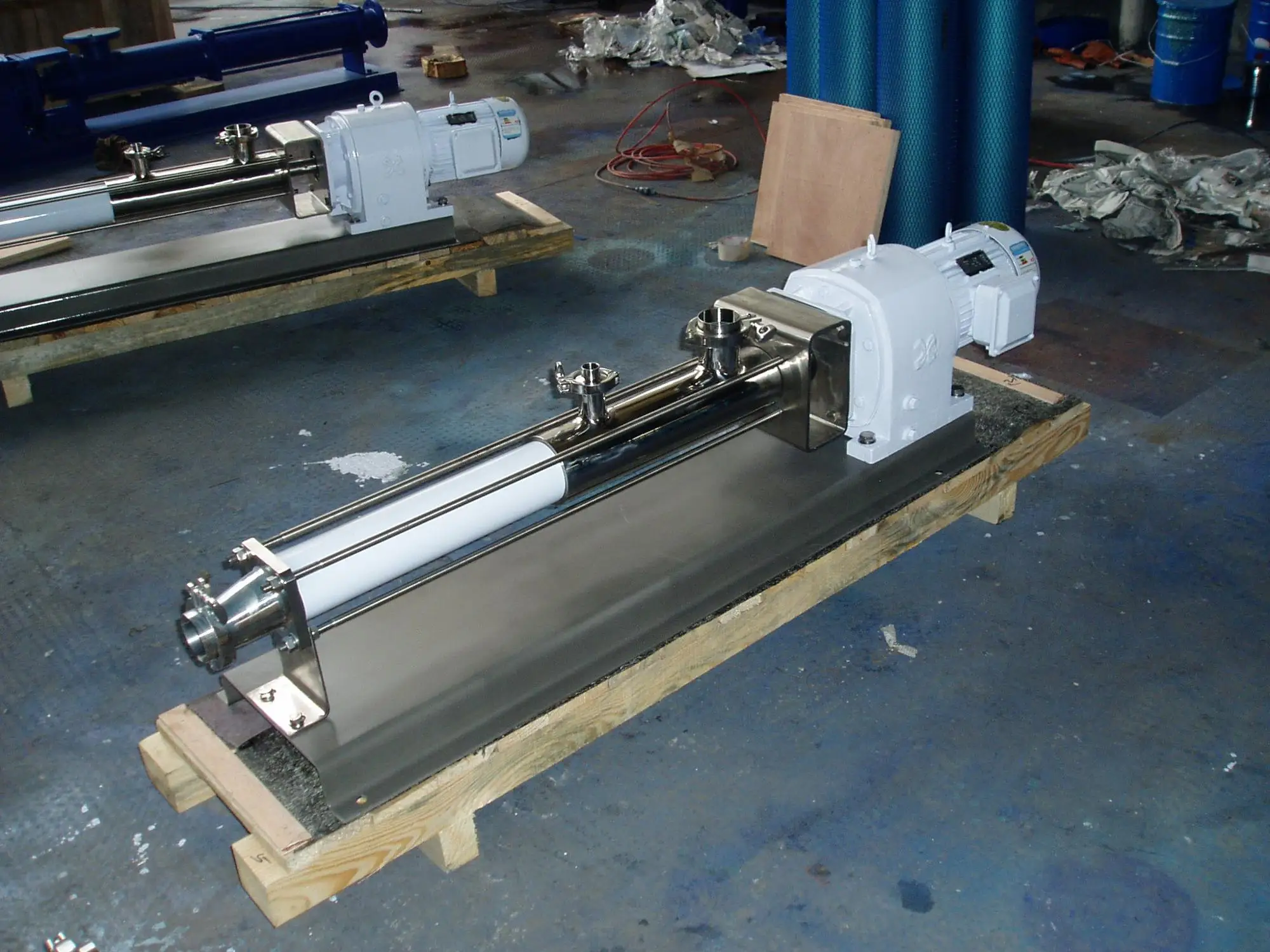

Packing & Delivery


Packing Details  : One pump in One plywood case

Delivery Details : 15 days after order confirmation

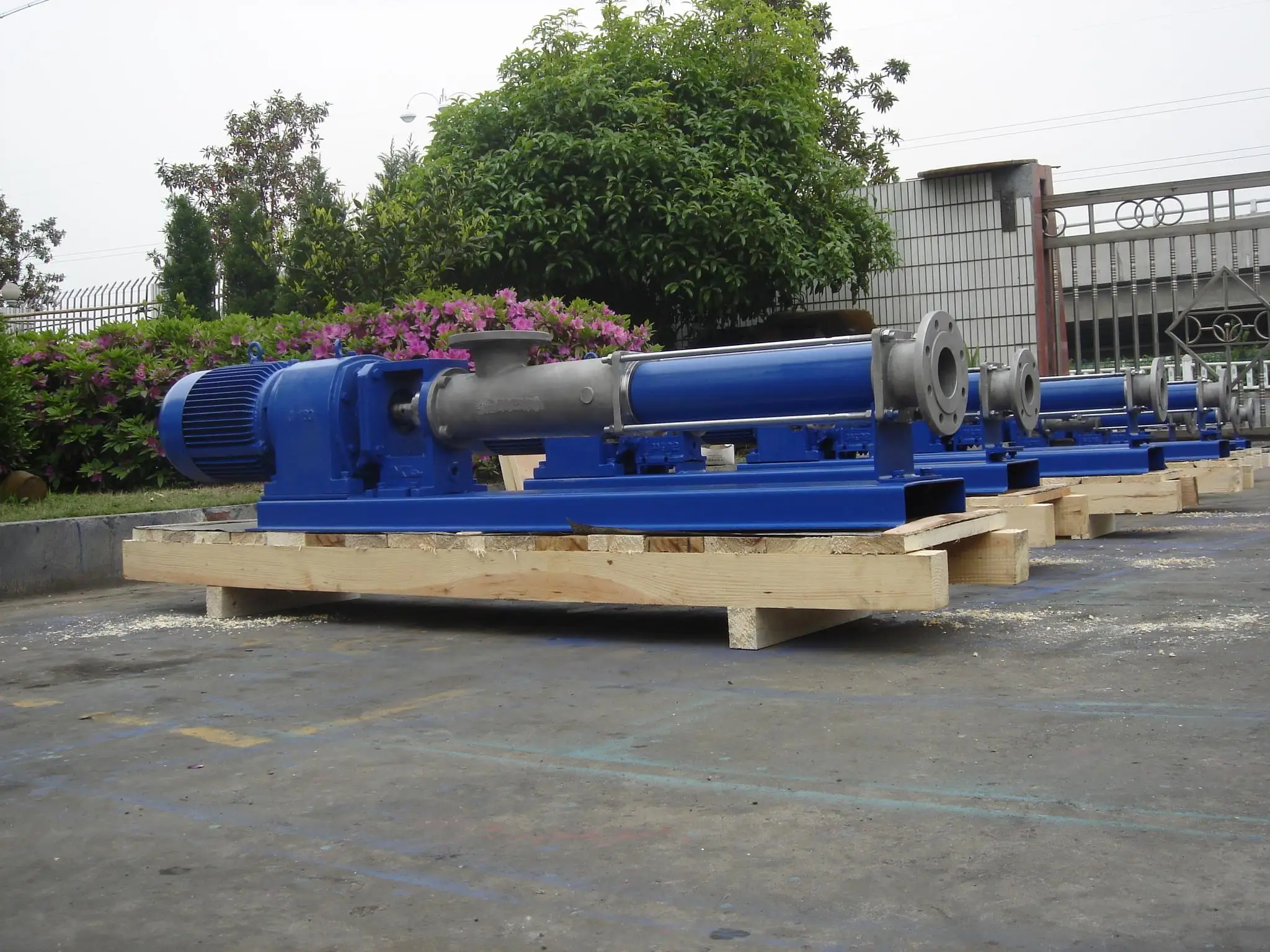

Standard Export Plywood Case

Standard plywood case without fumigation needed

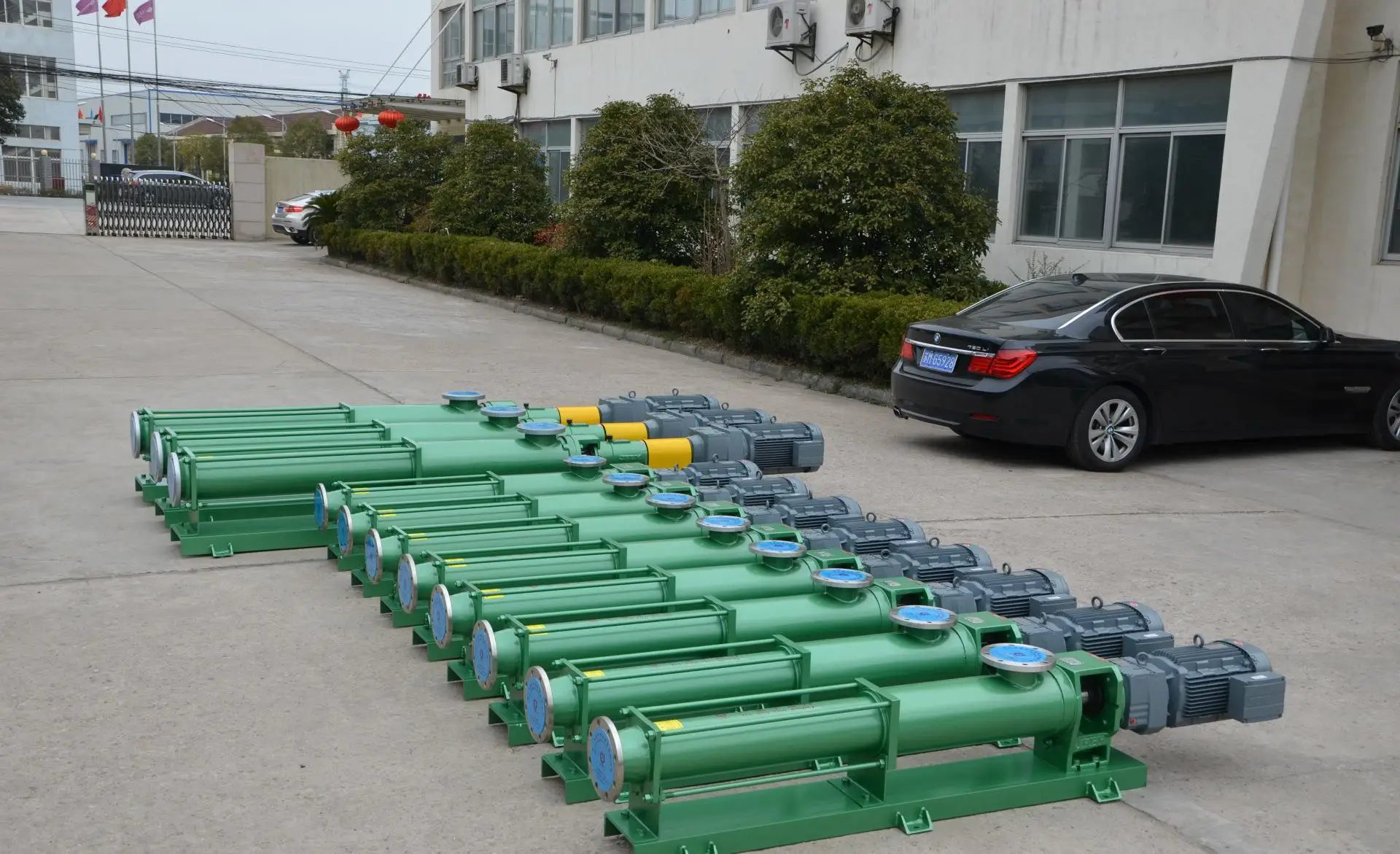

Products Exhibition






Our Company


Shanghai Suoto Pump Industrial Co., Ltd. is a professional pump manufacturer integrating R&D, manufacturing, sales and service as a whole, which has been certified by ISO9001 international quality management system.

Located in Langxia Industrial Park, Shanghai, Suoto Pump Industrial possesses two manufacturing bases in Shanghai and Zhejiang. Since our inception, Suoto Pump Industrial has been committed to the innovation and development of various pumps. Our leading products include self-priming trash pump, centrifugal pump, submersible pump, diaphragm pump, vacuum pump, diesel pump, fire pump, etc.







FAQ


Q: Can I chat with you online? What is your company official website?
A: Yes. Our ID is Skype/WhatsApp/Wechat: 0086 18762679089 or Alibaba trade messenger. Our company official website is www.suotopump.com.

Q: What type of company SUOTO is?
A: SUOTO is a manufacture and trading company, has factories in Shanghai and Zhejiang, with export and import license.

Q: What kinds of pumps do you supply?
A: Our products including self-priming trash pump, centrifugal pump, diaphragm pump, submersible pump, chemical pump, oil pump, diesel pump, fire fighting pump, etc.

Q: What is your payment terms?
A: Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.

Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shanghai and Zhejiang, we can make products according to your requirements.

Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satified until customers are.

Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.

Q: What about delivery time?
A: Normally our production time is within two weeks. Please confirm before order.
