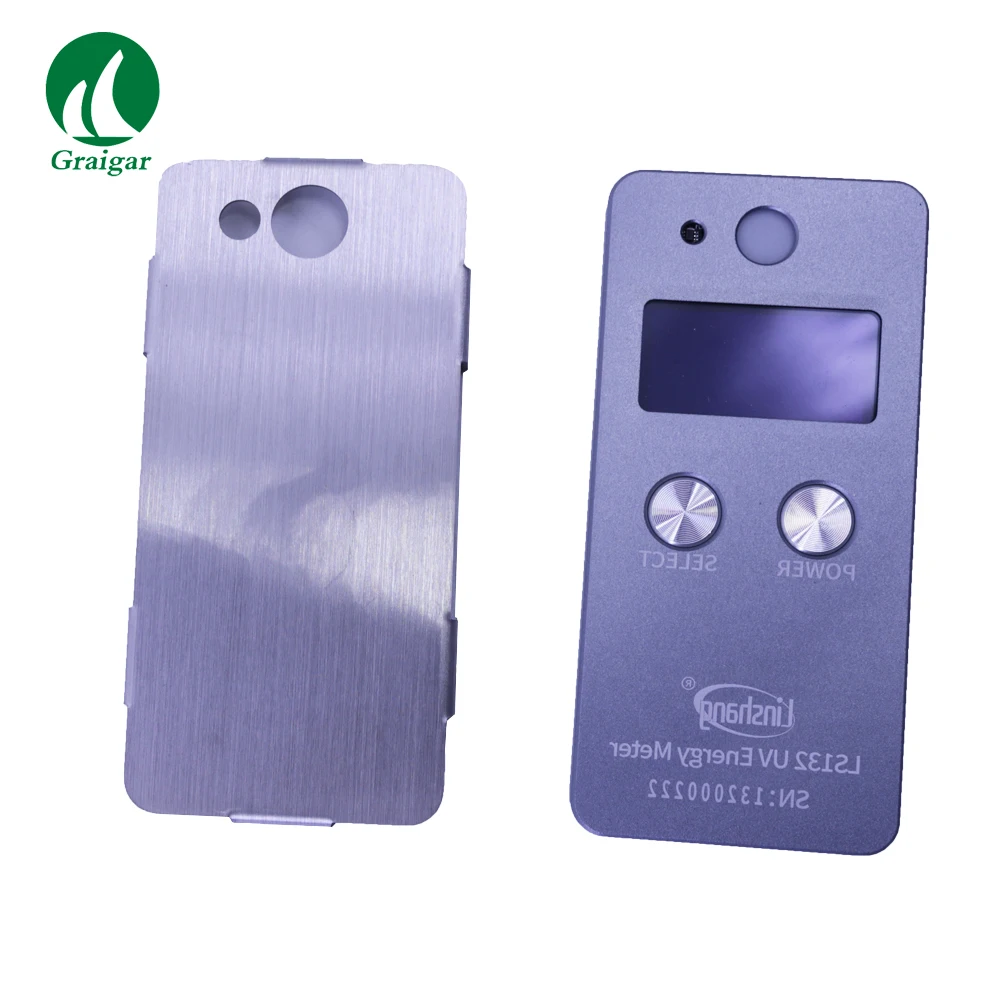

Linshang LS132 Radiometer UV Light Meter Radiometer ls132 UV Energy Meter

















 LS132 UV energy meter is a professional ultraviolet measurement tool for detecting UV energy and UV intensity in high-pressure mercury lamps, halogen lamps and other light sources. The LS132 UV power puck can be used to test the UV light intensity, UV energy and temperature of UV light sources in various curing machines, UV coating machines, dryers, exposure machines, printing machines and other equipment. This UV power puck adopts ultra-small size design, no need to worry about being restricted by the space of the use occasion.






























































ParameterLS132 UV Energy Meter
ApplicationLight intensity, energy and temperature measurement of high pressure mercury lamp
Spectral range315nm - 400nm, λp = 365nm
Power measuring range0 - 2000 mW/cm²
Power resolution0.1 mW/cm²
Energy measuring range0 - 999999mJ/cm²
Energy measuring accuracy± 10% , ± 5% (typical)
Sampling speed2048 times/second
Recording period32 min
Power supplyRechargeable lithium battery 3.7V@400mAh
Display128 × 64 Dot matrix OLED
Dimension95mm × 44mm × 7.6mm(L*W*H)
Weight57g

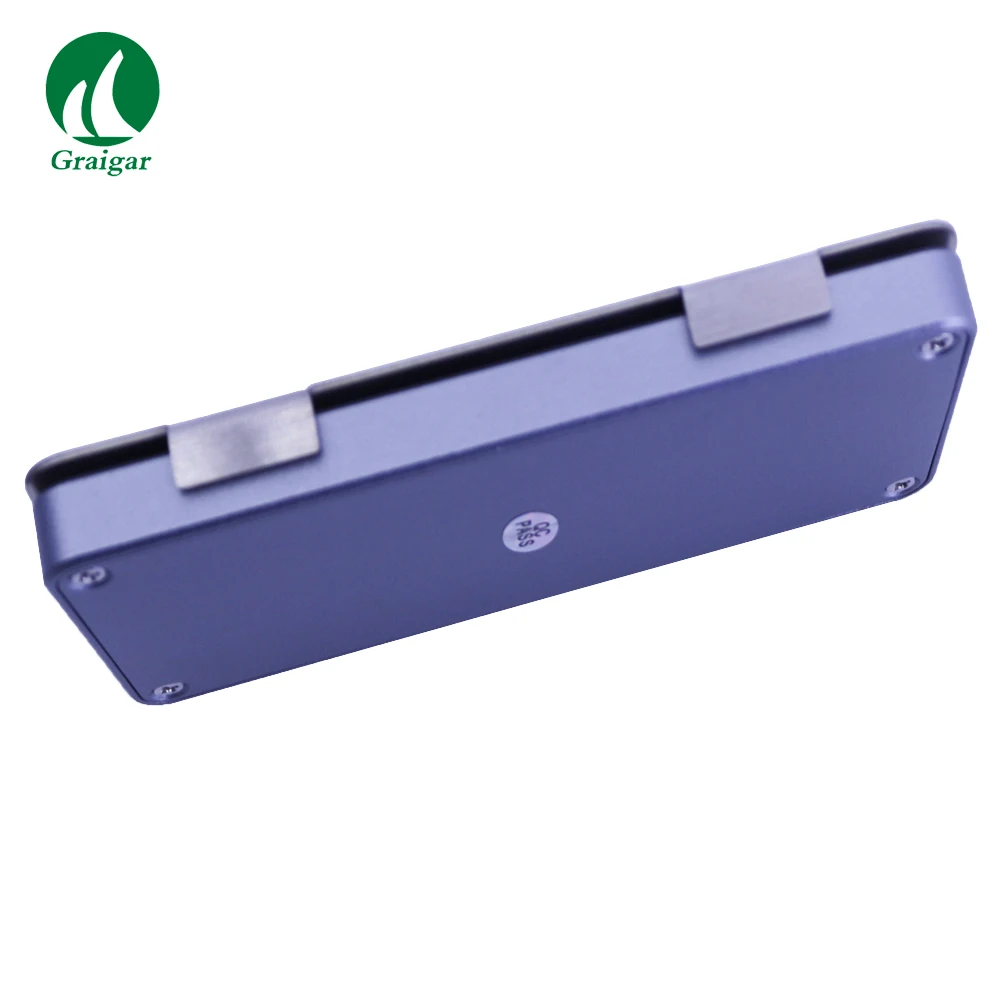

1. With a thickness of only 7.6mm and a width of 44mm, there is no need to worry about being limited by the measurement space.


2. The sampling speed of 2048 times per second provides accurate data for the UV energy meter and can pass and obtain the calibration certificate from China Institute of Metrology.

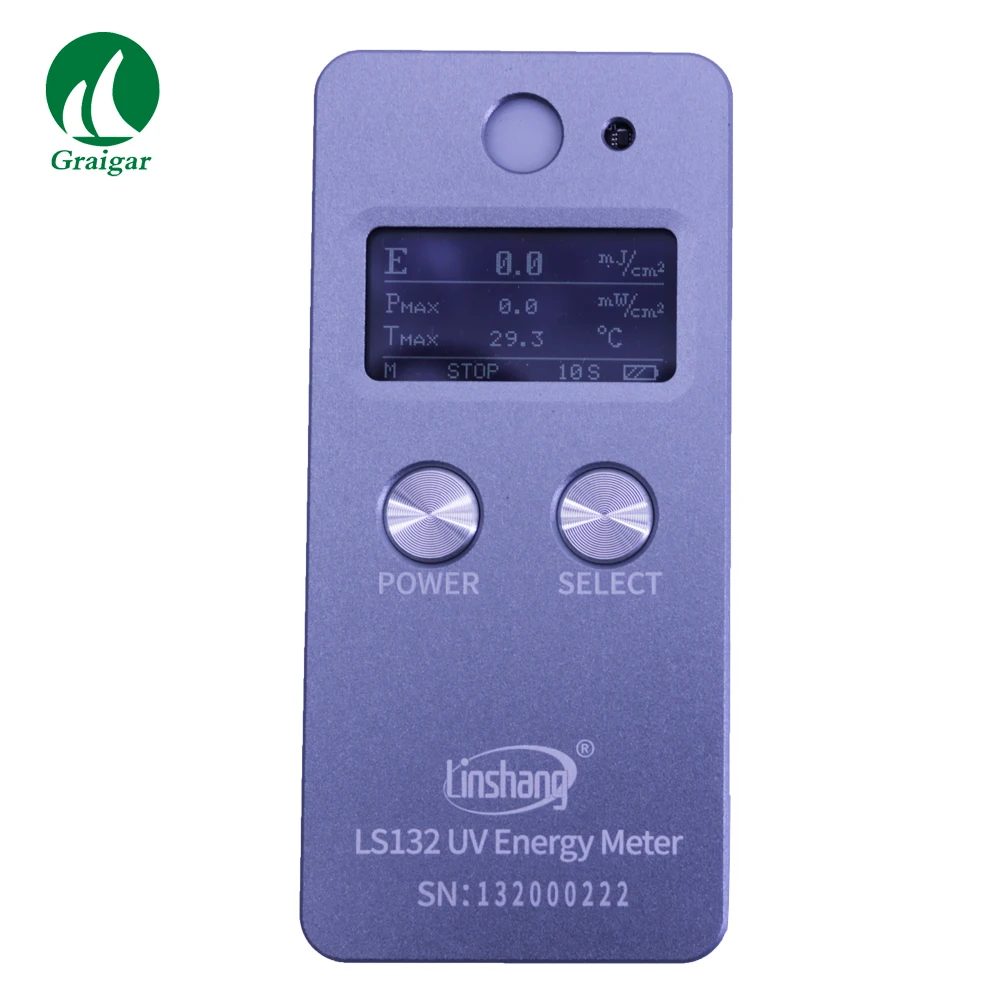

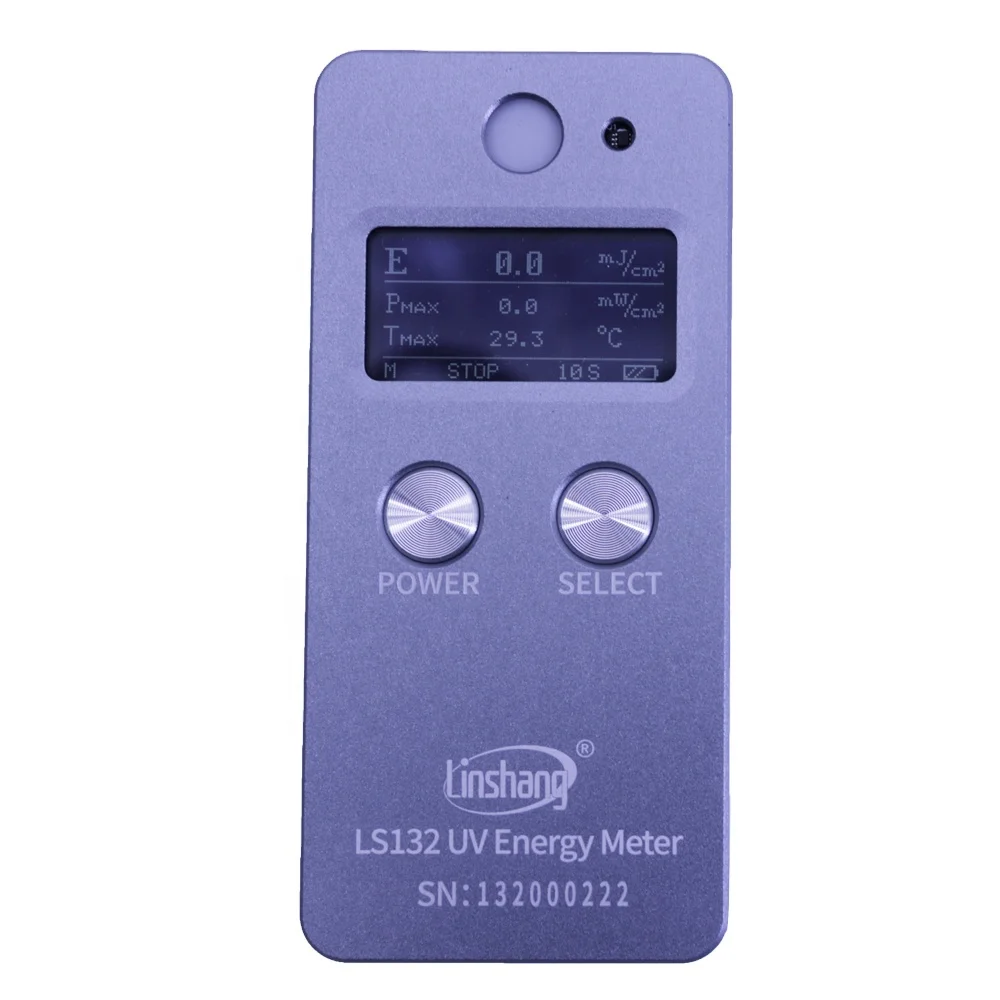

3. The real-time power value can be dynamically displayed during measurement and the accumulated UV energy value and the maximum power value can be automatically counted after the measurement is completed.


4. The built-in high-precision and high-sensitivity temperature detector and timer can dynamically display the actual temperature in the UV curing machine and other equipment and. The built-in timer can also accurately record the measurement time.


5. With high temperature resistant design, the UV radiometer can work normally for a long time in an environment of 100℃.


6. The last test data will be displayed automatically when power on, so there is no need to worry about data loss.


7. When the UV integrator is off, long press the “POWER” button to enter the setting interface to set the measurement mode, trigger power value and smooth processing parameters.


8. Manual measurement mode is suitable for most measurement occasions, while automatic measurement mode is suitable for occasions where the instrument needs to run for a long time with the conveyor belt to receive ultraviolet rays.

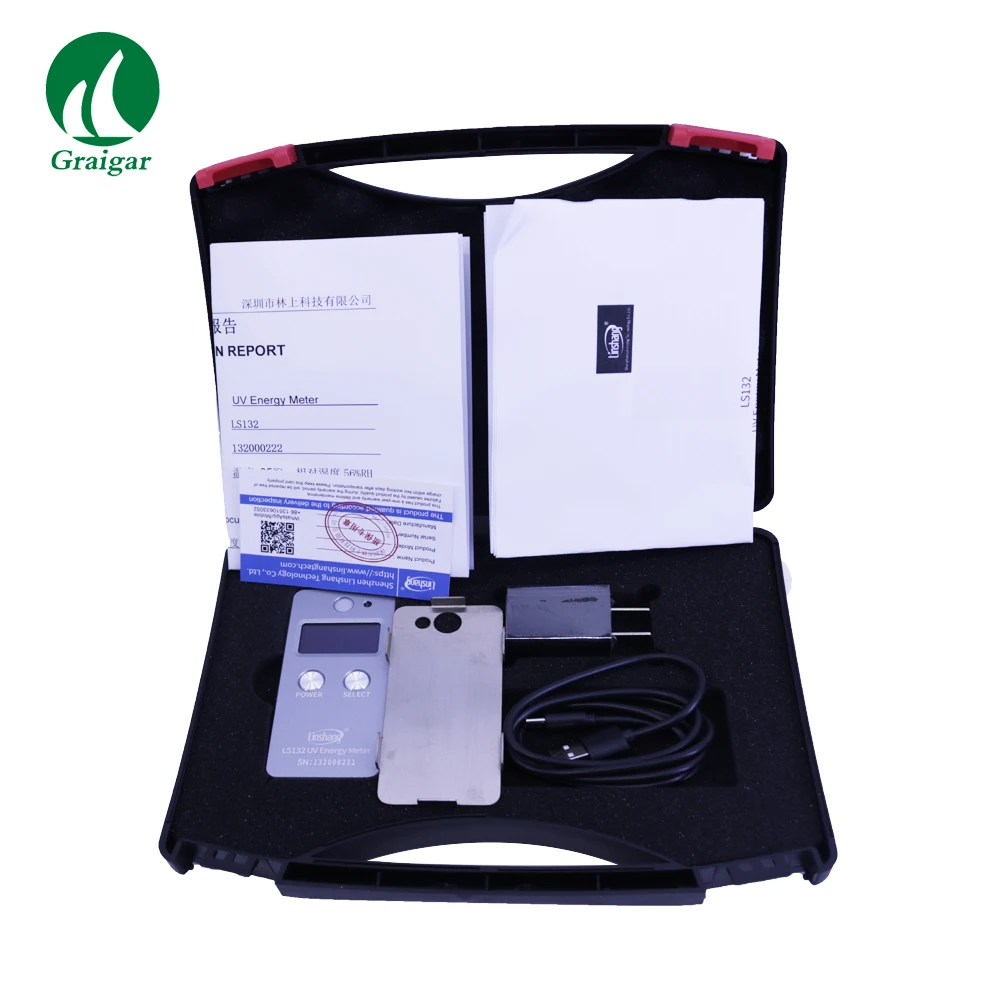

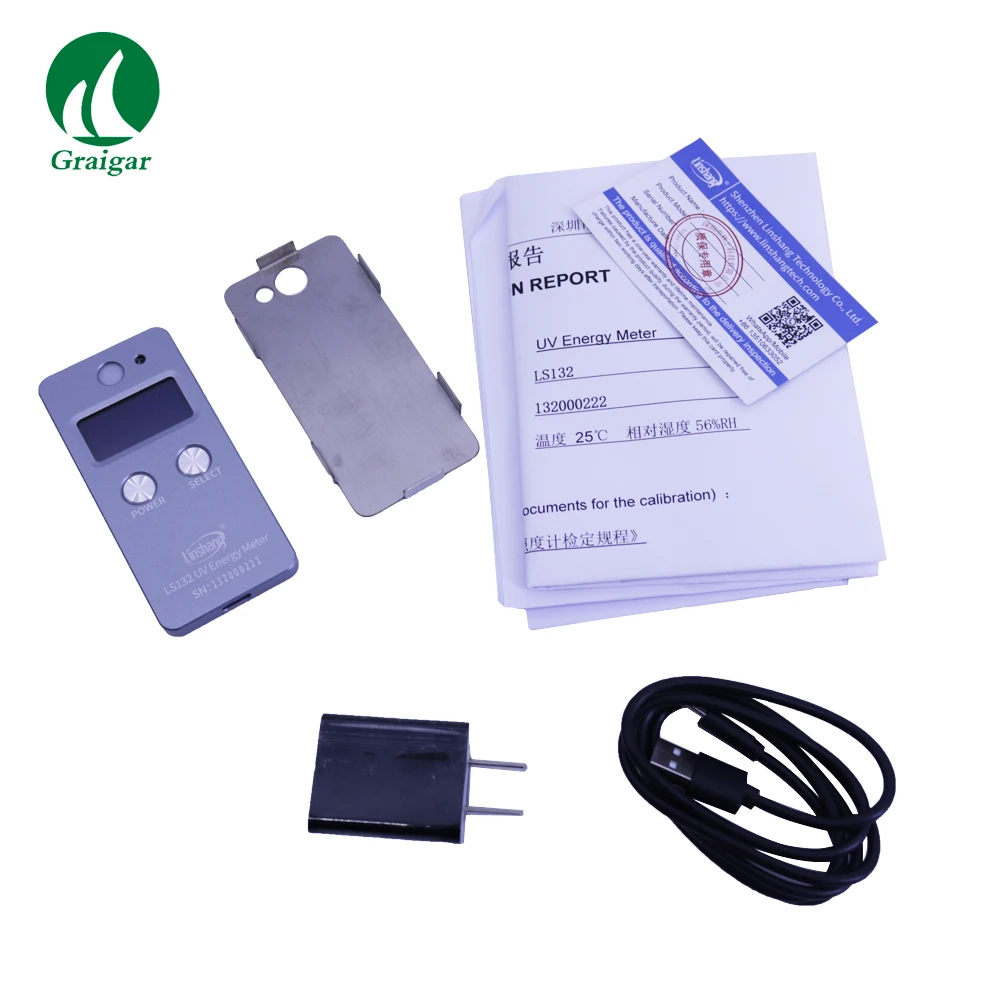

No.DescriptionQuantityUnit
1LS132 UV Energy Meter1pcs
2USB cable1pcs
3DC5V power adapter1pcs
4User manual1pcs
5Certificate/Warranty card1pcs
6Plastic engineering box1pcs





LS13213.jpgLS132(12)LS132(4)LS132(6)LS132(7)LS132(13)LS132(10)LS132(8)LS132(2)LS132(3)LS13213.jpg
