Product Brief Introduction




High Pressure Road Cleaning Vehicle Street Washer Truck For Sale MN-H51

1. The high temperature and high pressure unit imported from Germany is adopted, the maximum water temperature can reach 98 ℃, and the throttle of the internal combustion engine can be automatically adjusted to reduce energy consumption.

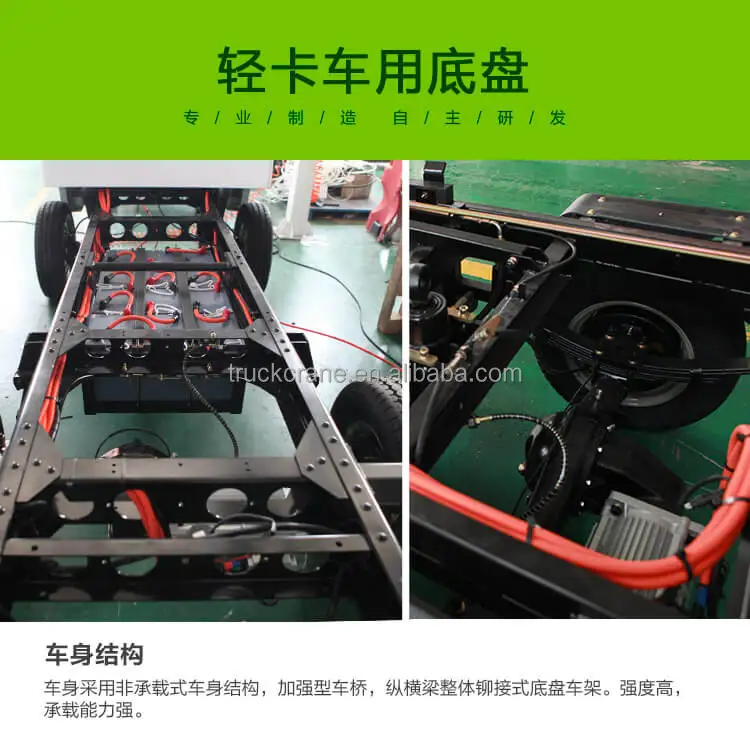

2. The body adopts a non-load-bearing body structure, which has strong rigidity and anti-distortion deformation.
The chassis adopts the overall riveted light truck chassis design of the longitudinal beam of the frame, and the special steel plate for trucks is selected. The overall strength of the chassis is high and the bearing capacity is strong.
3. Reinforced axles are adopted, and the front and rear suspensions are integral bridges with strong bearing capacity.
4. The vehicle control system adopts single chip control, resistive accelerator, with anti-electromagnetic interference, anti-speed, start delay and reverse deceleration, electronic anti-slope, energy feedback, fault reporting, CAN communication, EPS and other safety functions; using vacuum Power brake, good safety.

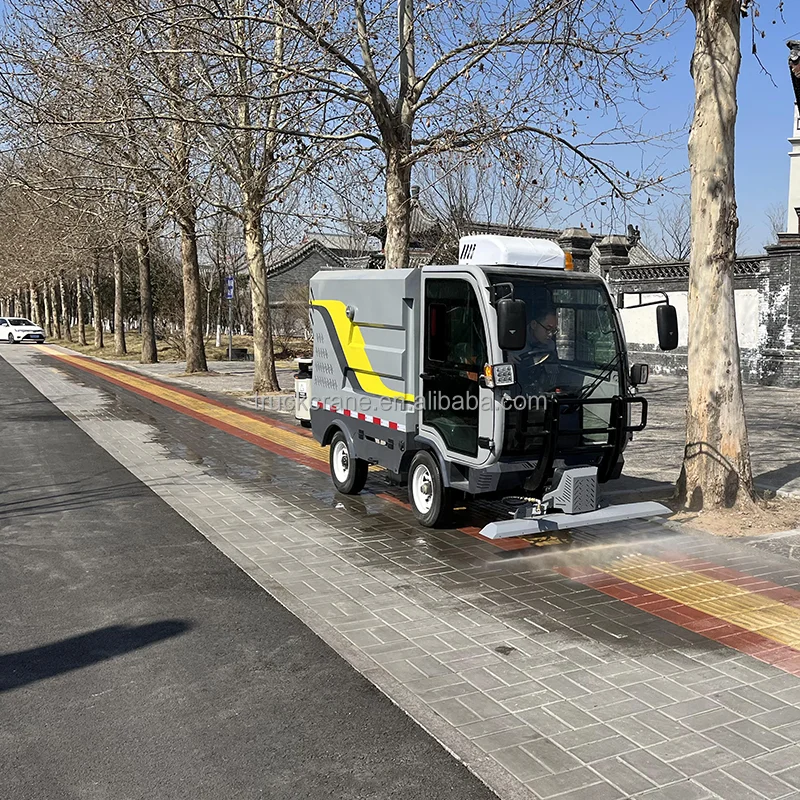

5. The cleaning device consists of a front cleaning device, a columnar single-point (double-point) cleaning device, and a manual spray gun device.
6. When the front cleaning device is working, the high-pressure water flow can form a complete cleaning plane, and the electric control rotates 12° up and down and 18° left and right.
7. The operation of the column-shaped single-point cleaning device is all electric control, the driver can complete the operation in the cab, and can swing up, down, left and right in all directions.
8. The rear-mounted manual high-pressure spray gun and the high-end 15-meter long coiled tube are equipped with a high-pressure water gun, which is easy to operate and saves time and effort. It has a large operating range and can easily clean concentrated stains and small street advertisements.


Product Paramenters


Dimensions
mm
4550*1640*2150
Rated passengers
1
Max. speed
km/h
30
Gradeability
%
20
Driving Mileage
80km
80
Driving motor power
kw
7.5
Power source
v
72
Battery
Ah/V
300/72
Battery model
/
Lithium
Maximum working pressure
bar
250
Water tank volume
L
1200
High pressure flushing flow
L/h
1800
Rated load
kg
1800
Wheelbase
mm
2100
Control mode
Centralized control of ground console
