Product Description
Lead-Zinc Ore Beneficiation Process
According to the different types of ore, lead-zinc ore beneficiation process is also different, common are heavy-floating,
magnetic-floating, heavy-magnetic-floating and so on. Flotation is generally indispensable for the separation of lead-zinc ores. As far as the flotation process is concerned, it can be divided into a priority flotation process and a mixed flotation process, that is, whether there is floating lead first and then floating zinc, or if the lead and zinc are mixed and floated out.
magnetic-floating, heavy-magnetic-floating and so on. Flotation is generally indispensable for the separation of lead-zinc ores. As far as the flotation process is concerned, it can be divided into a priority flotation process and a mixed flotation process, that is, whether there is floating lead first and then floating zinc, or if the lead and zinc are mixed and floated out.
Crushing And Screening
Most of the lead-zinc deposits are carbonate deposits, and some are skarn-type, spout-sedimentary deposits.
The main metal minerals in the deposit are galena, sphalerite, pyrite and chalcopyrite. Generally, a three-stage one-closed
circuit crushing process is adopted. The crushing and screening equipment commonly used in the beneficiation process of lead-zinc mine is as follows:
The main metal minerals in the deposit are galena, sphalerite, pyrite and chalcopyrite. Generally, a three-stage one-closed
circuit crushing process is adopted. The crushing and screening equipment commonly used in the beneficiation process of lead-zinc mine is as follows:
Grinding
According to the different properties, genesis, structure and structure of the lead-zinc ore in different dressing
plants, there are large differences in the design of the grinding process. Because of economic considerations, small dressing plants often adopt a simple grinding process to facilitate operation and management. In order to obtain better economic and technical effects, large-scale beneficiation plants usually conduct multiple scheme comparisons to determine the grinding process.
plants, there are large differences in the design of the grinding process. Because of economic considerations, small dressing plants often adopt a simple grinding process to facilitate operation and management. In order to obtain better economic and technical effects, large-scale beneficiation plants usually conduct multiple scheme comparisons to determine the grinding process.

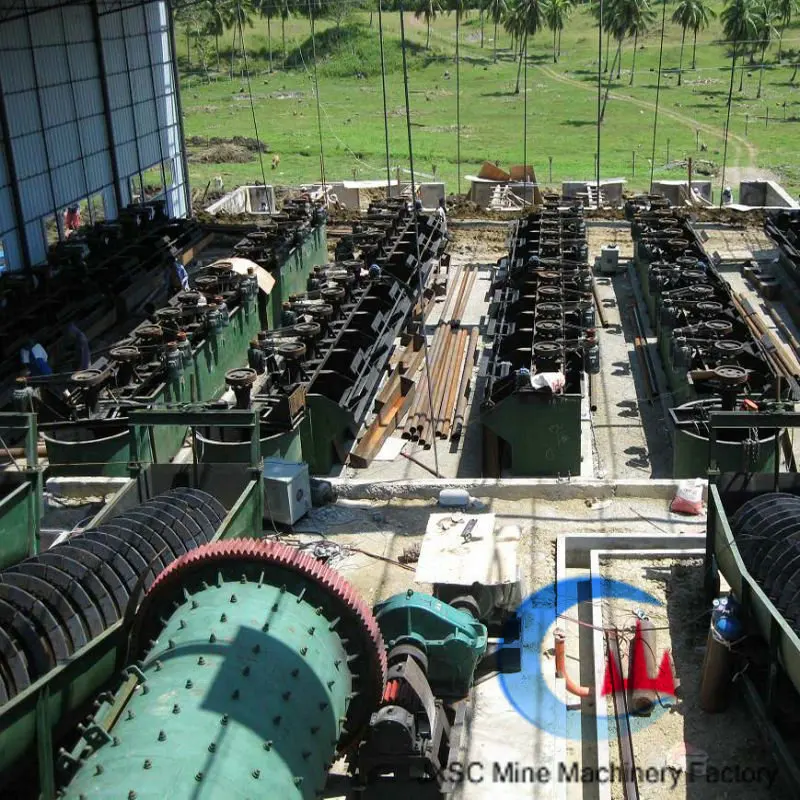

Flotation
1. Mixed flotation-lead zinc separation Process advantages: The flotation process performs two mixed flotation of lead
and zinc under weak alkaline conditions, and separates lead and zinc under weak acid conditions. The process of mixing lead and zinc twice can discard the tailings at one time and reduce metal loss. In the lead-zinc ore beneficiation process, the destination of the coarse concentrate and the location of the separation ore return can be flexibly configured to adapt to changes in the grade of the original ore.
2. Floatable for lead and zinc, separation of lead and zinc, mixed floatation of zinc and sulfur, separation of zinc and sulfur
Process advantages: Floatable lead and zinc eliminate the forced suppression of easily floatable minerals by priority flotation, and also avoid the forced activation of difficult floated zinc minerals by mixed flotation, thereby reducing the consumption of reagents and the subsequent separation of residual reagents Impact. In the lead-zinc ore beneficiation process, the commonly used equipment is a mechanically agitated flotation machine. This year, with the improvement of flotation machine technology, the modified and upgraded version of mechanical agitated flotation machine has been widely used in the newly-built concentrator.
and zinc under weak alkaline conditions, and separates lead and zinc under weak acid conditions. The process of mixing lead and zinc twice can discard the tailings at one time and reduce metal loss. In the lead-zinc ore beneficiation process, the destination of the coarse concentrate and the location of the separation ore return can be flexibly configured to adapt to changes in the grade of the original ore.
2. Floatable for lead and zinc, separation of lead and zinc, mixed floatation of zinc and sulfur, separation of zinc and sulfur
Process advantages: Floatable lead and zinc eliminate the forced suppression of easily floatable minerals by priority flotation, and also avoid the forced activation of difficult floated zinc minerals by mixed flotation, thereby reducing the consumption of reagents and the subsequent separation of residual reagents Impact. In the lead-zinc ore beneficiation process, the commonly used equipment is a mechanically agitated flotation machine. This year, with the improvement of flotation machine technology, the modified and upgraded version of mechanical agitated flotation machine has been widely used in the newly-built concentrator.

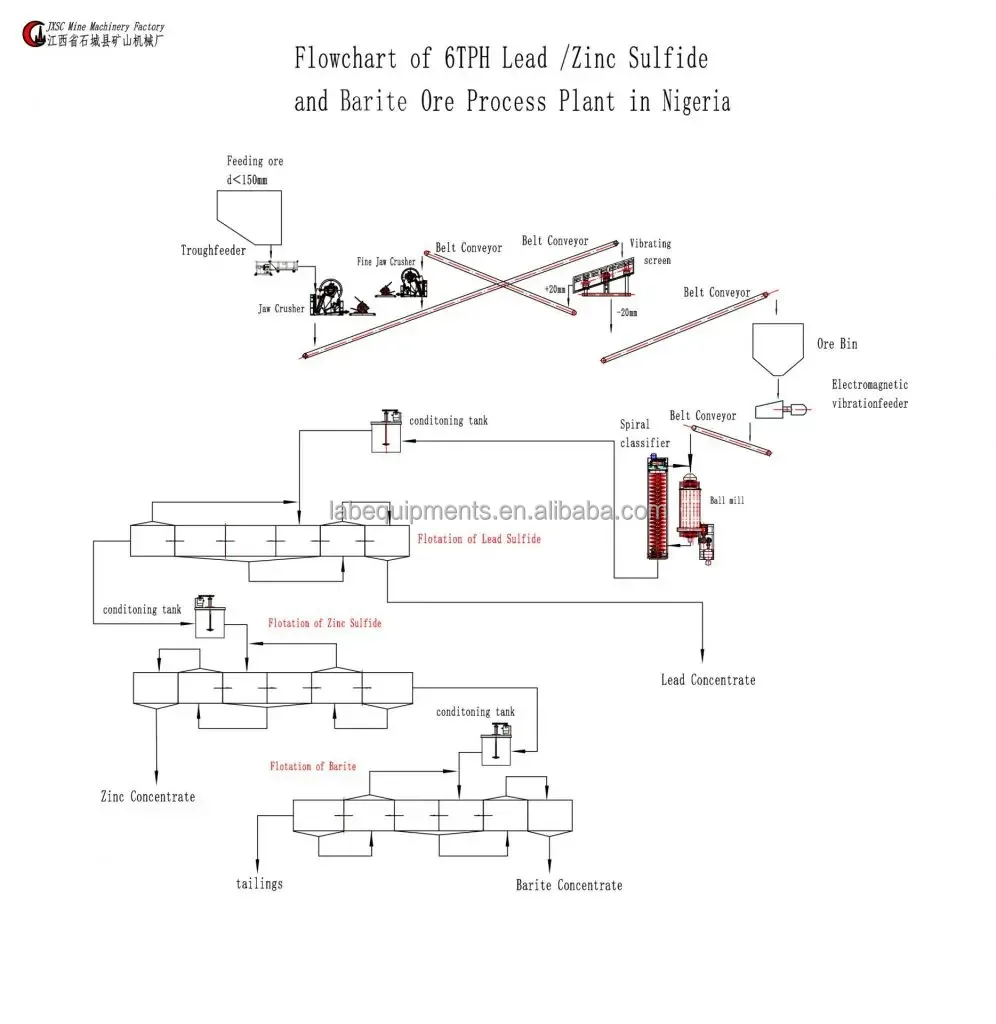

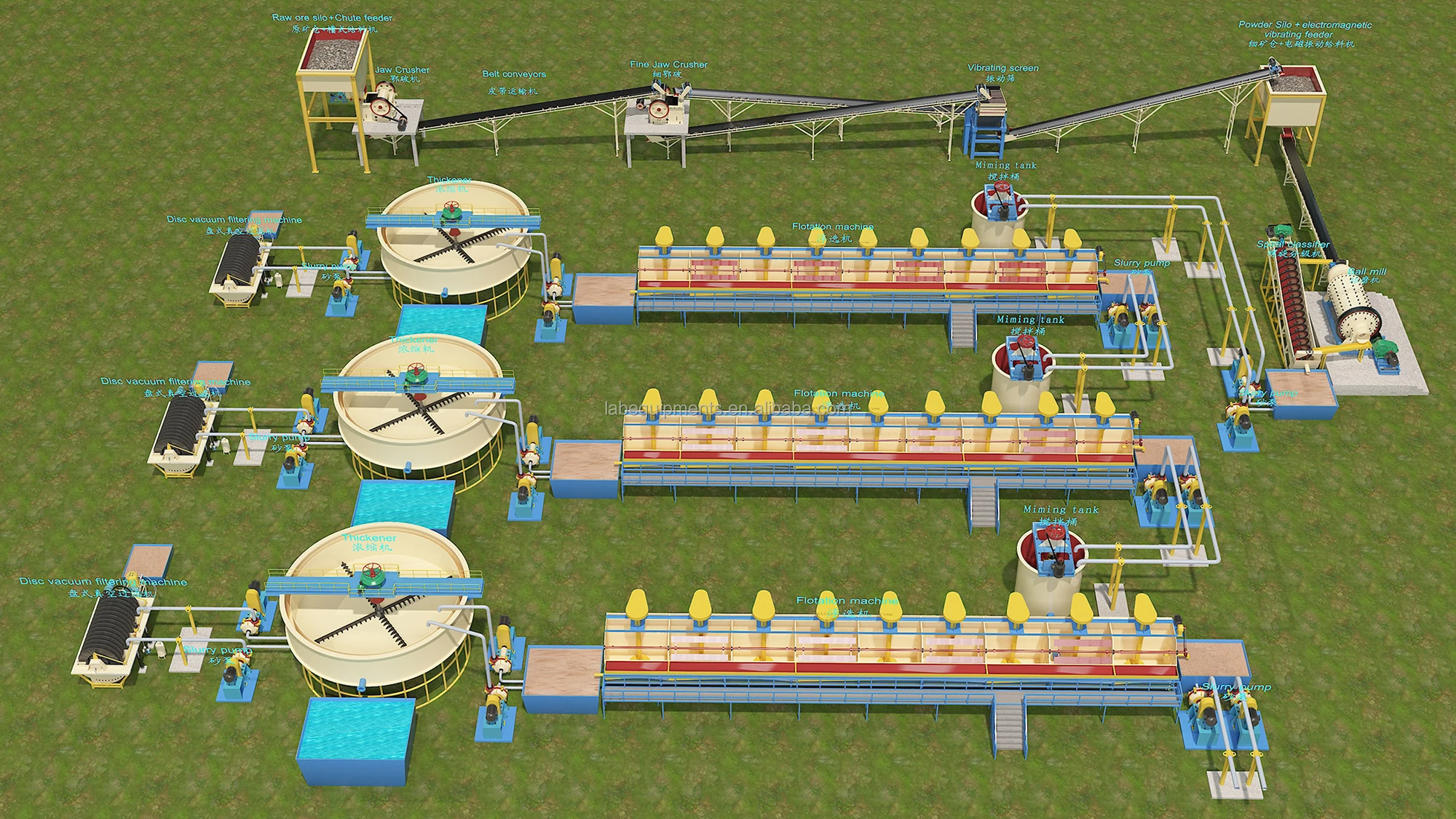

Processing Flow Overview
Capable Materials: Raw ore is a mixture of sulfide ore lead, zinc, and barite Processing Capacity: 10tph (For more capacity,
please contact us) Max Feeding Size: 200mm
Processing Flow Overview▼
please contact us) Max Feeding Size: 200mm
Processing Flow Overview▼

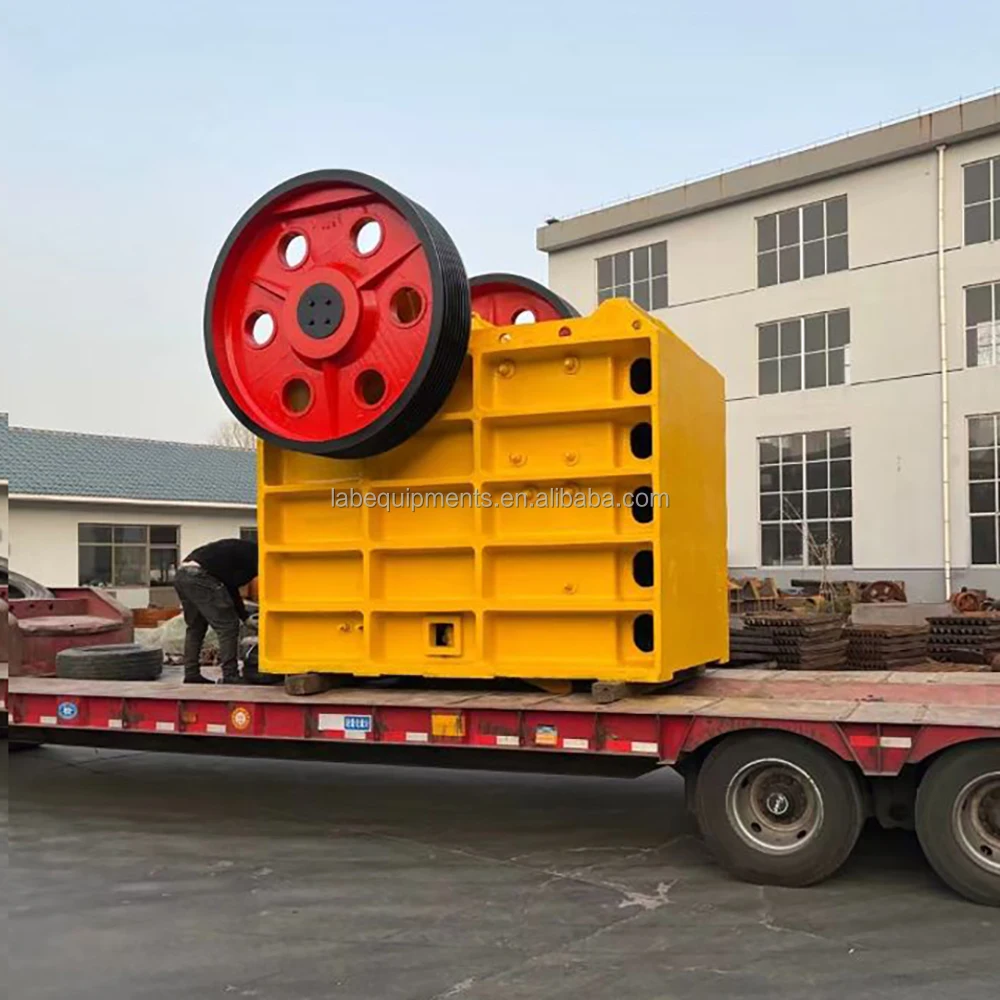

1. Excavator or loader send raw ore into raw ore bin, through chute feeder to feed jaw crusher. Here jaw crusher is primarily
crushing big rocks to 40-100mm medium size.
2. Output of primary jaw crusher through belt conveyor go to fine jaw crusher for further crushing to 20-60mm small size. Here secondary jaw crusher is fine crushing 40-100mm rock to 20-60mm.
3. Output of fine jaw crusher through belt conveyor goes to vibrating screen for sieving above 20mm and below 20mm. Here the vibrating screen is with 1 deck sieve 20mm hole size.
4. Above 20mm from over screen are back to fine jaw crusher for reprocessing via belt conveyor.

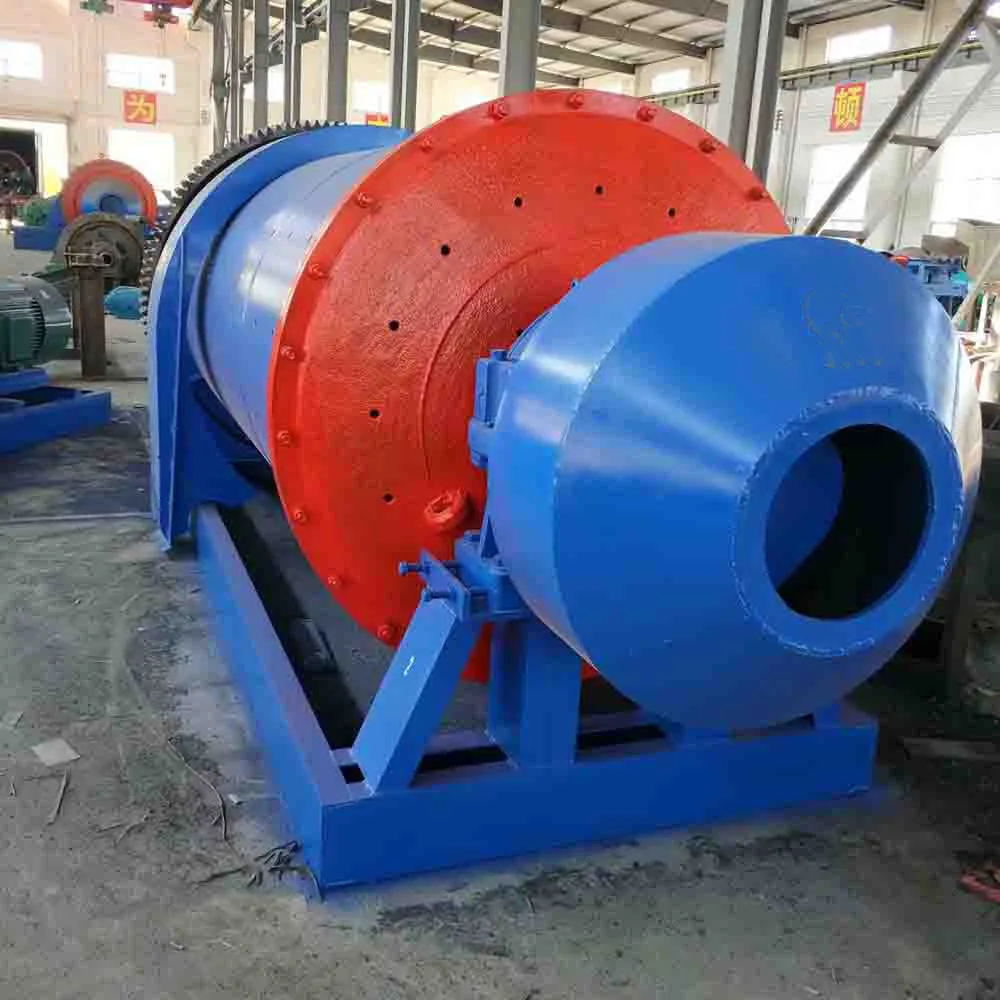

5. Below 20mm from under-screen through belt conveyor go to fine ore silo, through the electromagnetic vibrating feeder to feed ball mill. Here ball mill can grind 0-20mm ore to powder size 0-1mm.
6. Output of ball mill flow to spiral classifier form a closed grinding system so that above 90% output is 200mesh which meet with flotation condition.

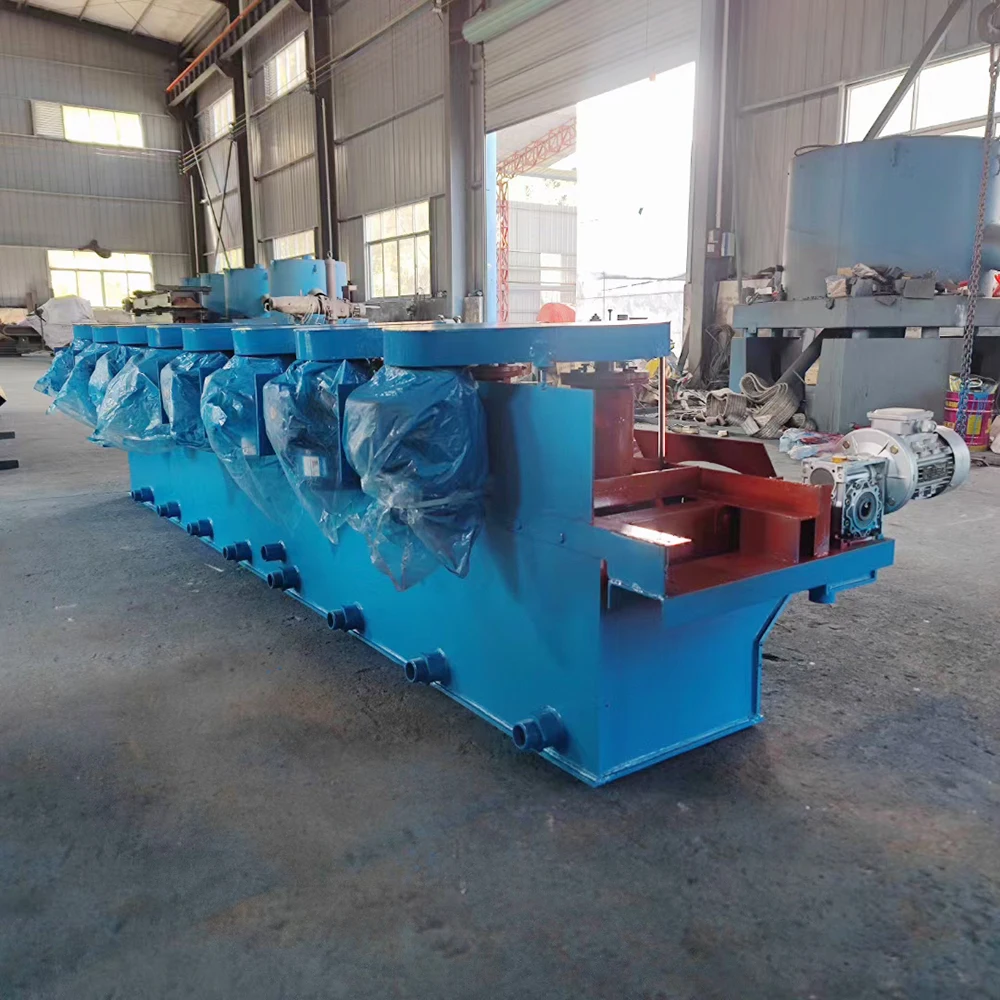

7. Underflow of spiral classifier goes to one slurry tank, then use a slurry pump to send it to 1st mixing tank, then to 1st
flotation machine for separating out the lead.
8. The concentrate of 1st flotation machine goes to one slurry tank, use a slurry pump to send it to 1st thickener, underflow of thickener through the slurry pump goes to 1st disc vacuum filtering machine for dehydration, the final product is lead concentrate.
9. The tailing of the 1st flotation machine goes to one slurry tank, use a slurry pump to send it to 2nd mixing tank, then to 2nd flotation machine for separating out zinc.
10. The concentrate of the 2nd flotation machine goes to one tank, use a slurry pump to send it to the 2nd thickener, underflow of thickener through slurry pump go to 2nd disc vacuum filtering machine for dehydration, the final product is zinc concentrate.
11. The tailing of the 2nd flotation machine goes to one tank, and using a slurry pump sends it to 3rd flotation machine for
separating out barite.
12. The concentrate of the 3rd flotation machine to one tank, use a slurry pump to send it to the 3rd thickener, underflow of thickener through slurry pump go to 3rd disc vacuum filtering machine for dehydration, the final product is barite concentrate.
crushing big rocks to 40-100mm medium size.
2. Output of primary jaw crusher through belt conveyor go to fine jaw crusher for further crushing to 20-60mm small size. Here secondary jaw crusher is fine crushing 40-100mm rock to 20-60mm.
3. Output of fine jaw crusher through belt conveyor goes to vibrating screen for sieving above 20mm and below 20mm. Here the vibrating screen is with 1 deck sieve 20mm hole size.
4. Above 20mm from over screen are back to fine jaw crusher for reprocessing via belt conveyor.
5. Below 20mm from under-screen through belt conveyor go to fine ore silo, through the electromagnetic vibrating feeder to feed ball mill. Here ball mill can grind 0-20mm ore to powder size 0-1mm.
6. Output of ball mill flow to spiral classifier form a closed grinding system so that above 90% output is 200mesh which meet with flotation condition.
7. Underflow of spiral classifier goes to one slurry tank, then use a slurry pump to send it to 1st mixing tank, then to 1st
flotation machine for separating out the lead.
8. The concentrate of 1st flotation machine goes to one slurry tank, use a slurry pump to send it to 1st thickener, underflow of thickener through the slurry pump goes to 1st disc vacuum filtering machine for dehydration, the final product is lead concentrate.
9. The tailing of the 1st flotation machine goes to one slurry tank, use a slurry pump to send it to 2nd mixing tank, then to 2nd flotation machine for separating out zinc.
10. The concentrate of the 2nd flotation machine goes to one tank, use a slurry pump to send it to the 2nd thickener, underflow of thickener through slurry pump go to 2nd disc vacuum filtering machine for dehydration, the final product is zinc concentrate.
11. The tailing of the 2nd flotation machine goes to one tank, and using a slurry pump sends it to 3rd flotation machine for
separating out barite.
12. The concentrate of the 3rd flotation machine to one tank, use a slurry pump to send it to the 3rd thickener, underflow of thickener through slurry pump go to 3rd disc vacuum filtering machine for dehydration, the final product is barite concentrate.
Main Product
We have professional engineers team to draw flowchart based on customer's coal ore site details. We supplied full set Lead-Zinc Ore Beneficiation Process: Trommel Scrubber, Vibrating Screen, Rotary Dryer, Slurry Pump
Packing&Delivery
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the
container.
container.
● Shiping by sea/air freight
or any way the customer requires.
Company Profile
Jiangxi walker Machinery Co.,Ltd, are a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province.professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional ming soolution consulting
*Inquiry and consulting support
*Ore sample testing support
*View our Factory
*Design Flowchart
*Ore sample testing support
*View our Factory
*Design Flowchart
* Training how to instal the machine, training how to use the machine.
* 1 year warranty
* Engineers available to service machinery overseas.
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
