Подвесная конвейерная система подвесная цепная вешалка для линии порошкового

Описание и отзывы

Характеристики





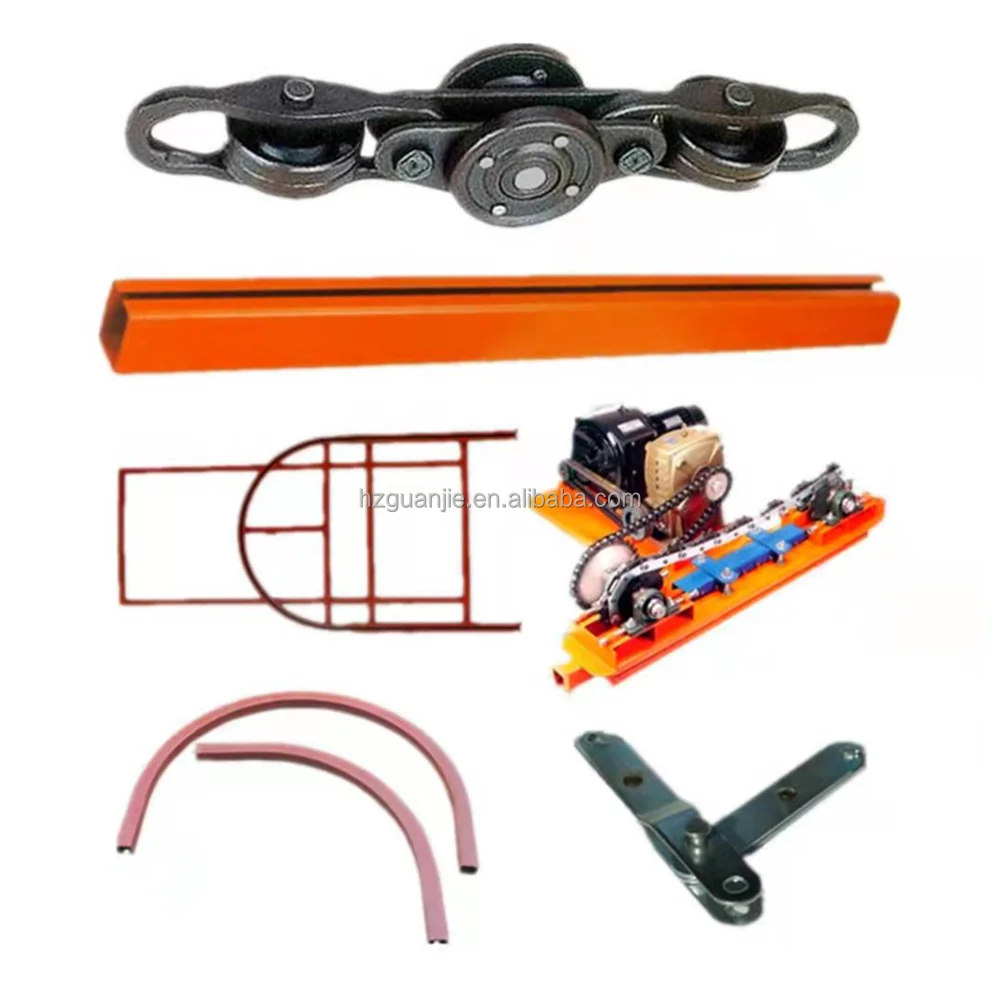

What is an Enclosed Track Overhead Conveyor?

The mechanism is quite simple – we have a chain consisting of bearings and links, which is pulled through a track.  This overhead conveyor is specifically called an enclosed track overhead conveyor because the chain is almost completely covered by the track.

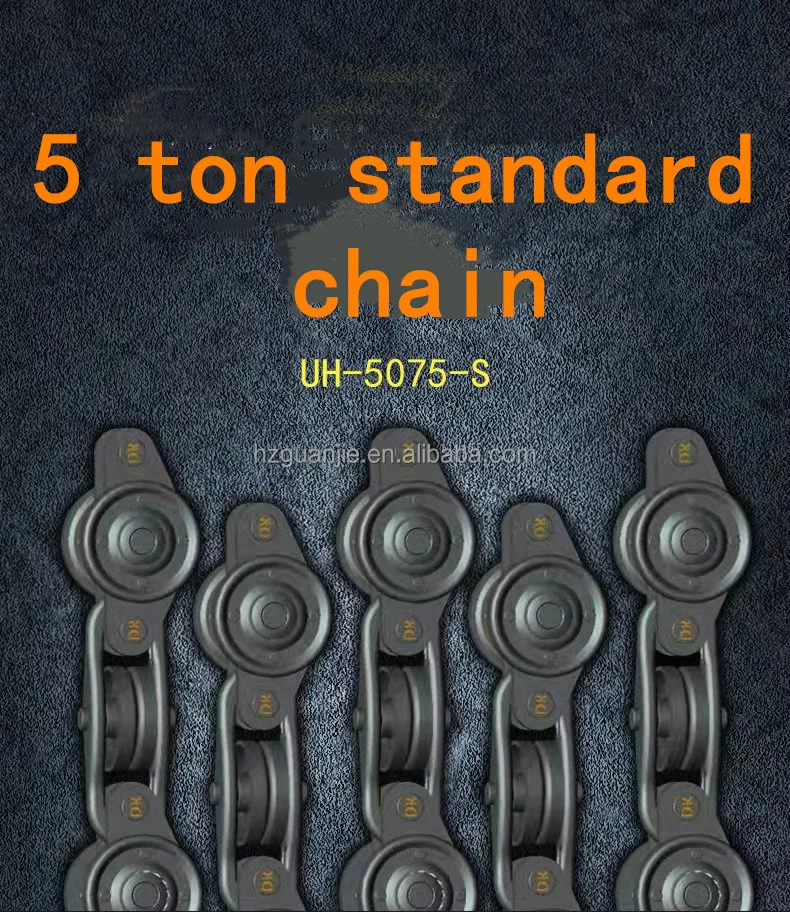

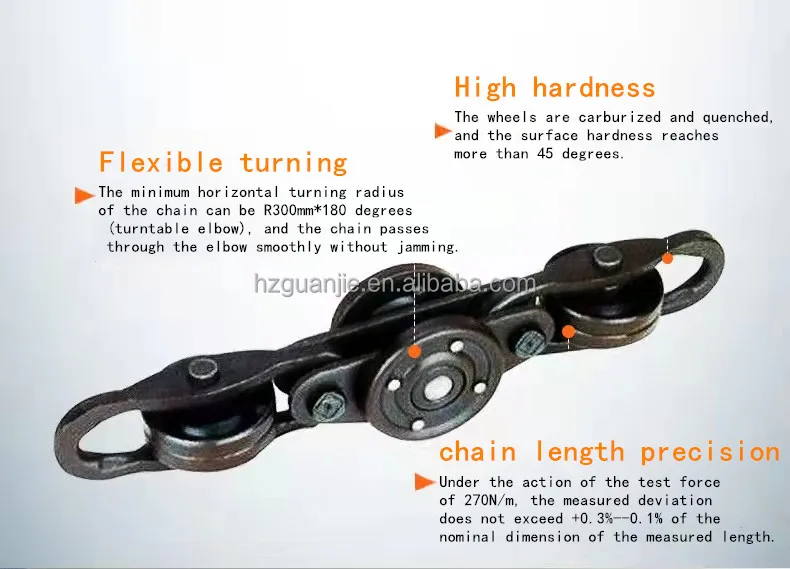

5Ton standard chain features

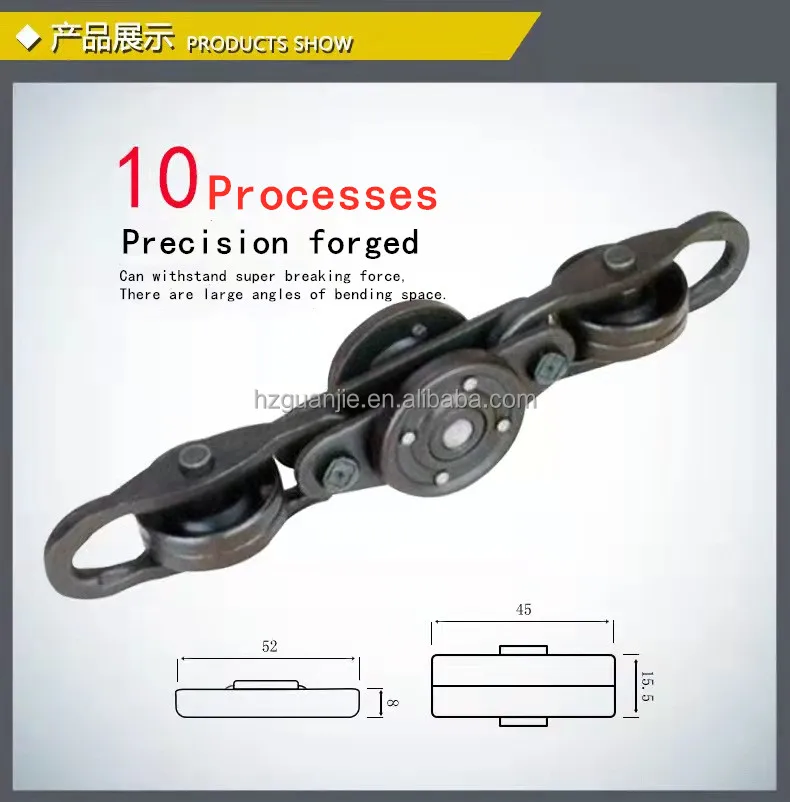

No.1 Forging technology

Each chain buckle is precision forged through ten processes, and the breaking force of the chain reaches 55KN.

No.2 Chain length precision

Under the test force of 270N/m, the measured deviation does not exceed +0.3%~-0.1% of the nominal size of the measured length.

No.3 High hardness

The wheels are carburized and quenched, and the surface hardness reaches 45 degrees or more.









5Ton 5075 conveyor chain parameters

Model	5 Ton Standard Chain GJ-5075-S	5 Tons Horizontal  Wheel Chain GJ-5075-HH	5 Tons Vertical Wheel Chain GJ-5075-HV	5 Tons Extra Heavy Chain GJ-5075-HA
Parameters
Chain pitch(mm)	150	150	150	150
Single point lifting(kg)	15	15	25	25
Single point lifting weight KG (using Y-type spreader or beam spreader)	35	35	50	50
Allowable chain tension (KN)	30	30	30	30
Chain ultimate tensile load KN	55	55	55	55
Chain weight(kg/m)	4.2	4.6	4.85	5.3
Track specifications	57*67*17	57*67*17	57*67*17	57*67*17
Minimum hanging distance (mm)	150	150	150	150
Vertical roller diameter (mm)	52	52	52	52
Horizental roller diameter (mm)	45	45	45	45
Moving speed (m/min)	0.5-15	0.5-15	0.5-15	0.5-15
Minimum radius of gyration(mm)	R255	R255	R255	R255
Minimum vertical radius(mm)	R500	R500	R500	R500
Working temperature(℃)	250	250	250	250

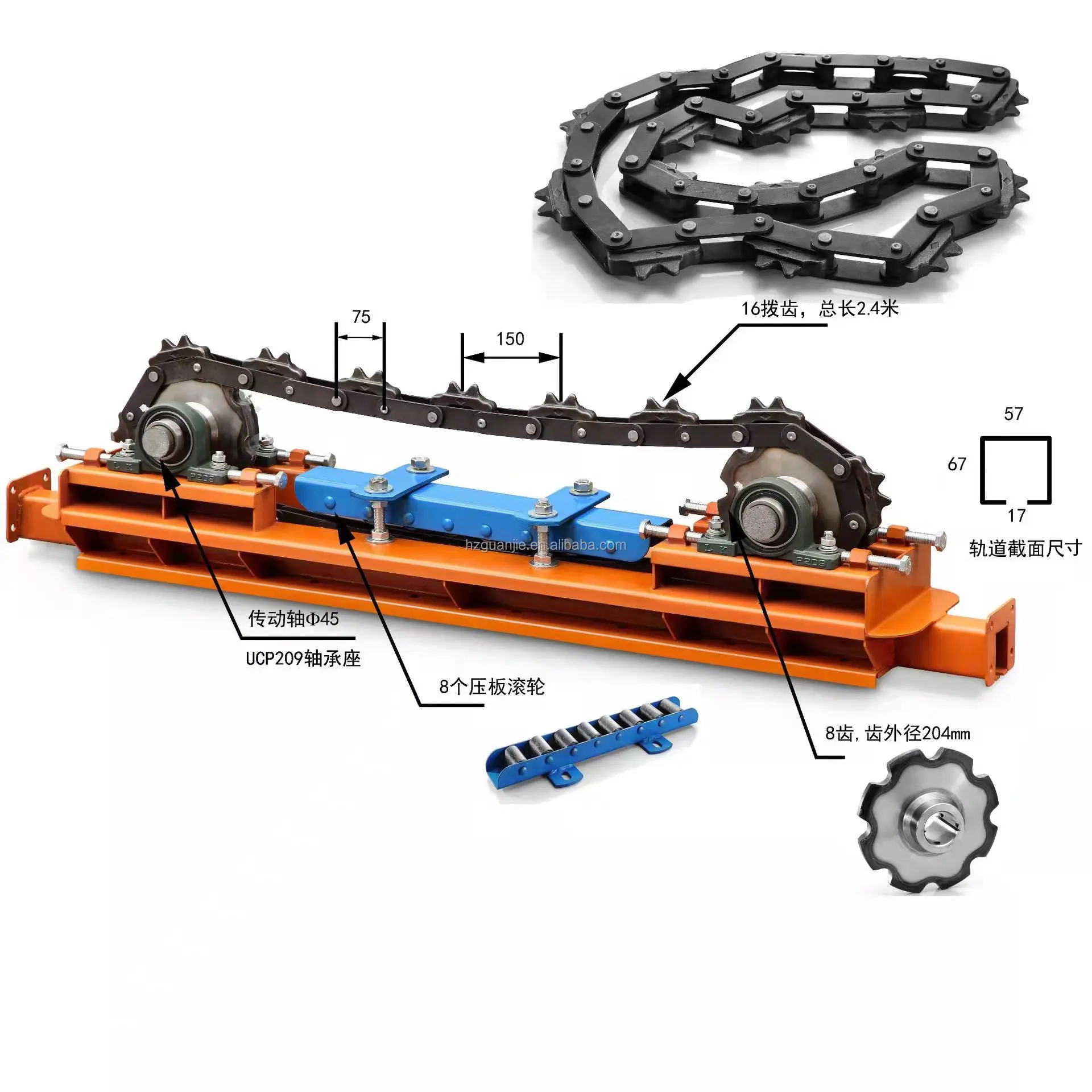

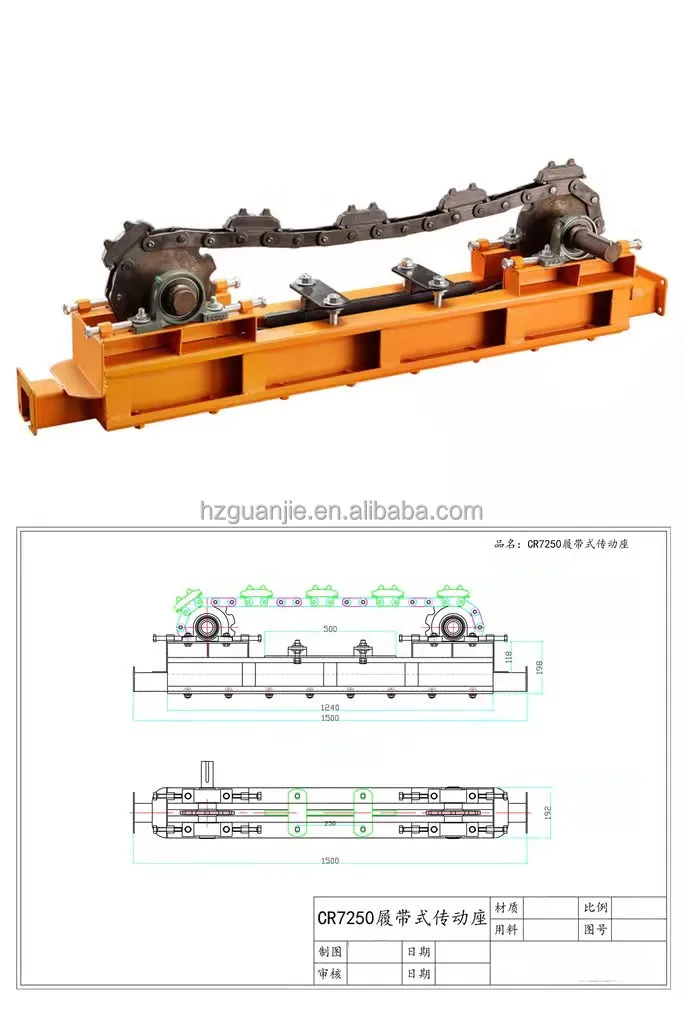

Overhead Conveyor Drive Device

The clutch load-limiting device, when the conveyor chain is jammed, the clutch load-limiting device will be empty to protect the chain and the motor.

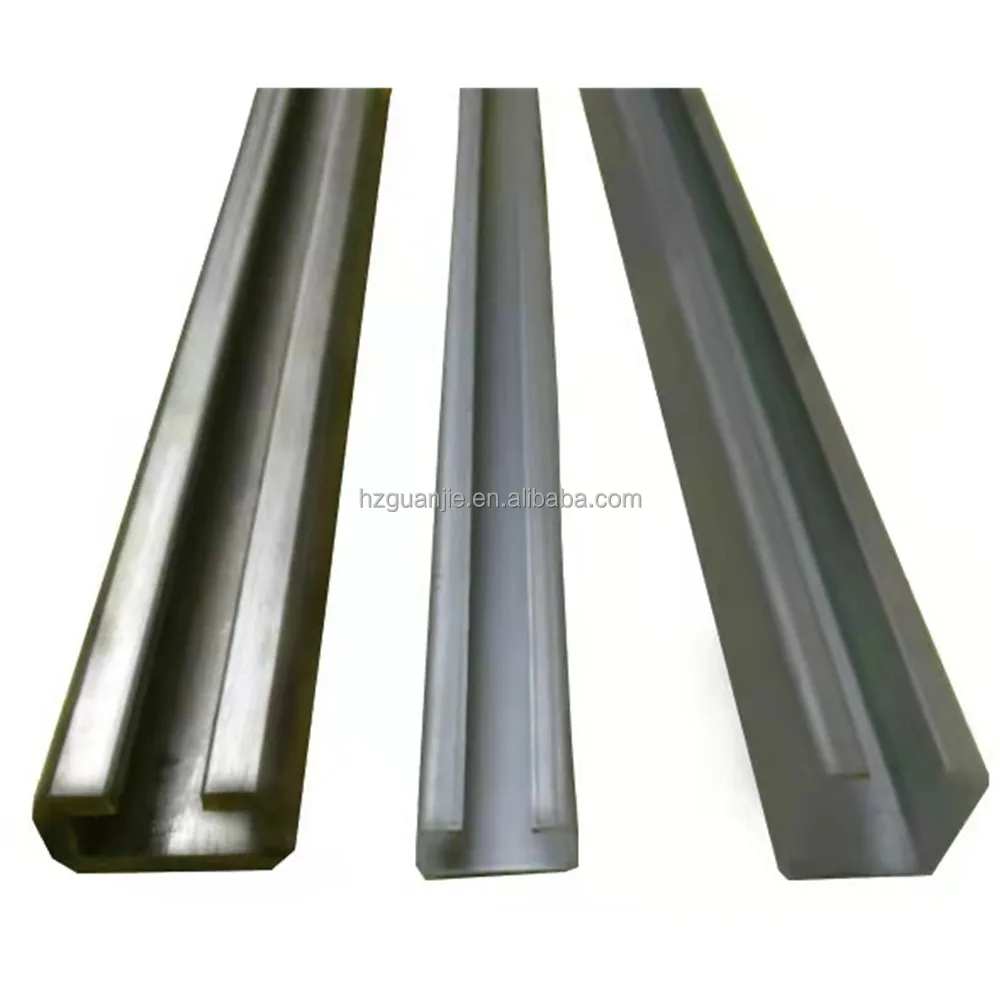

Overhead Conveyor Straight Guide Rail

This product is used in the horizontal and straight line of the conveyor chain.





Straight Trackt parameters:

Model	A	B	C	a
GJ-150	54	47	19	3.5
GJ-200 206	72	68	26	4
GJ-240 250	80	80	25	4
GJ-300	100	100	32	5

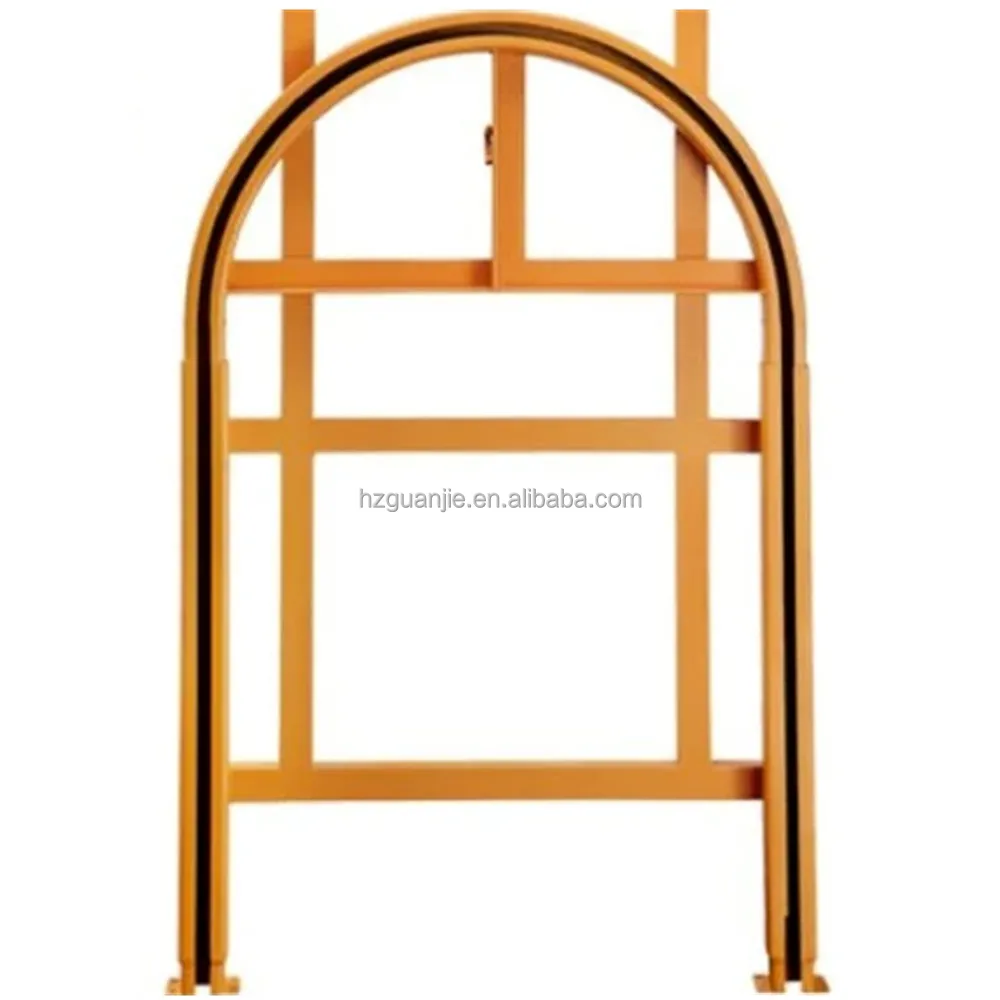

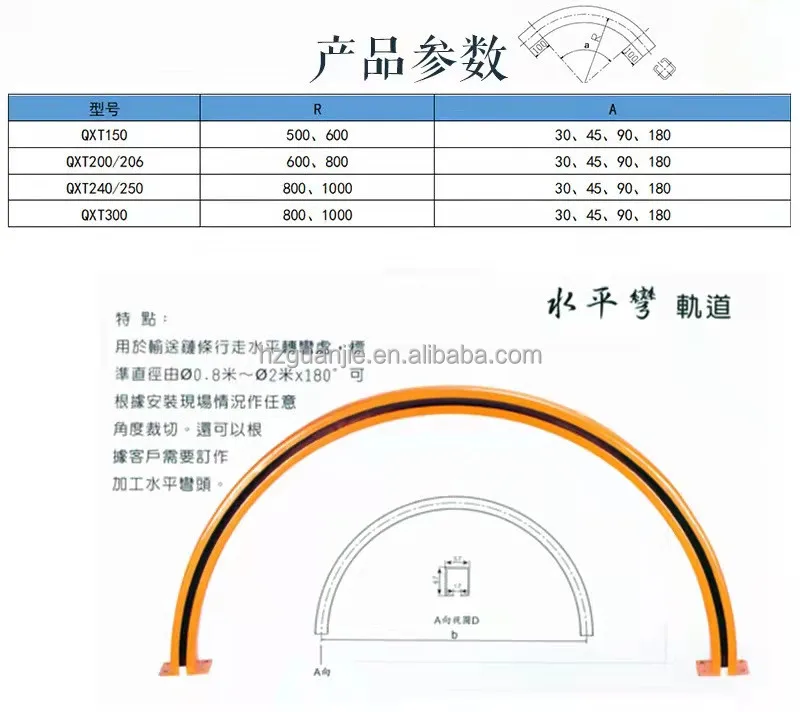

Curved  track rail introduction

This product is used to transport the horizontal turning of the suspension chain, the turning radius is R350, and the angle is 180 degrees.





Product Parameters

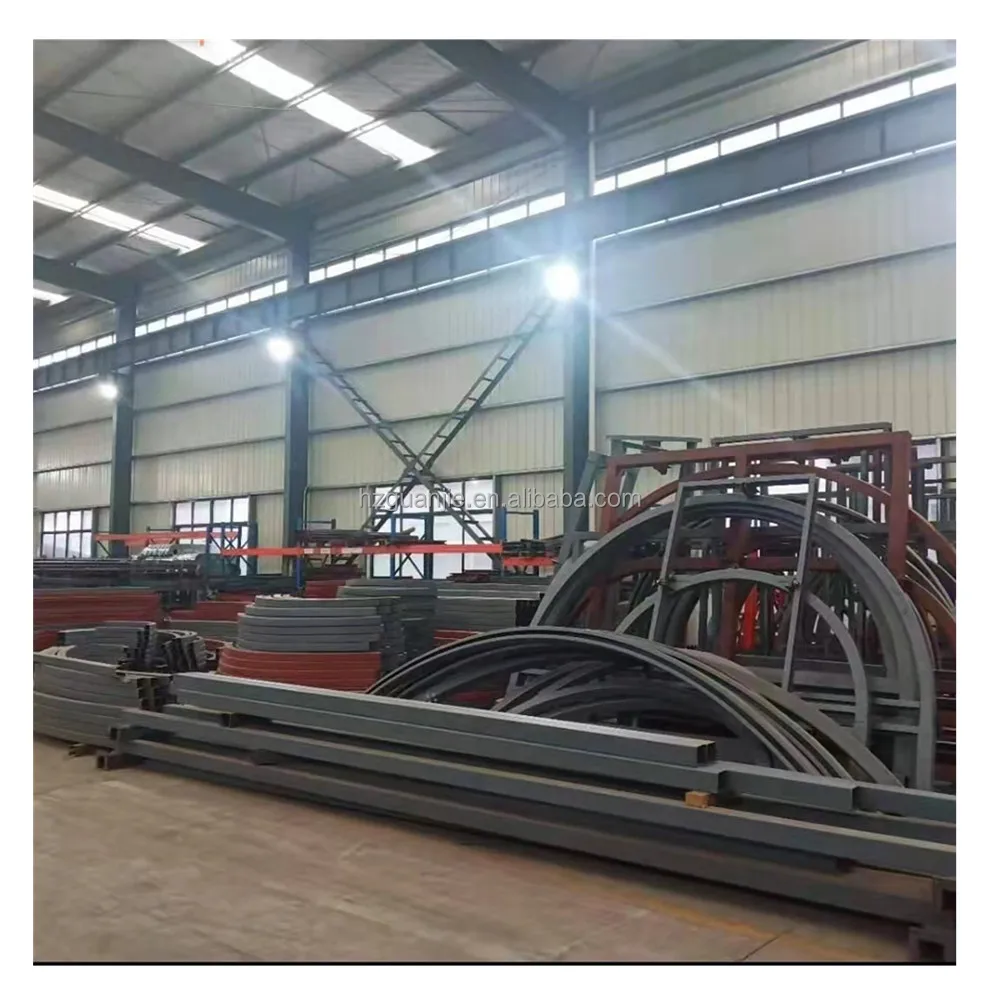

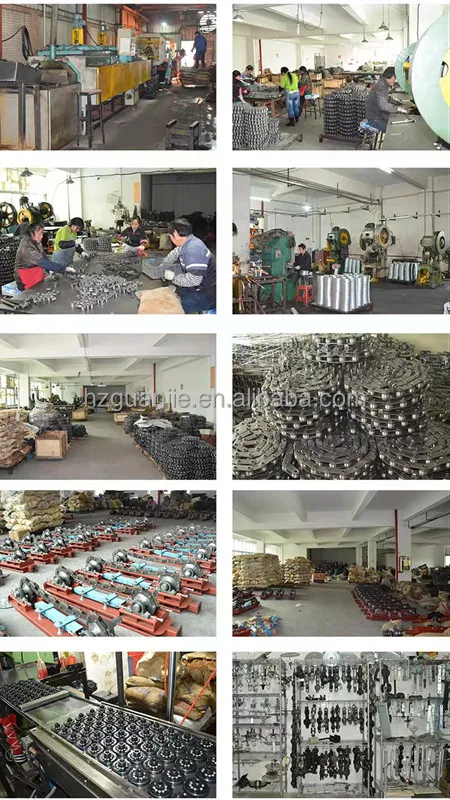

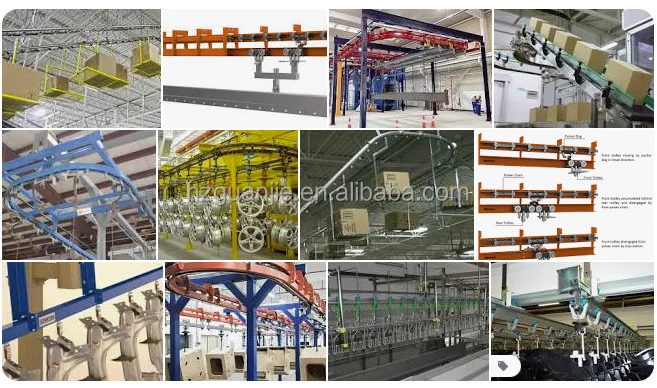

Workshop view
