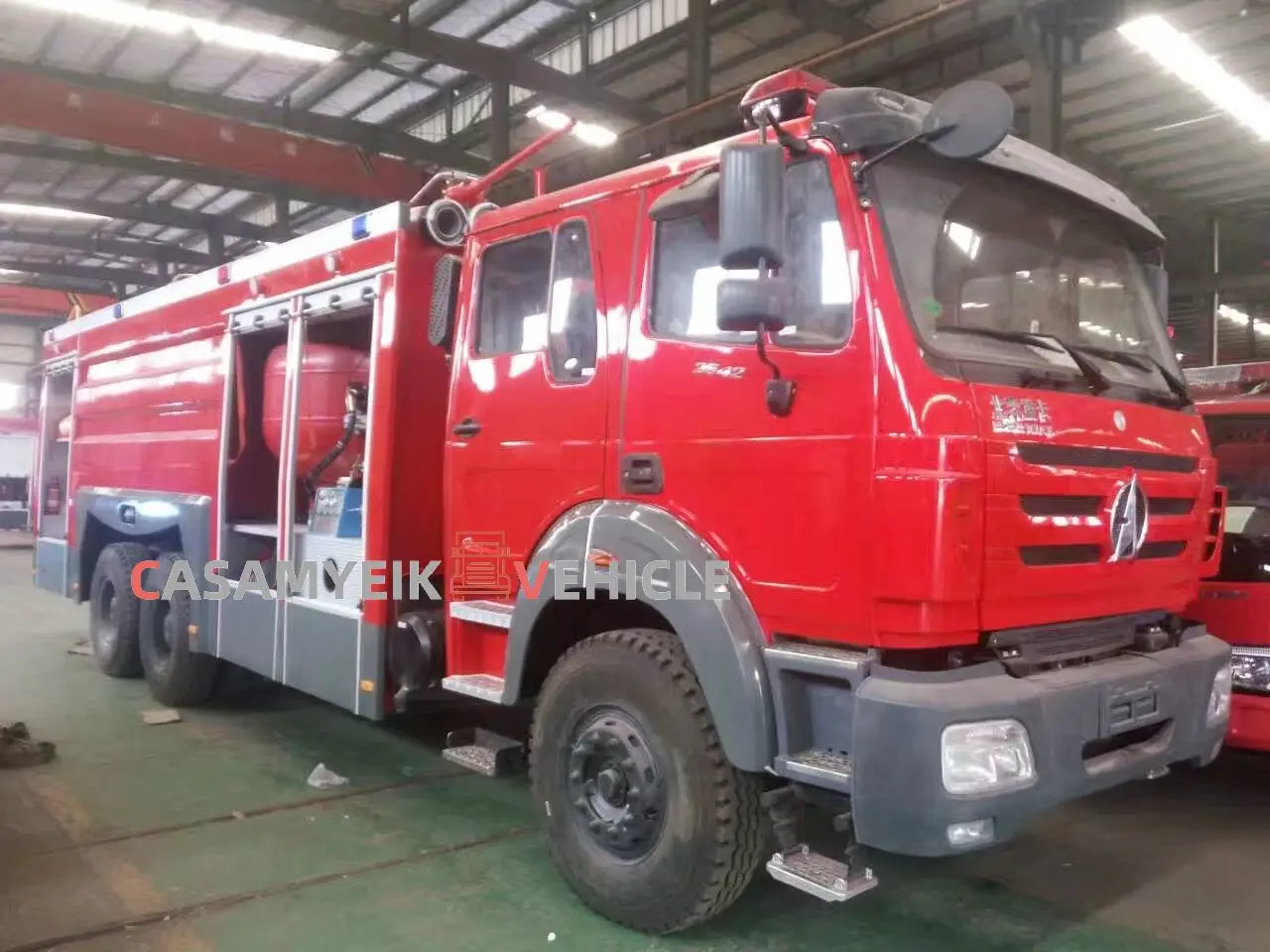

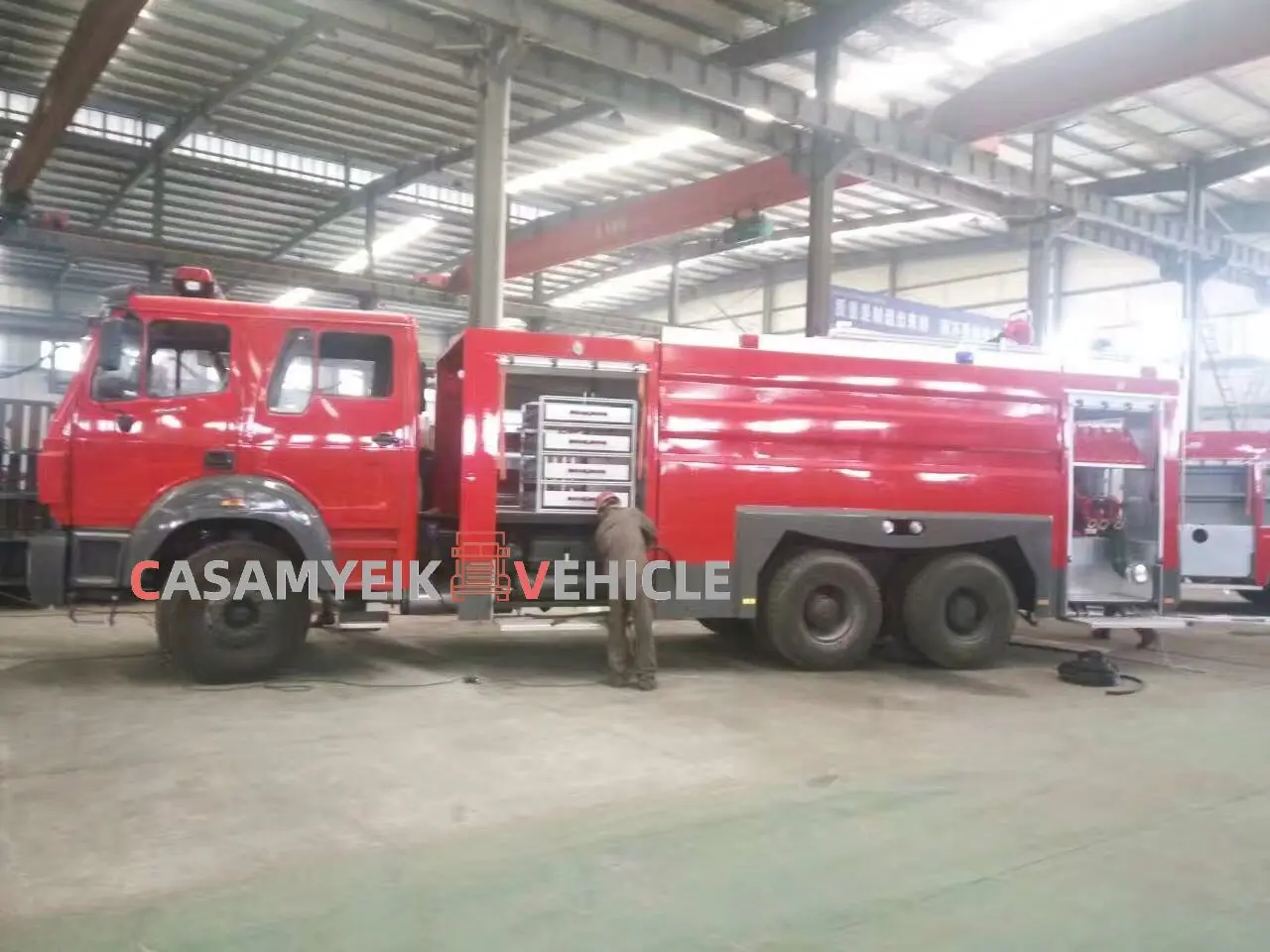

Beiben 6*6 аварийный сухой порошок Пожарная машина спасательный автомобиль

SPECIFICATION

Dimension

8347*2500*3417mm

Approaching angle/Departure angle

26/30°

Overhang(front/rear)

1410/1870mm

Wheel base

3800+1450mm

Max speed

85km/h

Curb weight

12200kg

Loading capacity

13800kg

Slope climbing capability

Max.30%

Engine

Model

WD615.34,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

250/2200 (kw/rpm)

Max.torque

1350/1200-1600(Nm/rpm)

Emission stantard

EuroII

Fuel tanker capacity

400L Steel

Clutch

∮430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS150A, mechanism,9 forward gears,1 reverse gear, with overspeed gear, manual operated,

Gear ratio of gear box

12.11/8.048/5.96/4.42/3.36/2.41/1.77/1.32/1.00 R: 12.66

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Function instruction

1.Special part of the liquid tank, pump room, power output and transmission system, piping systems, electrical systems and other
components

2.Fire truck is desgined 2 row in cab ,could take 4-6 fire man;

3.Fire pump:CB10/20,flow :20L/S ,presseure:1.00Mpa .Fire minitor :SP20 ,range of fire >40m

4.The cargo is made of high quality steel, high strength Aluminum Alloy material, and adopts the design of multi-channel dashboard
overall manufacturing corrugated aluminum tank

5.Equipment box rolling door using high-quality aluminum alloy design, opening and closing flexible, low noise, good sealing,
beautiful appearance

6.Set the pump water pump system, various kinds of instrument, indicator, gauge, pressure gauge, vacuum gauge device etc.
