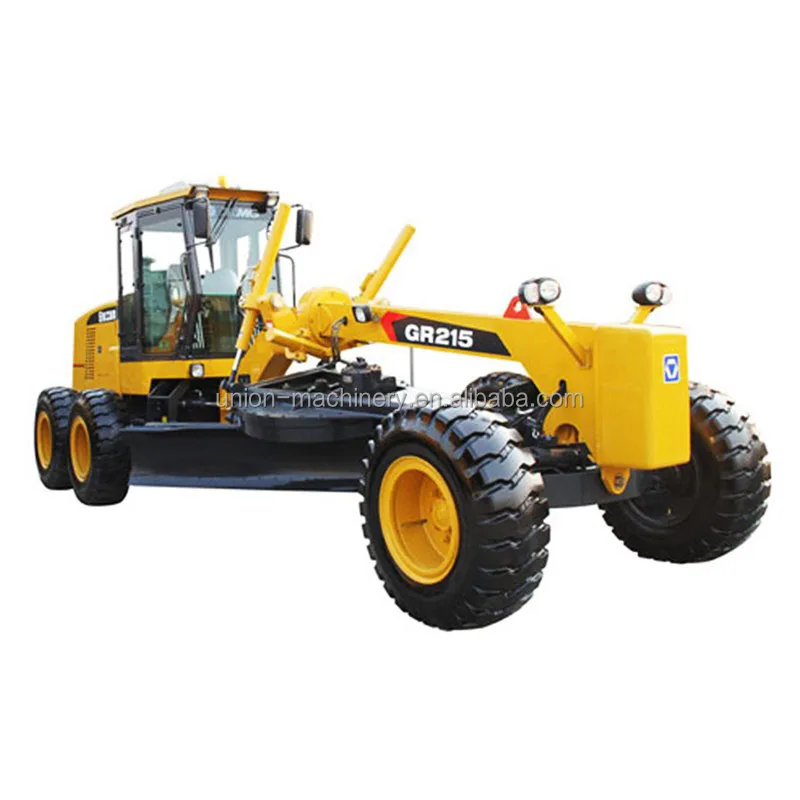

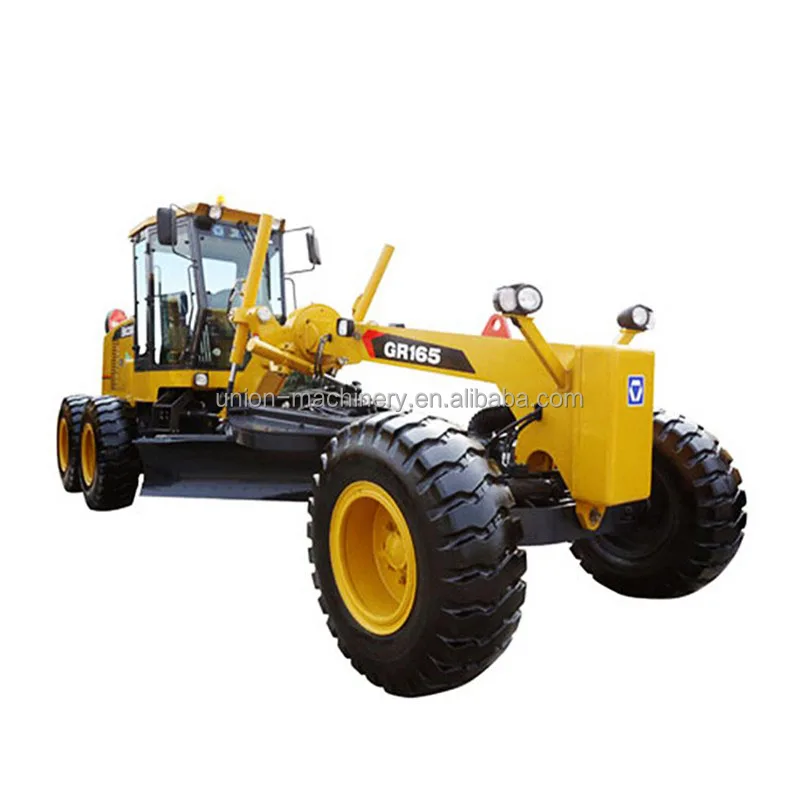

Китайский дорожный автогрейдер GR165/GR215A с передним лезвием на
- Категории: Motor Graders >>>
- Поставщик: Union,Construction,Machinery,Co.,Ltd.Union,Ltd.
Поделиться:
Описание и отзывы
Характеристики
1 New appearance design.
2 The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
3 The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.
4 The international matching hydraulic parts are adopted,with reliable operation.
5 The motions of the blade are fully hydraulically controlled.
6 The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
7 The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
8 The cab is grand and nice,with wide eyeshot and good sealing .
9 The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .
3 The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.
4 The international matching hydraulic parts are adopted,with reliable operation.
5 The motions of the blade are fully hydraulically controlled.
6 The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
7 The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
8 The cab is grand and nice,with wide eyeshot and good sealing .
9 The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .
| Basic specification | |
| Engine model | 6CTAA8.3 6CTA8.3 |
| Rated power/speed | 153kW/2200rpm 160kW/2200rpm |
| Dimension(LxWxH) | 8970×2625×3470mm |
| Operating weight(Standard) | 16500kg |
| Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 82KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
| Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 4270×610mm |
FAQ
1.What are your advantages compared with other suppliers and manufacturers?
High quality:
As a professional and reliable supplier, we are experienced in the QualityInspection and Control.Every product will be strictly
inspected before it is delivered to our customers.
Competitive price:
We are so glad to provide the most favorable prices for our customers. And the prices are negotiable by which a win-win result
could be achieved.
2. Which payment terms are available us ?
T/T terms or other. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.
3. How long with the delivery?
Normally it takes about 20 days.
4. How about service?
24 hours online, and skype/QQ/wechat/whatsapp so on
5. Whats pareparts can you supply?
All kinds of spare parts of Hitachi Komatsu Cat Sumitomo Kobelco Doosan XCMG, Zoomlion, Sany, Shantui,,Lugong,Sdlg,XGMA,CUMMINS ENGINE,etc.
