Product Description

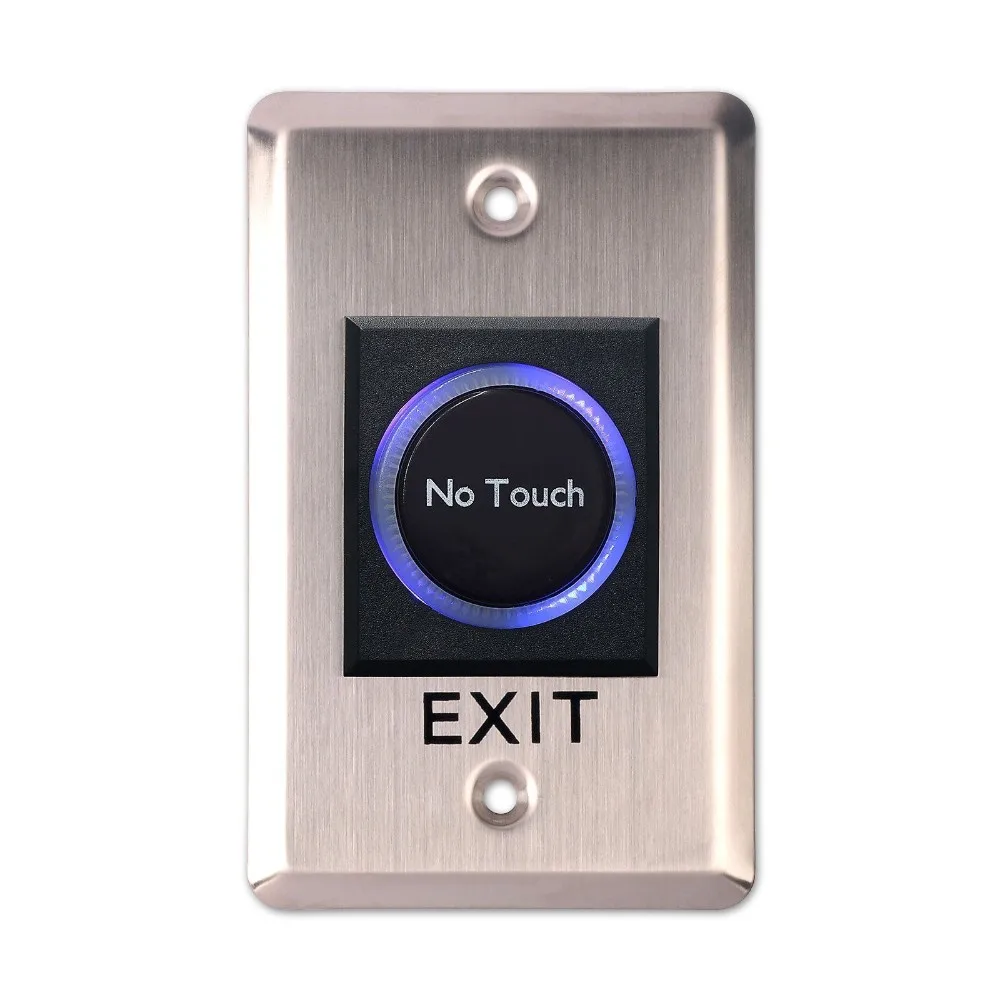

RFID Infrared Sensor no touch door access control No Touch exit button
1. Aluminum Panel with Elegant Style
2. Tested to 500000 Cycles
3. Three Contact Outputs, Suitable for all kinds of Locks
4. The Best Choice for Access Controls in all shapes.
access control exit button Technique Specification:
Product Parameter | Parameter Description | ||||

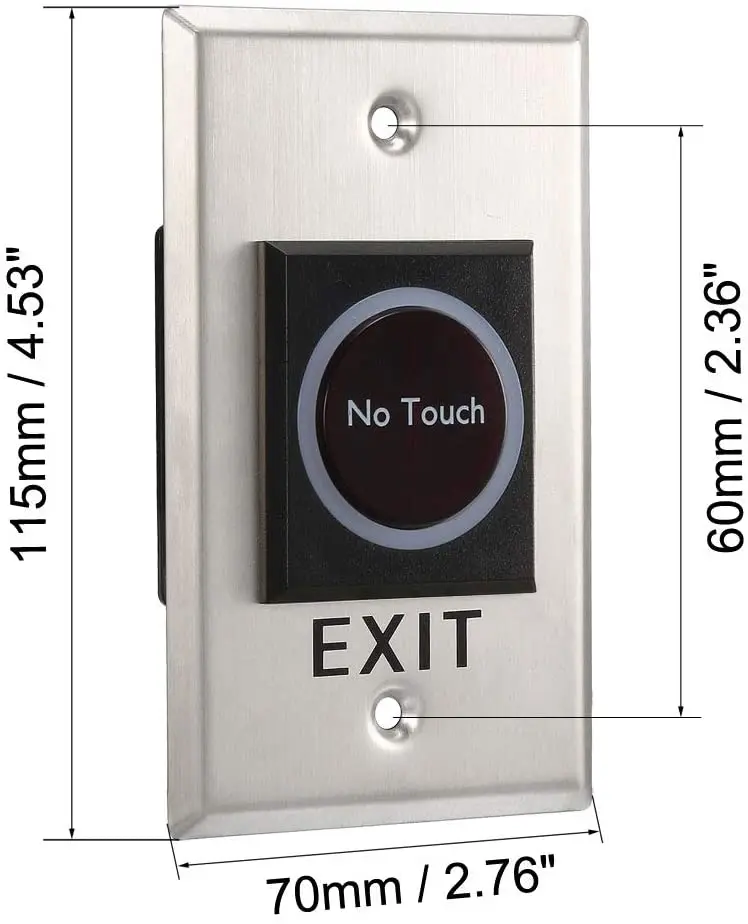

Dimensions | 86Lx86W(mm) | ||||
Input | DC12V | ||||
Contact Rating | 12-28V,3A | ||||
Output Contact | NO/NC/COM | ||||
Mechanical Life | 500000 tested | ||||
Suitable for Door | Hollow Door | ||||
Operating temp | -20℃~+55℃(14-131F) | ||||
Suitable Humidity | 0-95% (relative humidity) | ||||
Detection range | 0.1-10cm | ||||
LED Indicator | White LED indicator: Power OFF Blue LED indicator: Power ON(standby) Red LED indicator: Power ON(sensation) | ||||
Weight | 0.15kg | ||||
access control exit button Advantage:
. No touch / Touch free Exit Sensor (Diffused Detection)
· Optical / Infrared Technology

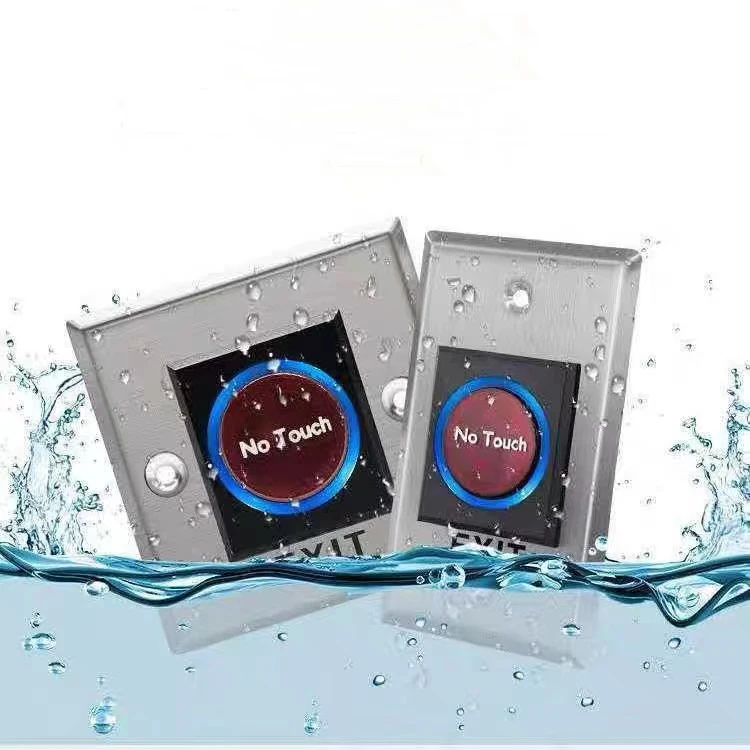

· IP-55 Ingress Protection / SUS 304 Stainless steel Plate
· User friendly (Healthy protection)
·· Free from contagious diseases spread
·· Detection range: 0.1 ~ 10 cm
· Application: Gate/Door/Exit/Automation control
·· High capacity of relay dry contact (3A/AC120V,DC30V)
· Normally open/Normally close/Common relay output
· Twin led indicators for sensor standby or approached :
(1) Sensor Standby: BLUE LED ON
(2) Visitors whom approached to the sensor in 10 cm : RED LED ON

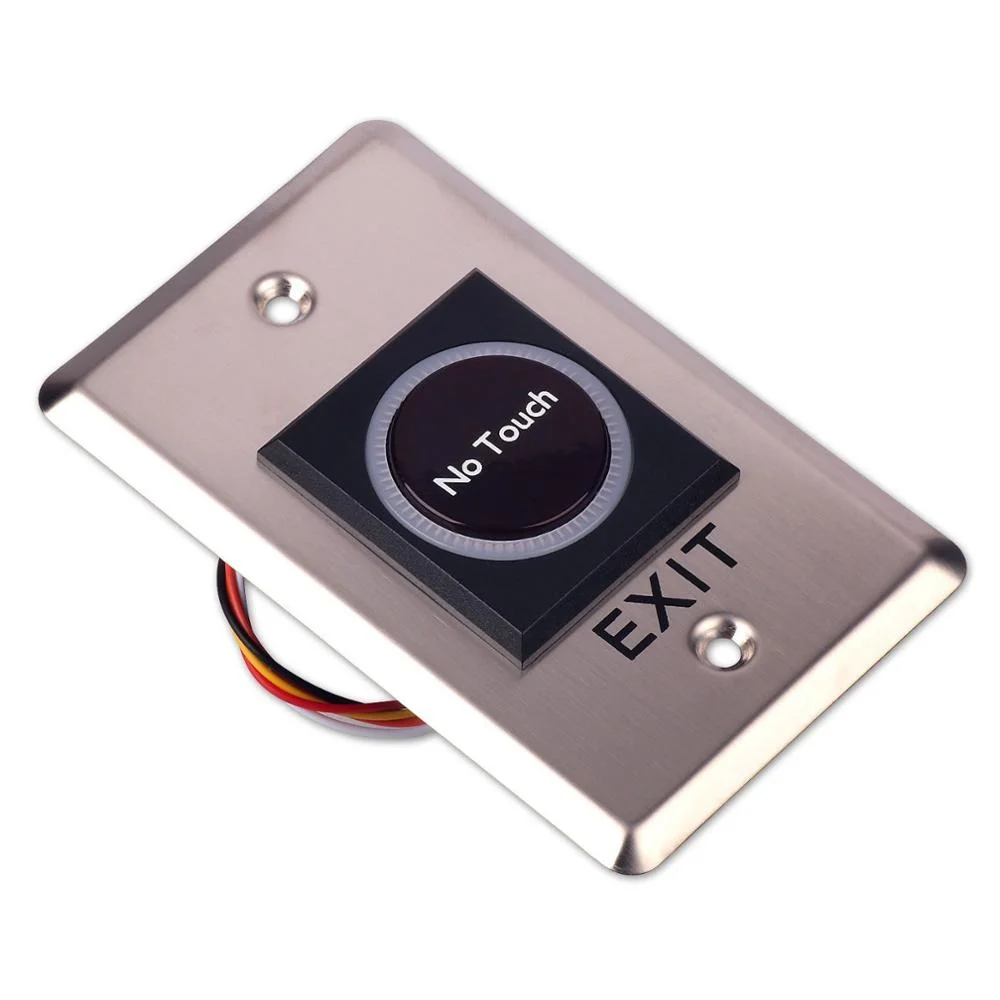

Detailed Images
Blue Led Indicator | Red Led Indicator |
Power ON (Standby) | Power ON (Triggered |
+12V | +12V | NO | COM | NC |
RED | BLACK | YELLOW | WHITE | ORANGE |
Click here to order and have your FREE SAMPLE in 3 days!!!
We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, click "Send" now!
We are looking forward to forming successful business relationships with new clients around the world in the future.
Application
Packing & Delivery
Unit Type: piece
Package Weight: 0.3kg
Package Size: 10cm x 10cm x 8cm
Shipping Way
We are one of the leading exporter of RFID products in China since 2000 years . With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us . We can be your reliable partner for products and shipping .
