Product Description

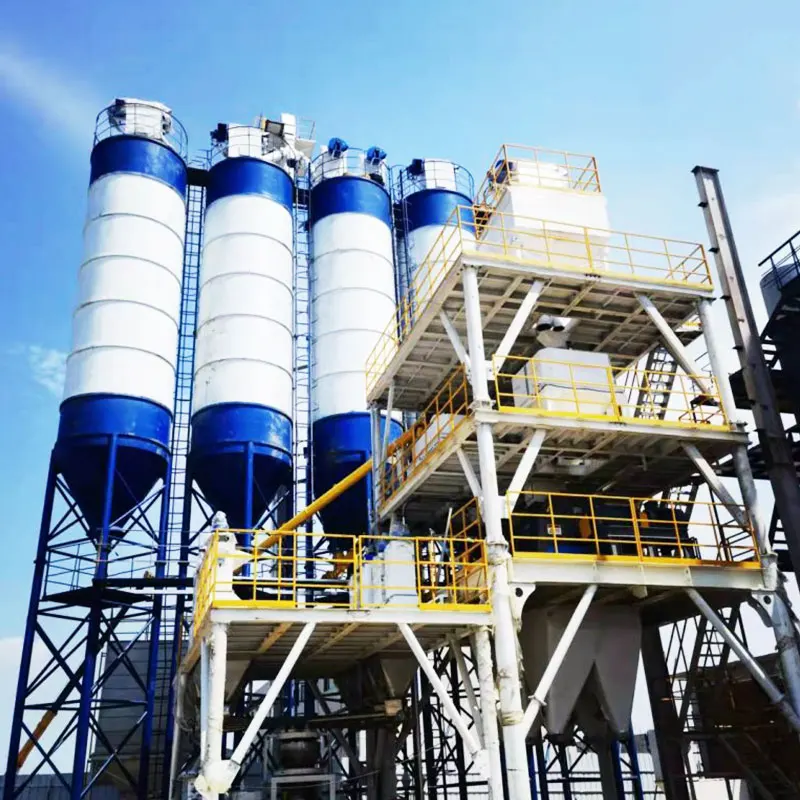

Gypsum powder line is to produce gypsum powder to match gypsum board.The gypsum powder production line with natural gypsum as raw material is equipped with a variety of advanced technical equipment at home and abroad, The gypsum stone is crushed into granule less than 25mm with crusher.It’s stored in raw material silo, then conveyed into grinding mill to make gypsum powder.The powder is classified through a classifier. The qualified powder in required fineness shall be carried to the calciner, while the unqualified powder shall be returned to the grinding mill for furhter process. The calcined gypsum powder (it’s usually called Plaster of Paris) shall be stored in the finished product silo for preparation of plasterboard raw material.
Application
Gypsum calcination process plant production line --- the latest type of Raymond Mill, has become one of the most advanced grinding mills in the world with its so many intellectual properties like bear-gear drive, inner oil lubricating system, arc air channel, etc. It is widely used in cement, coal , power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics, etc.. It can process the material such as limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, etc..

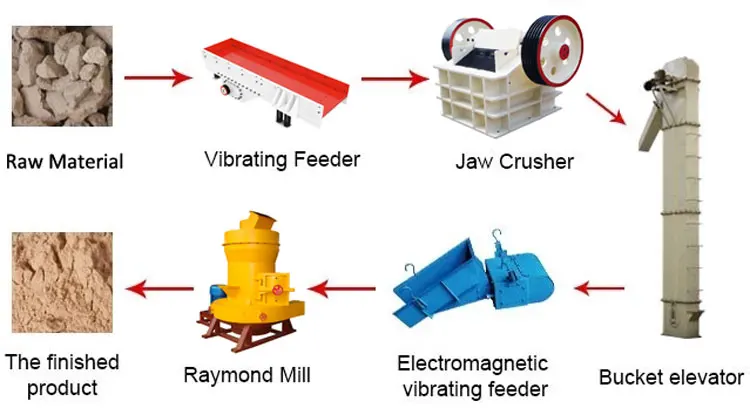

Working Principle
1>. Firstly, raw material is crushed by stone crusher to the required size of Raymond mill.
2>. Secondly, the raw material goes into the grinding chamber through the vibrating feeder at an even rate.
3>. Thirdly, the raw material lifted by the shovel is ground into powder between the ring and roller.
4>. Fourthly, the powder is blown up to the cyclone collector through the classifier, which will be collected through the discharging valve. The unneeded powder, which cannot go through the classifier, will be reground into the needed powder.
Technical Parameter
SPECIFICATIONS | ||||||
capacity per year | capacity per hour | gypsum consumption per year | calciner dimension | |||
20,000 tons | 2.7 tons | 24000 tons | 4.5 x 1.0 x 1.2 m | |||
30,000 tons | 4.2 tons | 36000 tons | 4.5 x 1.2 x 1.4 m | |||
50,000 tons | 6.9 tons | 60000 tons | 4.5 x 1.4 x 1.6 m | |||
60,000 tons | 8.3 tons | 72000 tons | 4.5 x 1.6 x 1.8 m | |||
100,000 tons | 13.88 tons | 120000 tons | 4.5 x 2.0 x 2.2 m | |||
150,000 tons | 20.83 tons | 180000 tons | 4.5 x 2.2 x 2.4 m | |||
200,000 tons | 27.77 tons | 240000 tons | 4.5 x 2.4 x 2.6 m | |||
Gypsum Products Parameters:
1.Fineness: ≥100 mesh;
2.Flexural Strength (having a direct relation to raw material): ≥1.8Mpa; The Strength of Antipressure: ≥3.0Mpa;
3.Main Contents: Hemihydrate: ≥80% (Adjustable);
Gypsum <5% (Adjustable);
Soluble Anhydrous <5%(Adjustable).
4. The Initial Setting Time: 3-8min (Adjustable); the Final Setting Time: 6~15min (Adjustable)
5.Consistency: 65%~75% (Adjustable)
1.Fineness: ≥100 mesh;
2.Flexural Strength (having a direct relation to raw material): ≥1.8Mpa; The Strength of Antipressure: ≥3.0Mpa;
3.Main Contents: Hemihydrate: ≥80% (Adjustable);
Gypsum <5% (Adjustable);
Soluble Anhydrous <5%(Adjustable).
4. The Initial Setting Time: 3-8min (Adjustable); the Final Setting Time: 6~15min (Adjustable)
5.Consistency: 65%~75% (Adjustable)
Features

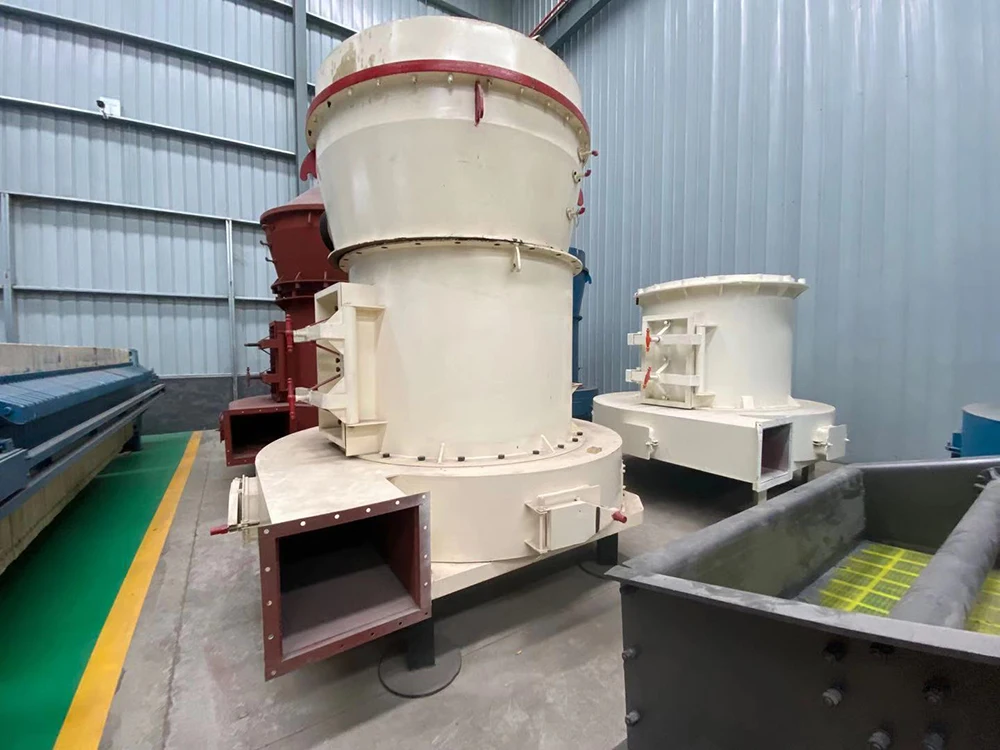

Features of Raymond grinding mill
1. Compared with other mills, the output is increased by 10%-20%
2. All ores with Mohs hardness less than 9.3 can be grinding and crushed
3.Output particle size between 30 mesh and 425 mesh, a small part of the discharge material fineness can reach 1000 mesh.
1. Compared with other mills, the output is increased by 10%-20%
2. All ores with Mohs hardness less than 9.3 can be grinding and crushed
3.Output particle size between 30 mesh and 425 mesh, a small part of the discharge material fineness can reach 1000 mesh.

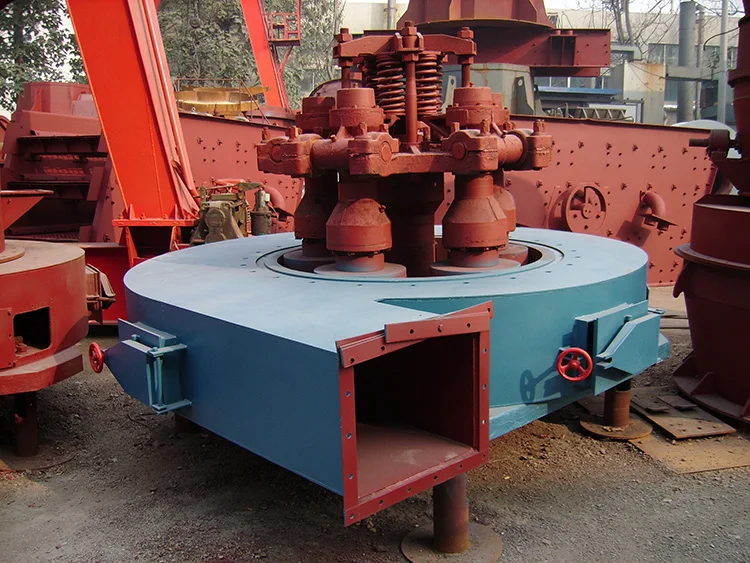

Grinding ring of Raymond grinder

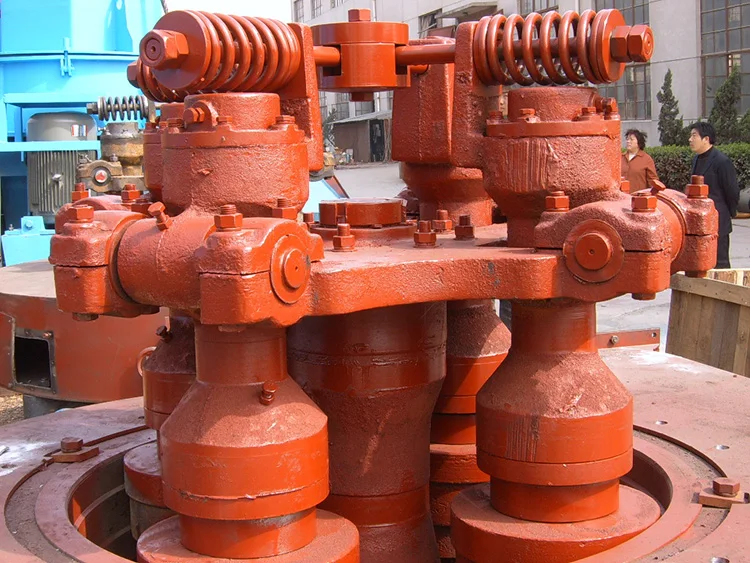

Plum blossom frame of Raymond mill

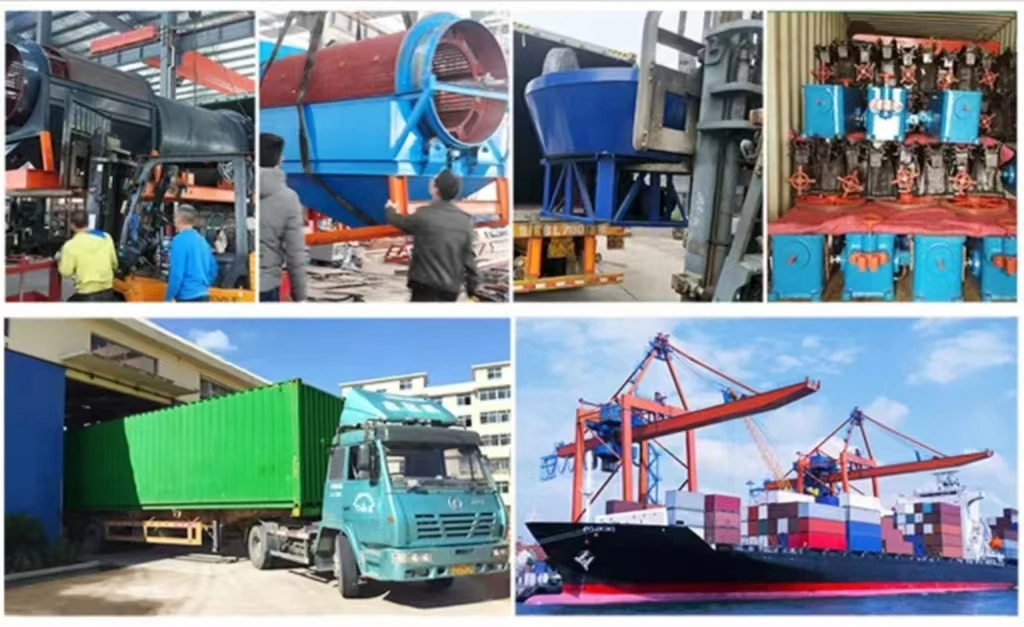

Packing & Delivery
Packaging Details: We will make different packaging according to different machine sizes .standard international export packing, container, wooden box.
Delivery Time: We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Delivery Time: We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our factory is capable of shipping large machine even more than 100 tons.
Company Profile
Henan Turui Machinery Co., Ltd is a professional manufacturer of different mining machinery. It integrates the design, research, production, sales and installation together, guaranteeing the reliable and stable quality.

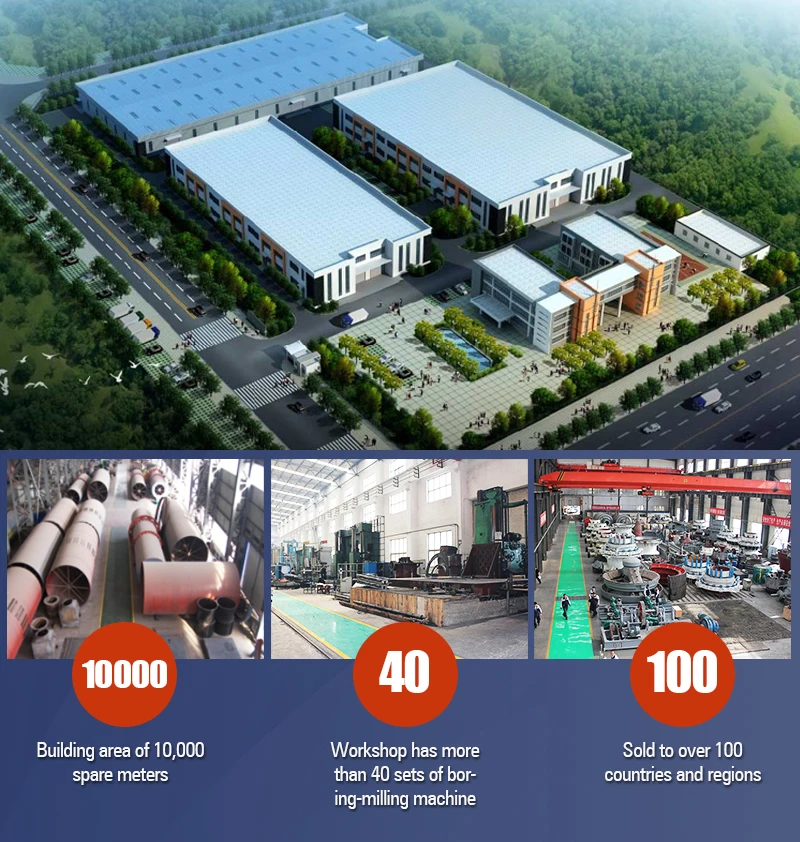

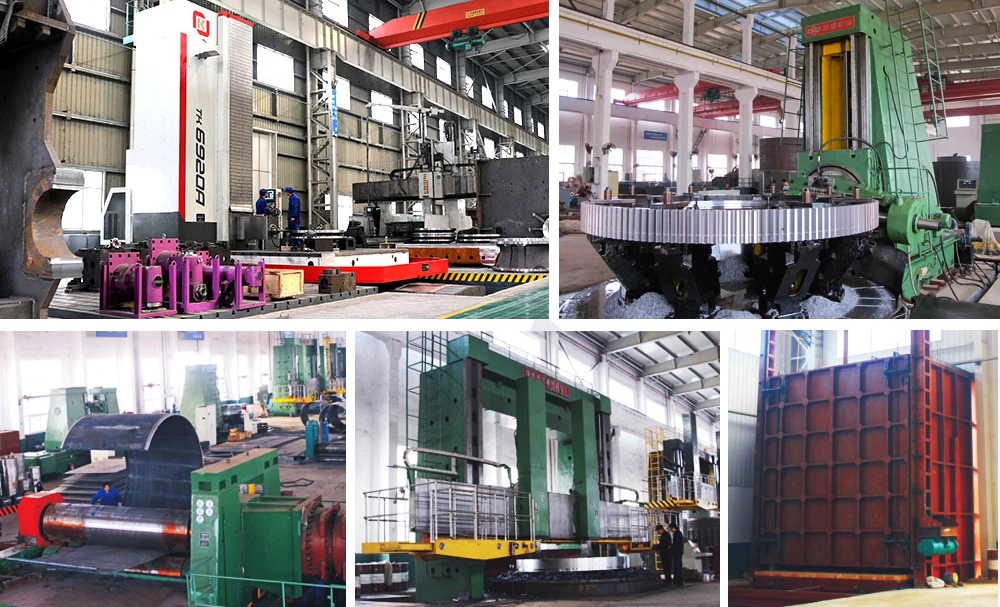

Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Now the company has more than one hundred employees, including 8 professional engineers. Seventy-five percent of the employees have participated the professional technical training, which makes sure high-efficient pre-sales and after-sale service.
FAQ
1.Q:How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Q:How about the Guaranteed?
A : All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.Q:How about price?
A: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Q:How about the service and payment terms?
A: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Q:How about the Guaranteed?
A : All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.Q:How about price?
A: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Q:How about the service and payment terms?
A: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
