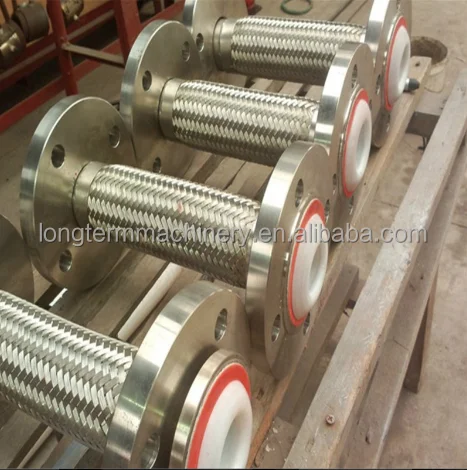

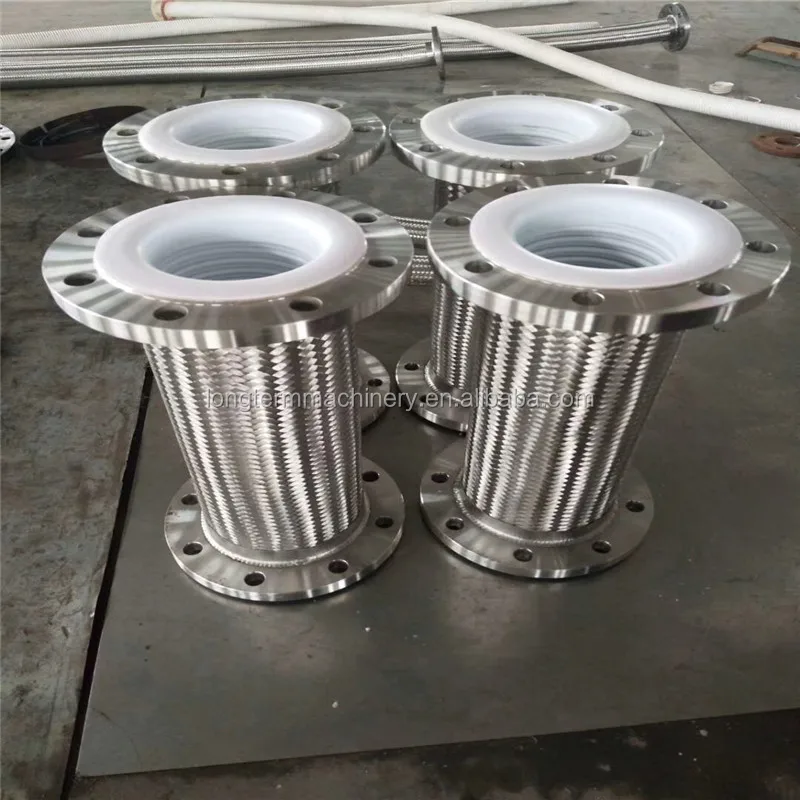

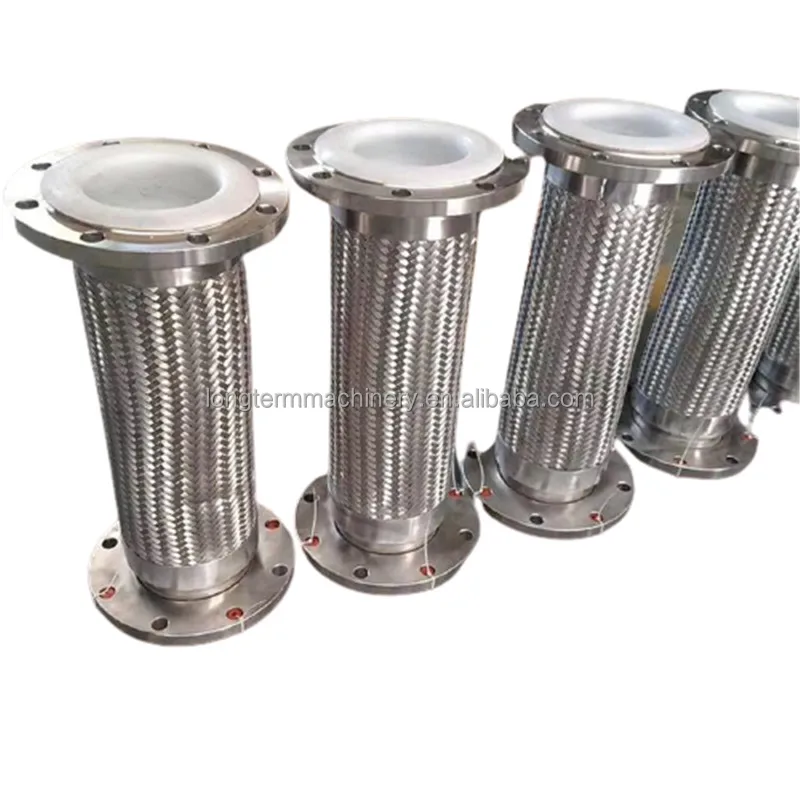

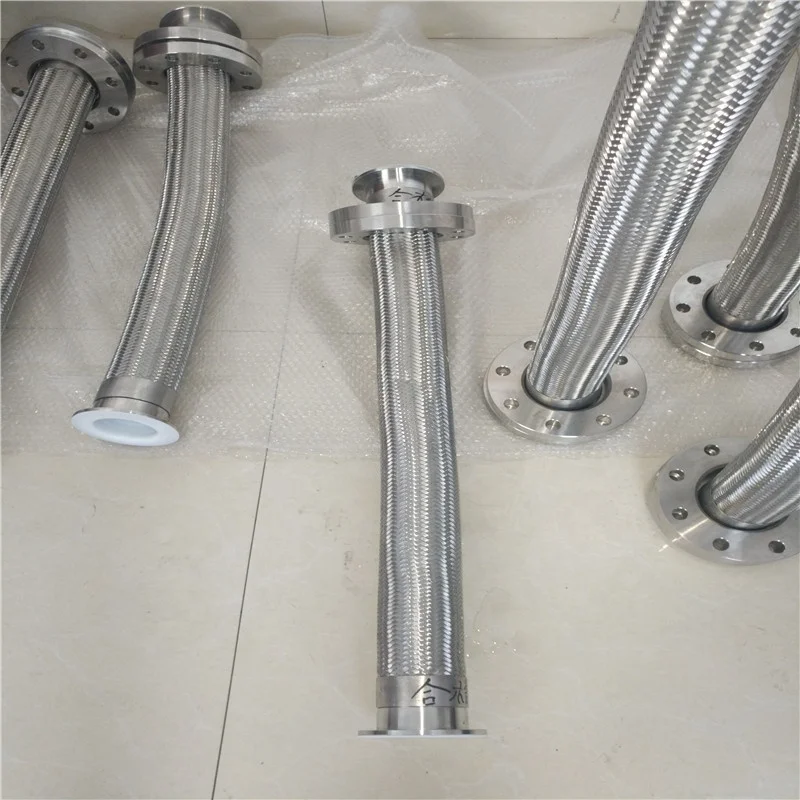

China factory Acid Resistant Connectors Flange Type Steam Flexible Metal PTFE Lined Stainless Steel Braided Hose

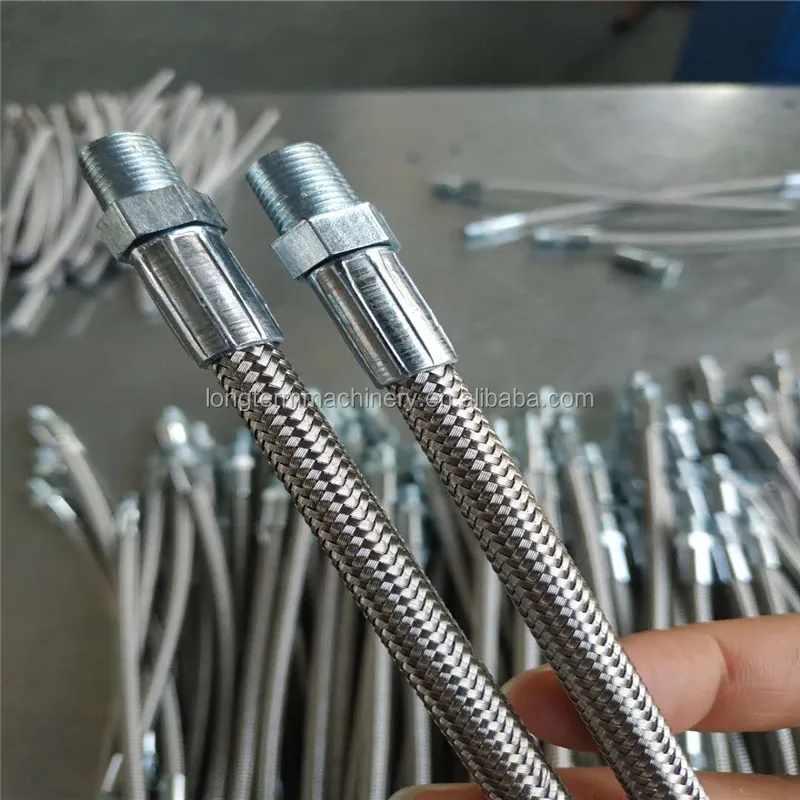

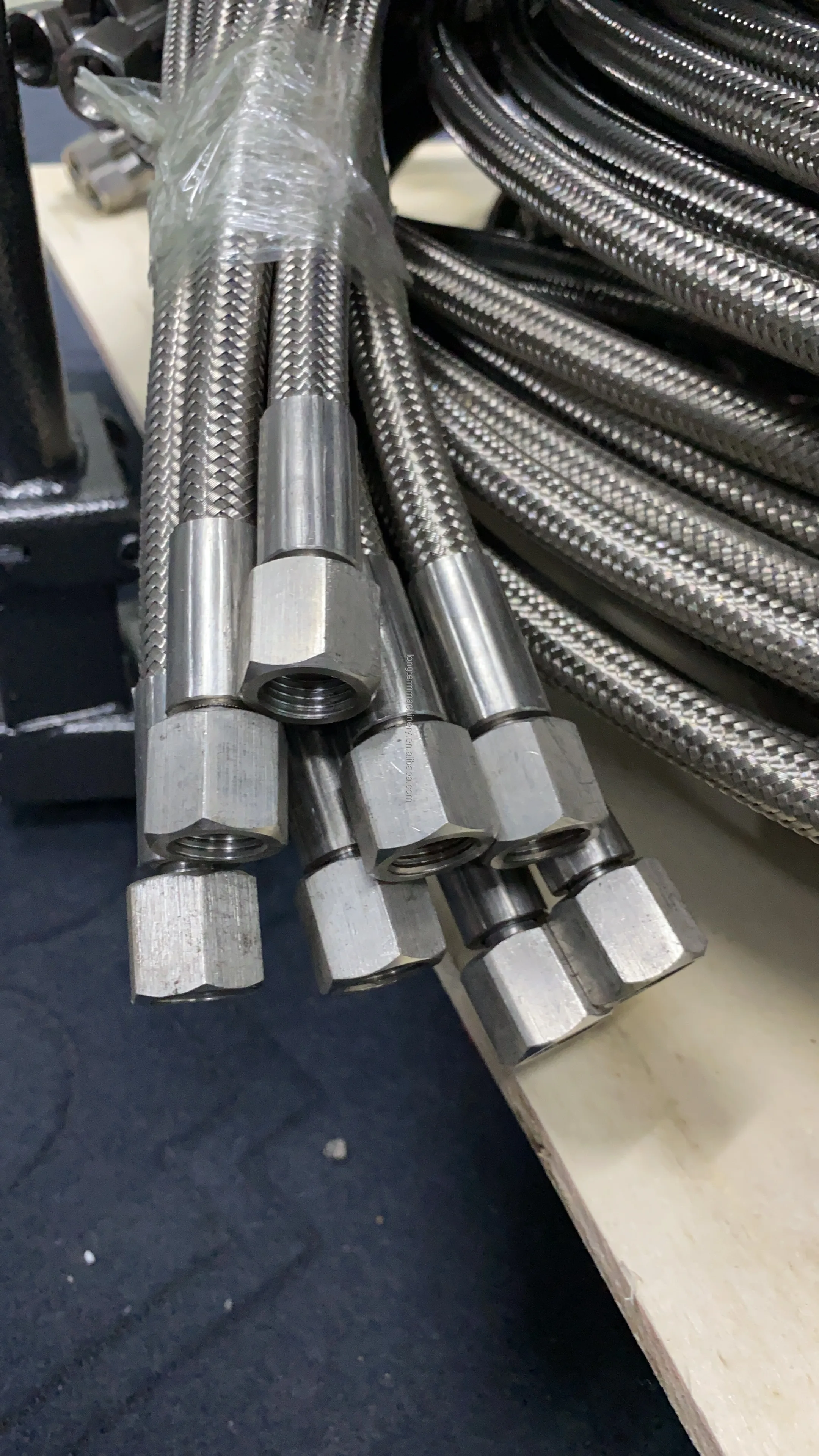

PTFE Brake Hose With Fitting
Product Description
The pipe has changed the characteristics that the pipe can not be bent by special processing methods. It can be used to connect the lower graphite and ceramic glass pipes, and can be used as the feeding and discharging pipe for tank trucks, tanks, containers or reaction still. It can be used for pipe misalignment or to balance pipe displacements, dimensional changes caused by climate or other reasons, or to eliminate high-frequency mechanical vibrations. Can also be used in special occasions such as tubular reactor or heat exchanger.
PTFE braided hose performance: PTFE stainless steel wire braided hose is a new product developed by our factory according to market demand, which is mainly used in various automobiles, machine tools, vulcanizing machines, foaming machines, machinery,diesel engines, shipbuilding In other industries, we can make soft connections for hydraulic pressure, steam pressure, steam transportation, etc.
PTFE braided hose performance: PTFE stainless steel wire braided hose is a new product developed by our factory according to market demand, which is mainly used in various automobiles, machine tools, vulcanizing machines, foaming machines, machinery,diesel engines, shipbuilding In other industries, we can make soft connections for hydraulic pressure, steam pressure, steam transportation, etc.
Specification
Technical Parameters | ||
PTFE tube | Smooth bore/ Corrugated PTFE | |
Braiding material | SS304 / SS316 | |
Temperature | -54ºC to +220ºC | |
Application | Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc | |
Length | 20m-100m | |
Standard | SAE100 R14 | |
Connector | JIC,NPT,BSPFitting, flange etc. | |

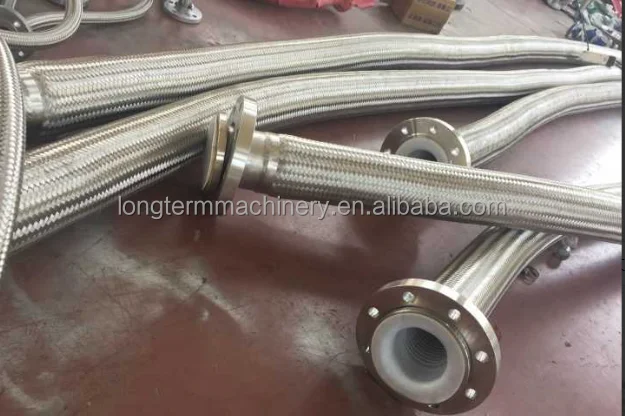

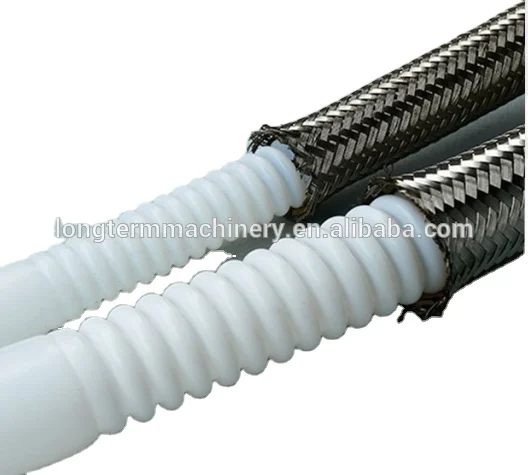

Corrugated PTFE hose with one layer braiding
In addition to having the same characteristics as the metal software, it has the advantages of light weight, good flexibility,
high temperature resistance, corrosion resistance, aging resistance, high pressure resistance, long service life, no time limit, and good shock resistance.
High temperature resistance-the highest temperature up to 250 degrees
Low temperature resistance-has good mechanical toughness, -54 degrees can also maintain 5% elongation.
Excellent anti-sticking--it is not easy to adhere any substance on the inner wall of the tube
Resistance to strong alkalis--Almost good inertness to almost all chemicals and solvents.
Climate resistance-excellent aging resistance, can be used outdoors for a long time.
Excellent electrical insulation performance: the dielectric constant is about 2.0, Class C electrical insulation material
high temperature resistance, corrosion resistance, aging resistance, high pressure resistance, long service life, no time limit, and good shock resistance.
High temperature resistance-the highest temperature up to 250 degrees
Low temperature resistance-has good mechanical toughness, -54 degrees can also maintain 5% elongation.
Excellent anti-sticking--it is not easy to adhere any substance on the inner wall of the tube
Resistance to strong alkalis--Almost good inertness to almost all chemicals and solvents.
Climate resistance-excellent aging resistance, can be used outdoors for a long time.
Excellent electrical insulation performance: the dielectric constant is about 2.0, Class C electrical insulation material
PTFE Braiding Hose Parameter
Diameter | ID | OD | Working Pressure | Burst Pressure | Bending Redius | ||||||
(mm) | (inch) | (mm) | (mm) | kgf/cm2 | Mpa | kgf/cm2 | Mpa | (mm) | |||
8 | 1/4 | 6.3 | 9.5 | 210 | 20.58 | 980 | 96.04 | 77 | |||
10 | 3/8 | 7.9 | 11.3 | 175 | 17.15 | 840 | 82.32 | 102 | |||
15 | 1/2 | 12.7 | 16.4 | 105 | 10.29 | 590 | 57.82 | 166 | |||
20 | 3/4 | 15.8 | 19.7 | 80 | 7.84 | 420 | 41.16 | 196 | |||
25 | 1 | 22.2 | 26.1 | 70 | 6.86 | 280 | 27.44 | 229 | |||
32 | 1 1/4 | 28.5 | 33.4 | 56 | 5.48 | 220 | 21.56 | 407 | |||
32 | 1 1/4 | 33 | 37.6 | 30 | 2.94 | 230 | 23.52 | 500 | |||
40 | 1 1/2 | 39 | 43.6 | 30 | 2.94 | 240 | 23.52 | 800 | |||
50 | 2 | 49 | 54.6 | 20 | 1.96 | 160 | 15.68 | 1200 | |||
Related Products

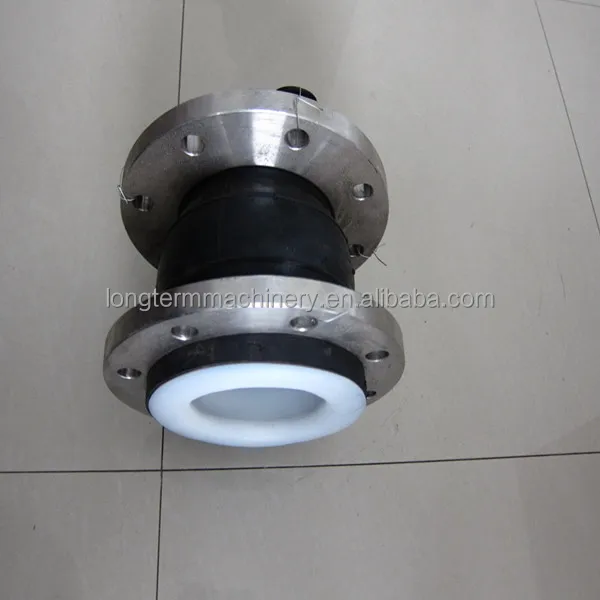

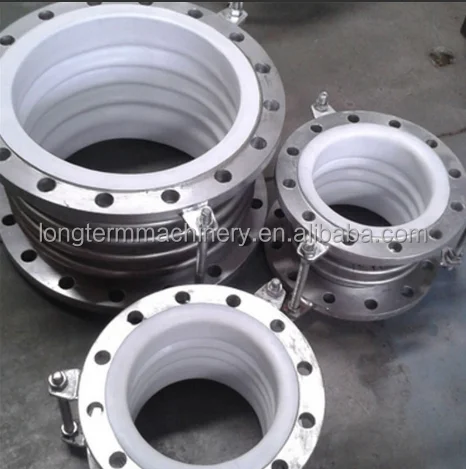

PTFE expansion joint
Solid-molded PTFE expansion joints are corrosion-resistant and made to withstand the high pressure and temperature in a compact, space-saving design. Standard sizes from 1" to 12" with two, three, or five convolutions; available in sizes up to 48". PTFE expansion joints can operate with temperatures from -300 F to 400 F from a full vacuum to 160 PSI depending on the type and number of convolutions.

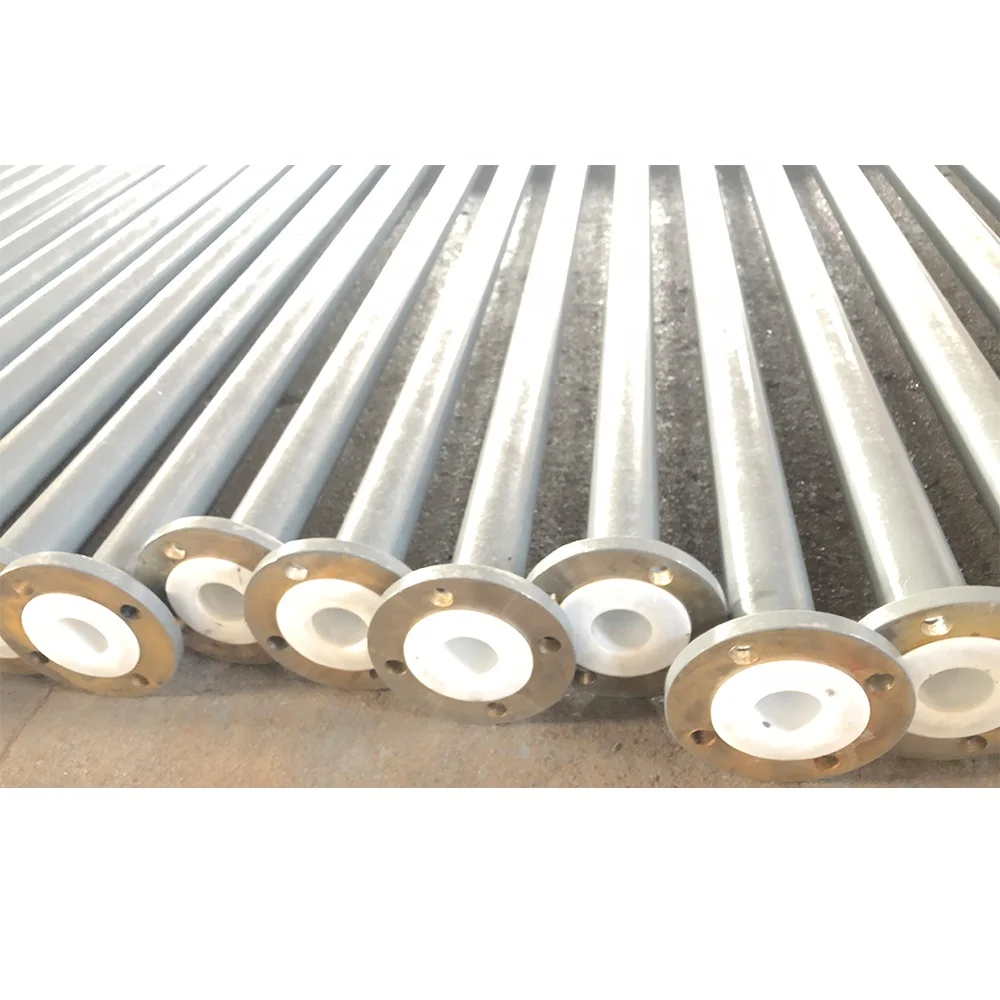

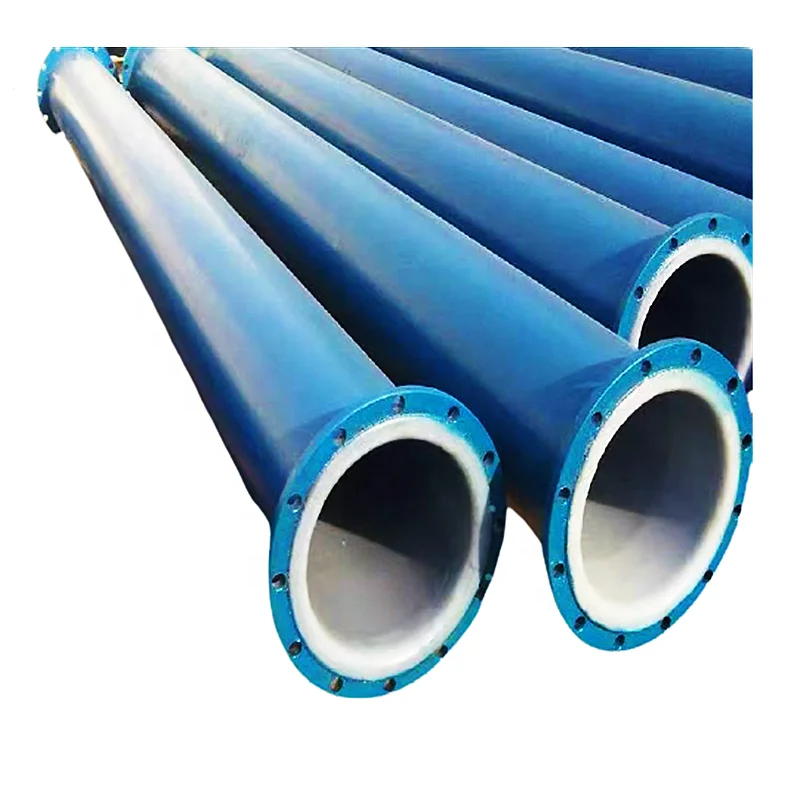

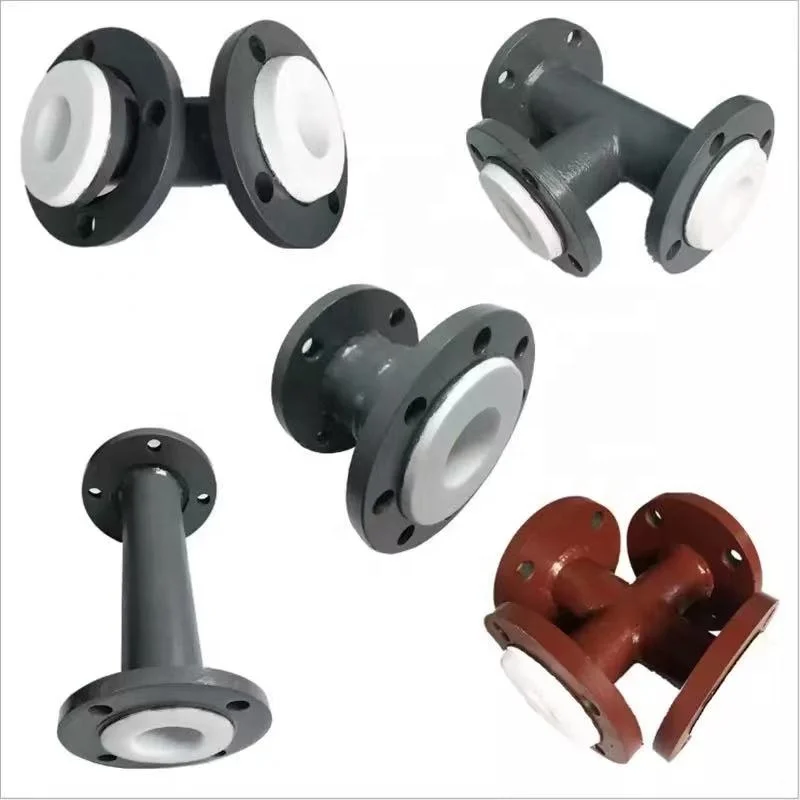

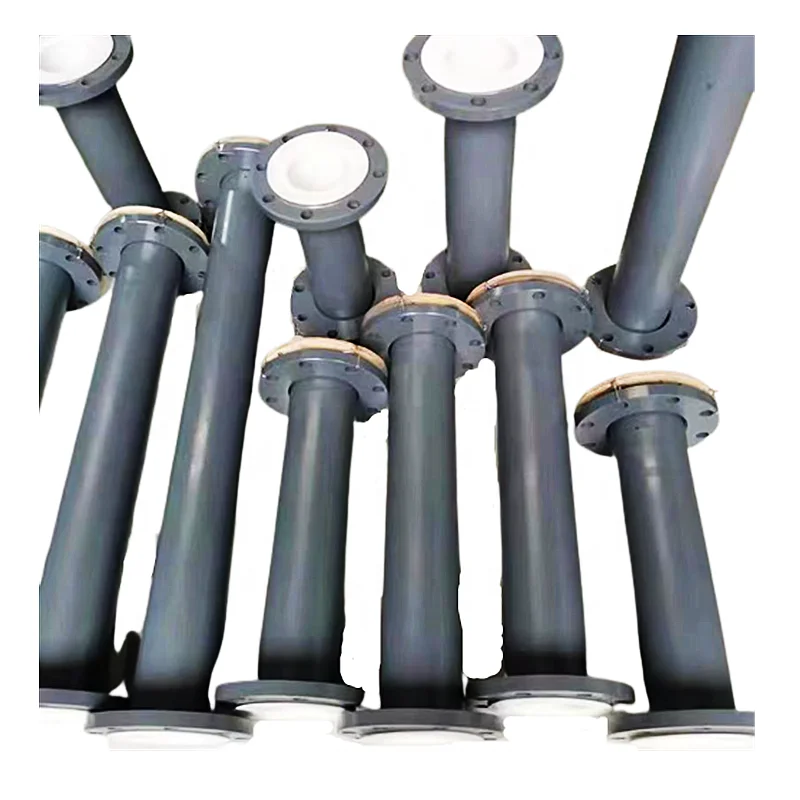

Chemical Pipe Lined PTFE
Certifications
Positive comments from our clients

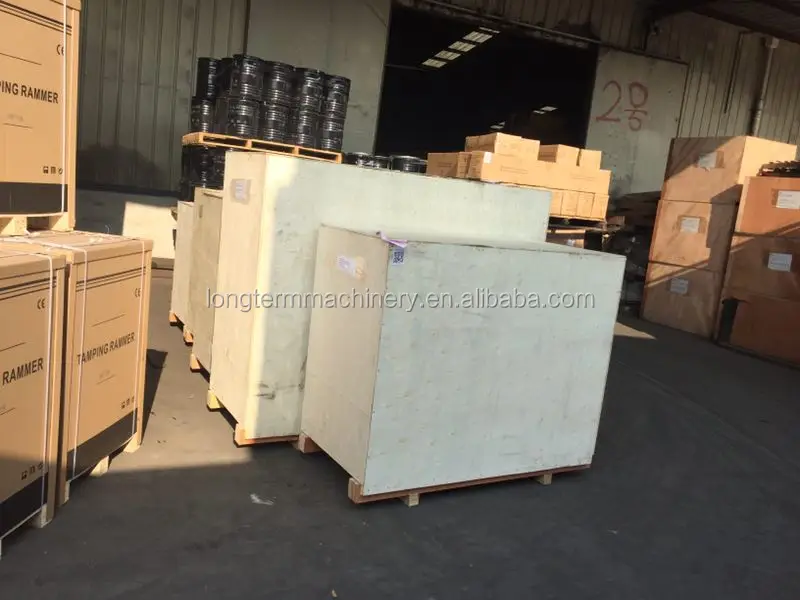

Packing & Delivery

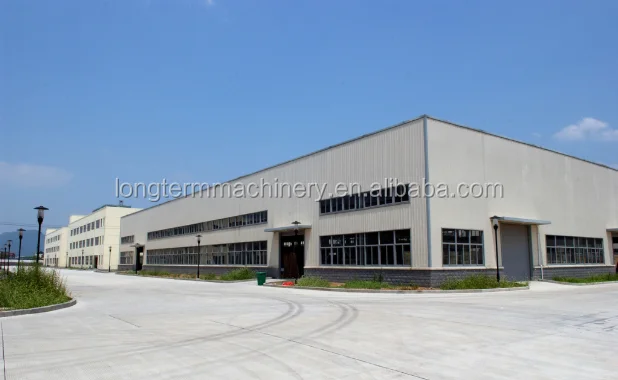

Company Profile
We are a professional manufacturer of all types of metal flexible metal hose and machinery with more than 35 years of history,such as PTFE hose,corrugated metal hose, square lock and interlock hose/ conduit, expansion joint, hose making machine, etc...
The hoses are widely used in energy, petroleum, petrochemical, machinery, refrigeration, construction, hydropower, nuclear power,cement, paper, medicine, transportation, mining, metallurgy, urban central heating, shipbuilding, city gas, pipeline construction,central air conditioning, aerospace and other industries. Our products have exported to many countries such as Russia, Ukraine,USA, Australia, New Zealand, Poland, etc..
The hoses are widely used in energy, petroleum, petrochemical, machinery, refrigeration, construction, hydropower, nuclear power,cement, paper, medicine, transportation, mining, metallurgy, urban central heating, shipbuilding, city gas, pipeline construction,central air conditioning, aerospace and other industries. Our products have exported to many countries such as Russia, Ukraine,USA, Australia, New Zealand, Poland, etc..

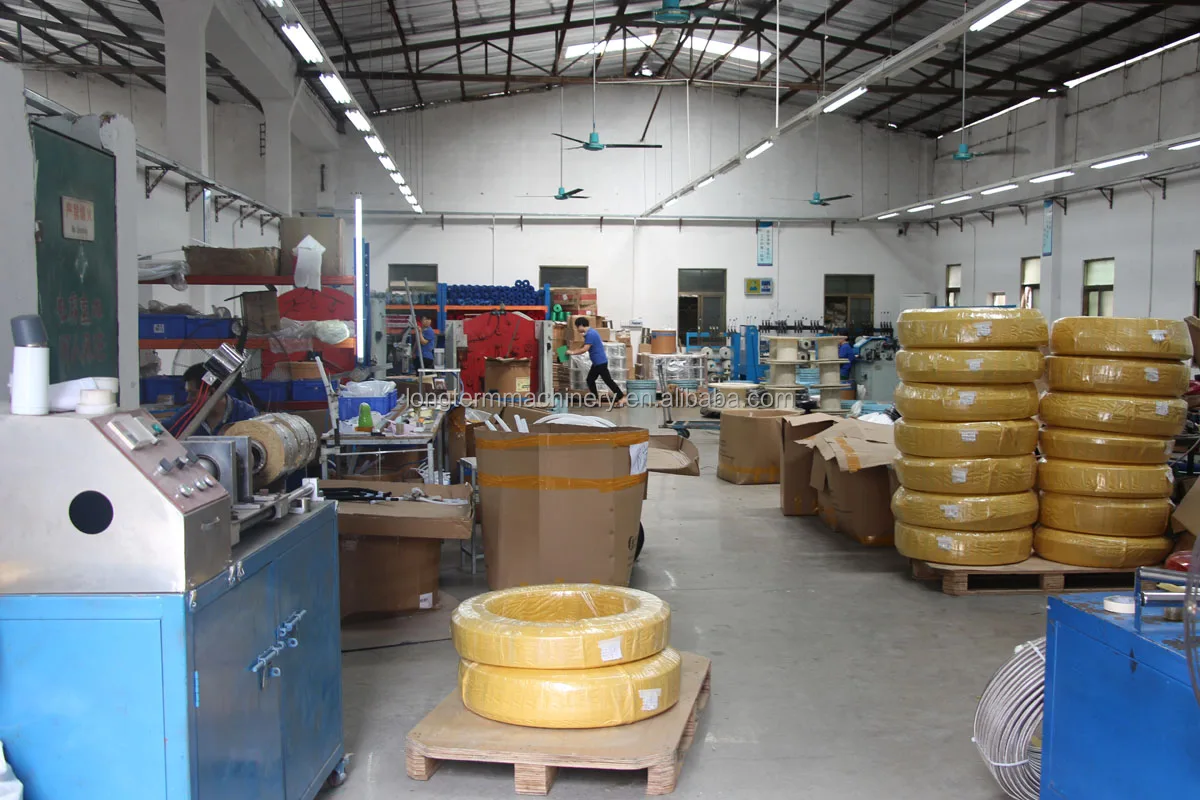

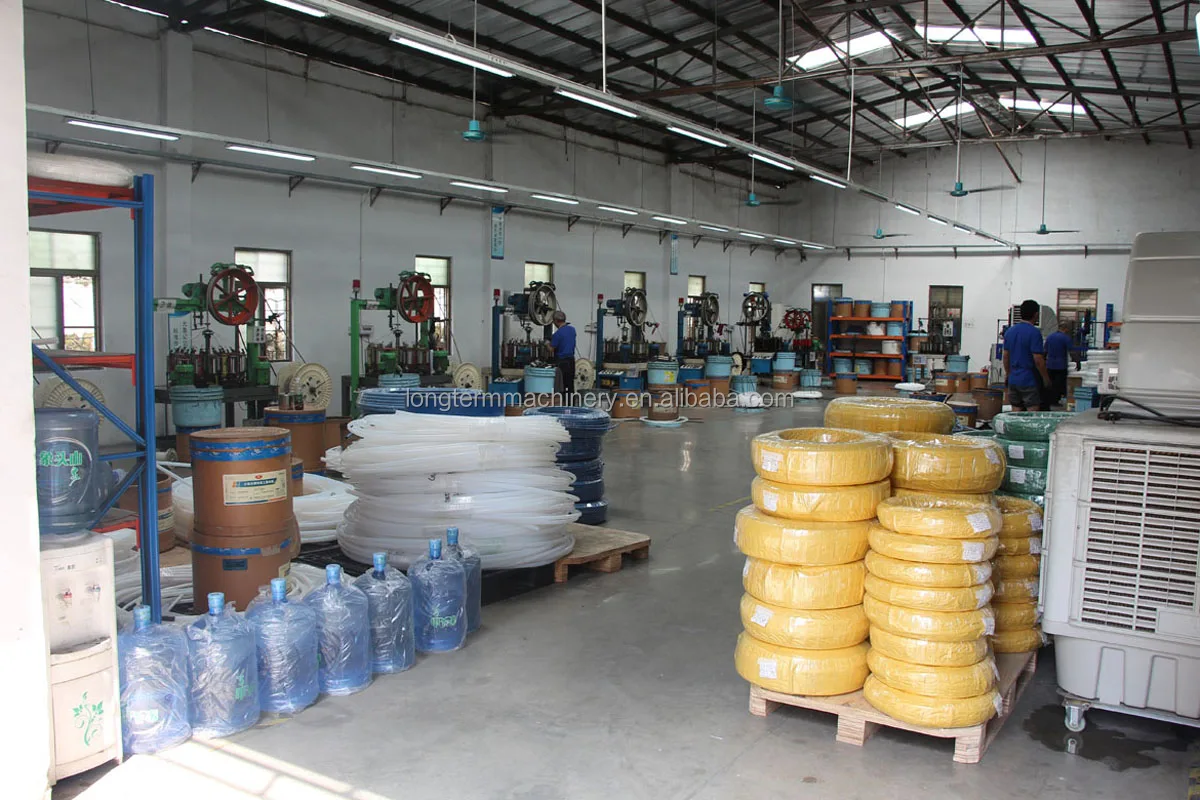

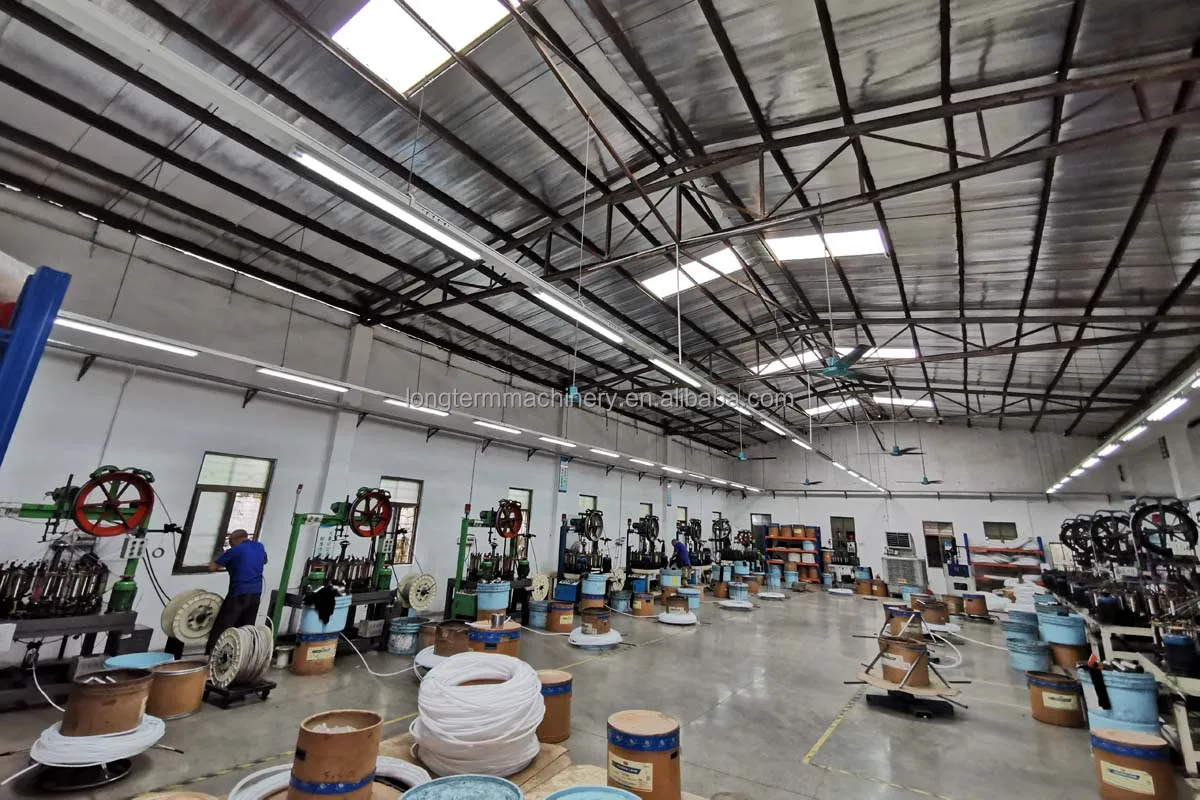

One Corner of PTFE hose manufacturing in our workshop
FAQ
Q1. Who is Wuxi Longterm Machinery Technologies Co., Ltd. ?
we are reliable manufacturer and exporter of flexible metal hose,PTFE hose etc. in China for more than 30 years in the
market.
Q2. What are you offering?
All kinds of metal hoses and PTFE hoses
Q3. What is the delivery time for one 20ft container?
Usually, it is 20 days after receipt of the deposit.
Q4. What is your price term?
The price is base on FOB, CFR or CIF.
Q5. What is your port?
Shanghai port
Q6. Quality control, warranty and guarantee
We control the quality of raw material. We only work with stated enterprise and their quality is stable; Our workers have richexperience, our production machinery is advanced; Before packaging, we make very strictly test and inspection by QC.
We need to know following information to give you our best quotation for PTFE hose.
A:Size range
B:Working pressure of hose.
C:Shape of ptfe hose: Flat or courrugated?
D:Do you need fitting or flange for ptfe hose?
E:Length
F:Quantity
