Заводской заказной дешевый жесткую прямоугольник боросиликатная стеклянная пластина H-PZ33 borofloat диски для крышки
- Категории: Optical Filters >>>
- Поставщик: Haian,Subei,Optical,Glass,Factory
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application
Linear expansion coefficient G3.3 borosilicate glass is 3.3 persons 0.1 × 10-6 / K, based on sodium oxide (Na2O), boron oxide (B2O3), silicon dioxide (SIO2) as a basic ingredient of glass. The borosilicate glass composition higher content of boron, respectively: 12.5 to 13.5%, Si: 78 to 80%, so that this type of glass is borosilicate glass. Belonging borosilicate glass PYREX glass. Acid and alkali water, excellent corrosion resistance, has good thermal stability, chemical stability and electrical properties, it has a chemical resistance, thermal shock resistance, good mechanical properties, withstand high temperature and other characteristics.
SPECIFICATIONS FOR Toughed Rectangle Borosilicate Glass Plate | ||||||
＞80% | strain and temperature | 520℃ | ||||
annealing temperature | 560℃ | softening temperature | 580℃ | |||
Index | 1.47 | Transmistance | 90% | |||
Elastic modulus E | 67KNmm-2 | Processing temperature(104dpas) | 1220℃ | |||
Coefficient of Thermal expansion | 3.3X10-6/K-1 | Poisson's ratio | 0.2 | |||
Density (20℃) | 2.23g/cm3 | Specific heat | 0.9Jg-1K-1 | |||
Thermal Conductivity | 1.2Wm-1K-1 | Water resistance | one grade | |||
Acid resistance | one grade | Alkali resistance | one grade | |||
Main Features
1) High Transmistance
2) No Bubble and No stripe
3) High Temperature Resistance
Detailed Images

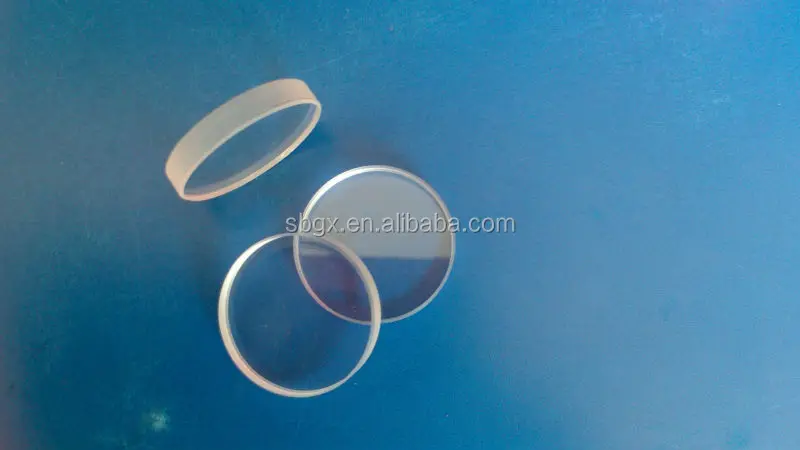

Customize Made Size toughed borosilicate rectangular glass
Name: 3.3 borosilicate glass
Brand: Subei
Original: China
All size can be Customize Made according to drawings

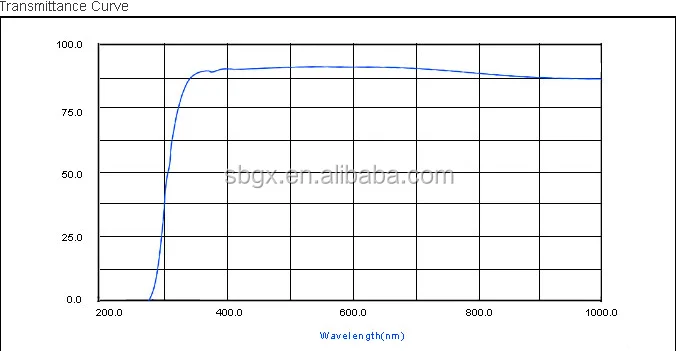

Spectral
Size: D60*3mm
Transmistance: ＞90%
AR Coated both sides:＞99.5%
Transmistance can be imporved by ar coated one side or both sides

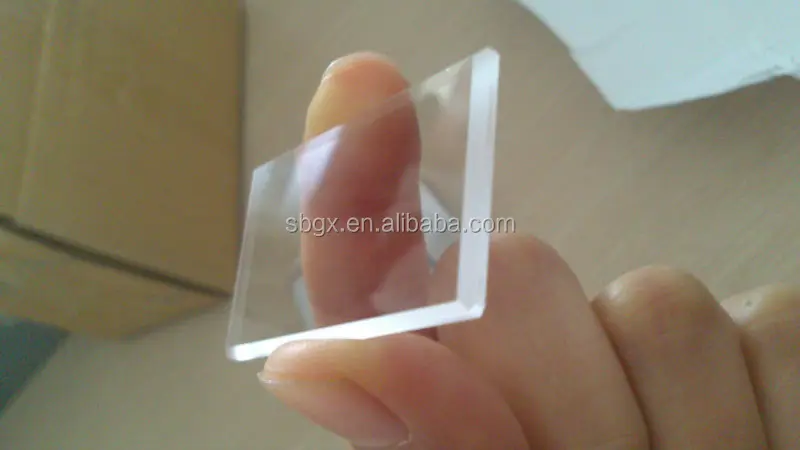

toughed borosilicate rectangular glass

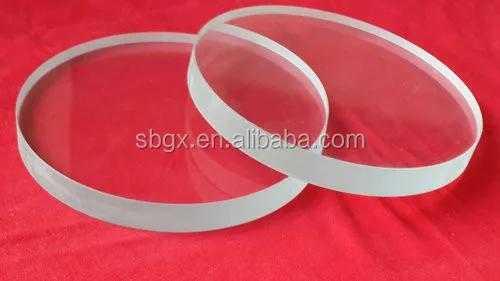

Name: 3.3 tempered borosilicate glass
Size: D200*20mm
Original: China
By hardened the glass,the heat resistance can be 550℃.
toughed borosilicate rectangular glass

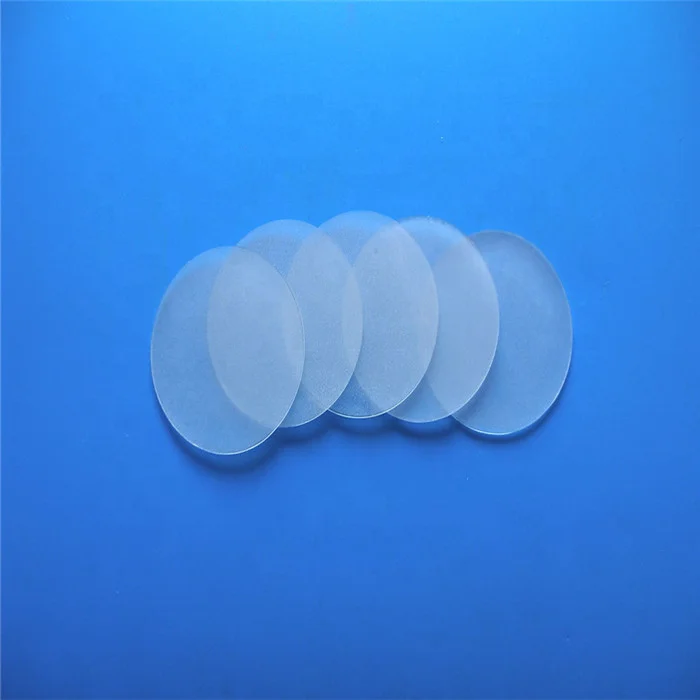

Name: frosted borosilicate glass
Brand: Subei
Original: China

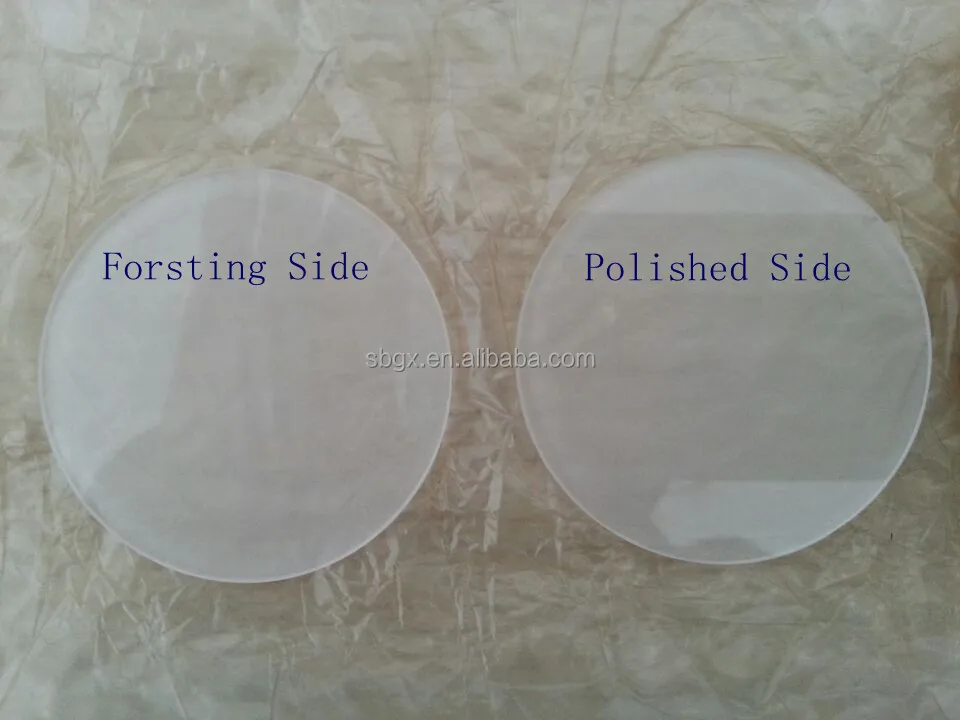

The surface of borosilicate glass can be forsted or polished ,all are available by our customers
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Quality guarantee forever.
Packing & Delivery
Packaging | ||
Size | Customize Made Size | |
Weight | upon sizes | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 30 (L) * 30 (W) * 20(D) | |
Weight | upon the QTY and Sizes | |
Packaging Details | The normal package is carton box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
