Батарейный блок JK 1A 2A Active Balance Smart BMS для литий-ионных аккумуляторов 2-24S 12 в 24 48 Lifepo4/LFP с
- Категории: PCB & PCBA >>>
- Поставщик: Shenzhen,Luyuan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Bluetooth is by default,no need to purchase separately.
Description:
*This is an Active BMS, it supports 2S-24S lifepo4/LFP battery pack
*Continuous current of JK-B1A24S15P and JK-B2A24S15P is 150A,the maximum current is 300A;
*This is an Active BMS, it supports 2S-24S lifepo4/LFP battery pack
*Continuous current of JK-B1A24S15P and JK-B2A24S15P is 150A,the maximum current is 300A;
Continuous current of JK-B2A24S20P is 200A,the maximum current is 350A
*1A/2A active equalization current
*It can set up the equalization voltage and the charge & discharge protection parameter through APP
*It can display the single series of battery voltage
*After connected the BMS, please use the power supply which is 5v greater than battery voltage to activate it
Features:
*Active balance functionality, no need to lose the battery capacity to balance the voltage difference of sells, raise the battery usage efficiency for 95%
*It can be used on 2-24s li-ion/Cobalt acid lithium/Manganese acid lithium/Lithium iron battery packs
*It has the protections of Over-charge/Over-discharge/Over-current and Short circuit etc.
*1A/2A active equalization current
*It can set up the equalization voltage and the charge & discharge protection parameter through APP
*It can display the single series of battery voltage
*After connected the BMS, please use the power supply which is 5v greater than battery voltage to activate it
Features:
*Active balance functionality, no need to lose the battery capacity to balance the voltage difference of sells, raise the battery usage efficiency for 95%
*It can be used on 2-24s li-ion/Cobalt acid lithium/Manganese acid lithium/Lithium iron battery packs
*It has the protections of Over-charge/Over-discharge/Over-current and Short circuit etc.

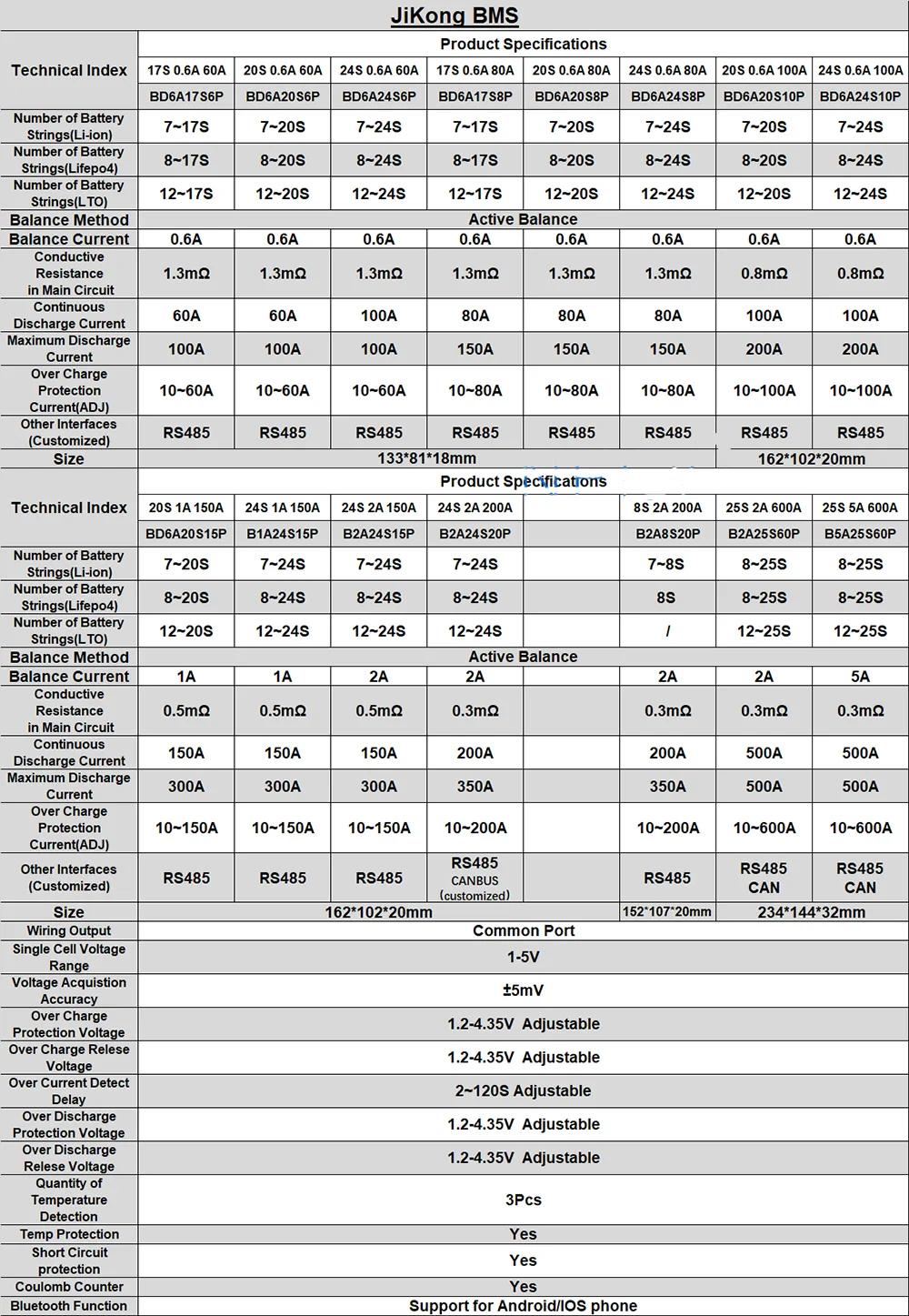

Product Description
Model | JK-B1A24S15P/JK-B2A24S15P/JK-B2A24S20P |
Balanced way | Active equalization |
Active equalization current | 1A/2A |
Communication Interface | needs customization |
Rated discharge current | 150A/200A |
Maximum discharge current | 300A/350A |
Over-charge protection voltage | 1.2V-4.35V（Adjustable） |
Module of Bluetooth | By default |
Over-charge protection recovery voltage | 1.2V-4.35V（Adjustable） |
Number of temperature detectors | 3pcs |
Temperature protection function | Yes |
Short circuit protection function | yes |
Coulomb counter | yes |
Wiring method | common port |
Voltage acquisition accuracy | ±5mV |
