Инвертор постоянного тока тепловой насос EVI от источника воздуха к воде для обогрева дома охлаждения горячей воды с дистанционным
- Категории: Water Heaters >>>
- Поставщик: Guangzhou,Kaineng,Electric,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Details Images

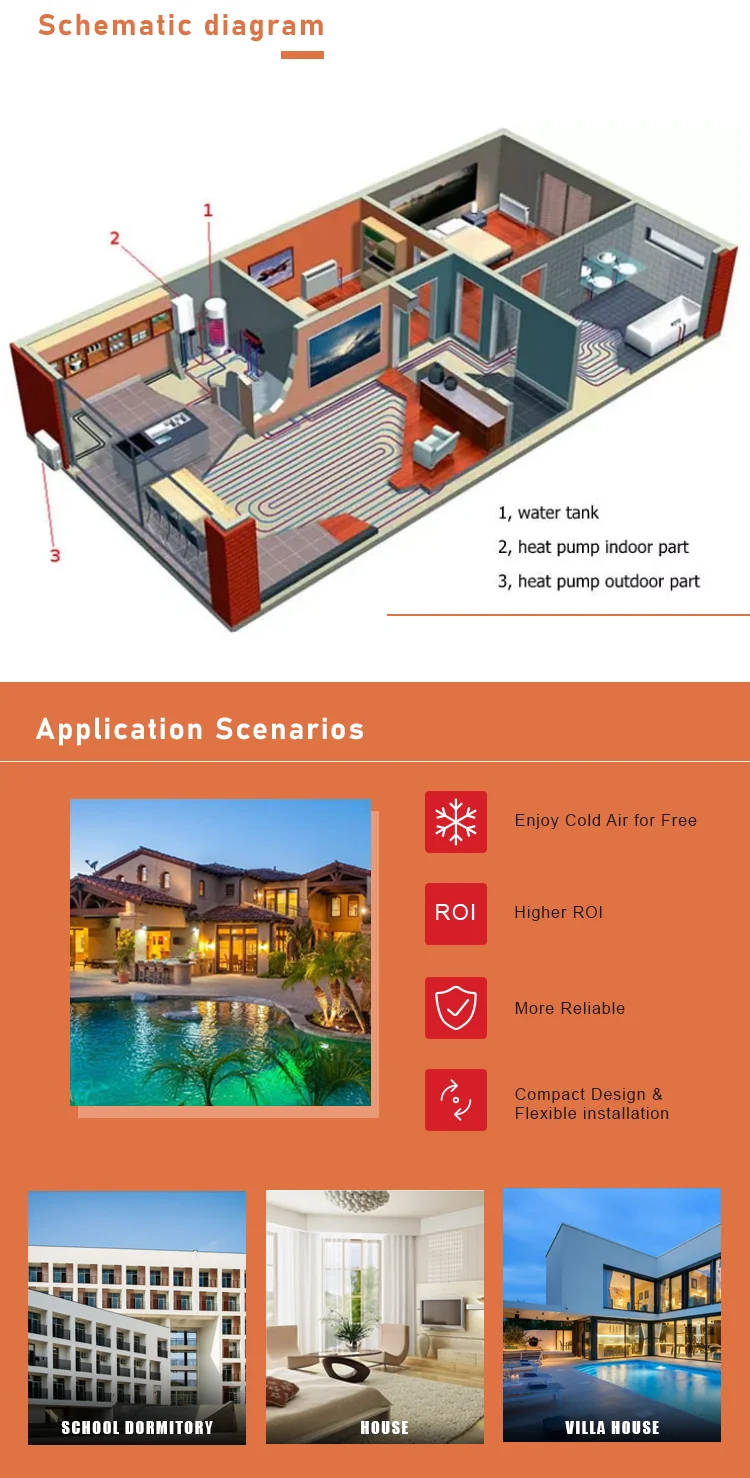

Application
Technical Parameters
Model | JK15CN | JK30CN | JK50CN | JK80CN | JK100CN | |||||||
Dry-bulb temp.: 7℃ Wet-bulb temp.: 6℃ Water outlet temp.: 45℃ | Heating capacity (KW) | 5.00 | 11.00 | 22.00 | 32.00 | 40.00 | ||||||
Power input (KW) | 1.45 | 2.72 | 5.24 | 7.60 | 9.57 | |||||||
COP | 4.10 | 4.05 | 4.20 | 4.21 | 4.18 | |||||||
Dry-bulb temp.: -12℃ Wet-bulb temp.: -14℃ Water outlet temp.: 41℃ | Heating capacity (KW) | 3.00 | 6.00 | 16.00 | 18.00 | 22.00 | ||||||
Power input (KW) | 1.15 | 2.24 | 5.71 | 6.92 | 8.53 | |||||||
COP | 2.60 | 2.68 | 2.80 | 2.60 | 2.58 | |||||||
Dry-bulb temp.: 35℃ Wet-bulb temp.: 24℃ Water outlet temp.: 7℃ | Cooling capacity (KW) | 3.75 | 7.50 | 11.50 | 20.00 | 23.00 | ||||||
Power input (KW) | 1.27 | 2.45 | 3.90 | 6.67 | 7.80 | |||||||
EER | 2.95 | 3.06 | 2.95 | 3.00 | 2.95 | |||||||
Max. power input (KW) | 2.00 | 3.90 | 6.50 | 10.30 | 13.00 | |||||||
Max. current input (A) | 9.00 | 18.00 | 12.00 | 17.50 | 25.00 | |||||||
Water flow volume (m³/h) | 0.80 | 1.30 | 2.00 | 3.40 | 4.00 | |||||||
Flow resistance (kpa) | 15.00 | 20.00 | 24.00 | 35.00 | 40.00 | |||||||
Power supply | 220V/1PH/50HZ | 220V/1PH/50HZ | 380V/3PH/50HZ | 380V/3PH/50HZ | 380V/3PH/50HZ | |||||||
Anti-shock protection | Grade Ι | |||||||||||
Waterproof level | IPX4 | |||||||||||
Pipe size | DN20 | DN20 | DN25 | DN25 | DN40 | |||||||
Rated water pressure | 0.9Mpa | |||||||||||
Grounding requirement | ≤0.1Ω | |||||||||||
Ambient temp. | （-25℃-43℃） | |||||||||||
Dimentions（L/W/H）mm | 1006*478*700 | 1156*478*851 | 1156*478*1331 | 1256*580*1530 | 1256*580*1530 | |||||||
Packaging dimentions（L/W/H）mm | 1160*580*810 | 1260*580*960 | 1260*580*1440 | 1360*680*1640 | 1360*680*1640 | |||||||
Weight (kg) | 70 | 90 | 110 | 130 | 150 | |||||||
Note: The model, parameters and performance will be changed due to product improvement. Please refer to the data plate for specific parameters. | ||||||||||||
Heating area reference | 30-50㎡ | 60-100m² | 100-140m² | 140-200m² | 200-280m² | |||||||

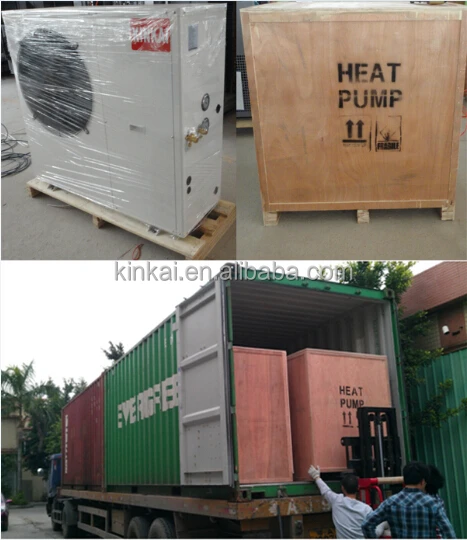

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Marketing Campaign
FAQ
A. Payment service
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation,
debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year’s warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation,
debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year’s warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
