Цена по прейскуранту завода-изготовителя 25kva Бесшумная дизель-генератор 20kw электростанции с Yuchai
- Категории: Diesel Generators >>>
- Поставщик: Taizhou,Flying,Dragon,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Diesel Generator Details | |
| Model | CLY-20GF |
| Power | 20KW |
| Current | 36A |
| Frequency | 50Hz |
| Voltage | 380/220V |

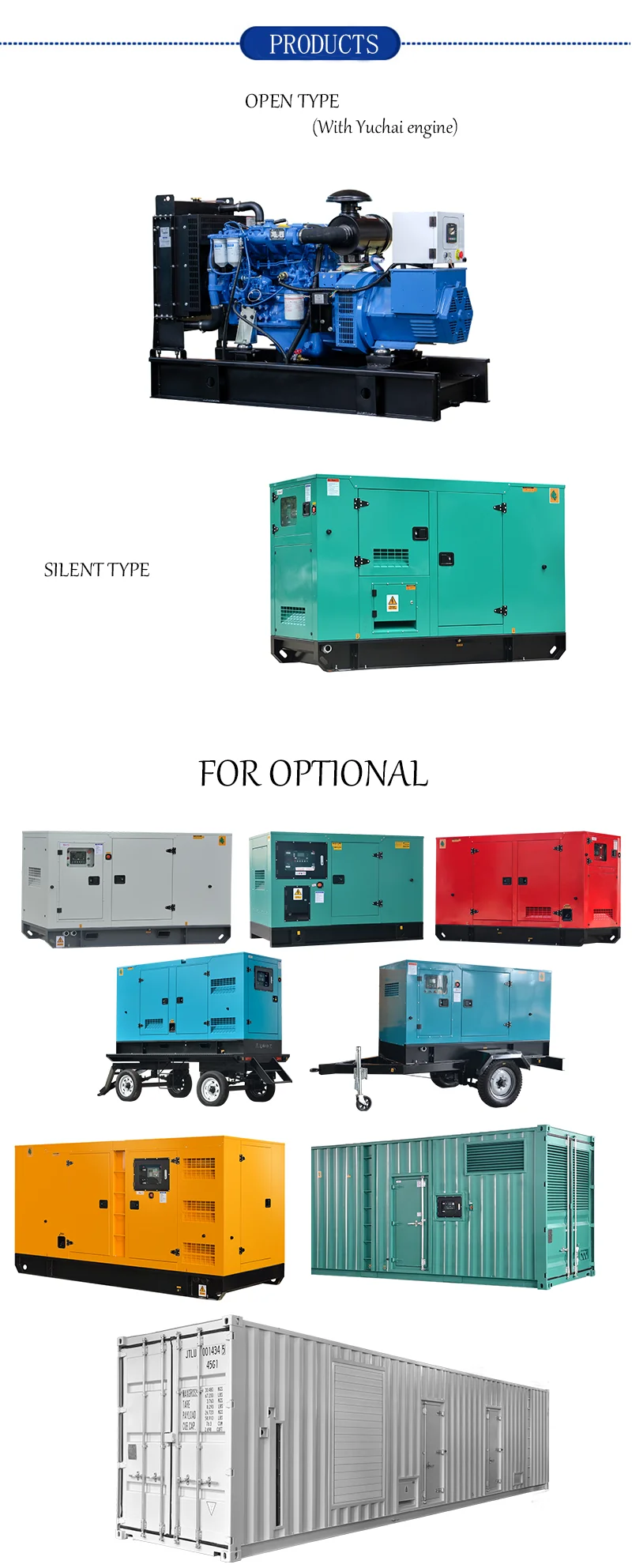

| Optional Type | Open / Rainproof / Silent / Trailer / Containerized |
| Size of silent Type | 2400*1000*1550mm |
| Diesel Engine Details | |
| Brand/Model | Yuchai YCD4V12D-35 |
| Standby Power | 24.7KW |
| Aspiration | Turbocharger |
| Bore*Stroke(mm) | 108*115 |
| Displacement(L) | 4.21 |
| Oil Capacity(L) | 12 |
| Starting Method | DC 24V electrical Start |
| Fuel Consumption(g/kw.h) | 205g/kw.h |
| Alternator Details | |
| Brand | Stamford,Marathon,Hengsheng |
| Output Power | 20KW |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≤5% |
| Insulattion Grade | H |
| Protection Grade | IP23 |
| Controller Details | |
| Brand | Deepsea/ComAp/Smartgen |
| Standard | Optional |
| Diesel Engine | Weatherproof/Sounproof canopy |
| Alternator | ATS |
| Control Panel | Water heater |
| Starting Batteries and battery connect wires | Oil heater |
| Circuit Breaker | Battery charger |
| Water cooled Radiator | Fuel tank |
| Steel base frame | / |
| Silencer and flexible exhaust pipe | / |
Plywood case or pallet packing as below:
Any interest in Flying Dragon,please contact us.Thanks
<
