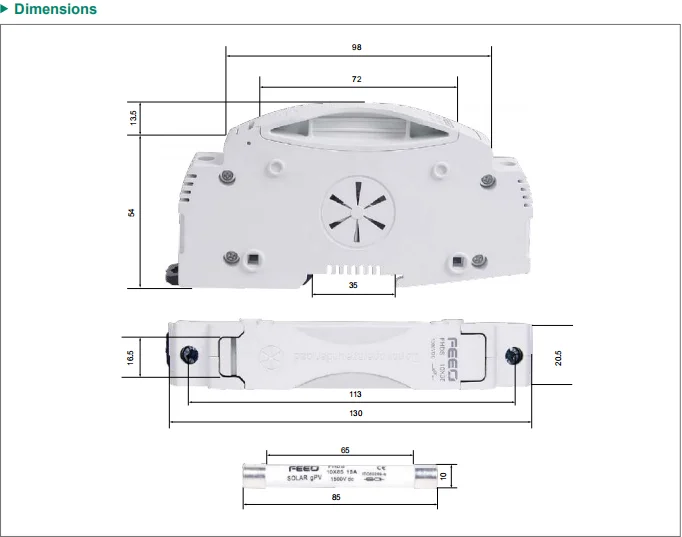

Application Dimensions
A range of 10x85mm PV fuses specififically designed for protecting and isolating photovoltaic strings. 98 These fuse links are capable of interrupting low overcurrents associated with faulted PV systems 72 (reverse current, multi-array fault). Available in four mounting styles for application flflexibility.
Structural Characteristics
According to IEC60269-6
Rated current: 1-30A
Rated voltage: DC 1500V
Rated breaking capacity:DC 20kA
Operating class gPV for Solar protection
Specifications

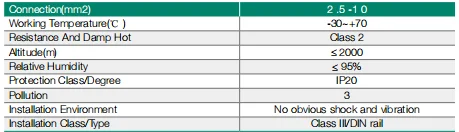

Connection and Installation
Connection(mm2) 2 .5 -
1 0
1 0
Packaging & Shipping
Fuse Package:
Standard export carton packing
Fuse Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Fuse Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods.
