1.Product Description
Product Description
Aluminum-Framed Formwork
The aluminum-framed panel system is ideal for vertical construction, and small, medium to large jobs. With various standard panel sizes, assembling and disassembling can be achieved in an extremely short period without compromising on quality while allowing for immediate cost savings. Suited for foundations. Designed for an allowable concrete pressure of 60KN/㎡, the panel is manufactured with high-strength aluminum extrusion profiles and is suited for man-handling, and they can be assembled easily with clamps without alignment walers.All panels are powder-coated to enhance their lifespan and available in steel as an alternative.
The high strength and lightweight panels comes in heights of 3000,2500 & 1250mm with 4 standard widths of 1000,750,500 & 250mm.
With a total of 12 standard sizes to choose from, you stand to benefit from a high utilization rate with lesser inventory parts.
Specification
Specification
No | Code | Name | Dimension (mm) | Weight (Kg/pc) |
1 | LG-Alu30001000 | Panex Panel Alu | 3000 x 1000 | 69.9 |
2 | LG-Alu3000750 | Panex Panel Alu | 3000 x 750 | 56.4 |
3 | LG-Alu3000500 | Panex Panel Alu | 3000 x 500 | 42.2 |
4 | LG-Alu3000250 | Panex Panel Alu | 3000 x 250 | 28.3 |
5 | LG-Alu25001000 | Panex Panel Alu | 2500 x 1000 | 58.9 |
6 | LG-Alu2500750 | Panex Panel Alu | 2500 x 750 | 47.5 |
7 | LG-Alu2500500 | Panex Panel Alu | 2500 x 500 | 35.4 |
8 | LG-Alu2500250 | Panex Panel Alu | 2500 x 250 | 23.5 |
9 | LG-Alu12501000 | Panex Panel Alu | 1250 x 1000 | 31.9 |
10 | LG-Alu1250750 | Panex Panel Alu | 1250 x 750 | 26 |
11 | LG-Alu1250500 | Panex Panel Alu | 1250 x 500 | 19.2 |
12 | LG-Alu1250250 | Panex Panel Alu | 1250 x 250 | 12.4 |
Charateristics
Characteristics
1. Lightweight aluminum panel formwork , can also be moved by hand.
2. Easy to assembly with adjustable steel clamp.
3. Easy, rapid and economical.
4. Maximum premissible fresh concrete pressure is 60KN /㎡.
2. Easy to assembly with adjustable steel clamp.
3. Easy, rapid and economical.
4. Maximum premissible fresh concrete pressure is 60KN /㎡.

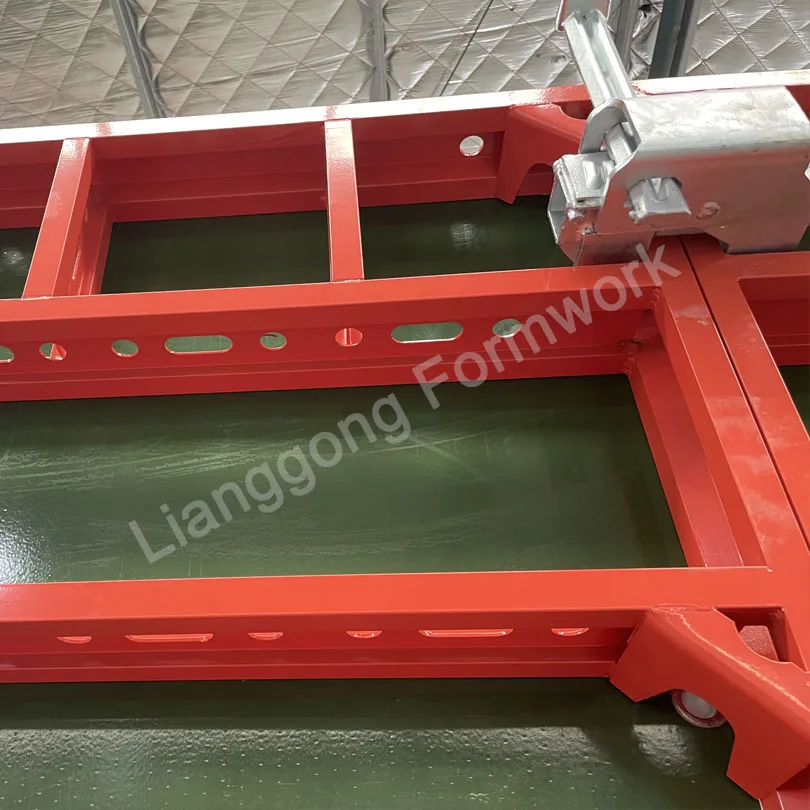

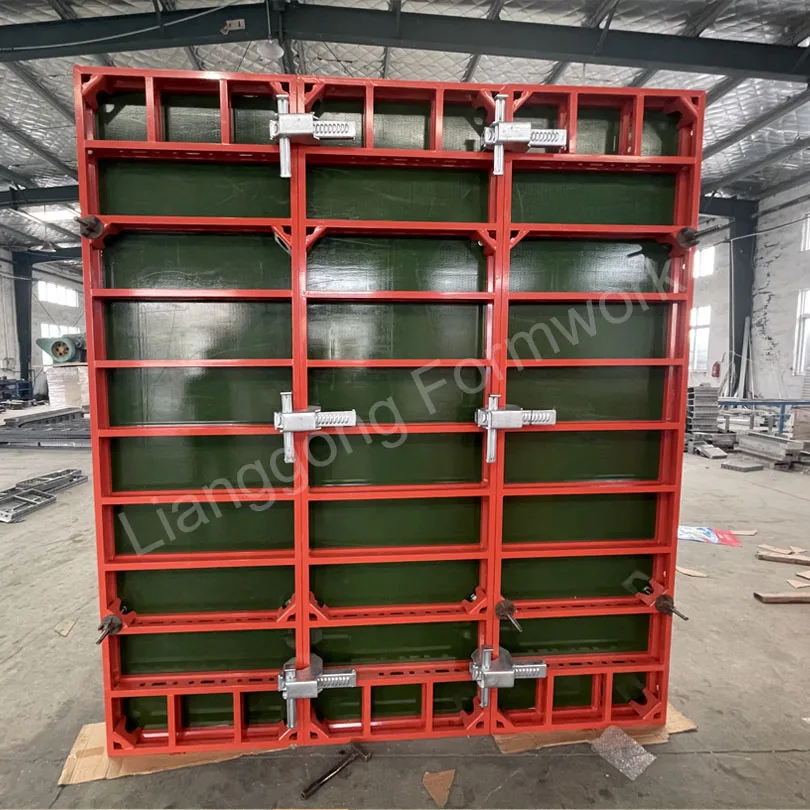

Products Show
Products Show
Our Company
Till now, we have cooperated with lots of top formwork companies and construction companies, such as DOKA, PERI etc. Our advanced production equipment and proficient front-line employees will guarantee you products with better quality and less time. Besides, Lianggong has professional technicians working together with sales department to ensure our customers’ requirements are fully achieved. We offer one-stop service, you can choose products either off-the-shelf or customized.
What’s more, our products have strict quality control from the procurement of raw materials to the sale of finished products which have been used in many projects such as industrial civil engineering works, roads and bridges, hydroelectric dam and nuclear power station. We can accept O E M and O D M. Feel free to contact us if you have any interest!
Customer Photos
1.Consulting, Design and Quotation
Offer you a general idea of formwork & scaffold among LiangGong various systems, to fit your project demand.
Design and Customized forming & shoring proposal according to your structural drawing by Auto-CAD.
2.Manufacture and Quality Inspection
Large-scale production workshop and First-class production line, as well as a professional quality inspection team, which will provide you with high quality standard products.
Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements.
3.Packing and Shipment
From fabrication to loading, use standard export packages to get to your site quickly.
4.Remote or On-Site Instruction
If you have any questions, we can provide remote or on-site guidance. Our aim is to make customers feel at ease and satisfied throughout the process.
Offer you a general idea of formwork & scaffold among LiangGong various systems, to fit your project demand.
Design and Customized forming & shoring proposal according to your structural drawing by Auto-CAD.
2.Manufacture and Quality Inspection
Large-scale production workshop and First-class production line, as well as a professional quality inspection team, which will provide you with high quality standard products.
Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements.
3.Packing and Shipment
From fabrication to loading, use standard export packages to get to your site quickly.
4.Remote or On-Site Instruction
If you have any questions, we can provide remote or on-site guidance. Our aim is to make customers feel at ease and satisfied throughout the process.
4.Packing & Delivery
8.FAQ
Q1: Are you trading company or manufacturer ?
A: We are manufacturer.
Q2. What do you do?
A: We design and manufacture formworkand scaffolding products used for pouring concrete structure in the field of housing, multi-story structure, high rise buildings,towers, sports stadiums, bridges, hydropower stations, industrial structures etc.
Q3: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4. What can you do for us?
A.We offer our suggestions, drawings of formwork layout, and quotations to the owners, design institutes, or contractors of the construction projects.
B.We sell our products to the contractors, building companies, material supplier or trading companies.
C.We support our worldwide peer companies with our outstanding formwork or scaffolding products.
D.We provide remote or on-site instruction to thebuilders.
Q5. What do you need in order to make a brief design and quotation when we have a construction project to be built?
A:Structural drawing and section drawing.
Q6. How long does it take to make a brief design and quotation after we offer thestructural drawing?
A: In general, it takes 5~7 days based on specific requirements of construction project.
Q7. How long dose it take to manufacture the products after the signing of contract?
A: In general, it takes 30~60 days based on the type and quantity of products to be produced.
Q8: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
