Triangle Hard Case Electric Bicycle Lithium Battery Pack 48v 52v 28.8ah 21700 eBike Battery with 30A 40A 50A BMS
Products Description
Parameter | 36V 38.4Ah 20A BMS | 48V 28.8Ah 30A BMS | 52V 28.8Ah 30A BMS | 60V 24Ah 40A BMS | 72V 19.2Ah 50A BMS | ||||
Nominal Voltage | 36V | 48V | 52V | 60V | 72V | ||||
Nominal Capacity | 38.4Ah | 28.8Ah | 28.8Ah | 24Ah | 19.2Ah | ||||
Nominal Watt Hour | 1382.4WH | 1382.4WH | 1497.6WH | 1440WH | 1382.4WH | ||||
Composed Type | 10S8P (80pcs) | 13S6P (78pcs) | 14S6P (84pcs) | 16S5P (80pcs) | 20S4P (80pcs) | ||||
Cell Type | 21700 cells Grade A Branded 4800mAh | ||||||||
BMS | 20A | 30A | 30A | 40A | 50A | ||||
Fit Motor Power | 36V 250W 350W 500W (0-560W) | 48V 250W 350W 500W 750W 1000W (0-1092W) | 52V 350W 500W 750W 1000W (0-1176W) | 60V 350W 500W 1000W 1500W (0-1792W) | 72V 250W 350W 500W 1000W 2000W (0-2800W) | ||||
Charging Voltage | 42V | 54.6V | 58.8V | 67.2V | 84V | ||||
Discharge Cut-off Voltage | 28V | 36.4V | 39.2V | 44.8V | 56V | ||||
Battery Weight | 6.7kg | 6.56kg | 6.98kg | 6.8kg | 6.8kg | ||||
Dimensions | 364*232*343*75mm | ||||||||
Charging Current | 42V 3A | 54.6V 4A | 58.8V 4A | 67.2V 3A | 84V 3A | ||||
Charge Temperature | 0-45℃ | ||||||||
Discharge Temperature | -20-65℃ | ||||||||
Cycle Life | 1000 times | ||||||||
Parameter | 48V 28.8Ah 40A BMS | 48V 28.8Ah 50A BMS | 52V 28.8Ah 40A BMS | 60V 24Ah 50A BMS | |||
Nominal Voltage | 48V | 48V | 52V | 60V | |||
Nominal Capacity | 28.8Ah | 28.8Ah | 28.8Ah | 24Ah | |||
Nominal Watt Hour | 1382.4WH | 1382.4WH | 1497.6WH | 1440WH | |||
Composed Type | 13S6P (78pcs) | 13S6P (78pcs) | 14S6P (84pcs) | 16S5P (80pcs) | |||
Cell Type | 21700 cells Grade A Branded 4800mAh | ||||||
BMS | 40A | 50A | 40A | 50A | |||
Fit Motor Power | 36V 250W 350W 500W 1000W (0-1456W) | 48V 500W 750W 1000W 1500W (0-1820W) | 52V 500W 750W 1000W 1500W (0-1568W) | 60V 500W 1000W 1500W 2000W (0-2240W) | |||
Charging Voltage | 54.6V | 54.6V | 58.8V | 67.2V | |||
Discharge Cut-off Voltage | 36.4V | 36.4V | 39.2V | 44.8V | |||
Battery Weight | 6.56kg | 6.56kg | 6.98kg | 6.7kg | |||
Dimensions | 364*232*343*81mm | ||||||
Charging Current | 54.6V 4A | 54.6V 4A | 58.8V 4A | 67.2V 3A | |||
Charge Temperature | 0-45℃ | ||||||
Discharge Temperature | -20-65℃ | ||||||
Cycle Life | 1000 times | ||||||
Parameter | 48V 24Ah 0-1800W | 52V 24Ah 0-1500W | 72V 19.2Ah 0-2200W | 52V 28.8Ah 0-1900W | |||
Nominal Voltage | 48V | 52V | 72V | 52V | |||
Nominal Capacity | 24Ah | 24Ah | 19.2Ah | 28.8Ah | |||
Nominal Watt Hour | 1152WH | 1248WH | 1382.4WH | 1497.6WH | |||
Composed Type | 13S5P (65pcs) | 14S5P (70pcs) | 20S4P (80pcs) | 14S6P (84pcs) | |||
Cell Type | 21700 cells Grade A Branded 4800mAh | ||||||
BMS | 50A | 40A | 40A | 50A | |||
Fit Motor Power | 36V 350W 500W 1000W 1500W (0-1820W) | 48V 500W 750W 1000W 1500W (0-1568W) | 52V 500W 1000W 1500W 2000W (0-2240W) | 60V 500W 1000W 1500W (0-1960W) | |||
Charging Voltage | 54.6V | 58.8V | 84V | 58.8V | |||
Discharge Cut-off Voltage | 36.4V | 39.2V | 56V | 39.2V | |||
Battery Weight | 5.65kg | 6kg | 6.7kg | 6.98kg | |||
Dimensions | 364*232*65*343*81mm | ||||||
Charging Current | 4A | 4A | 2A | 4A | |||
Charge Temperature | 0-45℃ | ||||||
Discharge Temperature | -20-65℃ | ||||||
Cycle Life | 1000 times | ||||||
Battery Application :
Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car,Electric wheelchairs,two wheel vehicles and etc.
Inner Circuit Board: Built-in BMS
The inner circuit board, provides protection against over-charge, over-discharge and short circuit, through monitoring single string of cells. Also it enables every battery pack to obtain independent balancing function
Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car,Electric wheelchairs,two wheel vehicles and etc.
Inner Circuit Board: Built-in BMS
The inner circuit board, provides protection against over-charge, over-discharge and short circuit, through monitoring single string of cells. Also it enables every battery pack to obtain independent balancing function

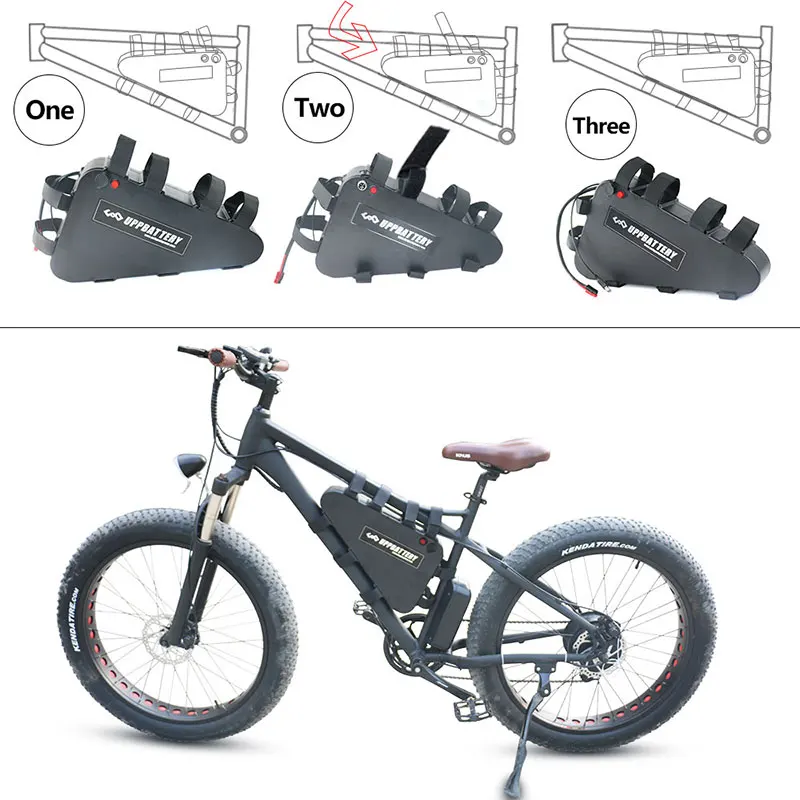

Details Images
Our Advantages:
1.Global Service: Germany,United Kingdom,United States, Canada, Australia warehouse, 3-7days fast delivery and local return. We prefer to ship from oversea warehouse if you make order.
2.Self-operated Factory:We assemble all batteries in our own factory, we only source A-grade genuine cells ,at lowest price to attract buyers. But then have to scrimp on everything, then assemble them as quickly/cheaply as possible. We don’t take chances when it comes to our batteries or your safety!
3.High Quality Cells:We only source A-grade genuine cells from the official sources.
4.Rich experience: 10 years of battery packaging experience, from 24V, 36V, 48V, 52V, 60V, 72V to DIY Voltage/Size, we can tailor it for you, mature production technology, and screen out high-consistency cells, we know how Manufacture reliable and safe batteries for customers.
5.Battery Test:Each pack is ran through a full charge and discharge before leaving our facility to make sure you are getting every amp hour you paid for.
The test include:
Short Circuit Safety Test √ Overcharge Safety Test√Crush Safety Test √ Needing Safety Test √ Extrusion Safety Test√
1.Global Service: Germany,United Kingdom,United States, Canada, Australia warehouse, 3-7days fast delivery and local return. We prefer to ship from oversea warehouse if you make order.
2.Self-operated Factory:We assemble all batteries in our own factory, we only source A-grade genuine cells ,at lowest price to attract buyers. But then have to scrimp on everything, then assemble them as quickly/cheaply as possible. We don’t take chances when it comes to our batteries or your safety!
3.High Quality Cells:We only source A-grade genuine cells from the official sources.
4.Rich experience: 10 years of battery packaging experience, from 24V, 36V, 48V, 52V, 60V, 72V to DIY Voltage/Size, we can tailor it for you, mature production technology, and screen out high-consistency cells, we know how Manufacture reliable and safe batteries for customers.
5.Battery Test:Each pack is ran through a full charge and discharge before leaving our facility to make sure you are getting every amp hour you paid for.
The test include:
Short Circuit Safety Test √ Overcharge Safety Test√Crush Safety Test √ Needing Safety Test √ Extrusion Safety Test√
Company Profile
Shenzhen Cyclebike Vehicle Co., Ltd is a professional electric bike manufacturer , specializing in developing, producing&processing, and overseasbusiness. Mainly producing electric bike,electric scooter.lithium battery,battery pack. which was established as own brand product sells oversea to United Kingdom , USA , Europe,Asia,and other international market,After 7 years of development and growth,we have the warehouse in UK,USA,AU,Germany,CA,so that we can directly deliver the products to our customers on fast way .Cyclebike will focus on the electric bicyele,scooters,and will do best for outdoor bicycle driving and power .We warmly welcome domestic and foreign customer inquiries for OEM and ODM business cooperation.
Exhibitions and Certifications
Payment &shipping
FAQ
1 . Can I get sample for testing market?
A:Yes . Sample order is available for quality check and market test.
2 . Delivery time for sample orders?
A:It usually takes about 15 days for sample,35-45days for mass productions order based on specifications for your order and quantity.
3 . What's your payment terms?
A:T/T , L/C at sight , Western Union , Paypal , Trade Assurance .
4 .What's your warranty terms ?
A:We offer different warranty time for different components,please contact us for details
5 . Do you have the products in stock?
A:Yes,Hot selling models are in stock
6 . Can I mix different models in one container?
A: YES.different models can be mixed up in one fully container.
7.How does your factory do regarding the quality control?
A:Quality is priority.We always attract great importance to quality control from the very beginning to the end of production.Every product will be fully assembled and carefully tested before packing and shipping.
