Солнечный PV автоматический выключатель постоянного тока DC 500V переменного 2

Описание и отзывы

Характеристики

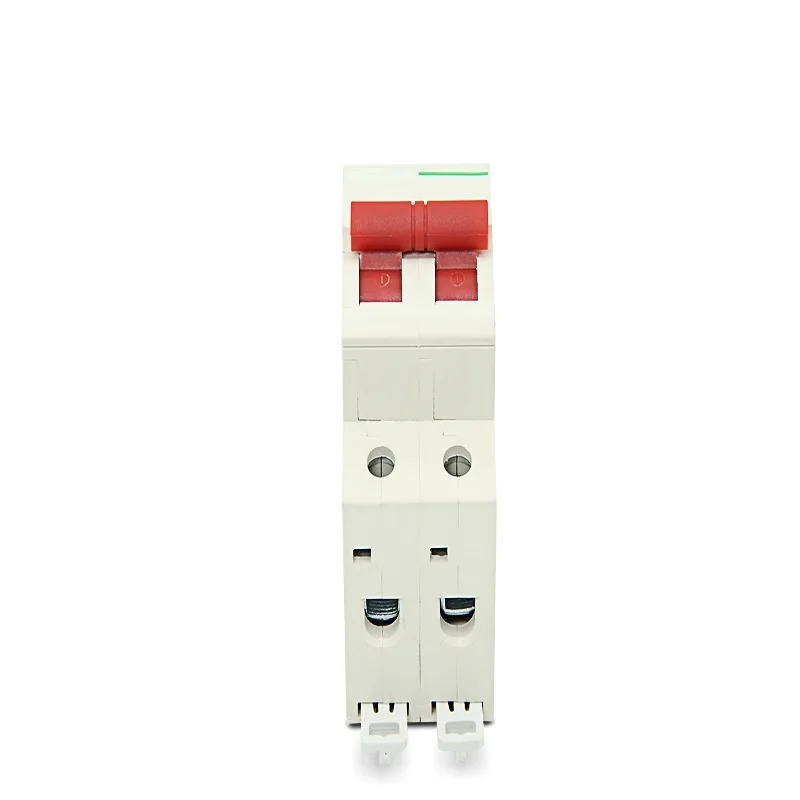

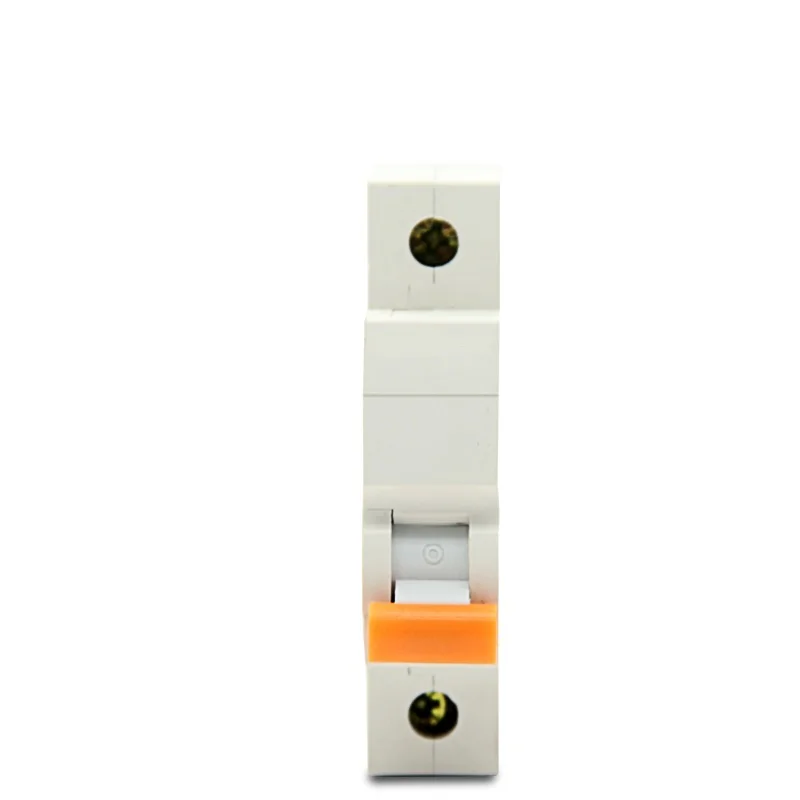

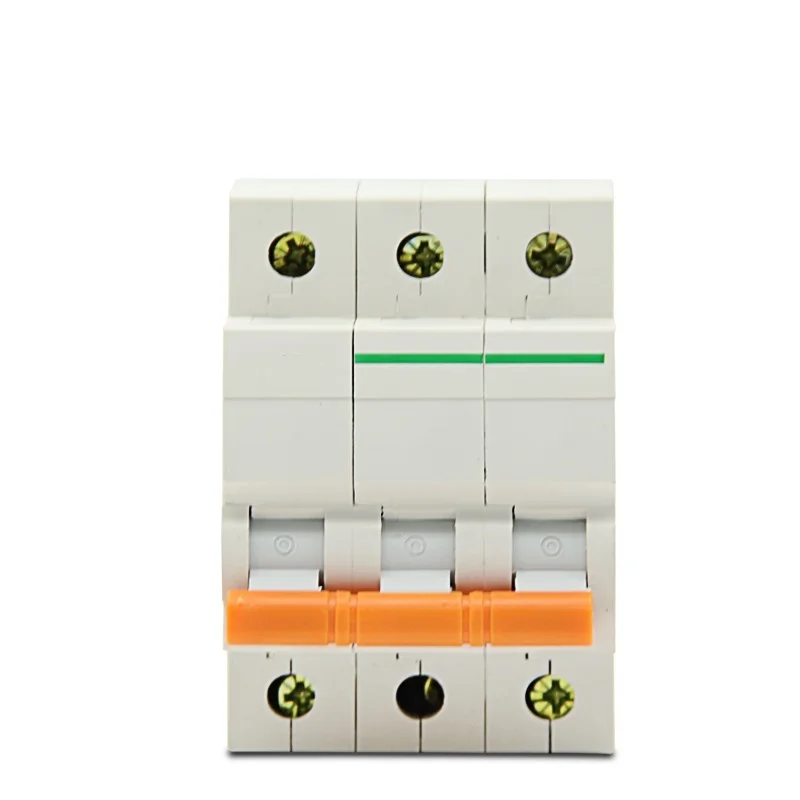

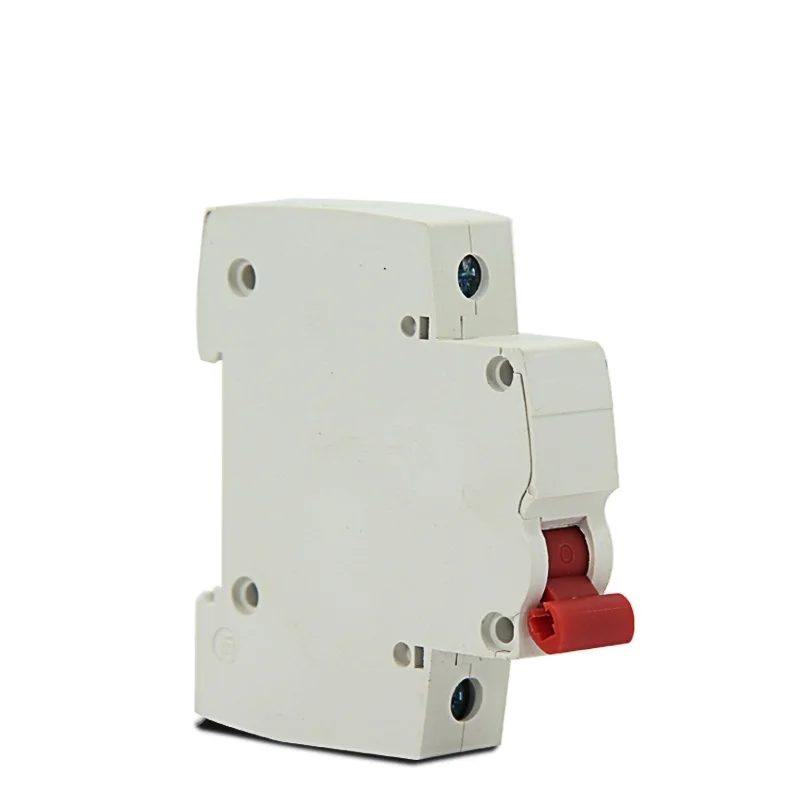

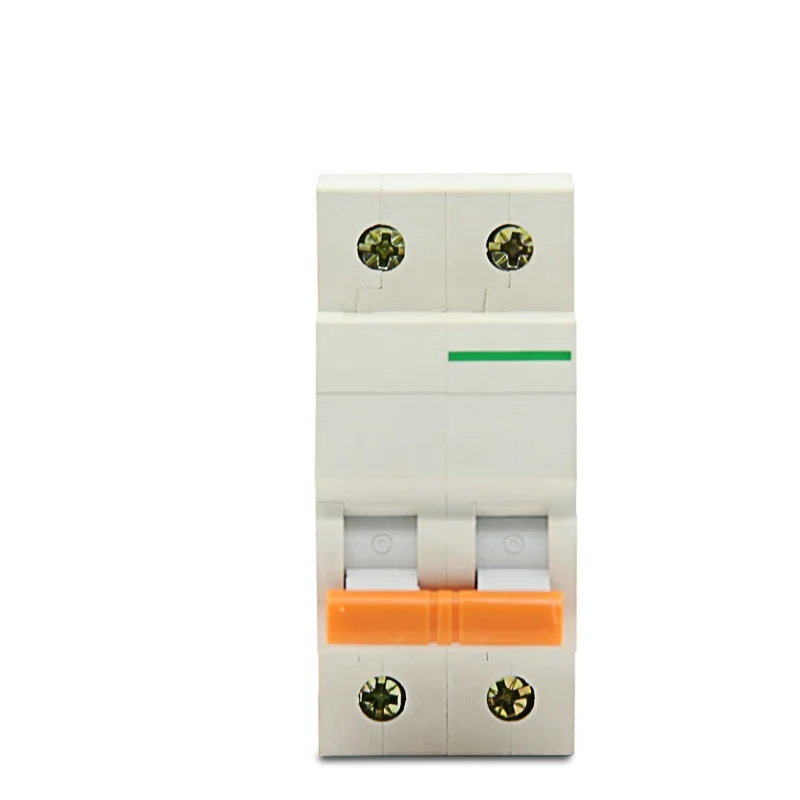

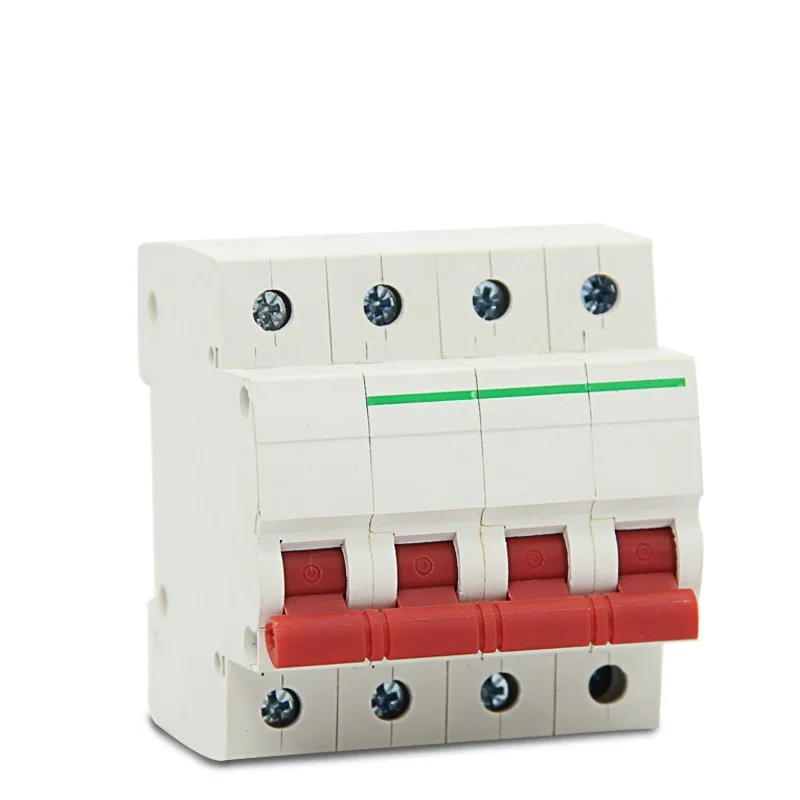

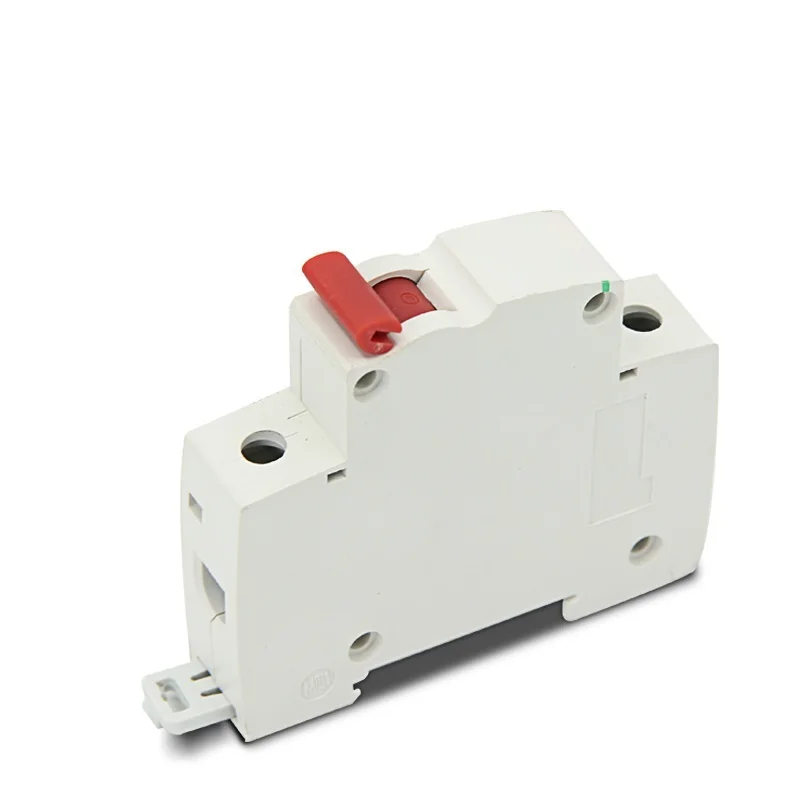

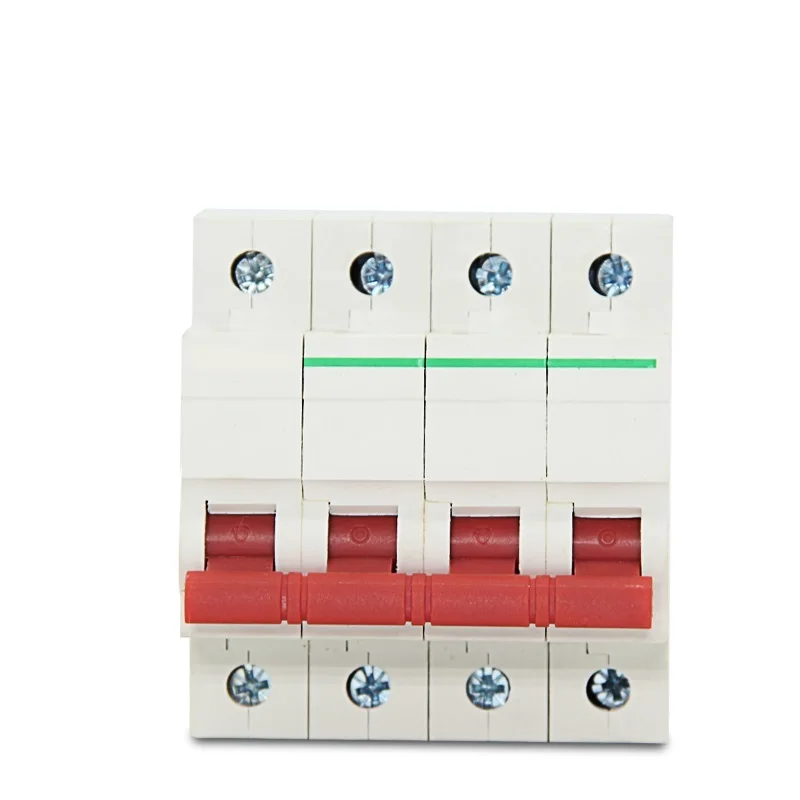

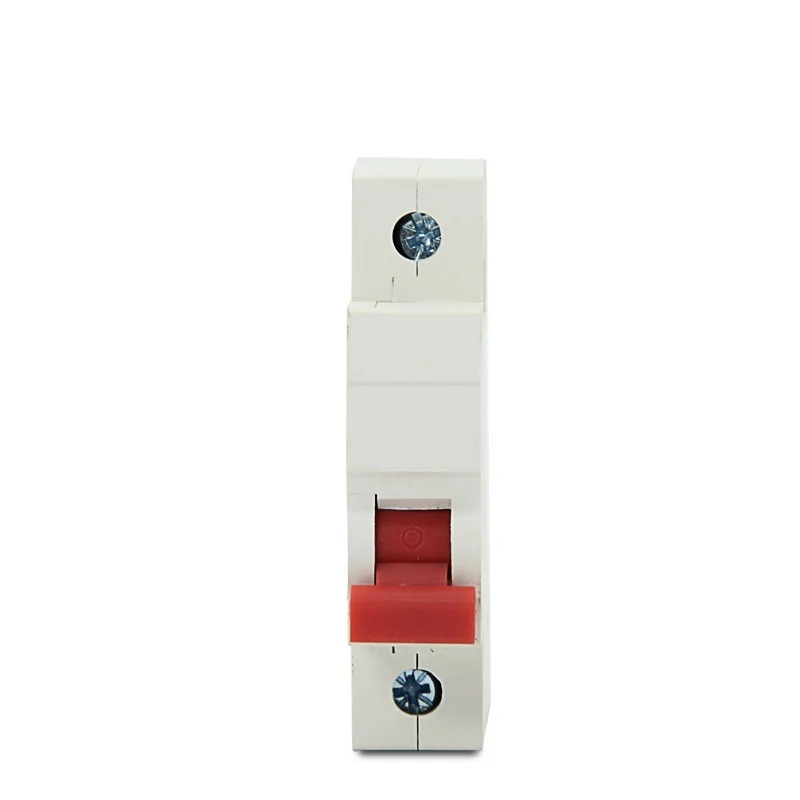

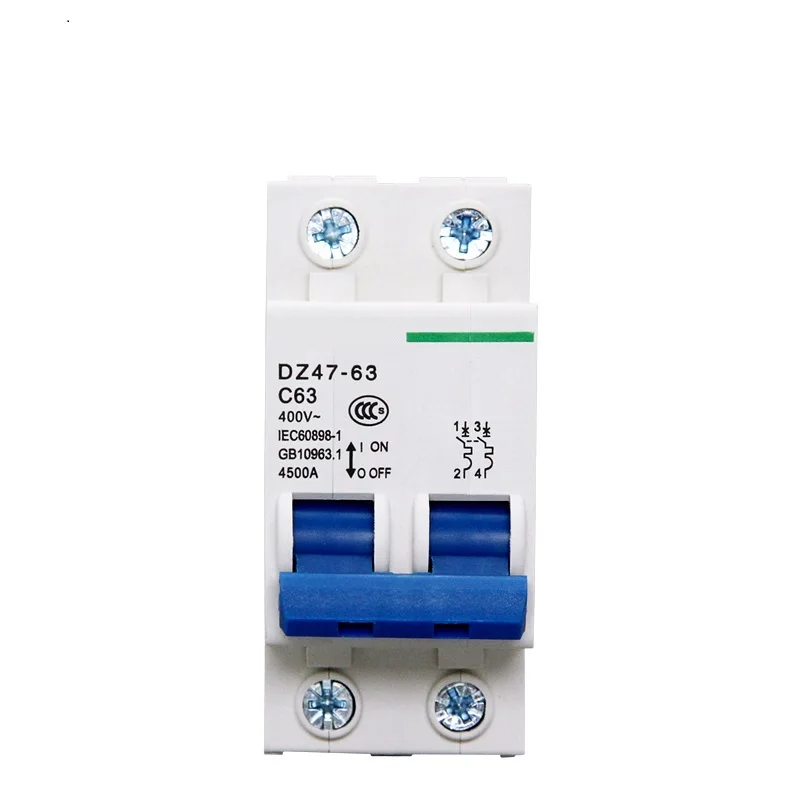

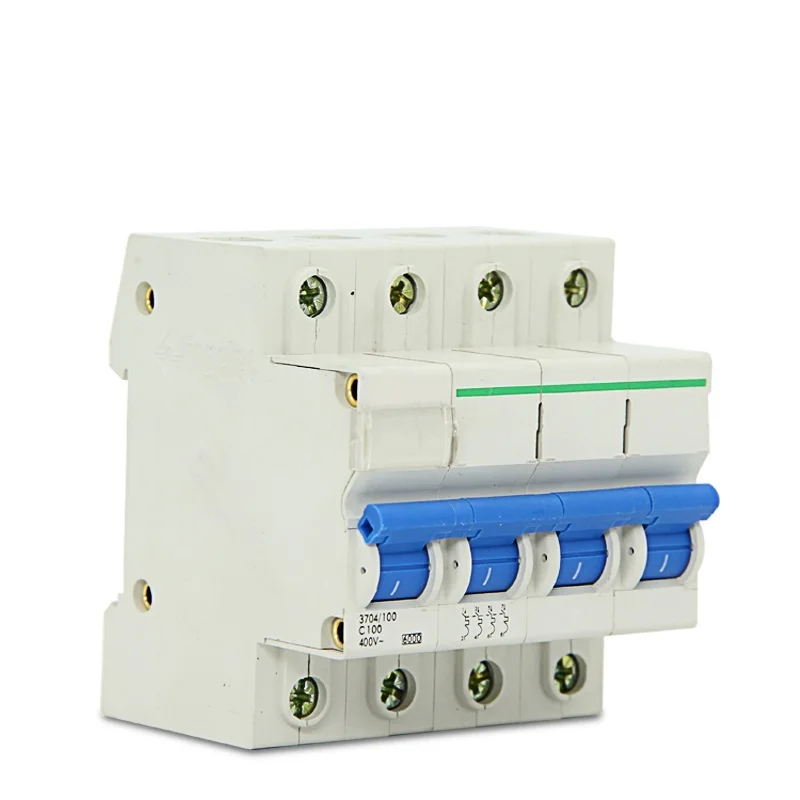

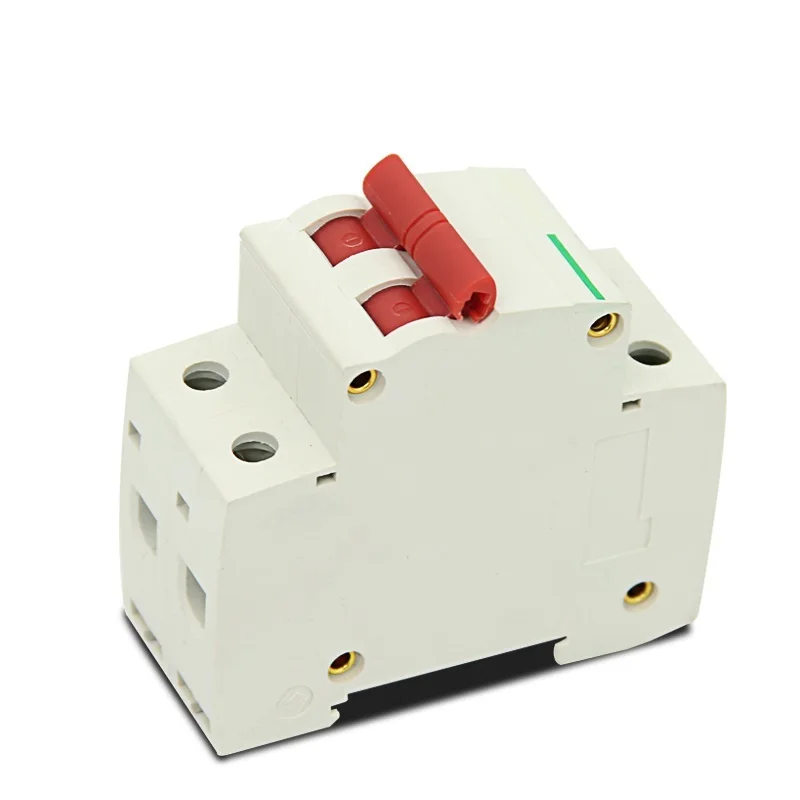

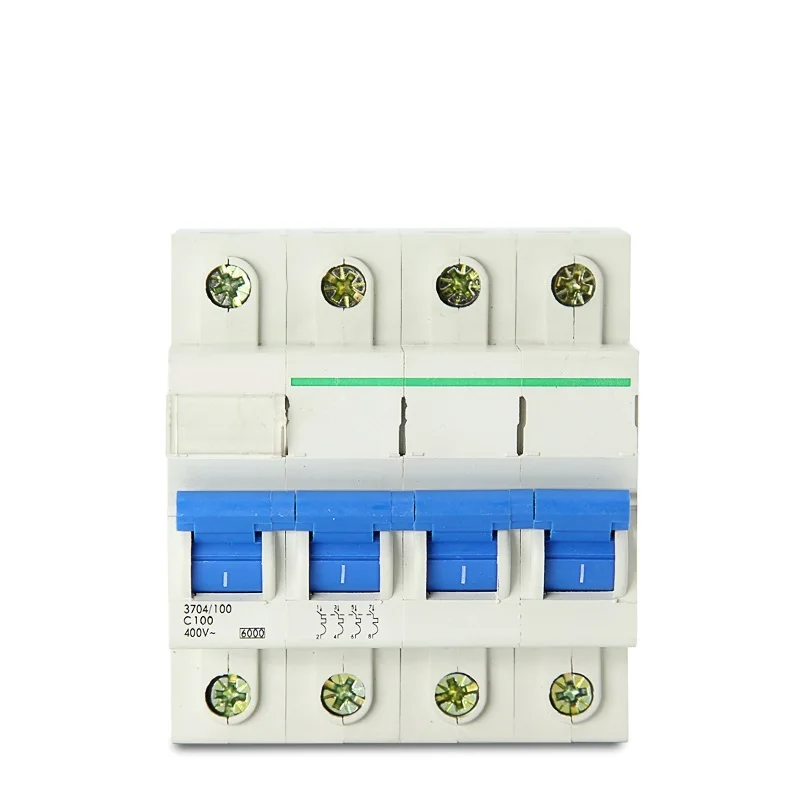

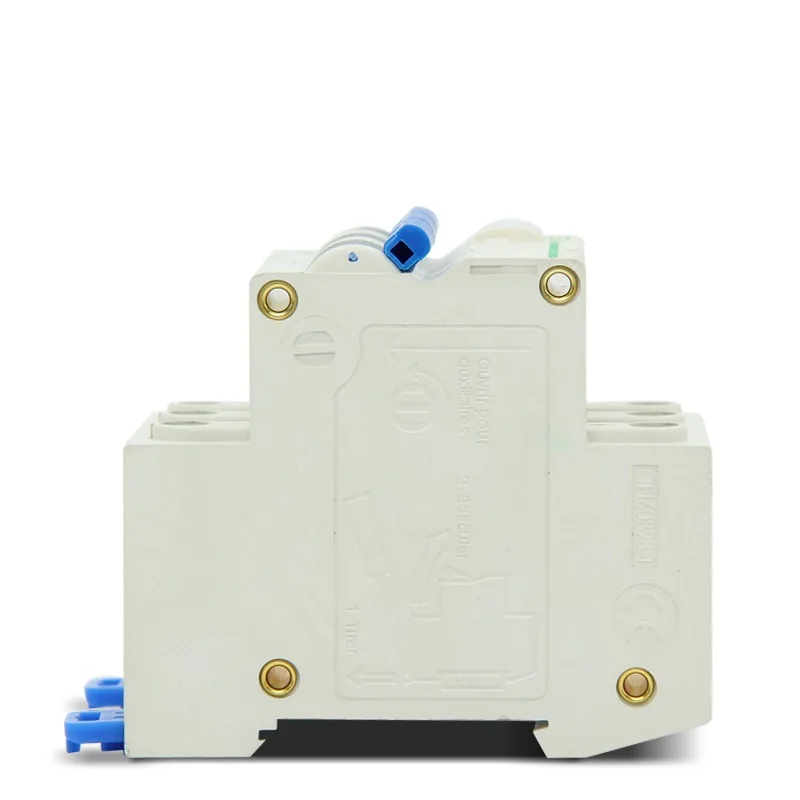

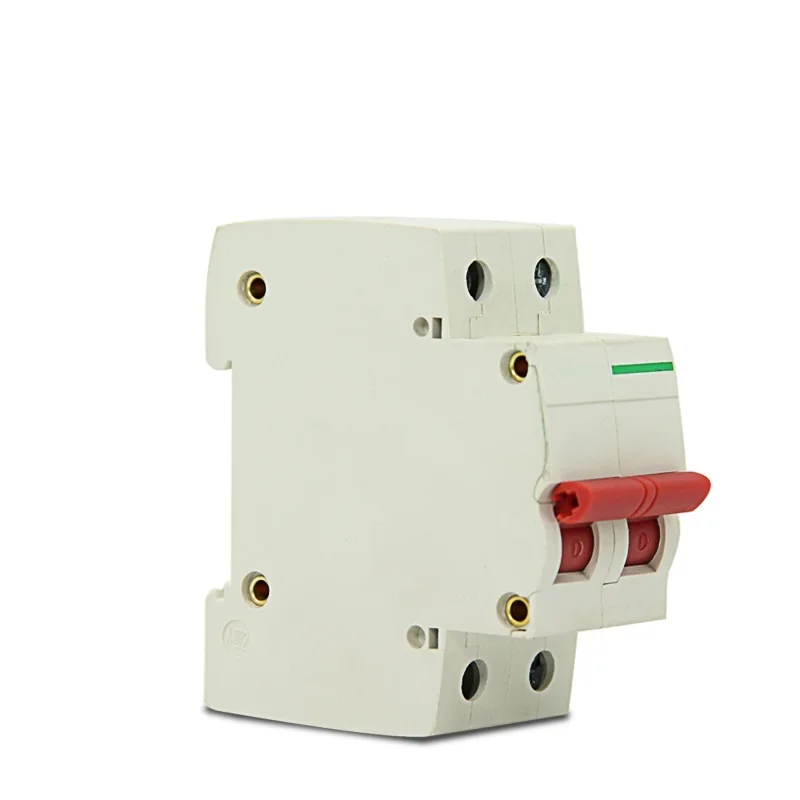

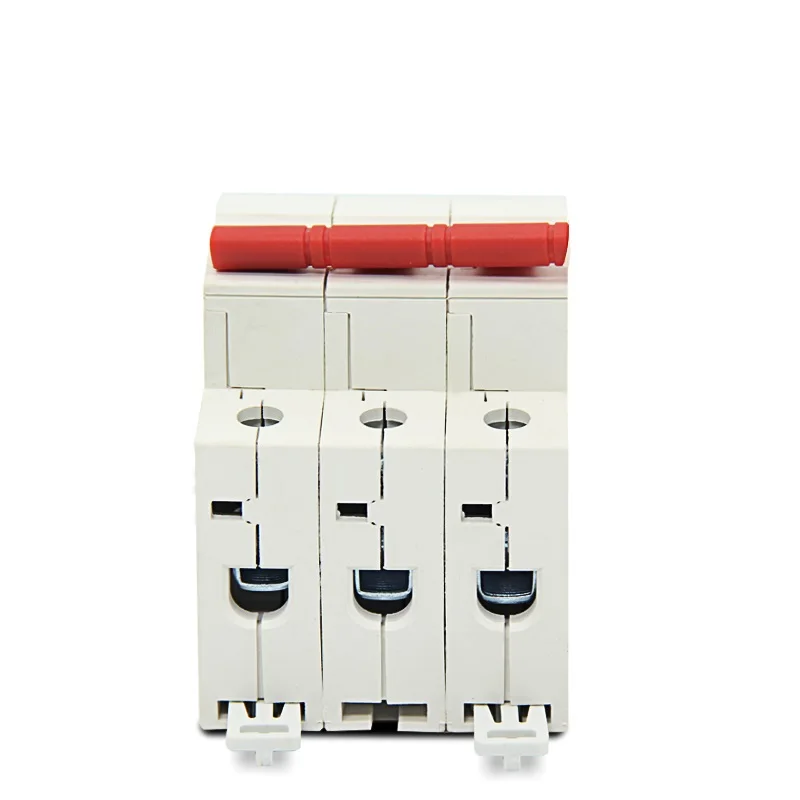

miniature circuit breaker(MCB) is mainly used for protection against overload and the short circuit under the AC 50Hz/60Hz, rated voltage 230V/400Vand rated current from 1A to 63A. It also can be used for non-frequent on-and-off switch operations under normal circumstances.

*In compliance with IEC /EN60898-1

*With indicator function in the contact position.

*Single busbar design.

*Maximum connecting ability of 25mm², wiring torque 3N*m, applicable to a variety of installing equipment, wiring stronger.

*The price-quality ratio is very high.


Electrical features
Rated current In	1-63A
Poles	1P 2P 3P 4P
Rated voltage Ue	1P:230/400V~  2/3/4P:400~
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated breaking capacity	4500/6000A
Rated impulse withstand voltage(1.2/50)Uimp	6kV
Dielectric test voltage at and ind. freq. for 1min	2kV
Pollution degree	2
Thermo-magnetic release characteristic	B C D
Electrical life	4000
Mechanical life	10000
Installation
Contact position indicator	Yes
Protection degree	IP20
Reference temperature for the setting of the thermal element	30ºC
Ambient temperature (with daily average s35C)	-5~+40ºC
Storage temperature	-25~+70ºC
Terminal connection type	Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable	25mm² 18-3
Tightening torque	3.0N*m
	22
Mounting	On DIN rail FN 60715(35mm)
	by means of a fast clip device
Connection	Top and bottom
Combination with accessories
Auxillary contact	Yes
alarm contact	Yes
Shunt release	Yes
Under-voltage release	Yes

G.W./N.W.: 15/14.5kgsDC MCB Delivery Time:

3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.

DC MCB Shipping:

1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
