FEELWORLD F6 V2 6" 4K HDMI On camera Monitor with hdmi in and out
Specifications
Display Spec.
| Model | F6 |
| Screen Size | 5.7" IPS |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.0657x0.0219 mm |
| Aspect Ratio | 16:9 |
| Brightness | 460cd/m² |
| Contrast Ratio | 1400:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
Input
| 1 X HDMI | HDMI |
Output
| 1 X DC Output | DC Output |
Audio
| Audio | Stereo Headphone |
HDMI Input/ Output Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
General
Input Voltage | DC7~24V |
| Power Consumption | ≤8W |
| Power Connector | DC |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | (3) ¼-20 thread points (top, bottom, & right side) |

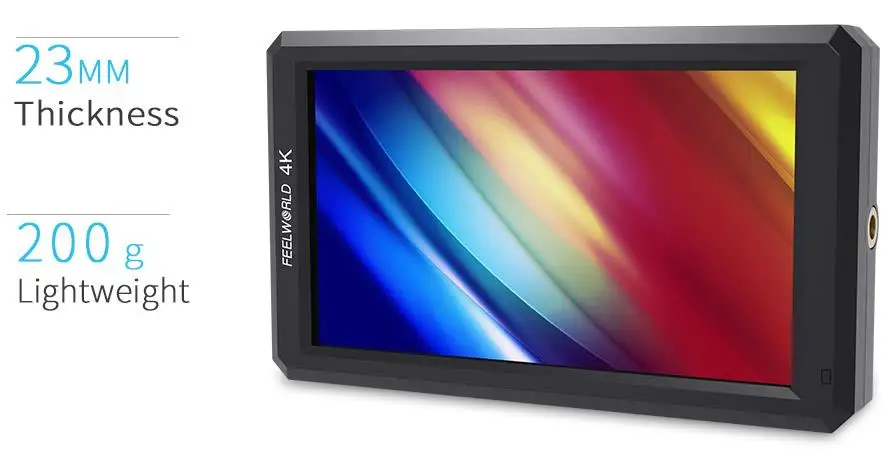

| Unit Size | 154Lx90Hx23D (mm) |
| Unit Weight | 200g |
| Color Box Size | 186L*124W*80H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 465*200*326 (mm) |
| Gross Weight | 6.3kgs |
Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Advanced Features
* Brightness Histogram |
| * Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) |

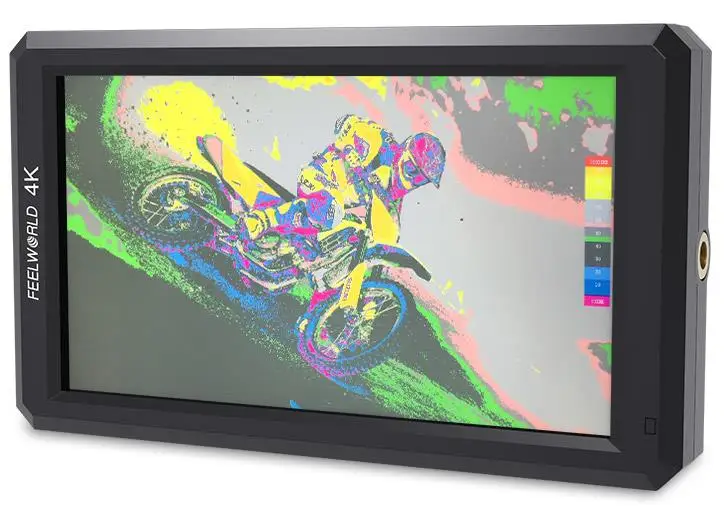

| * False Colors |
| * Zebra Exposure (1-100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.3x, 2.0x, 2.0x mag) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%, 2.35:1) |
| * Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) |
| * Color Temperature Adjustment |
| * Nine Grid (Zoom one of the images to realize the full screen) |
| * Zoom (4X, 9X, 16X) |
| * Aspect Ratio |
| * Pixel to Pixel |
| * Zoom All |
| * U/D Zoom |
| * L/R Zoom |

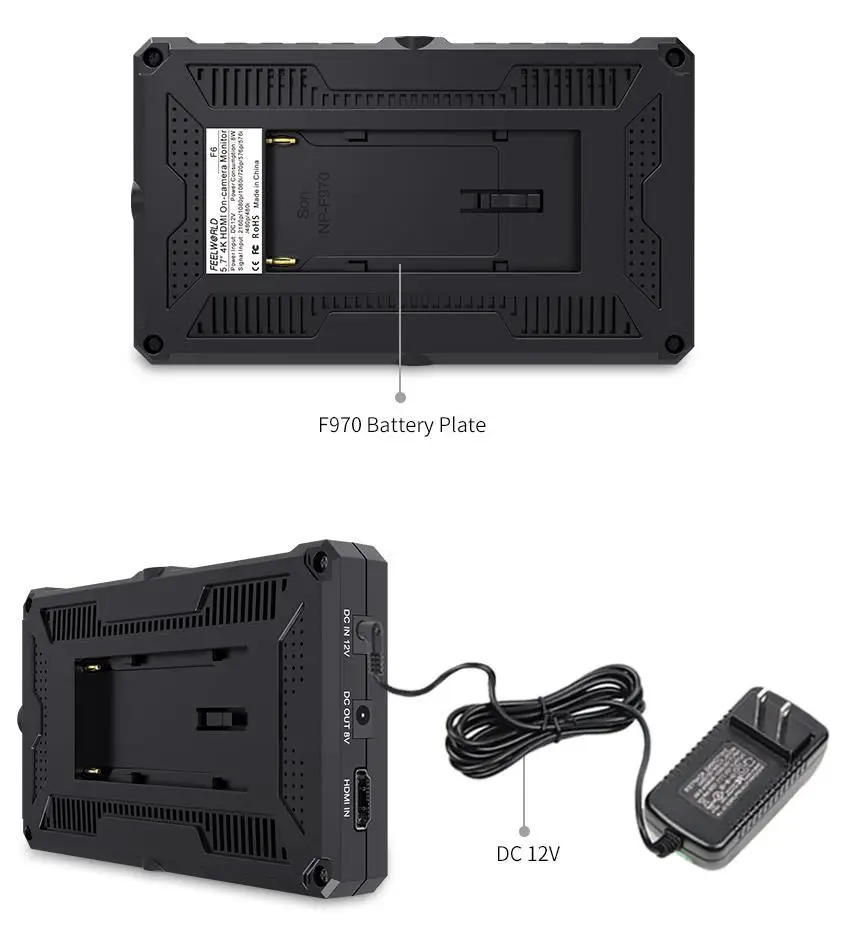

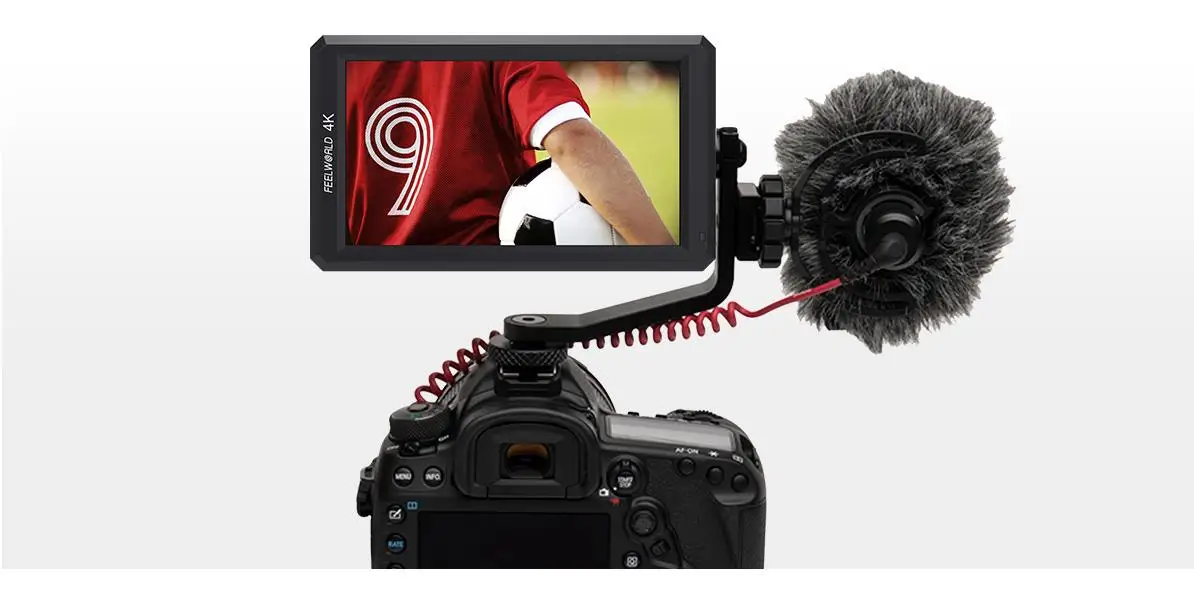

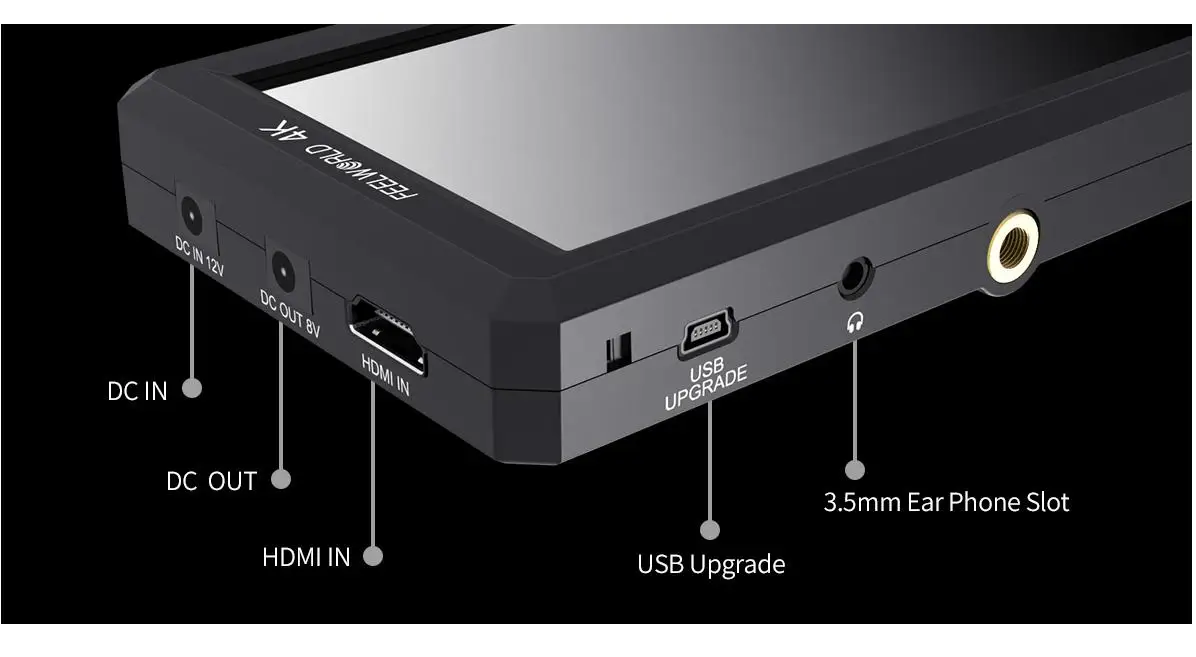

FEELWORLD F6 V2 is jam packed with features in a small, lightweight package. It is equipped with 4K HDMI input interface, so you can connect monitor to various 4K camera. You can monitor audio using the 3.5mm stereo headphone jack. And FEELWORLD F6 not only DC input interface, but also equipped with a DC output interface, It also equipped with DC input and output interfaces, you can connect a dummy battery adapter power cable to extend camera working time. (NP-FW50 Sony & LP-E6 Canon&DMW-BLF19 Panasonic for optional).
