Technical Parameters
Operating voltage: DC6V-60V
Output voltage: Load -
Maximum current: 30A
Continuous current: 20A
Speed Type: adjus-ting f-l-o-w
Speed regulation mode: potentiometer (0-5V)
Speed range: 0% - 100%
Connection: Barrier Terminal Blocks
PWM Frequency: 15KHZ
Connection type: fence terminal
Speed mode: potentiometer (with switch function)
Knob length: 20CM
Module size: 78*45*28mm
Main board ins-tallation size: 72* 39mm
Potentiometer openings ins-tallation size: 7mm
Net weight: 66g
Packaged Included:

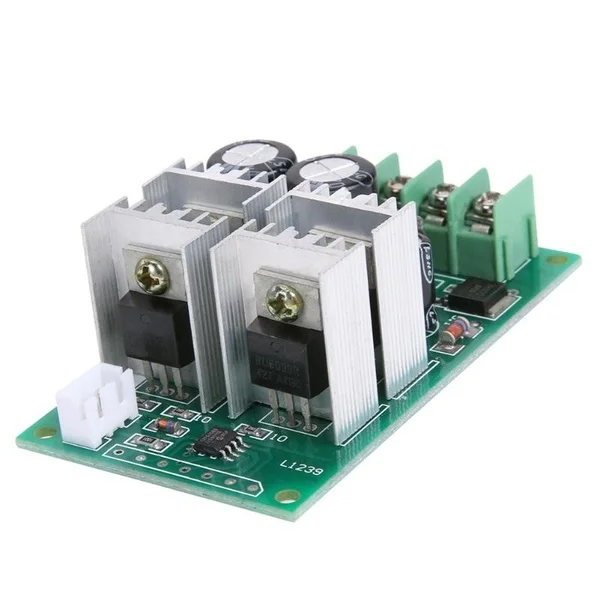

1 X PWM DC Speed Motor Controller
