Китайская фабрика! 5500W 48VDC 230VDC решетки высокой частоты солнечной системы Гибридный инвертор с pwm со слежением за максимальной точкой мощности и
- Категории: >>>
- Поставщик: Guangdong,Panpower,Power,Supply,Co.,Ltd.Guangdong,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Main Features
* 5500W Pure sine wave Output
* Built-in 80A AC Charger
* Built-in 100A MPPT solar charge controller
* PV range 120VDC~450VDC
* Max PV Voltage 500V
* Inverter can work without battery

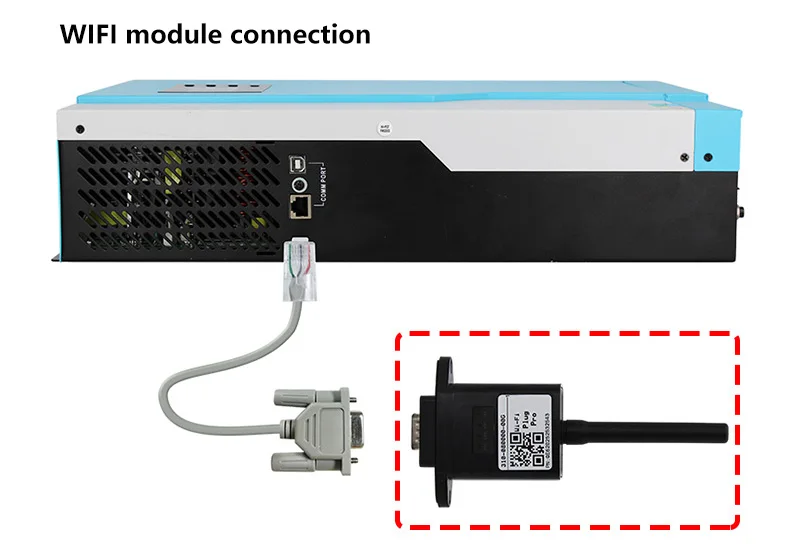

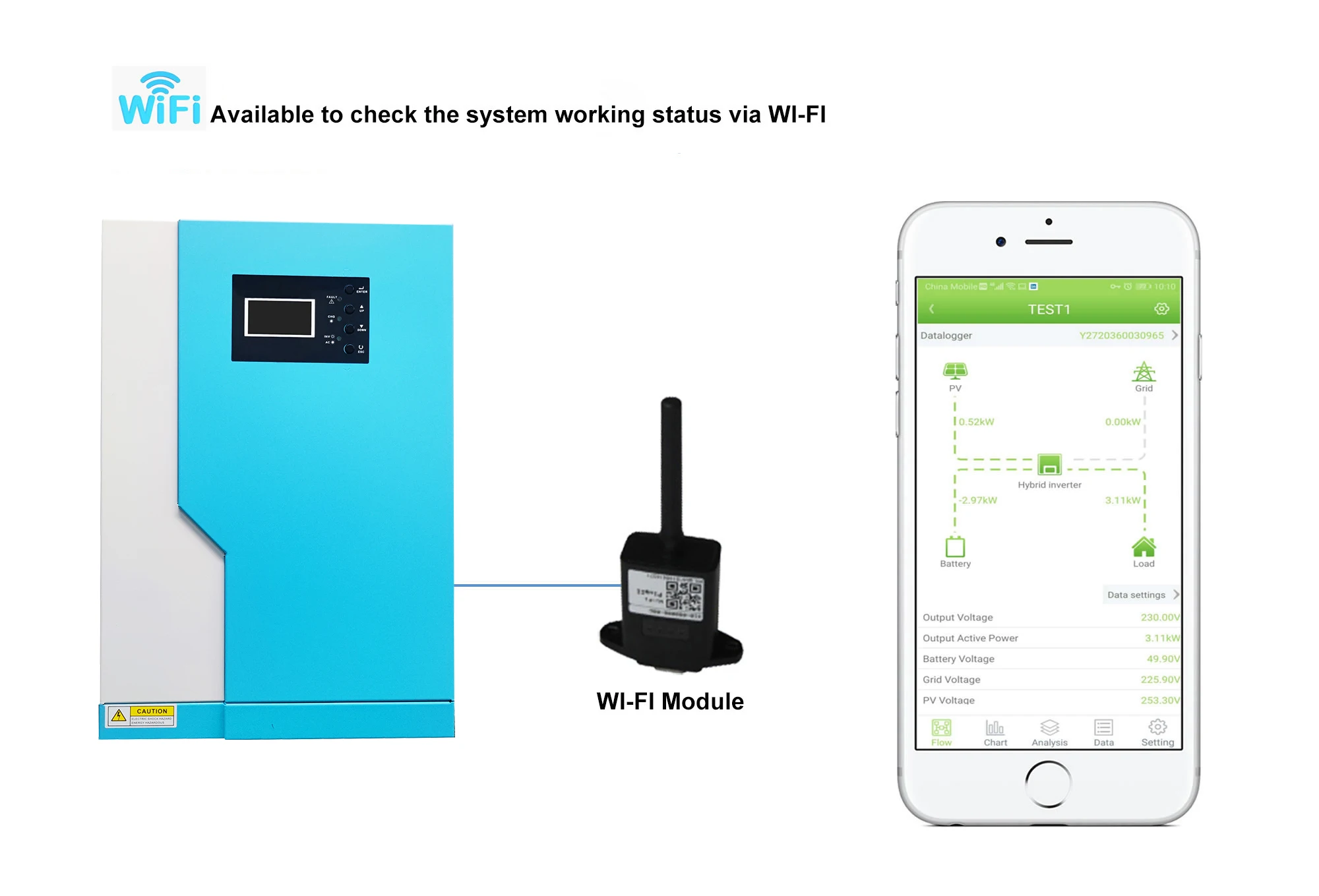

* USB/RS232/WIFI monitor function
* Surges to 2X continuous power for 5 seconds for motor loads
* Overload and short circuit protection
* Selectable charging current based on applications
* Configurable AC/Solar input priority via LCD setting
* Compatible to mains voltage or generator power
* Smart battery charger design for optimized battery performance
* Selectable input voltage(90V~280V) range for home appliances and personal computers
* Built-in 80A AC Charger
* Built-in 100A MPPT solar charge controller
* PV range 120VDC~450VDC
* Max PV Voltage 500V
* Inverter can work without battery
* USB/RS232/WIFI monitor function
* Surges to 2X continuous power for 5 seconds for motor loads
* Overload and short circuit protection
* Selectable charging current based on applications
* Configurable AC/Solar input priority via LCD setting
* Compatible to mains voltage or generator power
* Smart battery charger design for optimized battery performance
* Selectable input voltage(90V~280V) range for home appliances and personal computers

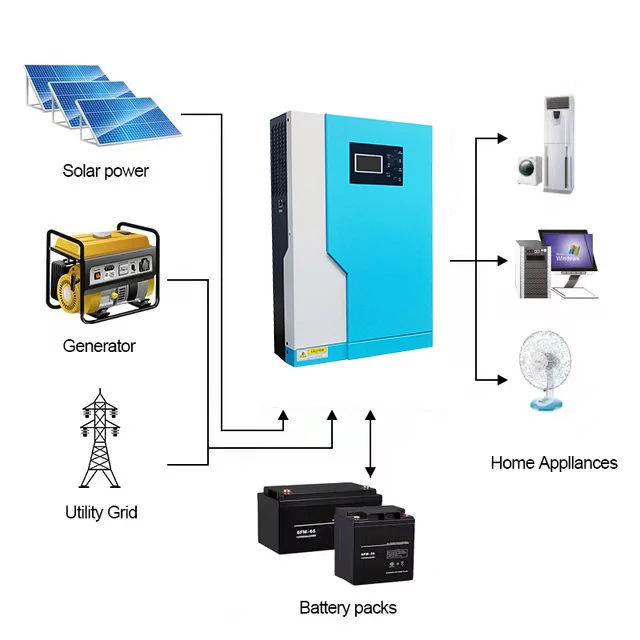

System Diagram
Technical Parameters

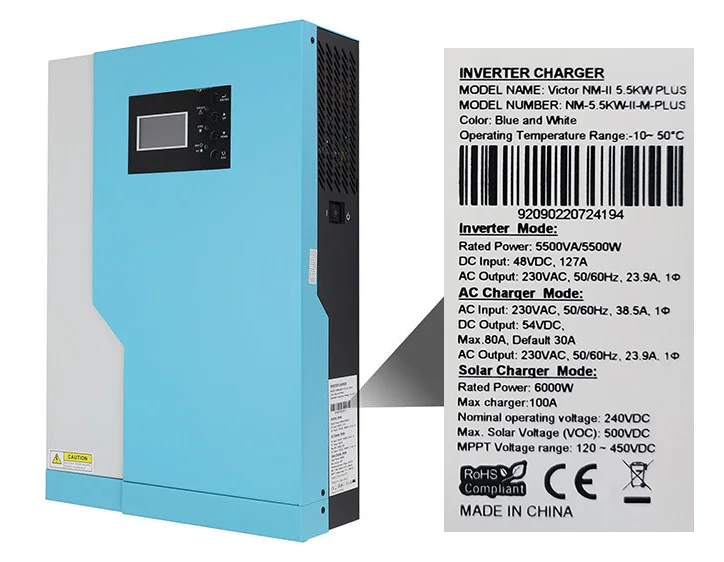

Model | Victor NM-II 5.5KW-PLUS | |||
RATED POWER | 5500VA / 5500W | 5500VA / 5500W | ||
INPUT | ||||
Voltage | 230 VAC | |||
Voltage | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliance) | |||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
OUTPUT | ||||
AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |||
Surge Power | 11000VA | 11000VA | ||
Efficiency (Peak) | 94% | |||
Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |||
Waveform | Pure sine wave | |||
BATTERY | ||||
Battery Voltage | 48VDC | 48 VDC | ||
Floating Charge Voltage | 54VDC | 54 VDC | ||
Overcharge Protection | 63VDC | 63 VDC | ||
SOLAR CHARGER & AC CHARGER | ||||
Max. PV Array Open Circuit Voltage | 500VDC | 500VDC | ||
Max. PV Array Power | 6000 W | 6000 W | ||
MPP Range @operating Voltage | 120~450VDC | 120~450VDC | ||
Max. Solar Charge Current | 100 A | 100 A | ||
Max. AC Charge Current | 80 A | 60 A | ||
Max. Charge Current | 100 A | 100 A | ||
PHYSICAL | ||||
Dimension, D x W x H (mm) | 100 x 300x 440 | |||
Net Weight(kgs) | 10 | 10 | ||
Communication Interface | USB/RS232 | |||
ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||
Operating Temperature | -10° C to 50° C | |||
Storage Temperature | -15° C to 60° C | |||

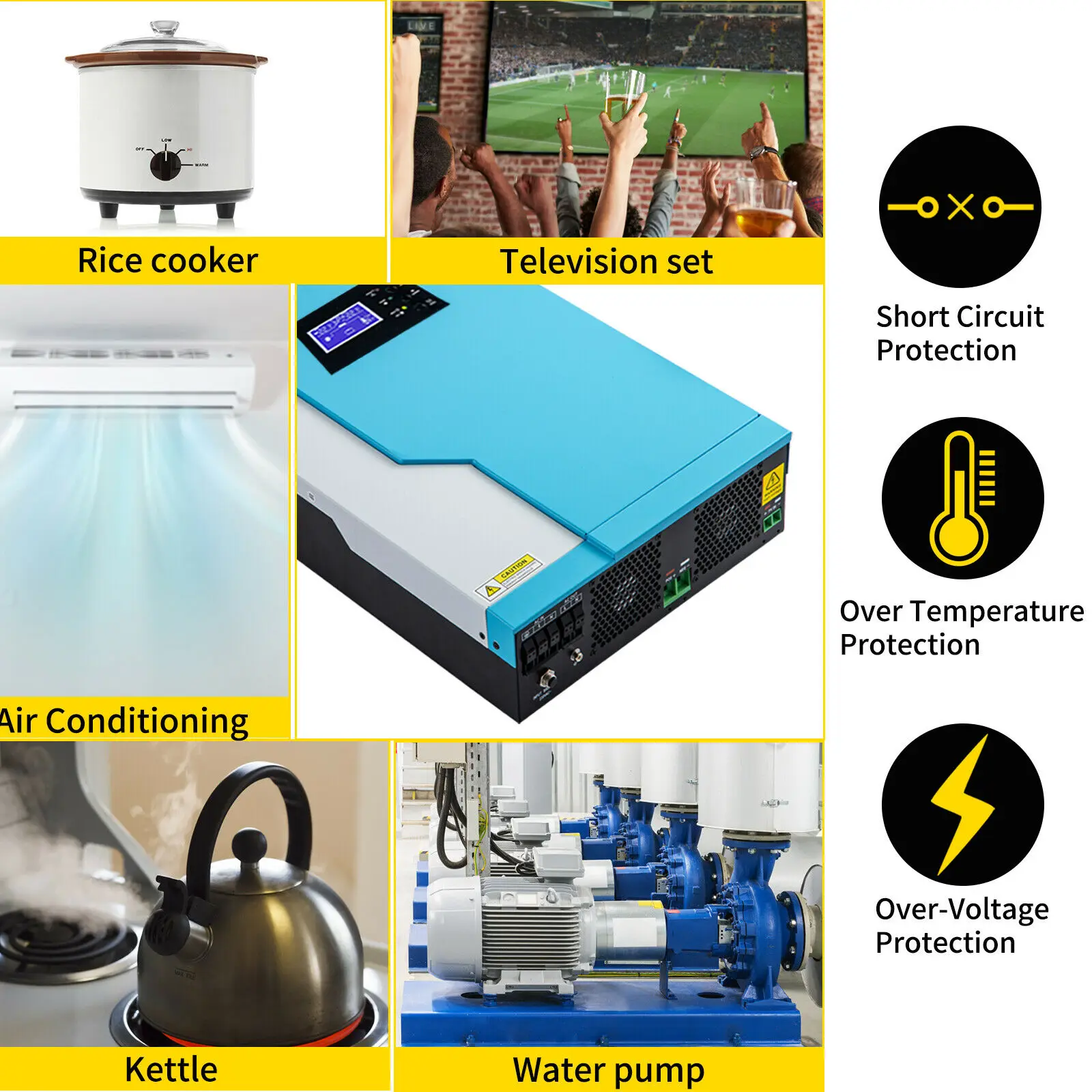

Product Description

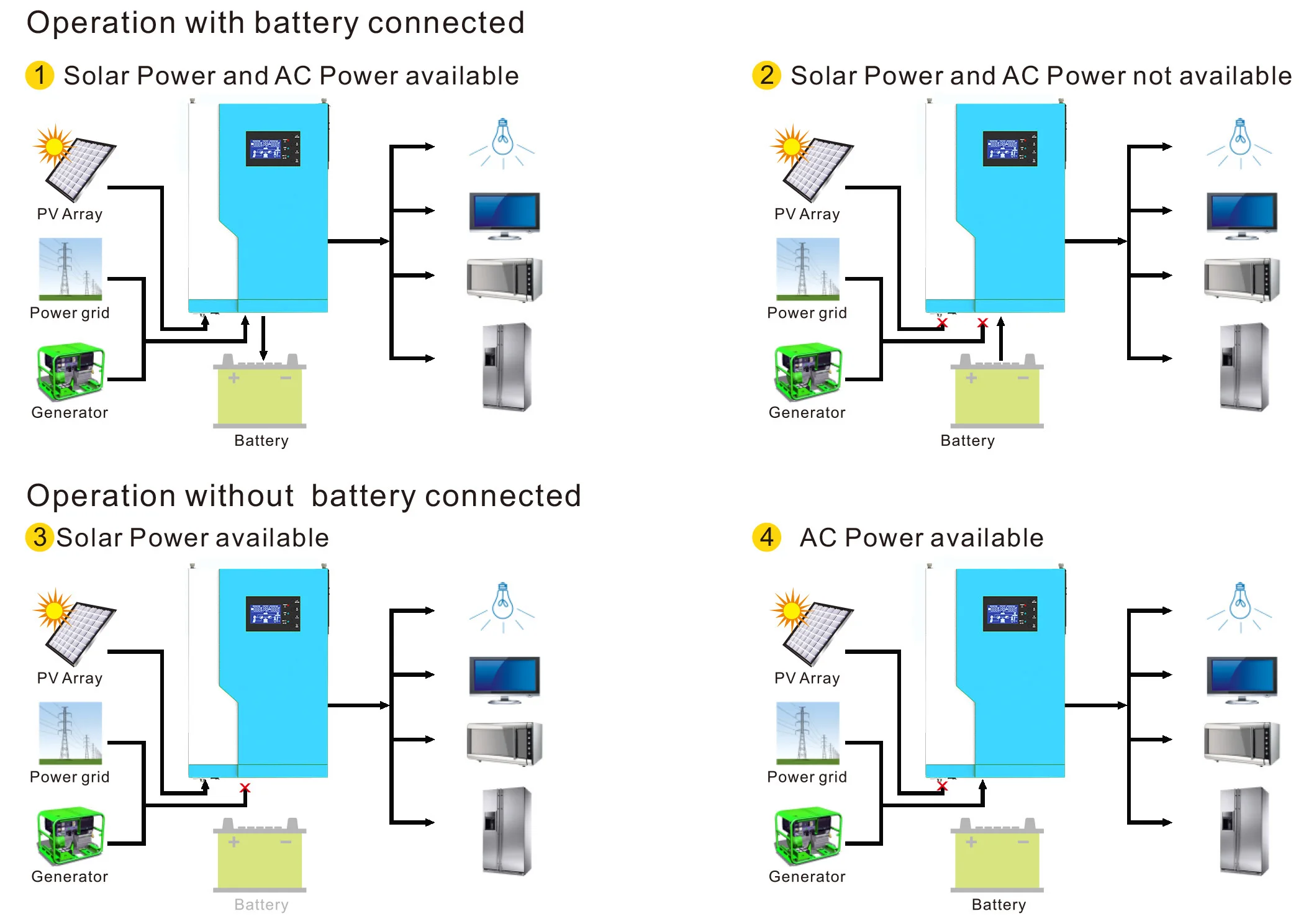

Working Diagram
Company Profile

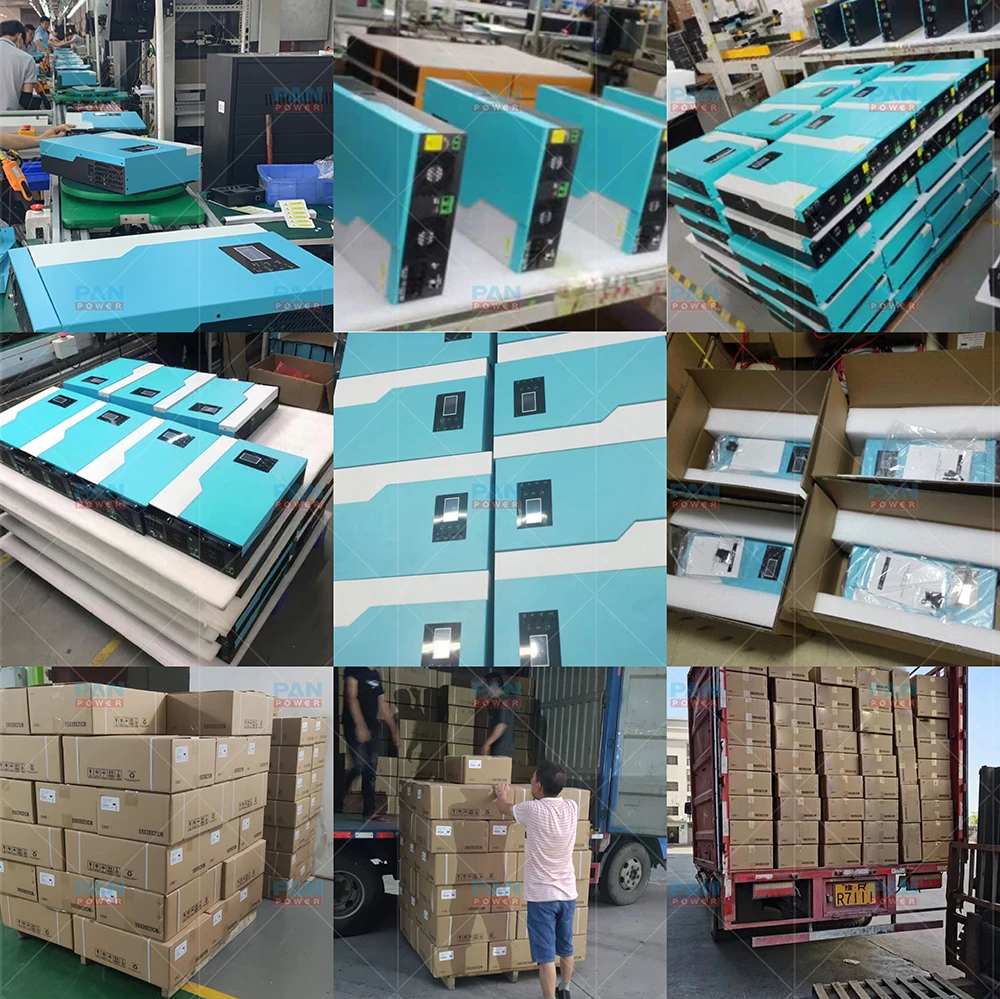

Product packaging
FAQ
Q: What’s the payment term?
A: T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q: What kind of output you can do?
A: Normally single phase 110V 120V 220V 230V 240V 50/60Hz, and three phase 220V 380V 400V 415V 440V 50/60Hz.
A: T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q: What kind of output you can do?
A: Normally single phase 110V 120V 220V 230V 240V 50/60Hz, and three phase 220V 380V 400V 415V 440V 50/60Hz.
