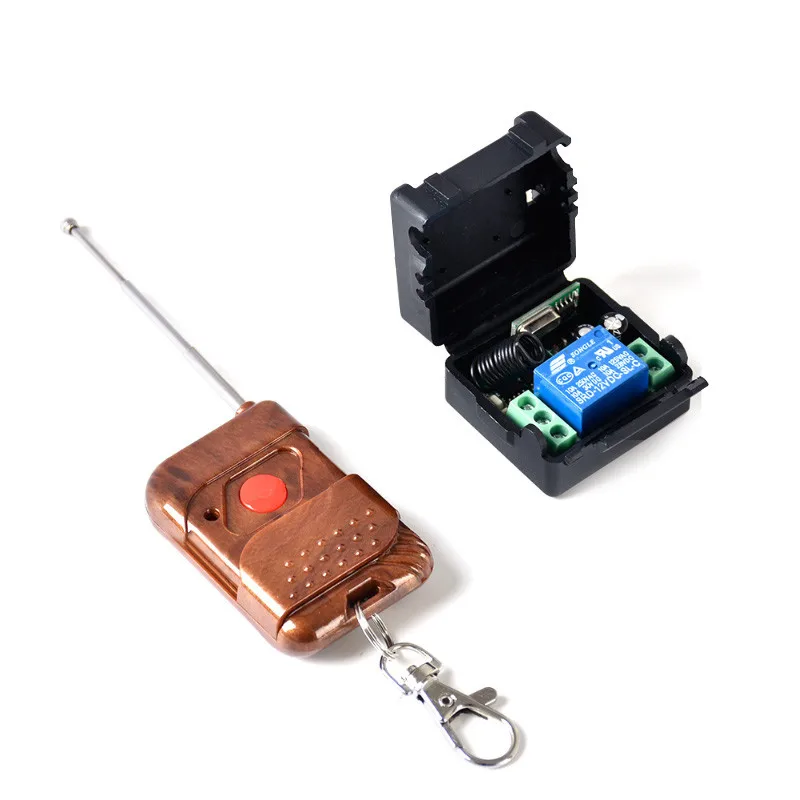

One Channel Wireless Universal 433.92MHz 315Mhz RF Smart Access Control Telecontrol Distance Remote Control
Product Description
Model number | HMT-RC15Y |
Product name | Single channel access control remote control |
Working frequency | 315mhz or 433mhz |
Channel | Single Channel |
Remote Control Distance | 0-50m |
Operating voltage | DC12V |
Remote size | 58*37*13mm |
Receiver size | 45*38*16mm |
Max charge current | 10A |
Application | Access control system |
Specification:
1. Transmitter
Channel: 1 CH
Remote Control Distance: 0-50m
(Please notice that is the ideal distance without any block and signal interfere, it would rise and fall about 10%-50% with the block and signal interference.)
Encode: Fixed code, soldering 2260 2262
Frequency: 315MHz or 433MHz (Default 315MHz)
2. Receiver
Channel: 1CH
Power Supply (Operating Voltage): DC 12V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Sensitivity: -105 dBm
Operating Temperature: -40 C ~ +80 C
Size: 35 mm x 32 mm x 17 mm
Output way: Inter-lock
Working/output way:
Latched/Inter-Lock: Press->On; Press other button->Off
Press one button is working/ON, press another button is stop/OFF. ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
Learning and removing method:
1. There is a learning button on the control panel of touch switch, the button is used to learn and remove the code.
2. Press the learning button for one time, the indicator light turns on to off. Press any key on the remote controller, the
indicator flashes two times and off. It means you learn it successfully.
3. It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote controller.
4. Delete remote control method: Keep pressing the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.
Recommend Products

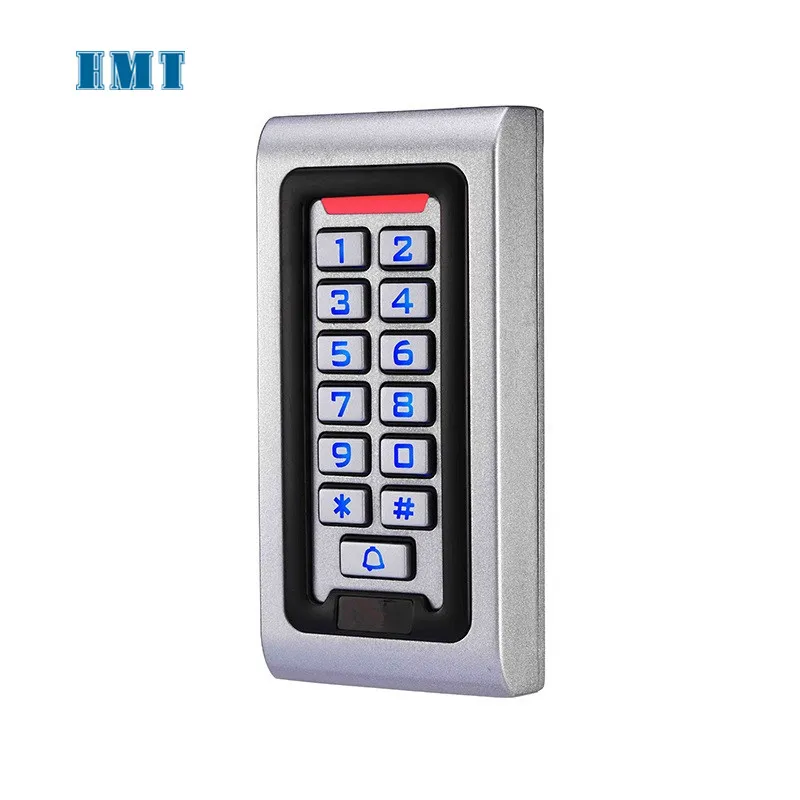

Waterproof 125Khz standalone access controller, HMT-ST56W

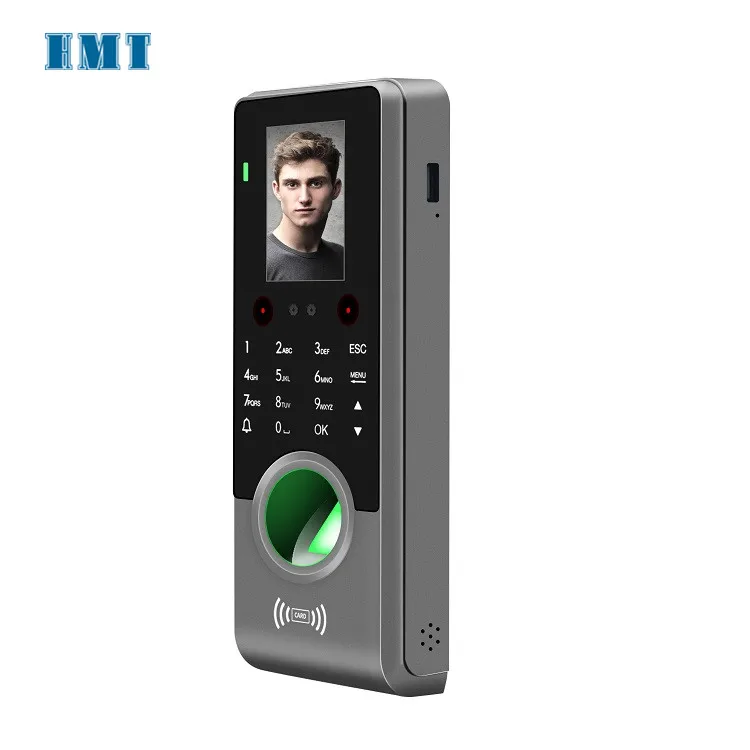

Face fingerprint time attendance with software, HMT-FFX9

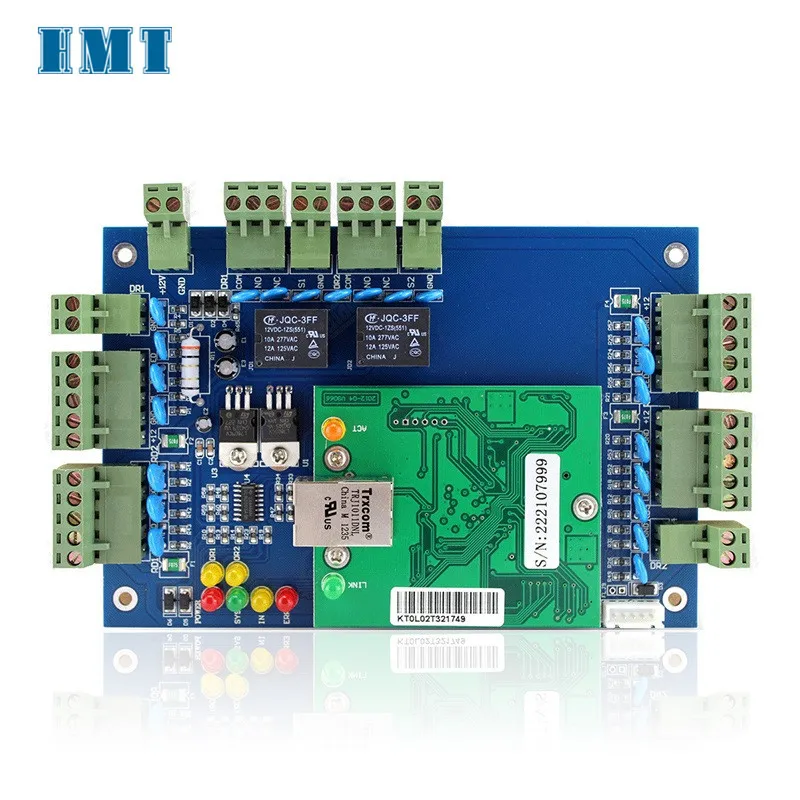

Two door access control board with free software, HMT-Panel02
