product description
Product Paramenters
Model Number | LR5-72HBD-535M | LR5-72HBD-540M | LR5-72HBD-545M | |||||||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | ||||||
Maximum Power(Pmax/W) | 535 | 399.5 | 540 | 403.3 | 545 | 407.0 | ||||||
Open Circuit Voltage(Voc/V) | 49.35 | 46.17 | 49.20 | 46.31 | 49.65 | 46.46 | ||||||
Short Circuit Current(Isc/A) | 13.78 | 11.14 | 13.85 | 11.19 | 13.92 | 11.24 | ||||||
Voltage at Maximum Power(Vmp/V) | 41.50 | 38.69 | 41.65 | 38.83 | 41.80 | 38.97 | ||||||
Current at Maximum Power (Imp/A) | 10.87 | 8.70 | 10.93 | 8.76 | 13.04 | 10.44 | ||||||
Module Efficiency(%) | 20.9% | 20.7% | 20.9% | |||||||||
STC(Standard Testing Conditions):Irradiance 1000w/m²，Cell Temperature 25℃，Spectra at AM1.5.NOCT(Nominal Operating Cell Temperature) | ||||||||||||
Model Number | LR5-72HBD-550M | LR5-72HBD-555M | ||||||
Testing Condition | STC | NOCT | STC | NOCT | ||||
Maximum Power(Pmax/W) | 550 | 411.1 | 555 | 414.8 | ||||
Open Circuit Voltage(Voc/V) | 49.80 | 46.82 | 49.95 | 46.97 | ||||
Short Circuit Current(Isc/A) | 13.98 | 11.31 | 14.04 | 11.35 | ||||
Voltage at Maximum Power(Vmp/V) | 41.95 | 38.97 | 42.10 | 39.11 | ||||
Current at Maximum Power (Imp/A) | 13.12 | 10.56 | 13.19 | 10.61 | ||||
Module Efficiency(%) | 21.5% | 21.7 | ||||||
STC(Standard Testing Conditions):Irradiance 1000w/m²，Cell Temperature 25℃，Spectra at AM1.5.NOCT(Nominal Operating Cell Temperature) | ||||||||
Exhibition
Hefei Pinergy Solar Technology Co., Ltd
Hefei Pinergy Solar Technology Co., Ltd is a professional and world-class manufacturer of crystalline PV modules. The business
covers the R&D, production and sales of PV modules, solar power plants and PV system products,and Ｏ＆Ｍ services, etc. We are
located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world. We are
dedicated to making quality photovoltaic modules for global customers.
Hefei Pinergy Solar Technology Co., Ltd is a professional and world-class manufacturer of crystalline PV modules. The business
covers the R&D, production and sales of PV modules, solar power plants and PV system products,and Ｏ＆Ｍ services, etc. We are
located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world. We are
dedicated to making quality photovoltaic modules for global customers.

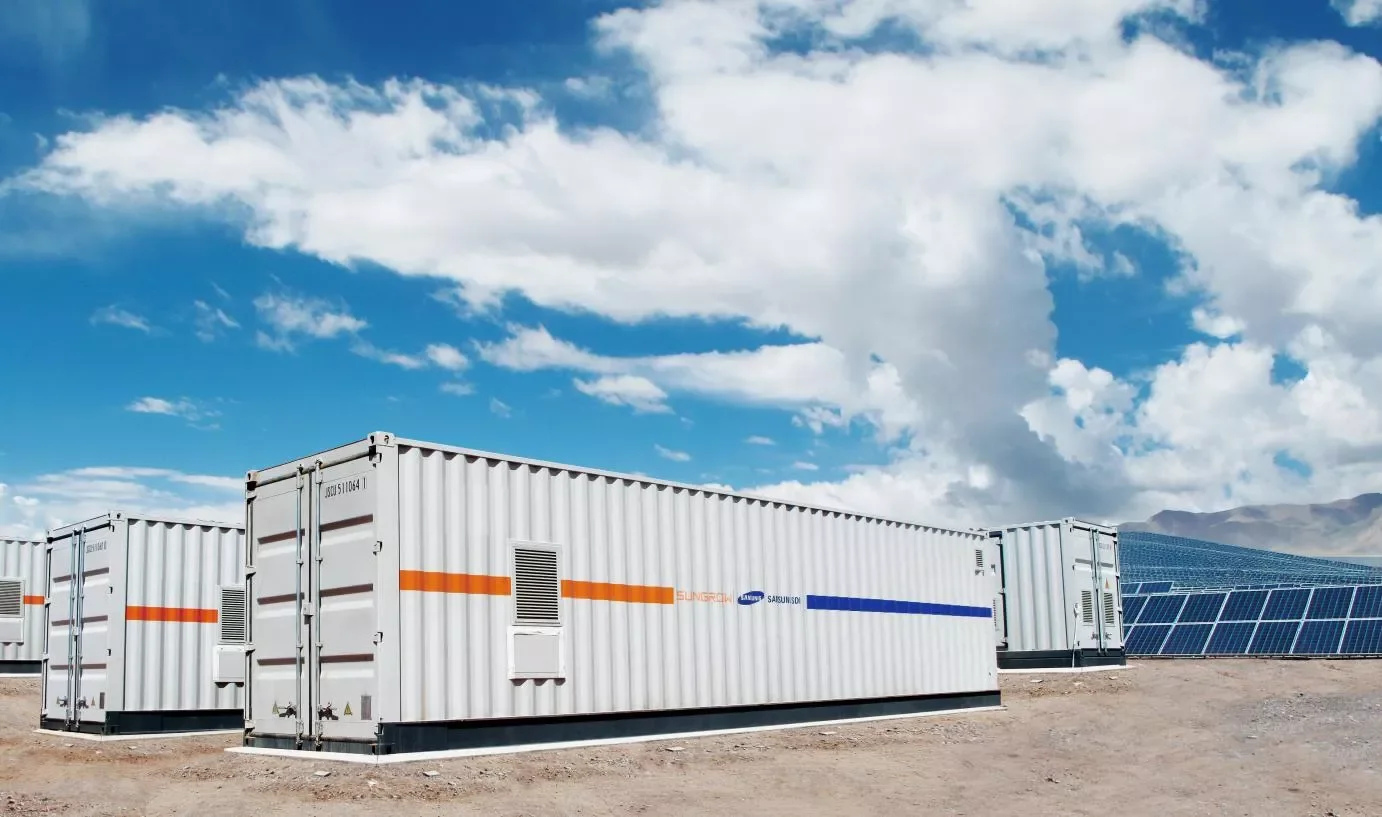

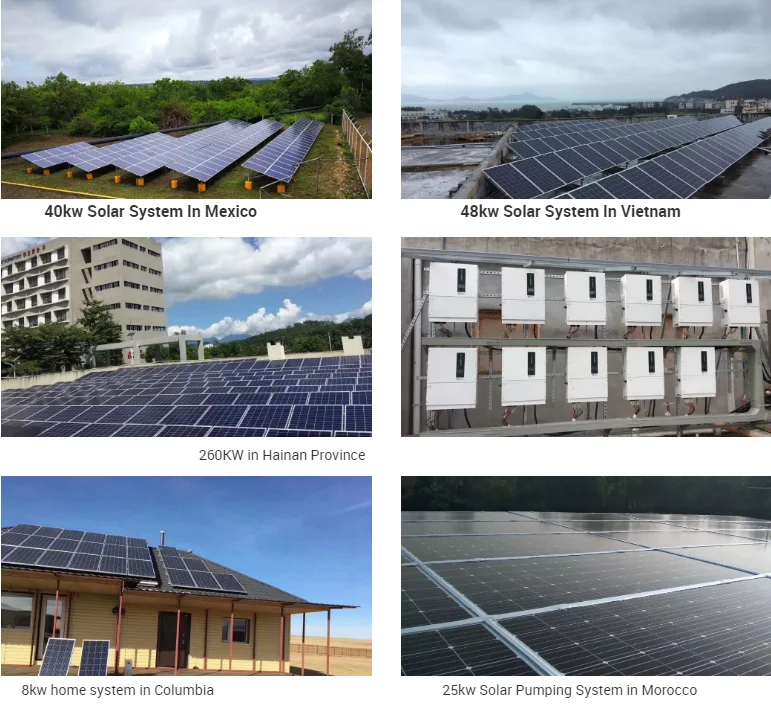

Project Show

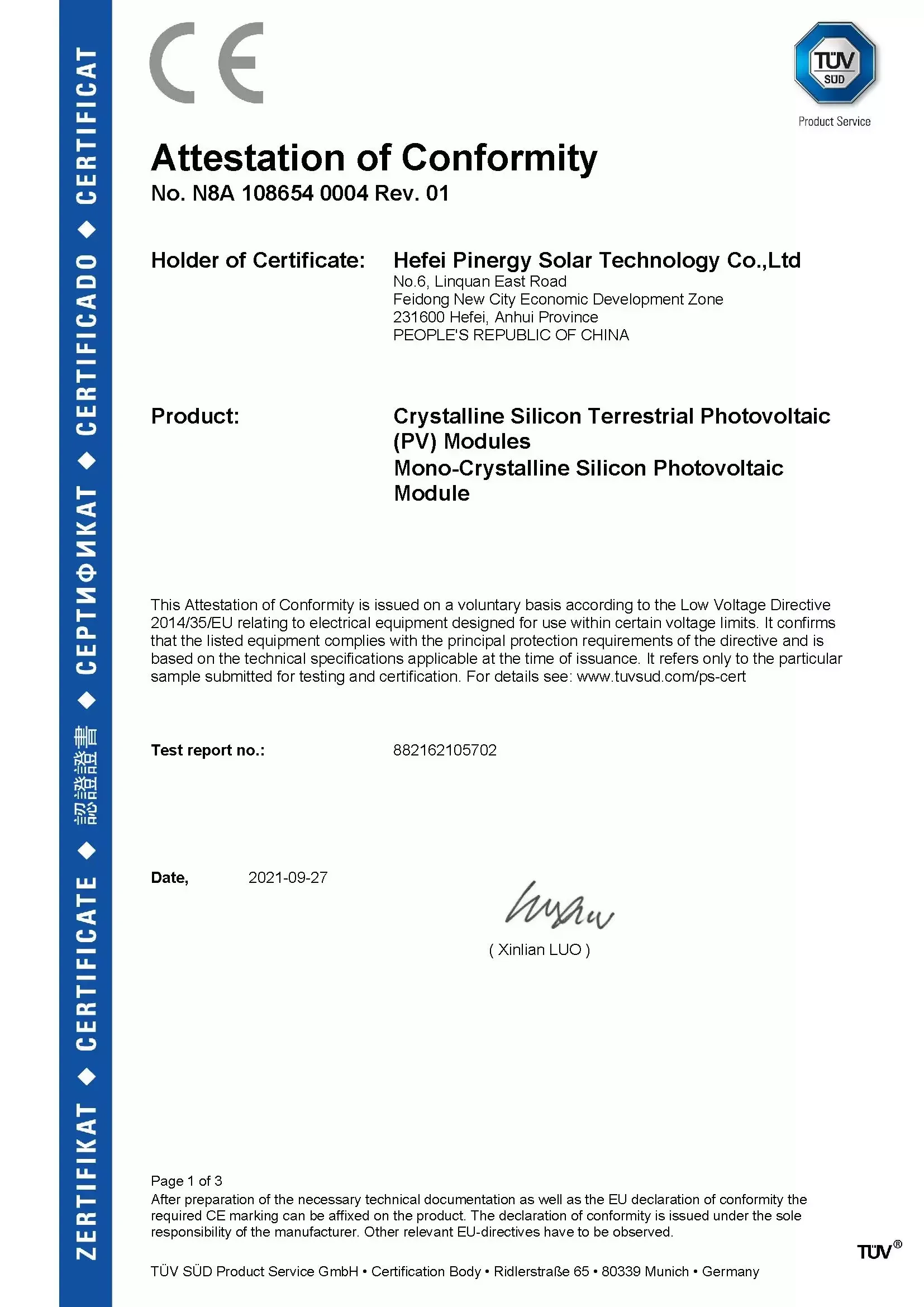

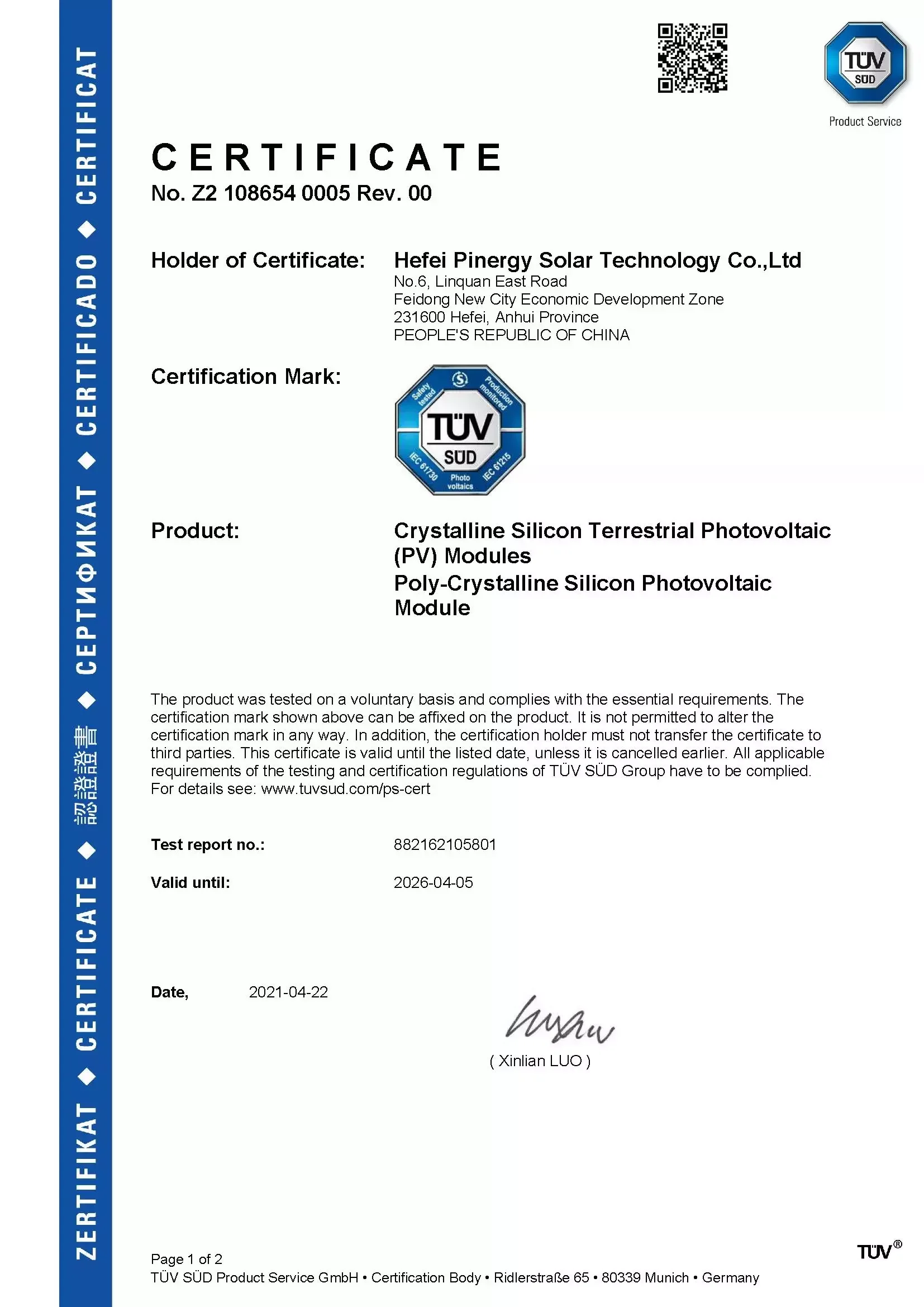

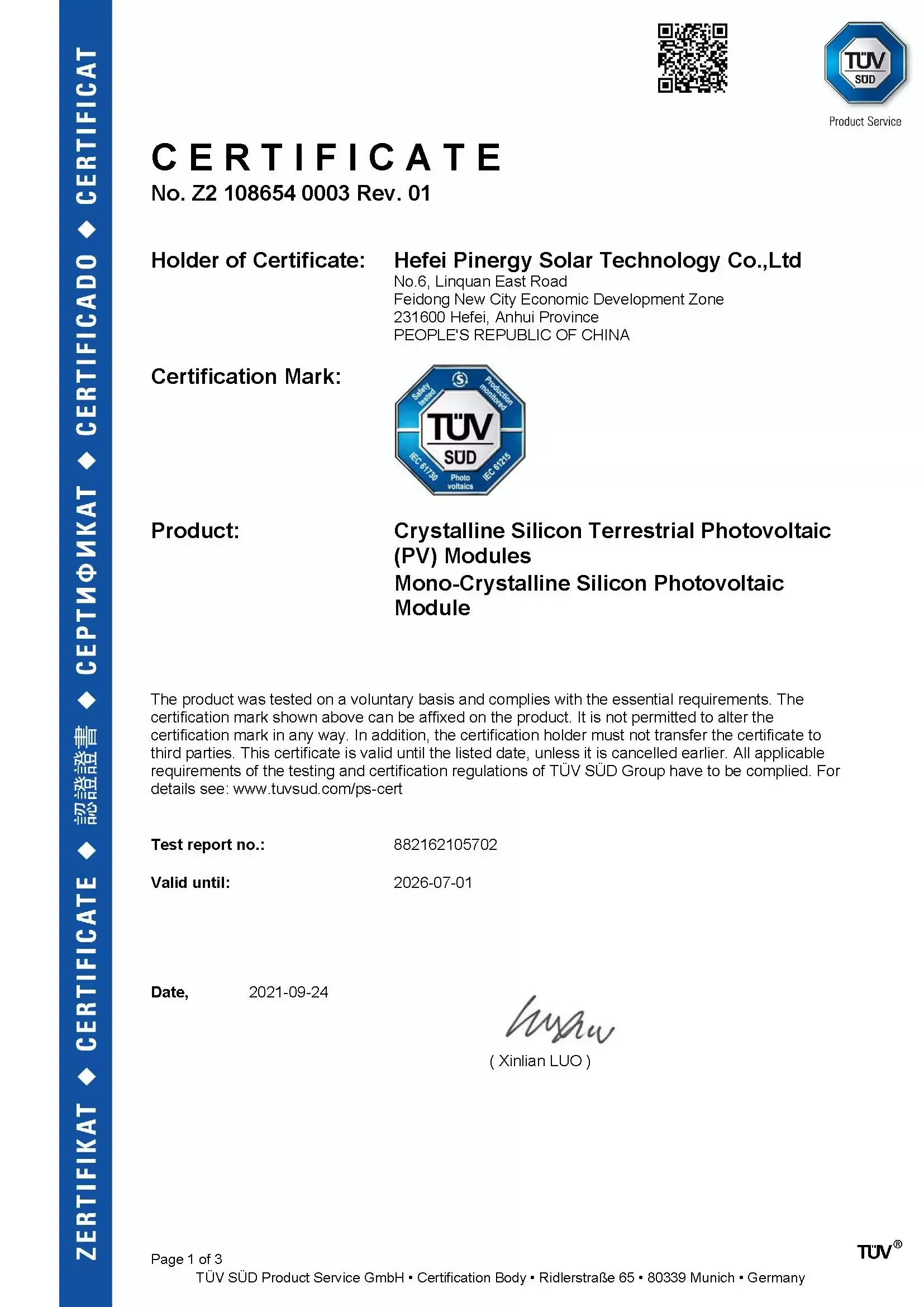

certificates

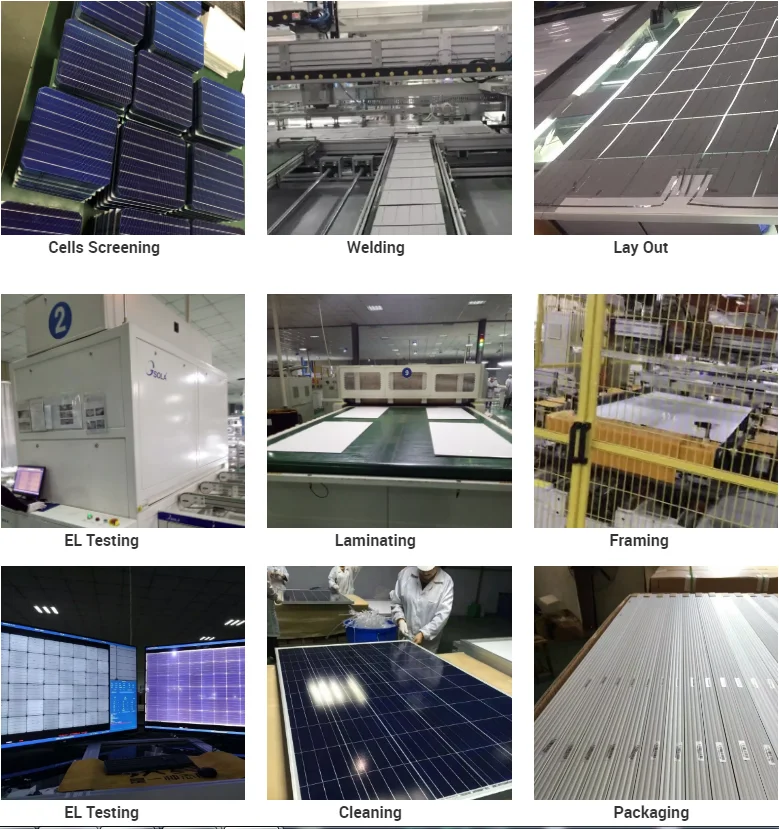

Production Procedure
Payment&Shipment

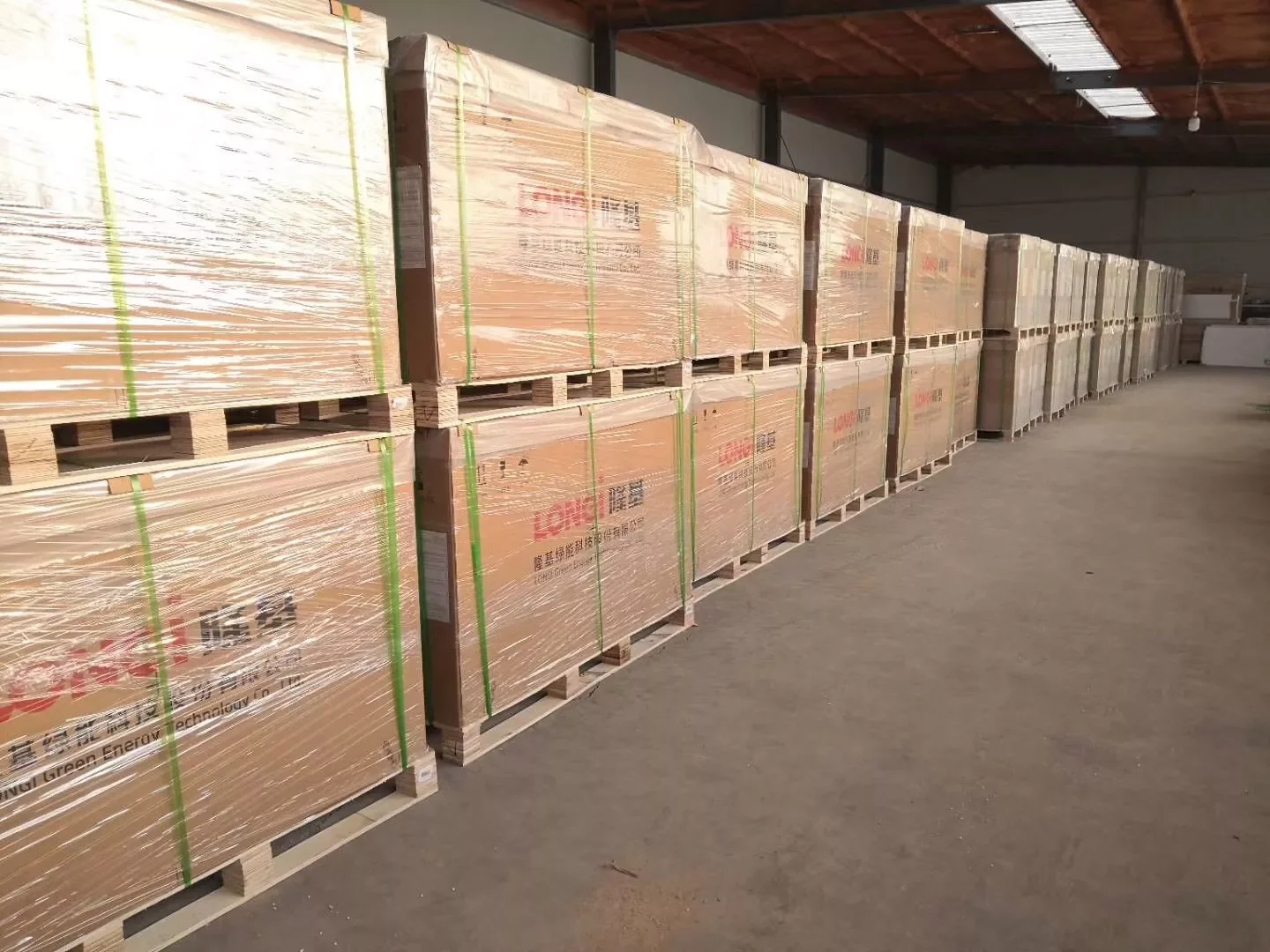

Packing
Contact
