Product Description

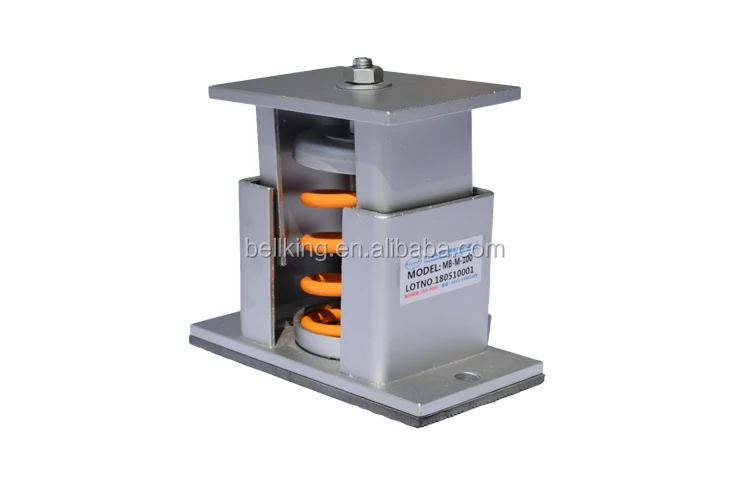

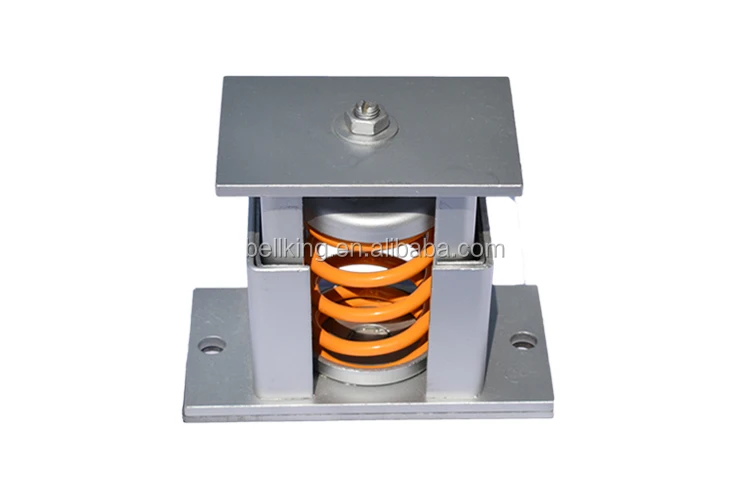

| Product Name | Spring Mounts vibration isolator - type MB |
| Characteristics | . The material of metal is nodular cast iron. . The nodular cast iron is zinc plated and good weather resistance. . Special structure design, height adjustable. . Robust design, simple installation. Suitable for vibration isolation. . The spring is treated by ED rust-proof and stoving varnish . Deflection is 25mm under nominal load. |

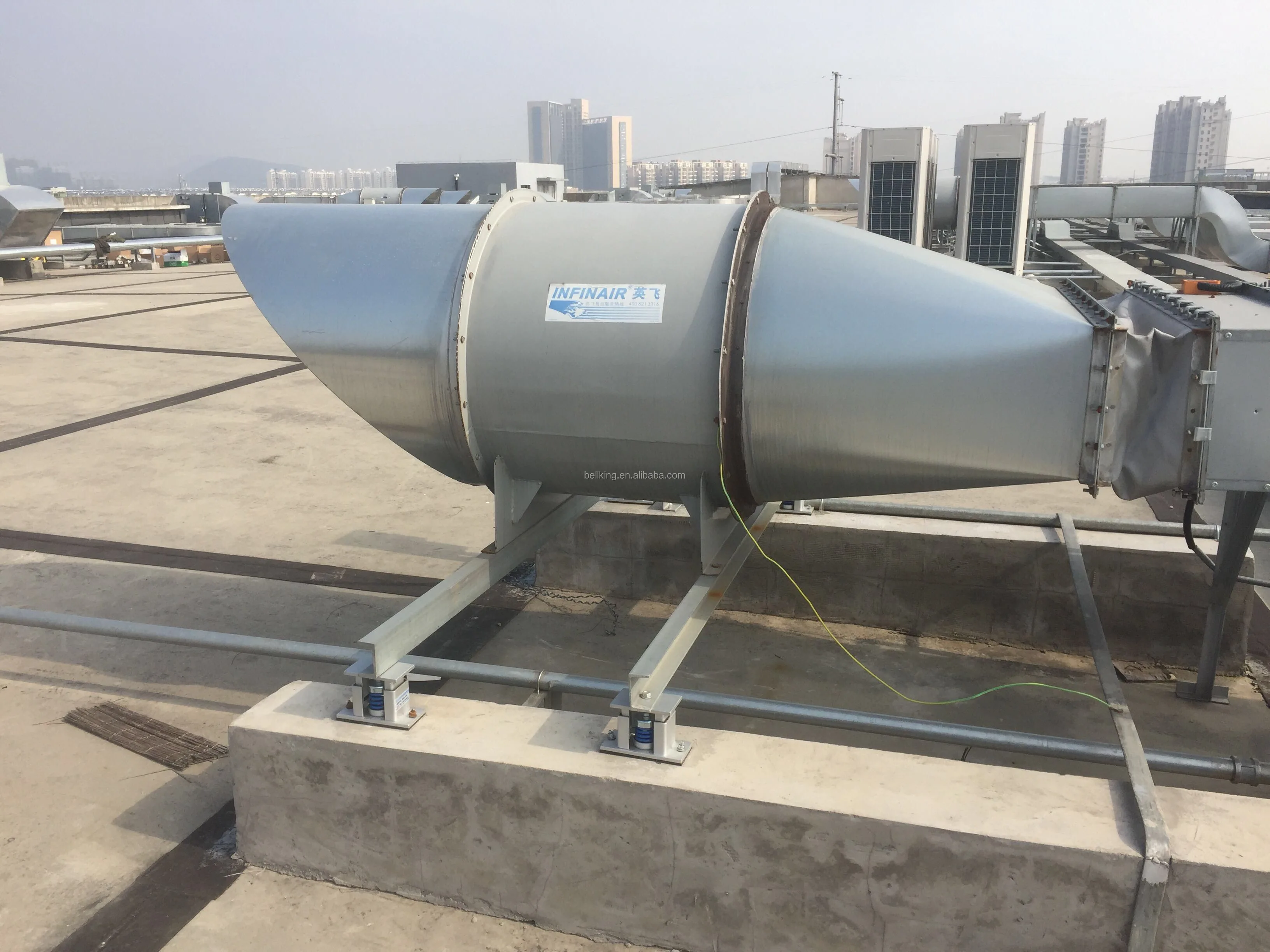

| Application | . Air conditioning, Exhaust fan, Windmill. . Cooling unit, pump. . Genset, general industry machinery. |
Type | Rated Capacity Kg | Spring Rate Kg/mm | Rated Deflection mm |
MB-S-030 | 20-30 | 1.2 | 25 |
MB-S-050 | 30-50 | 2.0 | 25 |
| MB-S-070 | 50-80 | 2.8 | 25 |
| MB-S-090 | 80-100 | 3.6 | 25 |
MB-S-120 | 100-130 | 4.8 | 25 |
MB-S-150 | 130-150 | 6.0 | 25 |
MB-S-180 | 150-180 | 7.2 | 25 |
MB-S-250 | 200-250 | 10.0 | 25 |
| MB-S-350 | 250-350 | 14.0 | 25 |
| MB-M-100 | 100-13 | 4.3 | 25 |
| MB-M-200 | 160-210 | 7.1 | 25 |
MB-M-300 | 260-320 | 10.8 | 25 |
MB-M-400 | 360-430 | 14.2 | 25 |
MB-M-500 | 470-530 | 19.2 | 25 |
MB-M-600 | 530-650 | 22.6 | 25 |
MB-M-700 | 650-700 | 26.0 | 25 |
| MB-M-850 | 700-850 | 33.6 | 25 |
| MB-M-1000 | 850-1000 | 46.0 | 25 |
Packaging & Shipping
- Packaging Details:Carton Box with Pallet or Wooden Case
- Delivery Time:20 Working Days
Company Information
Q : Are you trading company or manufacturer?
A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.
Q: How long is your delivery time?
A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days.
Q: What's the weight and measurement for the product?
A: Different size with differenct amount, please contact us for details.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, OEM service available
Q: What do you need to know for fast quotation?
A: It would be highly appreciated if we have the details of detailed drawing for OEM order, model, end connection type, flange standard and material, medium, pressure, temperature and other working conditions.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Kunshan, Jiangsu Prov., China
