Product Description
IAQMP
Optional min. 1 sensor, max. 5 sensors
Sensors are: 1:VOC; 2:CH2O; 3:PM2.5/PM10; 4:CO2; 5:T/RH
Model Table
Models | IAQMP | X1 | X2 | X3 | X4 | X5 | Color screen indoor air quality detector | ||||||
Sensor code | Sensor codes are: 1:VOC; 2:CH2O; 3:PM2.5/PM10; 4:CO2; 5:T/RH | ||||||||||||
Instructions: min. 1 sensor, max. 5 sensors are needed. Codes X1-X5 correspond to any one of the codes 1-5, and can be combined in any order, represent the position on the LCD. But any code can only be applied one time.

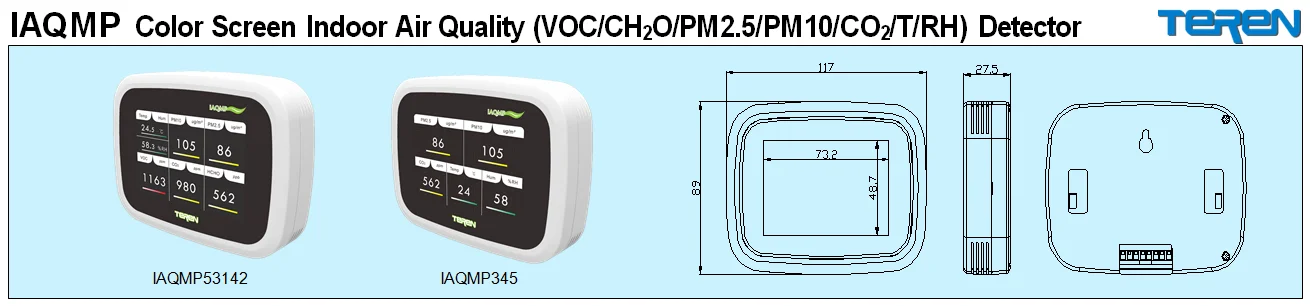

Models’ examples: IAQMP34, IAQMP413, IAQMP1235, IAQMP43125, etc. The picture above is IAQMP53142.
Specification
Applications and features
1. Simultaneously detect a variety of indoor ambient air quality parameters, including VOC, PM2.5, PM10, CH2O, CO2 and T/RH, up to 7 parameters
2. State of art housing, use large-screen color TFT LCD to digital display all air quality real-time parameters and status parameters. All parameters can be flexibly set via RS485
3. VOC: detect various contaminants (VOCs), including wood, paint and others produced by toluene, cigarette, ammonia odor, CO, alcohol, natural gas and even body smell. Low power consumption and good T/RH compensation for high accuracy
4. CH2O: good accuracy, fast response, excellent anti-interference, extremely low power consumption and good temperature and humidity characteristics, stable and reliable, no need for regular calibration
5. PM2.5/PM10: detect the PM2.5 and PM10 concentration in the air with particle sizes 0.3~10μm. The sensor has good long-term stability, high consistency accuracy, real-time response and supports continuous service mode. MBTF is 3+ years for continuous service (service life can be 8-10 years in typical stable concentration change working conditions and auto(intermittent) work mode), free maintenance
6. CO2: detect the CO2 concentration of the air with ABC (Automatic Baseline Correction) algorithm, accurate measurement and temperature compensation, good long-term stability and reliability, fast response
7. T/RH: use high-precision digital temperature and humidity sensor, ensure good measurement
8. Power and output have over voltage and reverse polarity protection, high reliability and anti-interference capability
9. All electrical terminals are on the back, avoid any possible destroy to PCB when wiring
1. Simultaneously detect a variety of indoor ambient air quality parameters, including VOC, PM2.5, PM10, CH2O, CO2 and T/RH, up to 7 parameters
2. State of art housing, use large-screen color TFT LCD to digital display all air quality real-time parameters and status parameters. All parameters can be flexibly set via RS485
3. VOC: detect various contaminants (VOCs), including wood, paint and others produced by toluene, cigarette, ammonia odor, CO, alcohol, natural gas and even body smell. Low power consumption and good T/RH compensation for high accuracy
4. CH2O: good accuracy, fast response, excellent anti-interference, extremely low power consumption and good temperature and humidity characteristics, stable and reliable, no need for regular calibration
5. PM2.5/PM10: detect the PM2.5 and PM10 concentration in the air with particle sizes 0.3~10μm. The sensor has good long-term stability, high consistency accuracy, real-time response and supports continuous service mode. MBTF is 3+ years for continuous service (service life can be 8-10 years in typical stable concentration change working conditions and auto(intermittent) work mode), free maintenance
6. CO2: detect the CO2 concentration of the air with ABC (Automatic Baseline Correction) algorithm, accurate measurement and temperature compensation, good long-term stability and reliability, fast response
7. T/RH: use high-precision digital temperature and humidity sensor, ensure good measurement
8. Power and output have over voltage and reverse polarity protection, high reliability and anti-interference capability
9. All electrical terminals are on the back, avoid any possible destroy to PCB when wiring
Item | Value |
Warranty | 18 months |
Customized support | OEM |
Place of Origin | Shenzhen city, China |
Brand Name | TEREN |
Model Number | IAQMP |
Product name | Multi-function Indoor Air Quality Detector |
Sensor: High performance metal oxide semiconductor sensor, min. 5~7 years life span | |
Range: 0(400) ~2000ppm equivalent CO2 | |
Accuracy: Typical consistency/accuracy ±10%FS@25°C | |
CH2O | Sensor: High performance electrochemical sensor, >3 years life span |
Range: 0~1000ppb | |
Accuracy: ±10%FS@25°C | |
PM2.5/PM10 | Sensor: Laser particulate matter sensor, detected size 0.3~10 um |
Range: PM2.5: 0~500±ug/m3, particle size 0.3~2.5um PM10:0~600ug/m3, particle size 0.3~10um | |
Accuracy: ±10 ug/m3 @0~100ug/m3, ±10% reading | |
Service Life: MBTF more than 3 years in continuous service mode, service life up to 8-10 years in auto (intermittent) service mode | |
Resolution: 1ug/m3 | |
Response time: in continuous service mode, sample time<1s, general response time<10s | |
CO2 | Sensor: NDIR sensor, with ABC algorithm, >15 years life span |
Range: 0~2000ppm (measurement range 400~2000ppm) | |
Accuracy: ±50ppm±5% reading @10~40°C | |
Response time(T90): <120s (30cc/min, low airflow) | |
Drift: <±10ppm/year | |
Temperature | Sensor: Digital temperature sensor |
Range: -40~125°C | |
Accuracy: typical <±1.0°C@10-40°C; <±1.5°C@10-40°C | |
Repeatability: 0.1°C | |
Response time: typical 10~30s (25°C, low airflow) | |
Drift: <±0.04°C /year | |
Humidity | Sensor: Digital capacitance sensor |
Range: 0~100%RH | |
Accuracy: typical ±5%RH @ 25°C/20~80%RH | |
Repeatability: 0.1%RH | |
Hysteresis: <±1.0%RH | |
Response time: typical 10s (25°C, low airflow) | |
Drift: <±0.25%RH/year | |
Power | 16~28VAC/16~35VDC |
Output | RS485/Modbus, R/W enable, 9600 bps |
Warm up time | 15 min |
Working environment | 0~50°C, 10~90%RH (Non-cond.) |
Storage temperature | -20~60°C |
Housing | fire retardant PC (UL94V-0) |
Protection | IP30 |
Weight | 190-240g |
Approval | CE |
Note:
1. VOC volatile organic compounds, include over a thousand kinds of component, are widely used in various industries and has great impact on human health, may affect the human liver, kidney, brain and nervous system, resulting in memory loss and other serious consequences, and even cause cancer.
2. The VOC sensor could detect varies of VOC components. VOC measurement range 0~1000ppb (isobutene), equivalent to 400~2000ppm of carbon dioxide.
3. The CH2O sensor could detect only Formaldehyde of 0~1000ppb.
4. Exposed to 0.5~1.0 ppm VOC concentration environment have little impact on most people health; exposed to 1.0~10 ppm may have obvious irritation symptoms on human and cancer rates rise 50% to 90%; exposed to above 10 ppm may have serious impact on human health or life threatening.
5. China regulations specified the average 8 hours TVOC limit 0.50~0.60 mg/m3 (equivalent to about 500 ppb) and CH2O limit 0.08~0.10 mg/m3 (equivalent to about 60-75 ppb).
6. VOC concentration guidelines and recommendations, mainly refer formaldehyde for reference:
2. The VOC sensor could detect varies of VOC components. VOC measurement range 0~1000ppb (isobutene), equivalent to 400~2000ppm of carbon dioxide.
3. The CH2O sensor could detect only Formaldehyde of 0~1000ppb.
4. Exposed to 0.5~1.0 ppm VOC concentration environment have little impact on most people health; exposed to 1.0~10 ppm may have obvious irritation symptoms on human and cancer rates rise 50% to 90%; exposed to above 10 ppm may have serious impact on human health or life threatening.
5. China regulations specified the average 8 hours TVOC limit 0.50~0.60 mg/m3 (equivalent to about 500 ppb) and CH2O limit 0.08~0.10 mg/m3 (equivalent to about 60-75 ppb).
6. VOC concentration guidelines and recommendations, mainly refer formaldehyde for reference:
Source | Concentration | Associated Period of Exposure | Health Effect(s) | |||
Based on sensory irritation | ||||||
California Environmental Protection Agency(EPA) | 44 ppb | 1 hour | Eye and airway irritation | |||
Health Canada | 100 ppb | 1 hour | Eye irritation | |||
National Institute for Occupational Safety and Health | 100 ppb | 15 minutes | ||||
Occupational Safety and Health administration | 750 ppb | 8-hour PEL-TWA | Cancer and skin/eye/ respiratory irritation | |||
World Health Organization | 81 ppb | 30 minutes | Sensory irritation | |||
World Health Organization | 100 ppb | short-and long- term | Sensory irritation | |||
Based on respiratory and asthma-like symptoms | ||||||
Agency for Toxic Substance and Disease Registry | 40 ppb 30 ppb 8 ppb | Daily:1-14 days 15-364 days > 1 year | Respiratory | |||
California EPA | 7 ppb 7 ppb | 8-hour annual average | Respiratory symptoms Respiratory symptoms | |||

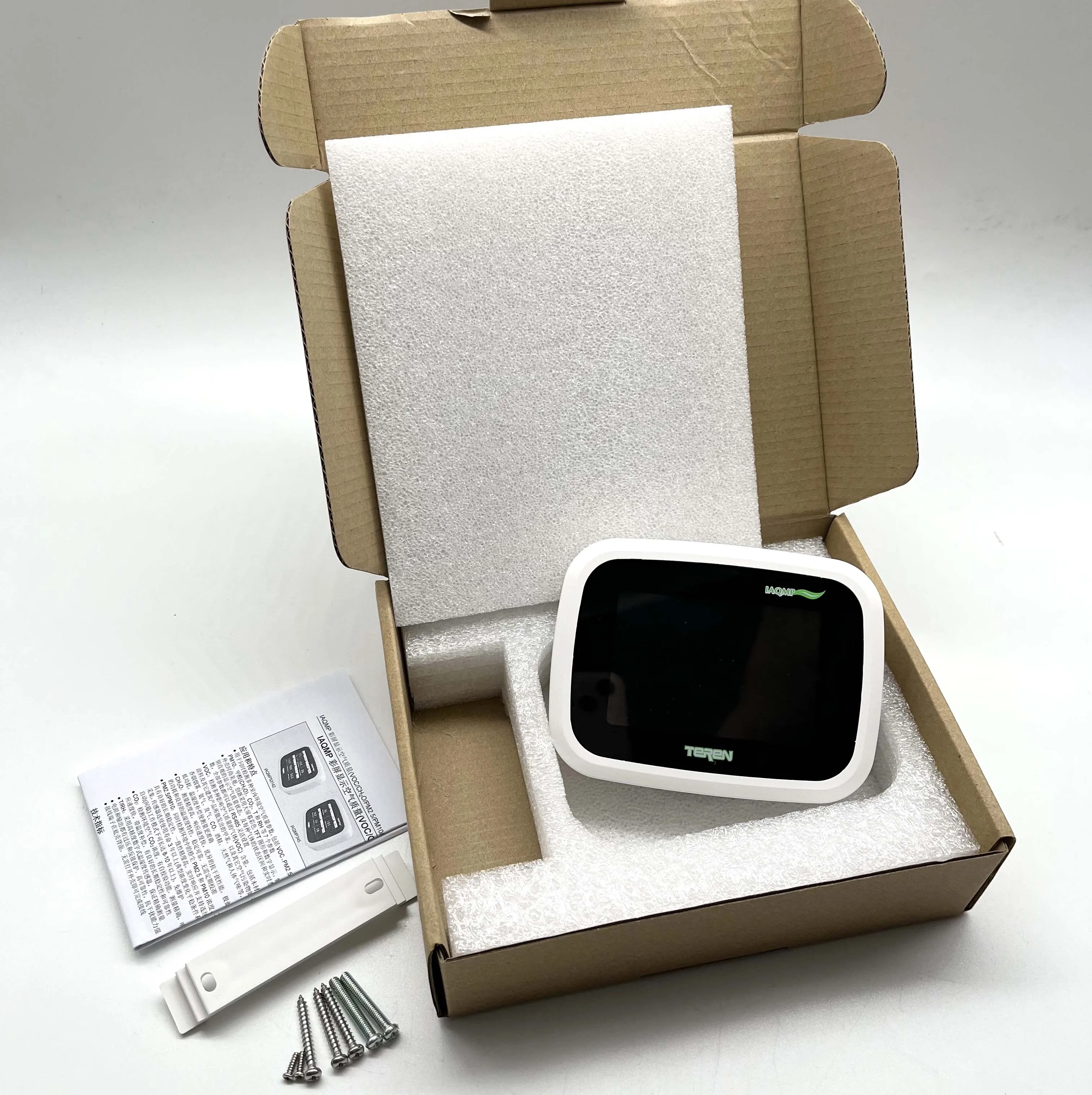

Packing & Delivery

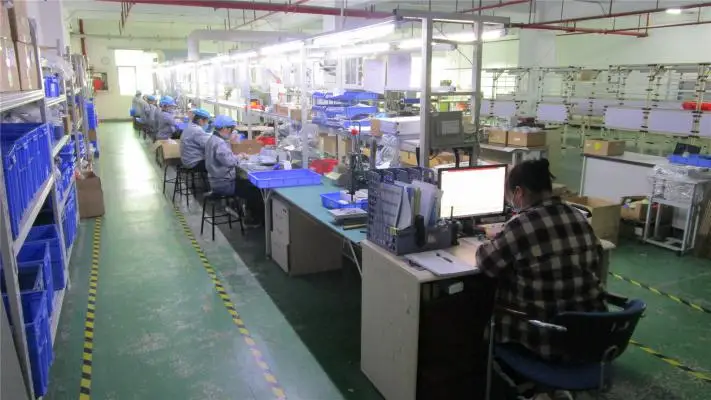

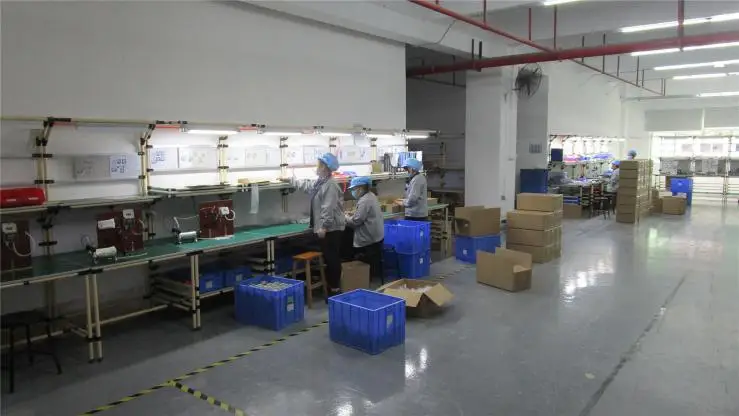

Company Profile
Shenzhen TEREN Control Technology Co., Ltd is a high technology company focusing in the fields of HVAC/R and BAS industry. With innovative technology, our products are covering various measurement and control instruments including temperature, humidity, pressure & differential pressure, CO, CO2, flow, level, etc. They are either sensors, transmitters, gauges, switches, display units, controllers or actuators and valves. They have been experienced more than 10 years application in China and the global market, and are becoming one of the most well known world brand from CHINA.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Oceania(10.00%),North America(8.00%),South America(6.00%),South Asia(5.00%),Mid East(3.00%),Eastern Asia(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Africa(00.00%),Western Europe(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

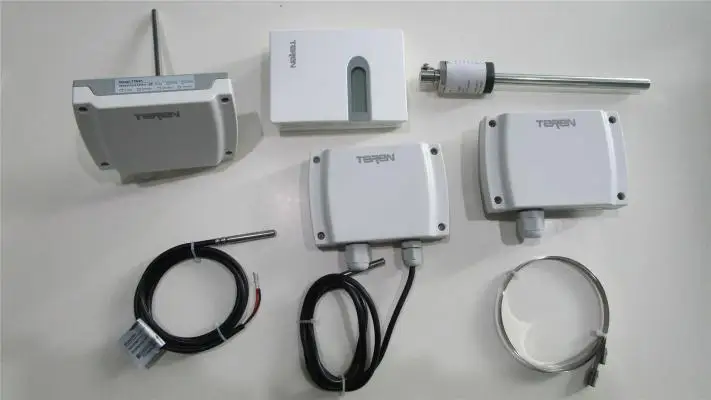

Temperature Sensor,Temperature Humidity Transmitter,Diff. Pressure Gauge,Diff. Pressure Switch,Carbon Dioxide Transmitter
