Products Description

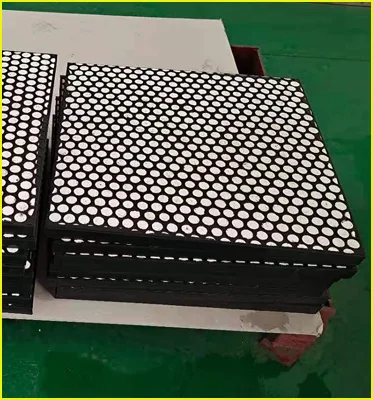

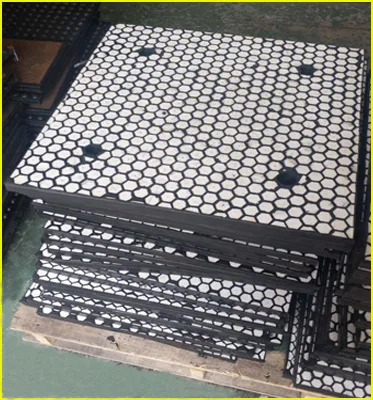

Mining ceramic chute wear solution high alumina ceramic rubber liner / rubber ceramic plate
Through vulcanization / Bonding the alumina ceramic plates or ceramic tiles are installed into the special steel plate to form a wear resistant steel plate. The wear resistant plate will be fixed on the abrasive surface of equipment by high strength adhesive or welding , the equipment is more resistant to time and wear and will be used longer.


1) Good Abrasion Resistance
As the wear surface, the alumina ceramic is 9 Mohs hardness
2) Good Thermal Stability and Excellent Corrosion Resistance
The ceramic liners are high purity alumina tiles or tubes which have unique chemical properties of wonderful acid and alkali resistance.
3) Light Weight
The density is 3.63 g/cm³,which is only half of the steel to reduce the load of equipment largely
4) Easy and fast to fix on site
Welding, flange, flexible joint are available for fix with the equipment.


Technical Data of the surface Ceramic:
Technical Data of the Rubber
Items
Index
Items
Index
Alumina content
≥92%
Tensile Strength
≥26 MPa
Bulk Density
≥3.63g/cm³
Break Extension
≥500%
Rockwell Hardness (HRA)
≥90
Shore Hardness
55-65HA
Compressive Strength
≥850MPa
Break Permanent Deformation
≤24%
Fracture Toughness
≥4.8MPa.M1/2
Rubber and Ceramic Adhesion Force(Shearing Stress)
≥3.0MPa
Bending Strength
≥290MPa
Temperature Resistance
≤100℃
Thermal Conductivity 20℃
20W/m.k
Rubber Aging Life
≥8 years
Coefficient of Thermal Expansion
7.2×10-6m/×m.k
Gap Between Tile
0.8-2.0mm
Young's Modulus 20℃
277GPa
Rubber Edge
1.5-2.0mm

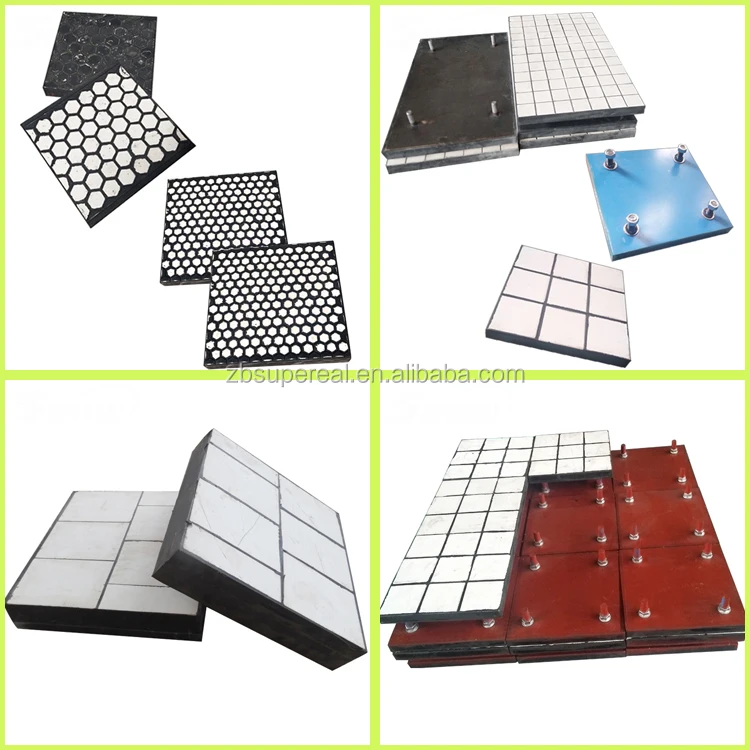

General dimension and specification of rubber backed ceramic plates:




Specification ( L×W×T)
Thickness Details
300×300×12mm
6mm ceramic + 6mm rubber
250×250×15mm
10mm ceramic +5mm rubber
250×300×16mm
12mm ceramic +4mm rubber
500×500×15mm
10mm ceramic + 5mm rubber
500×400×20mm
12mm ceramic + 8mm rubber
500×500×30mm
20mm ceramic + 10mm rubber
300×300×63mm
50mm ceramic + 13mm rubber
500×500×63mm
50mm ceramic + 13mm rubber


Note: The kind of rubber ceramic lining can be twisted, divided to cater for various installations of irregular equipments.

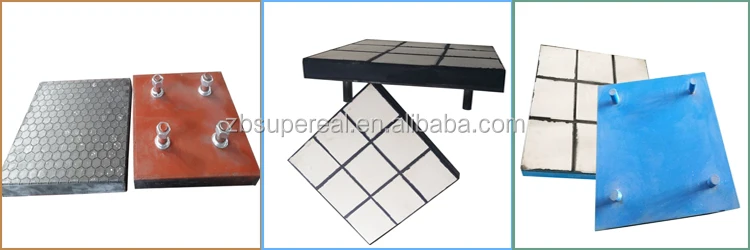

General dimension and specification of rubber and steel backed ceramic plates:




Sizes
Length/Width
Ceramic Thickness
Rubber Thickness
Steel Thickness
250×250×15mm
250/250mm
5mm
5mm
5mm
300×300×16mm
300/300mm
8mm
4mm
4mm
500×500×25mm
500/500mm
15mm
4mm
6mm
500×600×30mm
500/600mm
20mm
6mm
4mm
600×300×35mm
600/300mm
25mm
6mm
4mm
400×500×38mm
400/500mm
25mm
7mm
6mm
300×400×50mm
300/400mm
30mm
12mm
8mm
300×300×63mm
300/300mm
50mm
7mm
6mm
300×400mm×130mm
300/400mm
100mm
18mm
12mm


Note： Customized are available. Click Here for more specification and sizes.

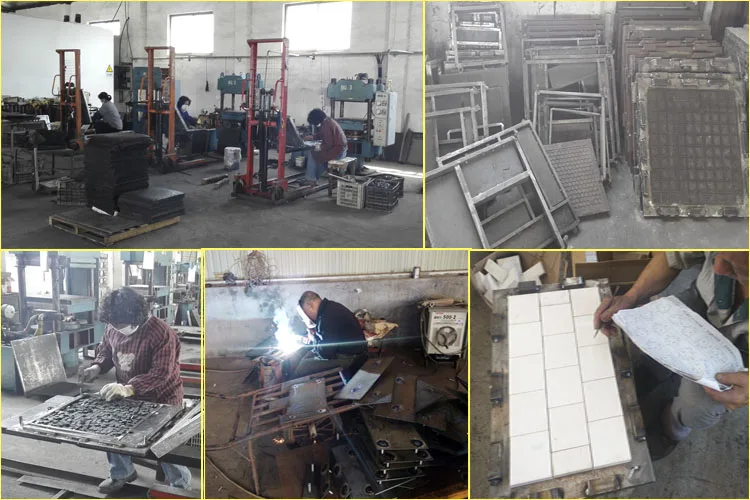

Manufacturing Process

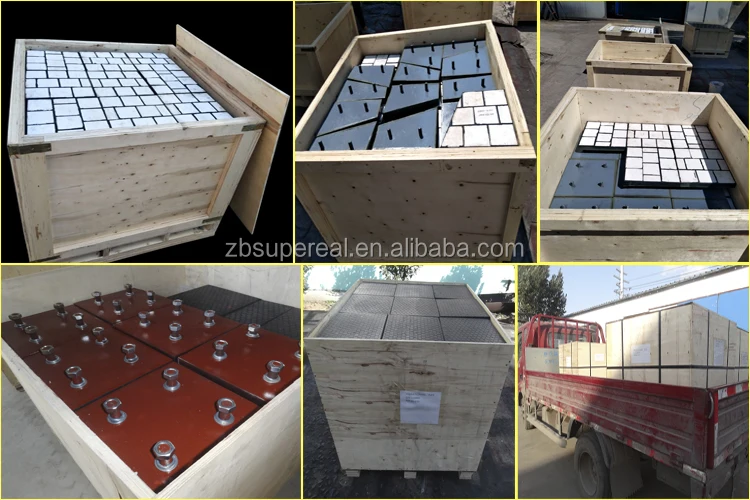

Product packaging


For Mining ceramic chute wear solution high alumina ceramic rubber liner / rubber ceramic plate , We will supply Strong, Safe, Durable, Compact and Environmental Packing for long-time transportation by sea, plan or truck and so on.

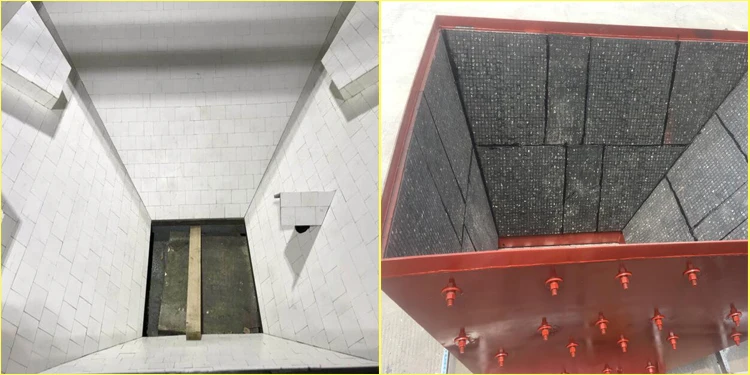

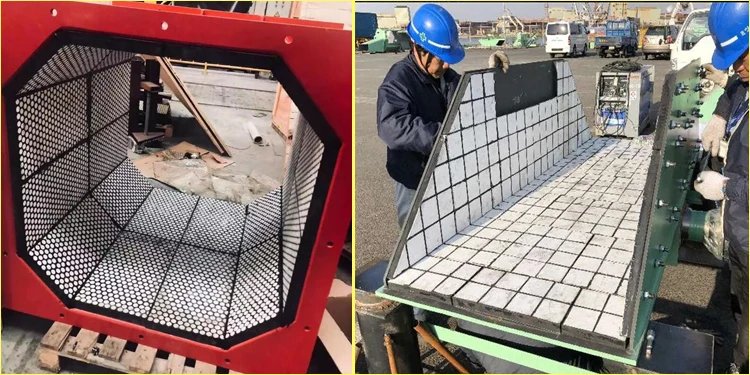

Successful Project


Application
Mining ceramic chute wear solution high alumina ceramic rubber liner / rubber ceramic plate is combined with advantages of alumina ceramics and Carbon steel panel, is beneficial to decrease downtime, maintenance cost and extend the service life of the equipment ,which is widely used for serious abrasive environments, such as drive pulley, chute liners, cyclone liners, conveyor skirt liners, processing piping liners, hopper or silo liners, screen equipment liners in the industries including ,but not limited to:
♦ Coal Preparation Plants ♦ Coal Fired Power Stations
♦ Mineral Processing Plants ♦ Cement Plants
♦ Chemical Plants ♦ Steel & Iron Plants
♦ Railway Stations ♦ Ports






Related Products

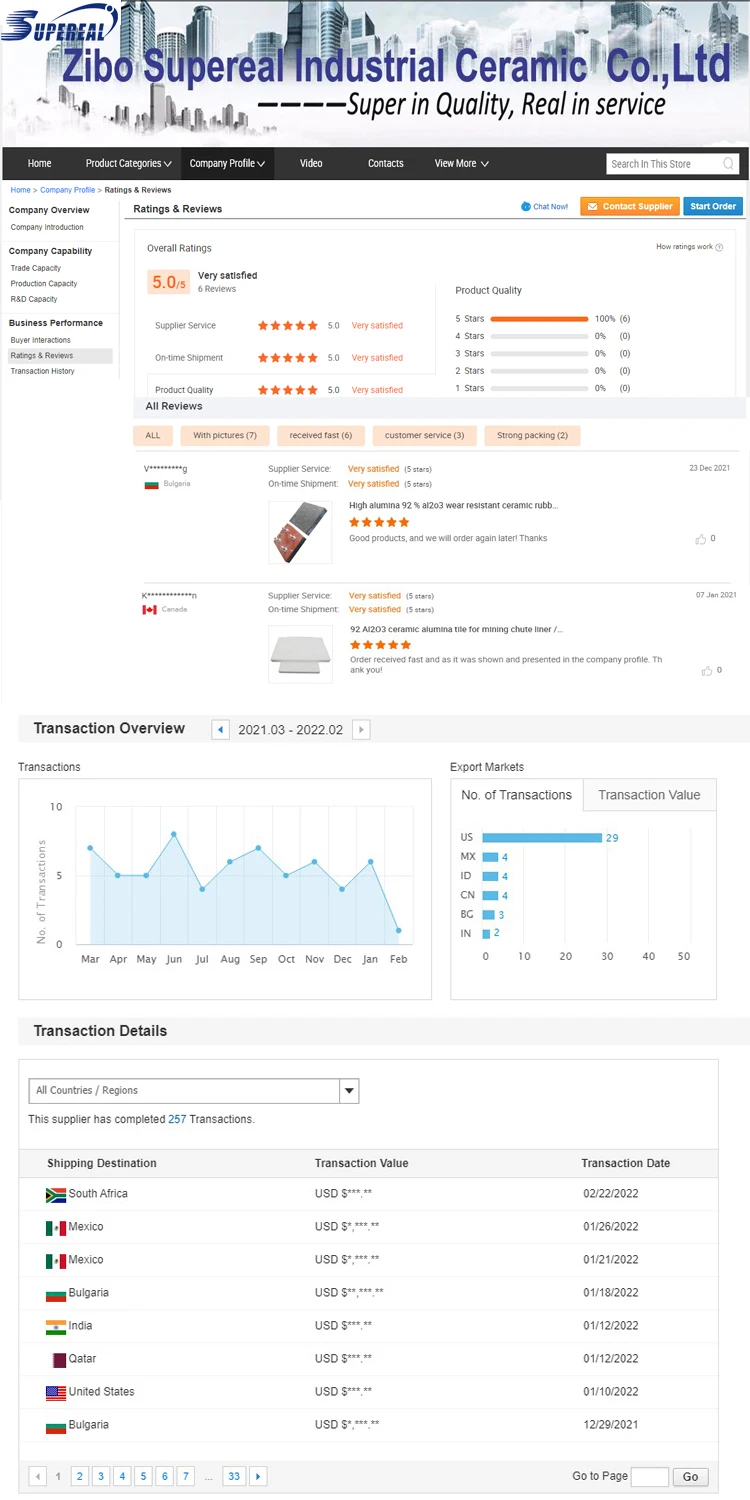

Business Performance
