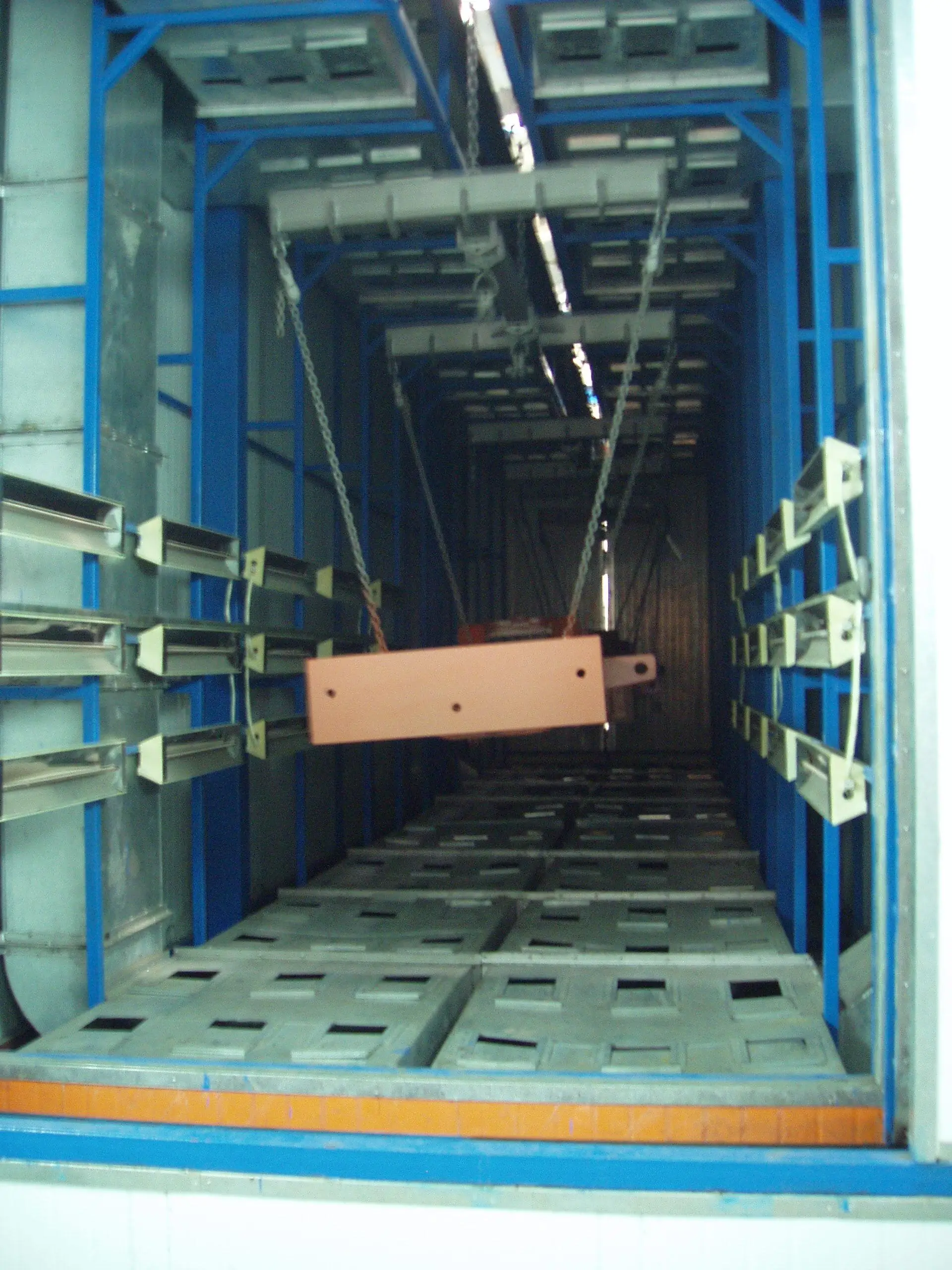

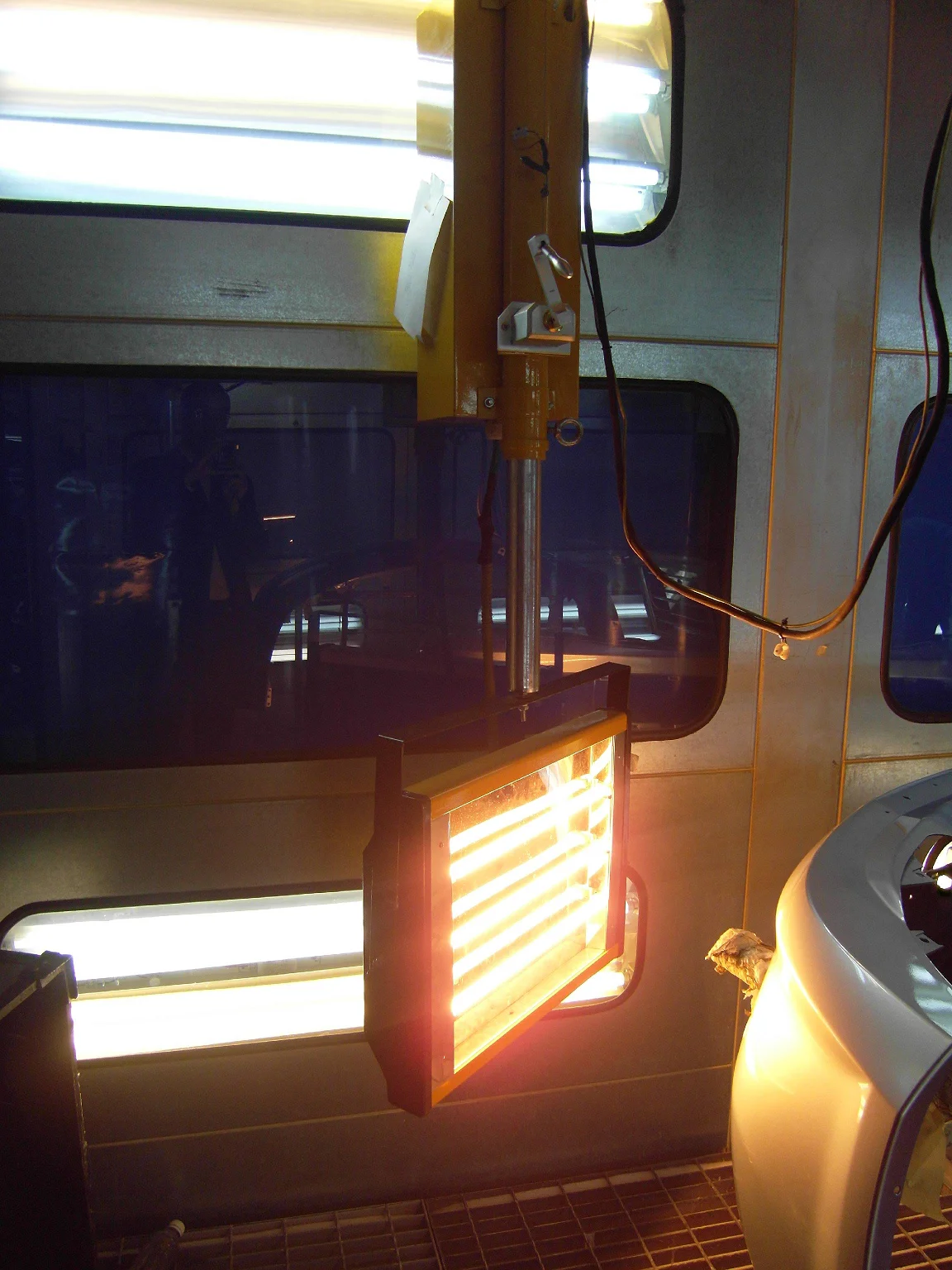

PRODUCTS SHOWS






Advantages and Features:

1. The room has good sealing performance: the inner and outer wall panels are δ0.6mm galvanized steel, and the middle is filled with δ100mm rock wool
2. High cleanliness: The air outlet at the bottom of the paint mist is discharged, and the air cleanliness reaches more than 98%
3. Good spraying effect: the paint film is smooth, uniform and delicate, with high adhesion and high spraying quality
4. Good waste gas treatment effect: the exhaust gas meets the comprehensive emission standard of air pollutants (GB16297-1996)
5. High safety performance: the drying room is equipped with a multi-probe combustible gas concentration detection device, which is safe and reliable
6. High degree of intelligence: the temperature and time in the drying room can be set by themselves, and the degree of automation and intelligence is high


PRODUCT PAPAMETER




Basic Composition
Component
Parameters
Ventricular body
Profile steel framework
Square tube f200x200x5
Purlin
F100x100x4/ F80x80x3
wallboard
δ75mm rock wool color steel sandwich panel
Static pressure chamber
Square tube F80x80x4+50x50xØ3
Partition wall of static pressure chamber
δ50mm EPS color steel sandwich panel
gate
Pneumatic gate：4200×5100
Grating
40×3 flat iron
Air supply system
Forced draft fan
BKKF900/43355/1170Pa Pa/890rpm/min/22Kw
Air inlet duct
t1.2mm galvanized steel plate
Air inlet equalizer
Air regulating valve
Air valve body 1500x800
Air valve actuator
Fresh air outlet coarse efficiency bag filter
Coarse filter material: VNF-290（G3）
Fan soft connection
Fire resistant canvas
Air supply noise reduction room
Skeleton 80x80x3+δ100 rock wool

Exhaust system
Exhaust fan
B4-72No12C/42882m3/h/989Pa/710rpm/min/18.5Kw
Exhaust air valve
1500x1000
Air valve actuator
Air duct
t1.2mm galvanized steel plate
Exhaust tower
Φ1050×25m(elevation of air outlet)
Fan soft connection
Fire resistant canvas
Exhaust box
Skeleton 50x50x3+δ50mmEPS color steel sandwich panel
heating system
Natural gas burner
BTG28P
Heat exchanger
Liner SUS304 t=4mm
Air filtration system
Sub high efficiency filtration in static chamber
CC-600G
Paint mist filtration system
Baffle dry paint mist filter glass fiber
Glass fiber filter felt (model PA-50)
Filter material support
Waste gas treatment system
activated carbon Adsorption box
Skeleton 50x50x3方钢+ EPS 50mm sandwich color steel plate
Activated carbon adsorption cotton
Honeycomb activated carbon
Safety detection system
Differential pressure detection
PST-1
Pressure detection
PST-1
Combustible gas detection
RB-KX(with audible and visual alarm function)
electric control system
PLC
1. With interlocking control function; 2. It has short-circuit and overload protection functions; 3. Manual + automatic control
function; 4. Fault audible and visual alarm function
lighting
 lighting box
Emergency lighting
Spraying system
Graco, USA
Fire extinguishing equipment
Manual dry powder fire extinguisher
Electric liftgate


Application scope:

It is widely used for painting and baking on the surface of workpieces in the industries of ship pipe parts, wind power blades, towers (towers), wind power gear boxes, wind power bearings, wind power hubs, chemical equipment, petroleum equipment, aerospace , printing machinery, automobile, machinery, hardware, FRP products, etc.


PRODUCTION PROCESS






COMPANY PROFILE





1. Company year, main product type:
Zhejiang Jiutong Intelligent Equipment Co., Ltd. was established in 2011, focusing on theoverall solution system of intelligent environmental protection coating. It is a professional service provider integratingconsultation, survey, design, R & D, production, sales, installation, commissioning, delivery and operation and maintenance. Its R& D headquarters are located in Beijing, its production bases are located in Shandong and Guangdong, and Hangzhou has a perfectmarketing and after-sales team.

2. The company's exporting countries:
We have exported more than 100countries like USA, Mexico,Canada, Spain, Russia, Singapore, Thailand, India etc

3. The role it can bring to customers:
The products include Automatic GuidedVehicle(agv), mobile gas cleaning ystems for VOC, Hazmat Storage Building, sandblasting rooms, paint spraying rooms, paintingrobots, paint baking rooms, organic waste gas treatment equipment, etc. the customer groups include wind power, rail transit,aerospace, special vehicles, automobiles, structural parts, petroleum equipment, engineering machinery, miner's machinery andother fields. The project experience is rich!

4. Company services:
What we offer: 1) Good quality control 2) Highly competitive
prices 3) state-of-art technology products 4) 2 years quality assurance 5) Smooth communication 6) Effective OEM&ODM service




CERTIFICATE








FAQ




Q: Are you trading company or manufacturer ?
A: We are factory and can do the exporting work by ourselves.

Q: How long is your delivery time?
A: About 45 workdays after received the deposit.

Q: What is your terms of payment ?
A: T/T, Irrevcoable L/C. 30% T/T in advance, 70% balance before shippment.

Q: Can engineers service overseas?
A: Yes, total no problem.

Q: What about the guarantee period?
A:You will have 24 months guarantee time for the product, if the parts broken as our mistake, we will send you by DHL.
But as we do the pre install before the laoding, so this situation won't very easy to happen we believe.
After twe years, if you still have any help about the equipment, please feel free to contact us at any time, as we will supply you
lifelong service.
