Product Description

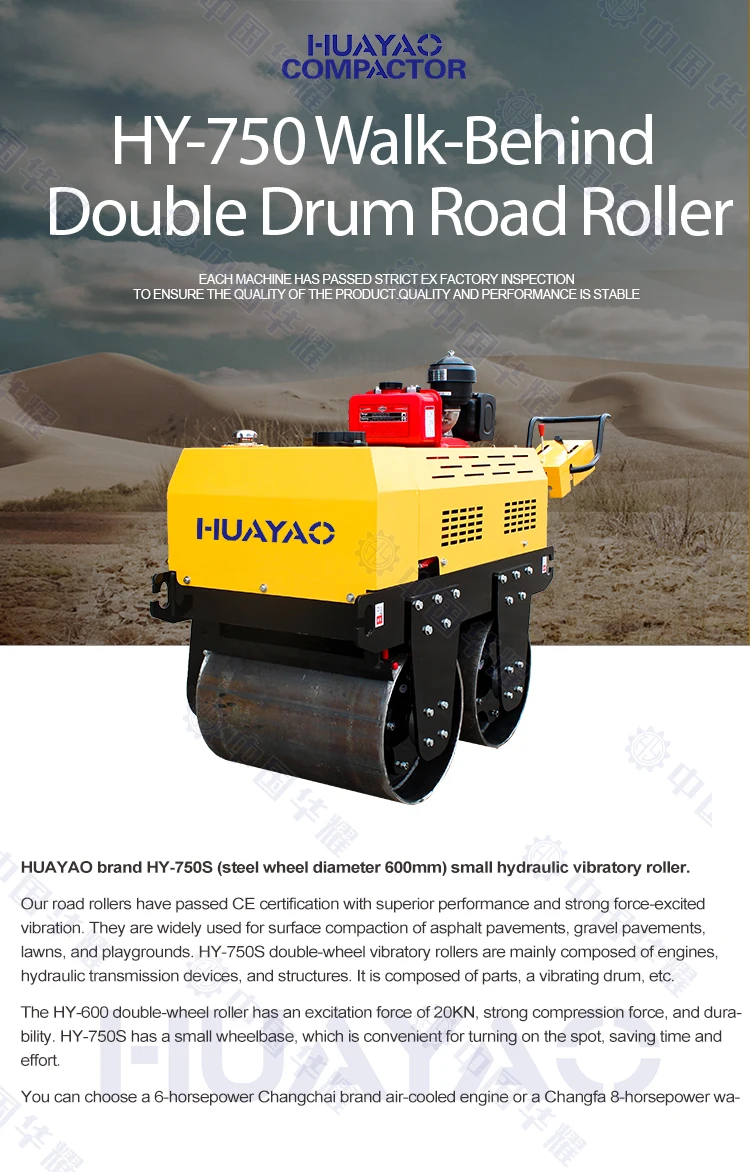

HY-750S 560KG Road Constructions Roller Double Drum Road Roller Vibratory Road Roller Compactor
HY-750 560KG Road Constructions Roller Double Drum Road Roller Vibratory Road Roller Compactor
HY-600 Road Roller
Engine Power: 6HP
Engine Brand: CHANGCHAI | CHANGFA 178F
Diesel, Air Cooling Four Stroke
Width of steel wheel: 700mm
Operating Weight: 500kg
HY-750S Road Roller
Engine Power: 6HP | 8HP
Engine Brand: CHANGCHAI | CHANGFA 178F|R180
Diesel, Air Cooling Four Stroke|water cooling
Width of steel wheel: 600mm*2
Operating Weight: 560kg
HY-1000CF Road Roller
Engine Power: 6HP | 8HP
Engine Brand: CHANGCHAI | CHANGFA 178F|R180
Diesel, Air Cooling Four Stroke|water cooling
Width of steel wheel: 700mm,450mm
Operating Weight: 800kg
HY-1000S Road Roller
Engine Power: 6HP
Engine Brand: CHANGCHAI | CHANGFA 178F
Diesel, Air Cooling Four Stroke
Width of steel wheel: 700mm,500mm
Operating Weight: 1000kg
HY-1500 Road Roller
Engine Power: 12HP
Engine Brand: CHANGCHAI | CHANGFA 192F
Diesel, Air Cooling Four Stroke
Width of steel wheel: 800mm
Operating Weight: 1200kg
HY-2000 Road Roller
Engine Power: 12HP
Engine Brand: CHANGFA L13
Diesel, Water Cooling Four Stroke
Width of steel wheel: 900mm
Operating Weight: 1500kg
HY-3000 Road Roller
Engine Power: 16HP
Engine Brand: CHANGCHAI H16
Diesel, Water Cooling Four Stroke
Width of steel wheel: 1000mm
Operating Weight: 2000kg
HY-3500 Road Roller
Engine Power: 36HP
Engine Brand: QUANCHAI 3B2
Diesel, three cylinder water-cooling four stroke
Width of steel wheel: 1100mm/1200mm
Operating Weight: 3000kg
Specification
HYDRAULIC SINGLE DRUM ROAD ROLLER SPECIFICATION | ||||
HUAYAO Brand | Model | HY-750S | ||
Weight | Operating Weight | 560kg | ||
Walking System | Walking Speed | 0-4km/h | ||
Turning Radius | Pivot Steering | |||
Gradeability | 30% | |||
Compaction System | Static line load (front / rear) | 45/50N/cm | ||
Nominal Amplitude | 0.5mm | |||
Vibration Frequency | 70Hz | |||
Exciting Force | 20KN | |||
Engine | Engine Brand | CHANGCHAI | CHANGFA 178F|R180 | ||
Engine Type | Diesel, Air Cooling, Four Stroke, Water cooling | |||
Engine Power | 6HP | 8HP | |||
Fuel Tank Capacity | 3.5L | |||
Fuel Consumption Rate | ≤280g/kw.h | |||

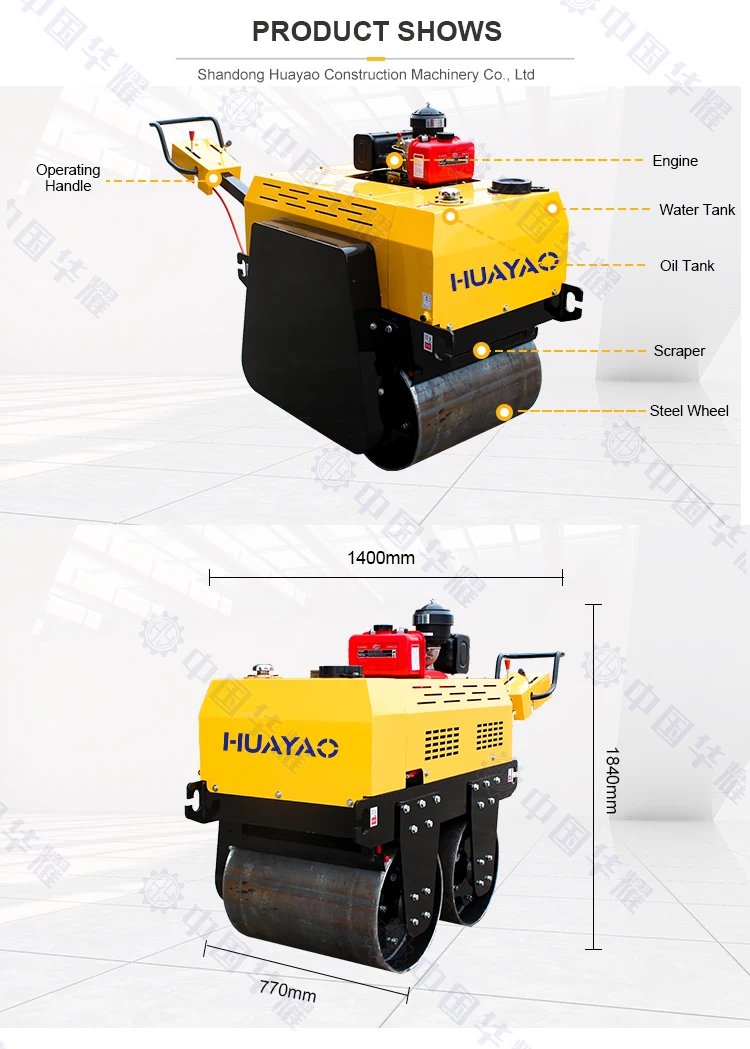

Dimensions | Width of steel wheel | 600mm*2 | ||
Diameter of steel wheel | 425mm | |||
Total Length | 1400mm | |||
Total Width | 770mm | |||
Total Height (U-frame down) | 1840mm | |||
Package Size (wooden case export) | 1530*900*1990mm | |||
Working System | Drive Mode | Hydraulic Drive | ||
Vibration Control Mode | Automatic clutch | |||
Engine start-up mode | Hand pull / Electric start | |||
Other | Volume of water tank | 13L | ||
Volume of hydraulic oil tank | 17L | |||

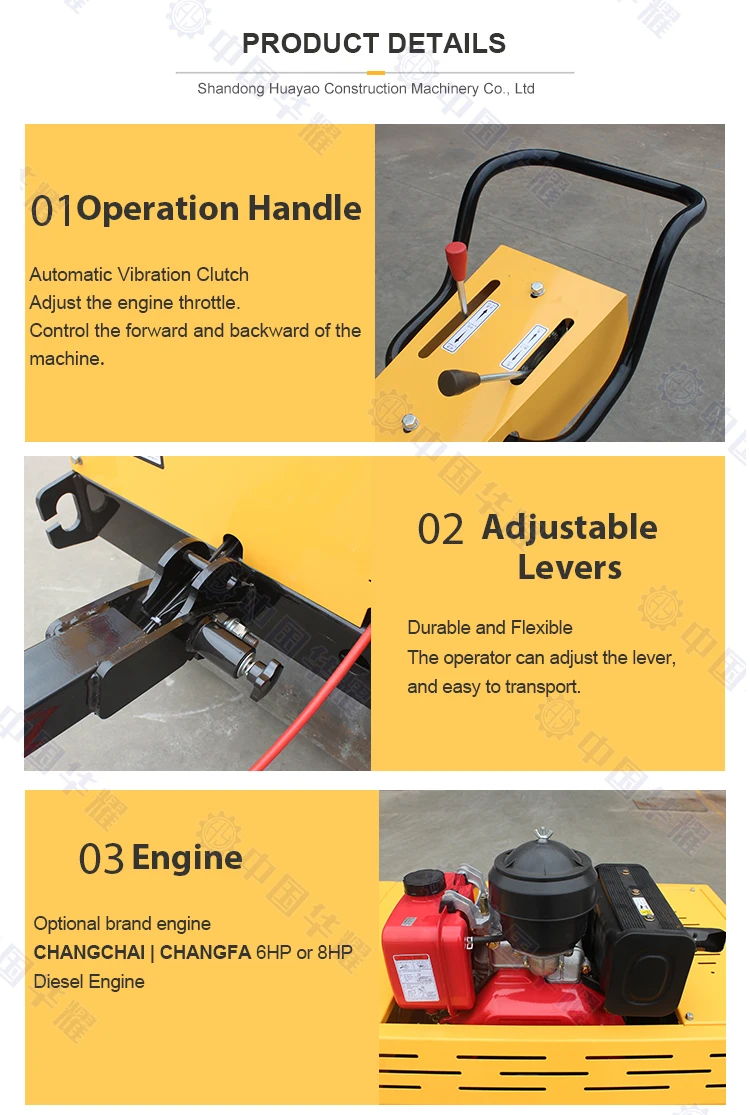

Product Details
HY-750S 560KG Road Constructions Roller Double Drum Road Roller Vibratory Road Roller Compactor
