Хорошая цена 3 канала 6-канальный ветеринарный аппарат ЭКГ для клиник домашних животных с сертификатом
- Категории: >>>
- Поставщик: Qingdao,Ansha,Pharmaceutical,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Description
Features:
Feature:
1) Automatic baseline adjustment for optimum printing
2) Pre-10 seconds preview
3 ) Cat & dog software package
4) 7-Lead simultaneous acquisition
5) Operation modes: AUTO,AUTO 2,MAN, and ANA
6) Filters: HUM, EMG,ADS
7) Power supply: AD, DC, Battery
8) Lead modes: Standard and Cabrera
9) Data storage: 12 ECG Files in main unit, 250ECG Files to SD card
10) Compact & light weight
11) Lead off detection12) Low battery indicator
1) Automatic baseline adjustment for optimum printing
2) Pre-10 seconds preview
3 ) Cat & dog software package
4) 7-Lead simultaneous acquisition
5) Operation modes: AUTO,AUTO 2,MAN, and ANA
6) Filters: HUM, EMG,ADS
7) Power supply: AD, DC, Battery
8) Lead modes: Standard and Cabrera
9) Data storage: 12 ECG Files in main unit, 250ECG Files to SD card
10) Compact & light weight
11) Lead off detection12) Low battery indicator
Specifications:
Safety Standard: lEC Class l, type CF
Acquisition Mode: 7 lead acquisition simultaneously
lnput Circuit: Floating, protection against defibrillator and pacemaker
A/D Converter: 12 bit
Time Constant: >3.2s
Frequency Response: 0.05Hz~ 165Hz
Sensitivity: 2.5,5,10,20,40 (mm/mV+2%),Auto
lnput lmpedance: ≥50MΩ
lnput Circuit Current: ≤50nA
Calibration Voltage: 1mV±2%
Noise Level: <15uVp-p
Anti Baseline Drift : Automatic
Filter: EMG Filter: 25Hz~45Hz(-3dB)
ADS Filter: Auto(0.15-0.50Hz)
HUM Filter: 50Hz/60Hz (-20dB)CMRR: >100dB
Acquisition Mode: 7 lead acquisition simultaneously
lnput Circuit: Floating, protection against defibrillator and pacemaker
A/D Converter: 12 bit
Time Constant: >3.2s
Frequency Response: 0.05Hz~ 165Hz
Sensitivity: 2.5,5,10,20,40 (mm/mV+2%),Auto
lnput lmpedance: ≥50MΩ
lnput Circuit Current: ≤50nA
Calibration Voltage: 1mV±2%
Noise Level: <15uVp-p
Anti Baseline Drift : Automatic
Filter: EMG Filter: 25Hz~45Hz(-3dB)
ADS Filter: Auto(0.15-0.50Hz)
HUM Filter: 50Hz/60Hz (-20dB)CMRR: >100dB
Patient Current Leakage: <10uA
Paper Speed: 6.25/12.5/25/50mm/s
Recording Paper: 50mm(width), 20m/30m(length), roll (ECG-10AV)
63mm(width), 20m/30m(length), roll (ECG-30AV)
112mm(width), 20m/30m(length), roll (ECG-6OLV)
Power Supply: AC: 110/220v, 50/60Hz
DC: 12V, built-in rechargeable battery
Dimension: 295mmx260mmx60mm (Main unit of ECG-10AV)
415mmx195mmx380mm (Carton of ECG-10AV)
345mmx300mmx80mm (Main unit of ECG-30AV)
415mmx195mmx380mm(Carton of ECG-30AV)
345mmx300mmx80mm (Main unit of ECG-6OLV)
415mmx195mmx380mm(Carton of ECG-6OLV)
Net Weight: 2.3kgs (ECG-10AV),2.5kgs (ECG-30AV/ECG-6OLV)
Gross Weight: 4.5kgs
Paper Speed: 6.25/12.5/25/50mm/s
Recording Paper: 50mm(width), 20m/30m(length), roll (ECG-10AV)
63mm(width), 20m/30m(length), roll (ECG-30AV)
112mm(width), 20m/30m(length), roll (ECG-6OLV)
Power Supply: AC: 110/220v, 50/60Hz
DC: 12V, built-in rechargeable battery
Dimension: 295mmx260mmx60mm (Main unit of ECG-10AV)
415mmx195mmx380mm (Carton of ECG-10AV)
345mmx300mmx80mm (Main unit of ECG-30AV)
415mmx195mmx380mm(Carton of ECG-30AV)
345mmx300mmx80mm (Main unit of ECG-6OLV)
415mmx195mmx380mm(Carton of ECG-6OLV)
Net Weight: 2.3kgs (ECG-10AV),2.5kgs (ECG-30AV/ECG-6OLV)
Gross Weight: 4.5kgs

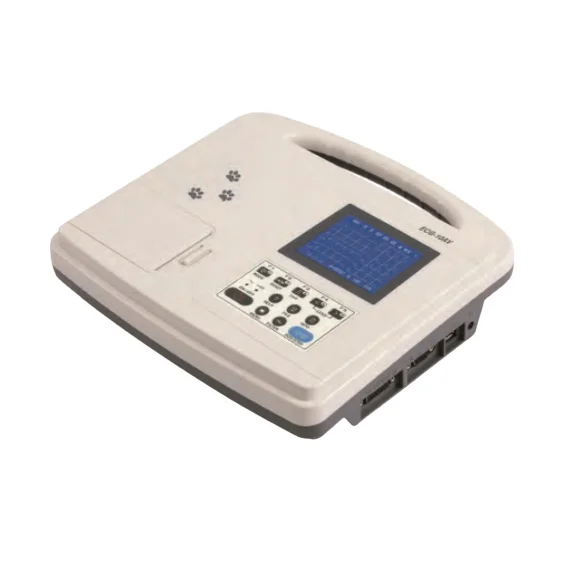

ECG-10AV

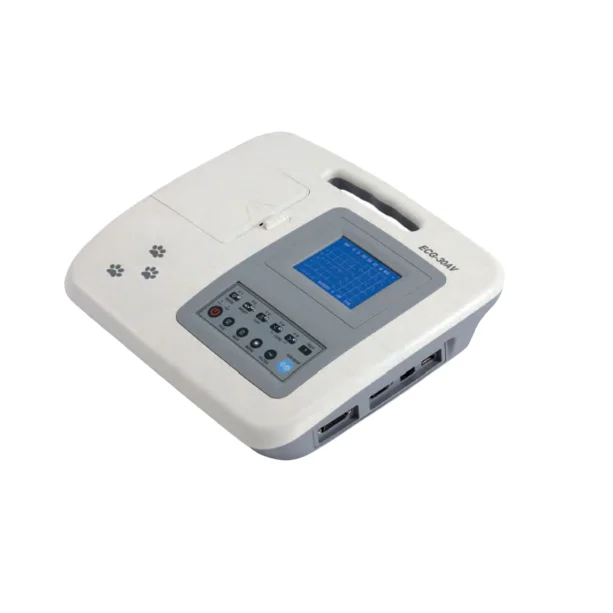

ECG-30AV

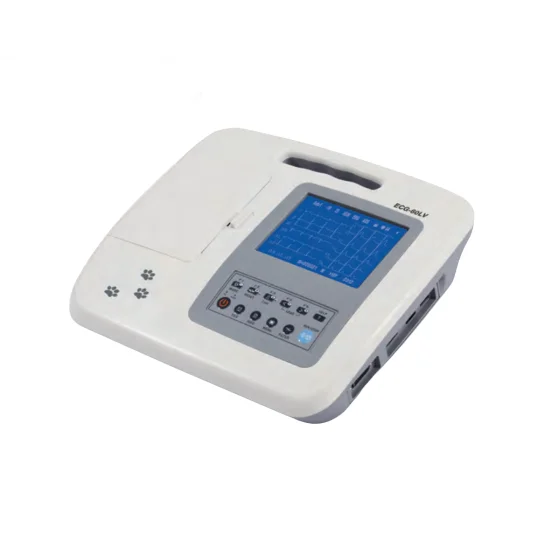

ECG-60LV

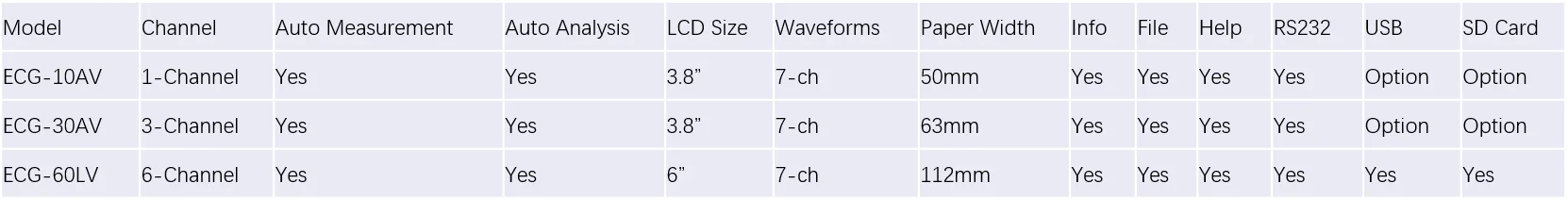

Specification
Specification
item | value |
Place of Origin | China |
Properties | Diagnosis & Injection |
Safety Standard | lEC Class l, type CF |
A/D Converter | 12 bit |
Time Constant | >3.2s |
Frequency Response | 0.05Hz~ 165Hz |
Channel | 1/3/6 |
Sensitivity | 2.5,5,10,20,40 (mm/mV+2%),Auto |
lnput lmpedance | ≥50MΩ |
lnput Circuit Current | ≤50nA |
Calibration Voltage | 1mV±2% |
Noise Level | <15uVp-p |
Company Information
Qingdao Ansha Pharmaceutical Co., Ltd.
Qingdao Ansha Pharmaceutical Co., Ltd. is a division of New Safe High Group Co., Ltd. that has specialized in the veterinary products, animal healthcare service and business solutions to veterinary professionals in worldwide. New Safe High Group Co., Ltd., based in Qingdao China, is a professional medical equipment supplier and total solution provider for hospitals, clinics and laboratories around the world. As one of the leading supplier of medical equipments, has dedicated to provide state-of-the-art products with top-ranking quality and the whole process service to global clients for 20 years.
Focused on the product design, production, sale and service, Ansha enables technology innovation and pursues technology excellence in all its forms. From veterinary Medical Consumables, animal cardiac monitoring, image diagnosis to disease treatment, even laboratory instruments, we take great efforts to provide a broad range of high-quality products and timely services at all time. Most of products are CE certificated.
To this day, Ansha has formed giant marketing networks in more than 160 countries and regions, and now we're building good business relationships with more partners and clients with full sincerity. Our mission is to offer quality products and improve animal welfare steadily.
Ansha provides not only veterinary products but also medical solutions in order to improve efficiency and convenience for veterinarians. Therefore, our vision is to be the global leader in animal health field.
Certifications
Packaging & Shipping
FAQ
1. Who are we?
Qingdao Ansha Pharmaceutical Co., LTD. (short as Dr.Shark Medical), as a wholly-owned subsidiary of New Safe High Group, is dedicated to providing advanced medical devices and comprehensive solutions for animals, including companion animals, farm animals, equine, and exotic animals.
2.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3.What can you buy from us?
We are providing veterinary medical consumables, animal signs monitoring, image diagnosis to disease treatment, even laboratory instruments.
4.Why should you buy from us not from other suppliers?
We are a professional medical device trader with a history of 20 years. Mainly provided in advanced medical devices and comprehensive medical solutions for animals, including companion animals, farm animals, equine, and exotic animals.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,CIP,Express Delivery;Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,LIC,D/P DIA,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
