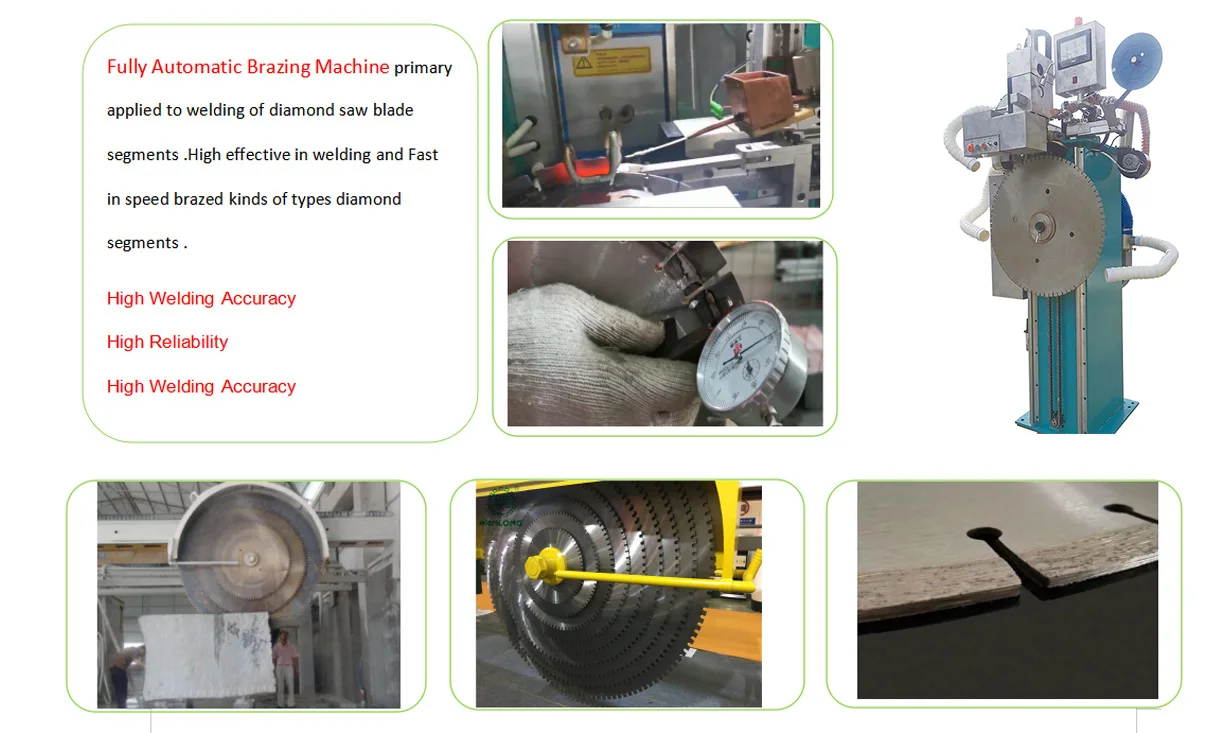

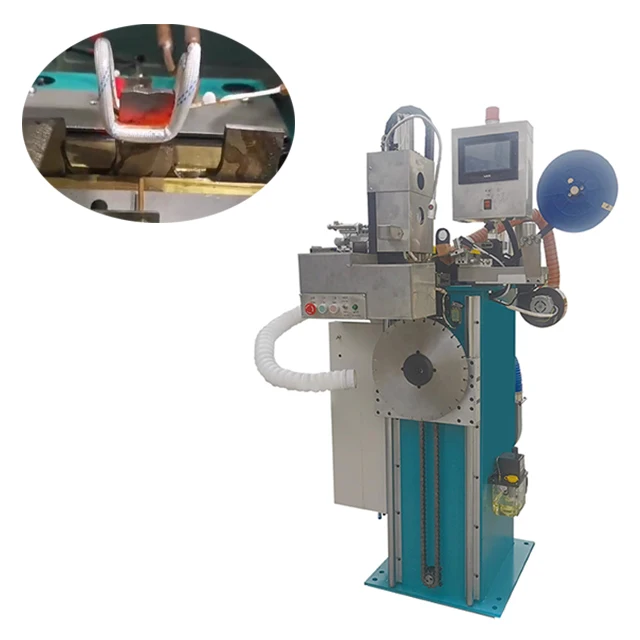

Fully Automatic Diamond Saw Blade Segment high frequency induction Welding Rack stand Brazing Machine Frame for stone saw blade
Product Features:
1.Automatic Measure blade thickness ,Head motor automatic in the center controlled by closed-loop system
2.According saw blade out of shape ,realization followed automatic in the center .
3.Circular windy Cooling system ,Reducing saw blade out of shape Maximum.
4.Adding clamp system,to make sure welding accuracy effective.
5.Displaying error problem and alarmed automatic.
6.Easier operation,save time and labor,be fast,be convenient.
Parameters :
Model | FL-QHJ-1400mm |
Application Range | D300-D1400mm |
Up & Down Distance | 700mm |
Power | 2KW |
Verticality | Less than 0.03mm |
Depth of Parallelism | Less than 0.03mm |
Welding Speed | 3-5s/pcs |
Air Compressor | 0.5-0.8Mpa |
Water Compressor | 0.2Mpa |
Cooling Water Following | 1.5-2M3/H |
Weight | 460kg |
Size | 1150*1200*1700mm |

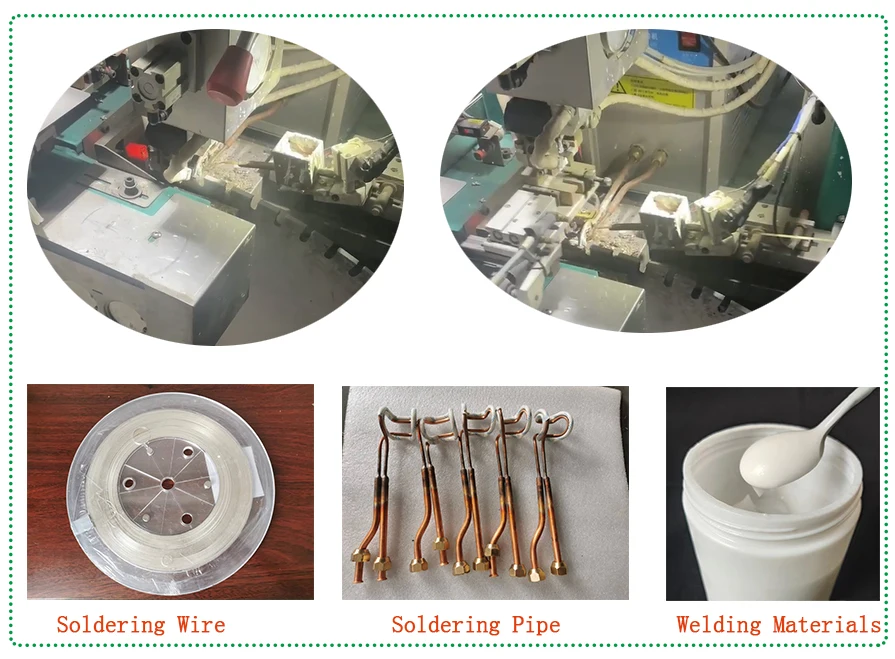

Configuration:
1. Ceramic clip protection function.
2. Dynamoelectric automatic segments separating system.
3. Silver in the touch screen,then machine will automatic cut off the solder and sent to the welding position.Very accurate and convenience. 4. Segment automatic picking & Fixing system.Machine can automatically pick the segment and fix to the welding position.
5. Automatic put soldering flux on the welding side of the segment.Silver solder sending and flux putting are both independent,So they will not influence each other.
Optional Configuration:
1. Infrared ray temperature control system.
2. Automatic put soldering flux on the welding side of the saw blade.
3. Segment automatic centering system.Before welding ,machine will automatic detect the thickness of the saw blade and automatic move the segment to the center,do not need manual adjustment.
Customer Reviews

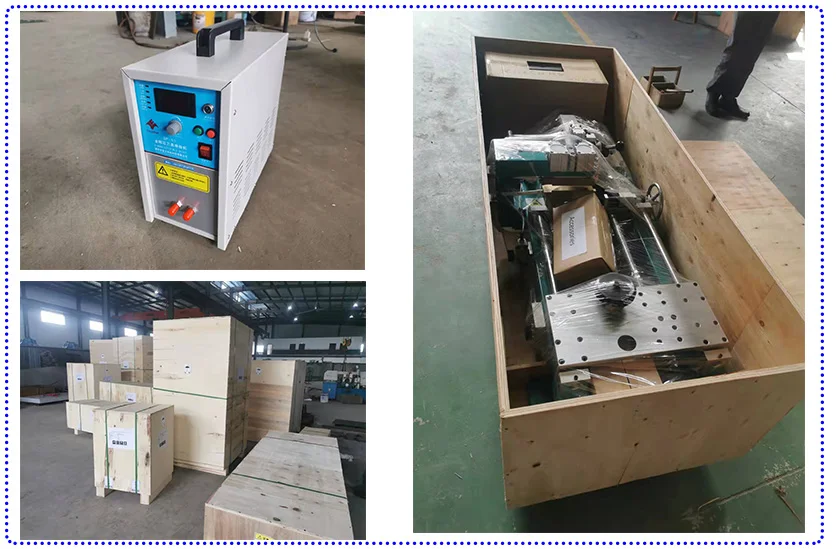

Packaging & Shipping
