Product Description

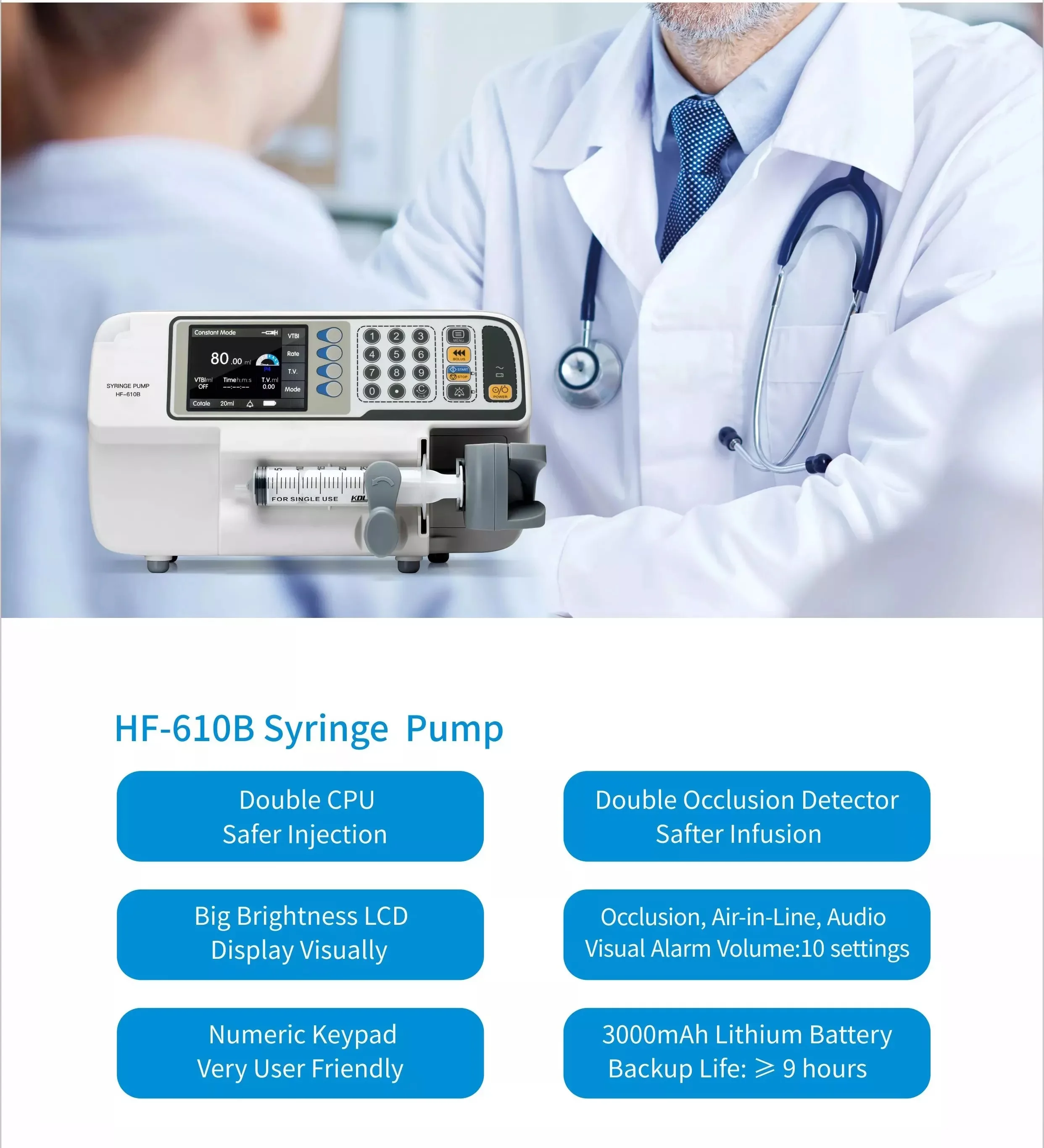

Veterinary syringe pump for medical use
Classic peristaltic finger pump design, accept different brand and material international standard syringe set, the deviation is within ±2% after calibration. Adjust level design to meet injection needs in ICU, NICU, Pediatrics, Geriatrics, Oncology dept, etc. Double CPU to make infusion much safer and more effective.
Different adjustable level setting
Occlusion pressure sensors, dynamic pressure value display, up-occlusion sensor to avoid underflow, 8 adjustable level for
occlusion, air bubble and alarm volume to meet different needs in different department.
Long life battery backup
3000mAh Lithium battery, backup time more than 10hours under battery supply to ensure no interruption when no AC power supply or
in moving condition.
Easy Operation
TFT color LCD, number Keypad
Double CPU Design
Independent CPU design, reliable data transmission, safer infusion.
Various mode
Constant Rate, Time/Volume, Drug Weight, Micro, Sequential, Drug Library Mode
Real-time self-testing
Real-time self-testing during startup and infusing process, ensure the safety of each component and each function, safer infusion.
Features:
1. Safe and reliable
1.1 Using double CPU design, reliable data transmission, safer syringe.
1.2 High precision occlusion pressure sensors design, 8 levels adjustable of sensitivity occlusion pressure.
1.3 Real-time self-testing,real-time self-testing when startup and during syringe process, ensure the safety of each component and
each function, safer syringe.
1.4 Automatic switching between AC and DC power supply , battery backup time more than 9hours under double channel are using,
ensure no interruption when no AC power supply or in moving condition.
1.5 Alarm prompt with sound, light and message, 8 adjustable level of alarm volume.
1.6 Dynamic pressure value display,and real-time detect occlusion pressure status.
1.7 Various alarm, avoid the suddenly accidents during infusion process.
1.8 Motor anti-reverse function, avoid preventing upstream absolutely.
1.9 10000 event log, which reduce doctor-patient disputes and promote harmony between doctors and patients.
2. User friendly

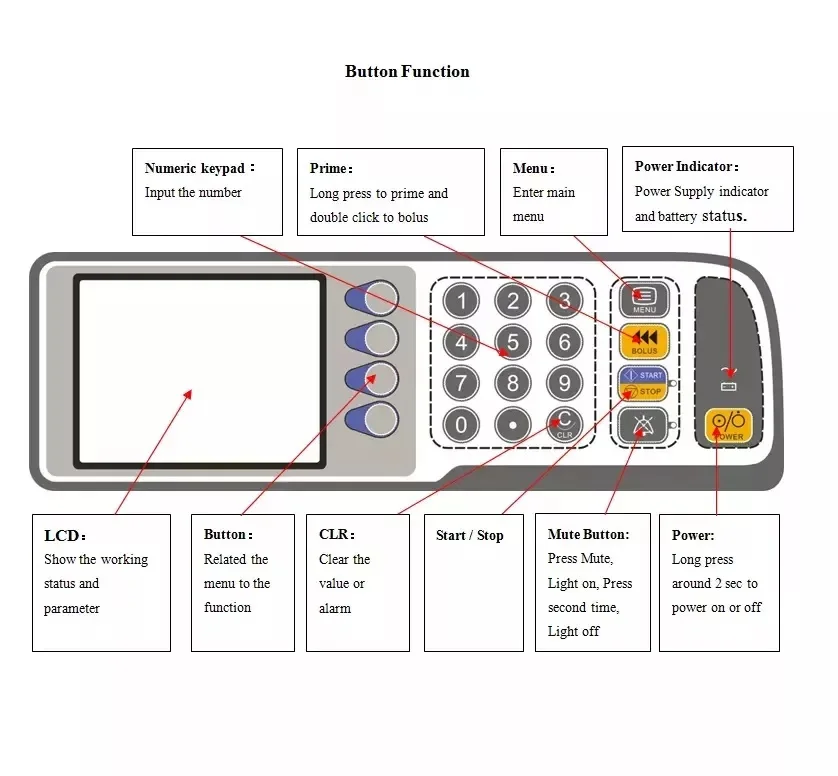

2.1 Numeric keypad input, very user friendly.
2.2 Screen 3.5 inch big brightness LCD, display visually rich content and intuitive.
2.3 As the ATM easy operation menu, that is according people operation hobbits.
2.4 No need to open the battery door when maintain, easy to maintain.
2.5 Claw push rod, easily to install the syringe.
2.6 Freedom of choice between automatic primed and manual primed, displaying the purge rate, accurately knows the total amount of
purge volume.

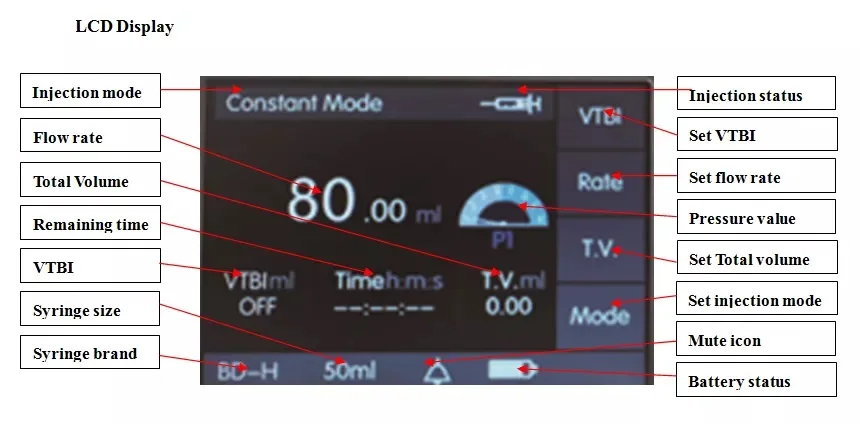

2.7 Displaying the Increment, VIBI, Total Volume, Brand and Sets of Syringe, Mode, Battery Volume, Occlusion pressure value, the
key parameters display clearly.
2.8 Empty settings, syringe will be stop when finish all the fluid inside the syringe, no need to set the VTBI again.
3. Deviation and effective
3.1 The deviation of all international standard IV set are within ±2% after calibration.
3.2 Pulse compensation technology, more precise injection.
3.3 Automatic calibration, able to calibrate different brand syringe, more precise syringe.
3.4 Able to store more than 25 brands of infusion sets, user friendly.
3.5 The position of alarm light is highlighted, visible in directions from a long distance.
3.6 Cannot use the new syringe without calibration, ensure the accuracy and safety of the syringe.
3.7 Able to auto-recognize such five different mode syringe , 5ml, 10ml, 20ml, 30ml, 50(60)ml , and save syringe deviation
automatically.
4. Advanced technology
4.1 Multiple syringe mode, such as the ml/h, d/min, bolus, drug mode, which are greatly facilitate the different users with usage
habits.
4.2 Display 10 levels brightness adjustable, energy saving and environmental protection.
4.3 Both Chinese and English language are available for use by foreign doctors.
4.4 The install method can be rotated by 90 degrees, which is convenient to use in different environments.
4.5 It is can be modified that the alarm time of fluid near empty, remind the medical staff prepare to replace the liquid medicine
in advance.
4.6 Channel sleep function when syringe stop, keep quiet of environment.
4.7 KVO parameter and KVO rate are adjustable from 0.1ml/h to 5ml/h, that ensure the blood vessels are unblocked, and the needle
blood does not coagulate.
4.8 Can be transmitted the event log to PC with USB, information and system upgrade and maintenance.
4.9 Occlusion pressure release function, reducing the pain caused to patients after occlusion.
4.10 Password function, avoid the risk of system parameters being modified by irrelevant personnel.
4.11 The rate of micro mode is adjustable from 0.10 to 99.99, which avoid the incorrect input with high syringe rate.
4.12 The gear setting function of occlusion pressure deviation is suitable all of different brand syringe occlusion pressure
question.
Different adjustable level setting
Occlusion pressure sensors, dynamic pressure value display, up-occlusion sensor to avoid underflow, 8 adjustable level for
occlusion, air bubble and alarm volume to meet different needs in different department.
Long life battery backup
3000mAh Lithium battery, backup time more than 10hours under battery supply to ensure no interruption when no AC power supply or
in moving condition.
Easy Operation
TFT color LCD, number Keypad
Double CPU Design
Independent CPU design, reliable data transmission, safer infusion.
Various mode
Constant Rate, Time/Volume, Drug Weight, Micro, Sequential, Drug Library Mode
Real-time self-testing
Real-time self-testing during startup and infusing process, ensure the safety of each component and each function, safer infusion.
Features:
1. Safe and reliable
1.1 Using double CPU design, reliable data transmission, safer syringe.
1.2 High precision occlusion pressure sensors design, 8 levels adjustable of sensitivity occlusion pressure.
1.3 Real-time self-testing,real-time self-testing when startup and during syringe process, ensure the safety of each component and
each function, safer syringe.
1.4 Automatic switching between AC and DC power supply , battery backup time more than 9hours under double channel are using,
ensure no interruption when no AC power supply or in moving condition.
1.5 Alarm prompt with sound, light and message, 8 adjustable level of alarm volume.
1.6 Dynamic pressure value display,and real-time detect occlusion pressure status.
1.7 Various alarm, avoid the suddenly accidents during infusion process.
1.8 Motor anti-reverse function, avoid preventing upstream absolutely.
1.9 10000 event log, which reduce doctor-patient disputes and promote harmony between doctors and patients.
2. User friendly
2.1 Numeric keypad input, very user friendly.
2.2 Screen 3.5 inch big brightness LCD, display visually rich content and intuitive.
2.3 As the ATM easy operation menu, that is according people operation hobbits.
2.4 No need to open the battery door when maintain, easy to maintain.
2.5 Claw push rod, easily to install the syringe.
2.6 Freedom of choice between automatic primed and manual primed, displaying the purge rate, accurately knows the total amount of
purge volume.
2.7 Displaying the Increment, VIBI, Total Volume, Brand and Sets of Syringe, Mode, Battery Volume, Occlusion pressure value, the
key parameters display clearly.
2.8 Empty settings, syringe will be stop when finish all the fluid inside the syringe, no need to set the VTBI again.
3. Deviation and effective
3.1 The deviation of all international standard IV set are within ±2% after calibration.
3.2 Pulse compensation technology, more precise injection.
3.3 Automatic calibration, able to calibrate different brand syringe, more precise syringe.
3.4 Able to store more than 25 brands of infusion sets, user friendly.
3.5 The position of alarm light is highlighted, visible in directions from a long distance.
3.6 Cannot use the new syringe without calibration, ensure the accuracy and safety of the syringe.
3.7 Able to auto-recognize such five different mode syringe , 5ml, 10ml, 20ml, 30ml, 50(60)ml , and save syringe deviation
automatically.
4. Advanced technology
4.1 Multiple syringe mode, such as the ml/h, d/min, bolus, drug mode, which are greatly facilitate the different users with usage
habits.
4.2 Display 10 levels brightness adjustable, energy saving and environmental protection.
4.3 Both Chinese and English language are available for use by foreign doctors.
4.4 The install method can be rotated by 90 degrees, which is convenient to use in different environments.
4.5 It is can be modified that the alarm time of fluid near empty, remind the medical staff prepare to replace the liquid medicine
in advance.
4.6 Channel sleep function when syringe stop, keep quiet of environment.
4.7 KVO parameter and KVO rate are adjustable from 0.1ml/h to 5ml/h, that ensure the blood vessels are unblocked, and the needle
blood does not coagulate.
4.8 Can be transmitted the event log to PC with USB, information and system upgrade and maintenance.
4.9 Occlusion pressure release function, reducing the pain caused to patients after occlusion.
4.10 Password function, avoid the risk of system parameters being modified by irrelevant personnel.
4.11 The rate of micro mode is adjustable from 0.10 to 99.99, which avoid the incorrect input with high syringe rate.
4.12 The gear setting function of occlusion pressure deviation is suitable all of different brand syringe occlusion pressure
question.

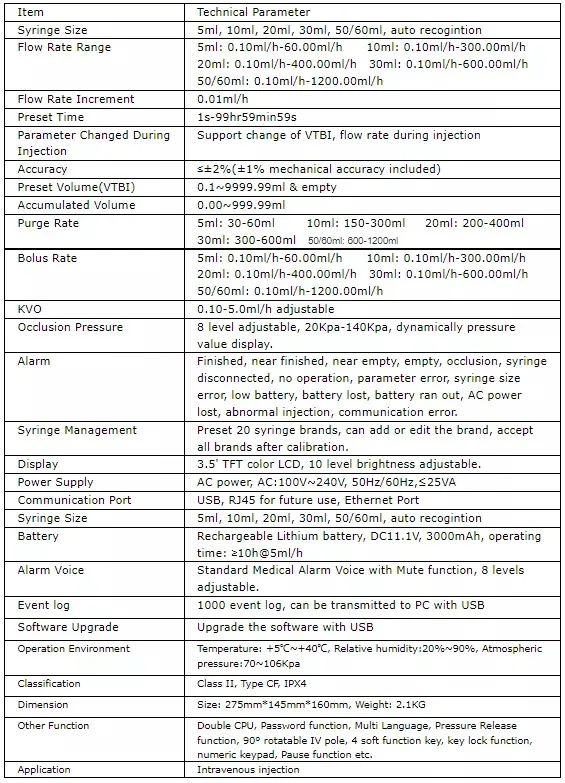

Specification
item | value |
Place of Origin | China |
Model Number | HF-610B |
Properties | Diagnosis & Injection |
Syringe Size | 5ml, 10ml, 20ml, 30ml, 50/60ml, auto recogintion |
Flow Rate Increment | 0.01ml/h |
Preset Time | 1s-99hr59min59s |
Parameter Changed During Injection | Support change of VTBI, flow rate during injection |
Accumulated Volume | 0.00~999.99ml |
KVO | 0.10-5.0ml/h adjustable |
Power Supply | AC power, AC:100V~240V, 50Hz/60Hz,≤25VA |
Product packaging
Certifications
Company Profile
Qingdao Ansha Pharmaceutical Co., Ltd.
Qingdao Ansha Pharmaceutical Co., LTD. (short as Dr.Shark Medical), as a wholly-owned subsidiary of New Safe High Group, is dedicated to providing advanced medical devices and comprehensive solutions for animals, including companion animals, farm animals, equine, and exotic animals.
New Safe High Group based in Qingdao China, is a professional medical equipment supplier and total solution provider for
hospitals, clinics and laboratories around the world. As one of the leading supplier of medical equipments, has dedicated to provide state-of-the-art products with top-ranking quality and the whole process service to global clients for 20 years.
Focused on the annimal medical product design, production, sale and service, Dr.Shark enables technology innovation and pursues technology excellence in all its forms. From veterinary Medical Consumables, Animal Signs Monitoring, Image Diagnosis to Disease Treatment, even Laboratory Instruments, we take great efforts to provide a broad range of high-quality products and timely services at all time. Most of products are CE certificated.
To this day, Dr.Shark has formed giant marketing networks in more than 160 countries and regions, and now we're building good business relationships with more partners and clients with full sincerity. Our mission is to offer quality products and improve animal welfare steadily.
Dr.Shark provides not only veterinary products but also medical solutions in order to improve efficiency and convenience for veterinarians. Therefore, our vision is to be the global leader in animal health field.
FAQ
1. Who are we?
We have a modern production workshop of more than 2,000 square meters, A professional R&D team led by doctoral experts, and a sales service team With nearly 20 years of experience in foreign trade.Can provide you with a Full range of high-quality services.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.What can you buy from us?
Handheld Sprayer,Hand Disinfectant Sprayer,Ultraviolet Disinfectant Lamp
4. Why should you buy from us not from other suppliers?
We are a professional medical device trader with a history of 10 years. Mainly engaged in disinfection
equipment and related supporting products.
equipment and related supporting products.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,CIP,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
